Bosch GR.88 / 0602529007 / --- 72 Volt Spare Parts

Home Details Reviews Delivery

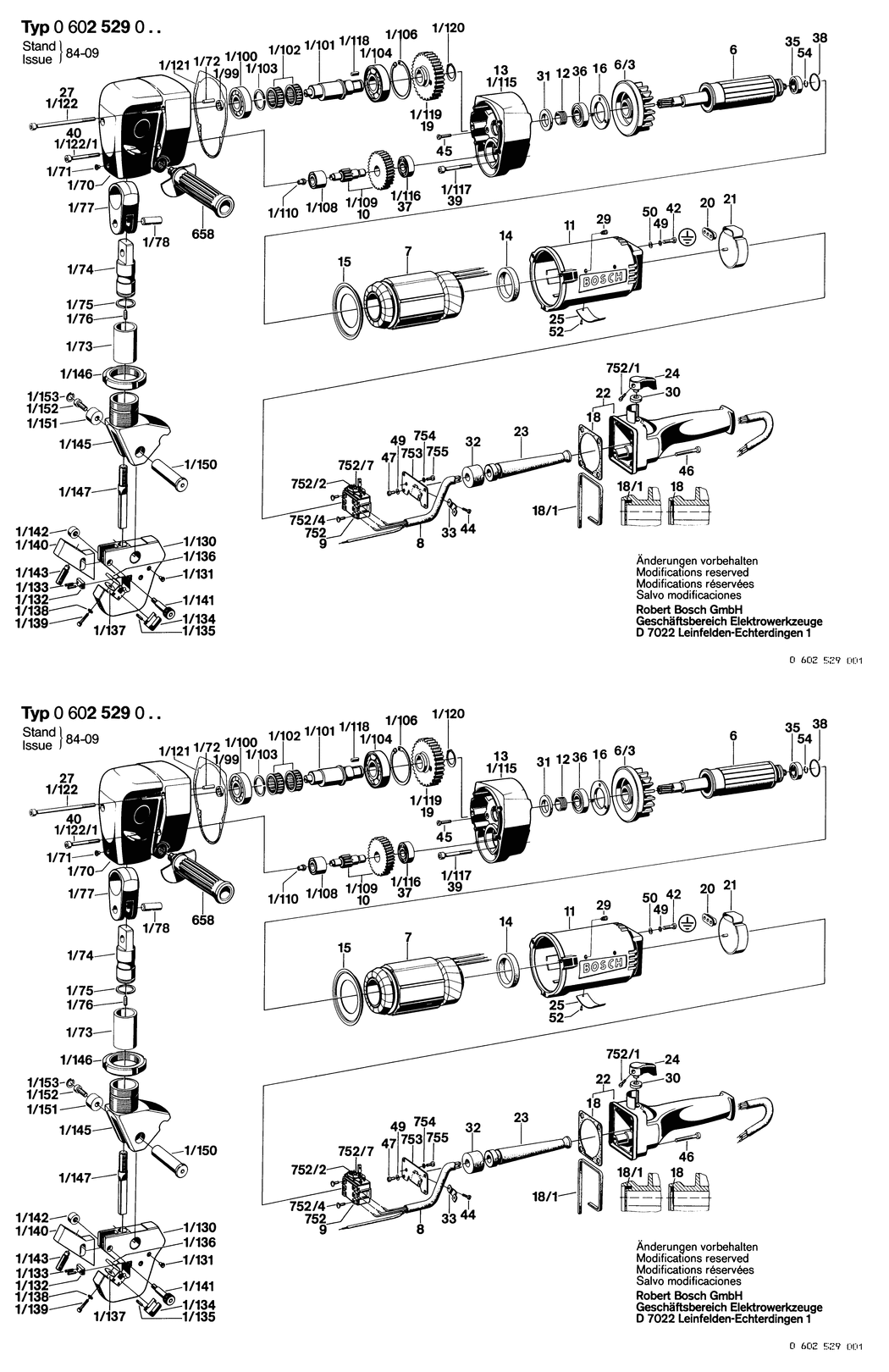

An exploded drawing and listing for the Bosch GR.88 / 0602529007 / --- 72 Volt

	Ex VAT	Inc VAT
1 - GEAR HEAD BSD-1608584006.A4 1608584006	-
1/70 - GEAR HOUSING BSD-1605110020.A3 1605110020	-
1/71 - LUBRICATING NIPPLE BSD-1609274002.A29 1609274002	-
1/72 - STRAIGHT PIN DIN 7-5m 6x16-St BSD-2917510120.A20 2917510120	-
1/73 - BUSHING BSD-1600300070.A2 1600300070	-
1/74 - TAPPET BSD-1603121012.A6 1603121012	-
1/76 - SET SCREW DIN 913-M5x20-45h BSD-2912040162.A3 2912040162	-
1/77 - CONNECTING ROD BSD-1602001001.A3 1602001001	-
1/78 - CONROD PIN BSD-1603100022.A3 1603100022	-
1/100 - SELF-ALIGN ROLLER BEARING BSD-1900910531.A3 1900910531	-
1/101 - ECCENTRIC SHAFT BSD-1606110000.A4 1606110000	-
1/103 - CLAMP RING BSD-1600224029.A2 1600224029	-
1/104 - SELF-ALIGN ROLLER BEARING BSD-1900910532.A4 1900910532	-
1/106 - SPRING RETAINING RING DIN 472 62x2 MM BSD-2916660027.A20 2916660027	£4.26	£5.11
1/109 - SPINDLE WITH GEAR BSD-1606328082.A6 1606328082	-
1/110 - PRESSURE SPINDLE BSD-1603203026.A3 1603203026	-
1/115 - BEARING HOUSING BSD-1605820157.A4 1605820157	-
1/116 - GROOVE BALL BEARING 12x32x10 BSD-1900900302.A93 1900900302	-
1/117 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x45-8.8 BSD-2910141211.A9 2910141211	-
1/118 - PARALLEL KEY BSD-1902300284.A4 1902300284	-
1/119 - CYLINDRICAL GEAR Z=51 BSD-1606317058.A3 1606317058	-
1/120 - SPRING RETAINING RING DIN 471 20x1.2 BSD-2916650011.A35 2916650011	£2.16	£2.59
1/121 - SEAL BSD-1601015005.A8 1601015005	-
1/122 - HEX SOCKET HEAD CAP SCREW BSD-1603414003.A7 1603414003	-
1/122/1 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x55-8.8 BSD-2910141215.A94 2910141215	£3.91	£4.69
1/130 - GUIDE BRACKET BSD-1608040078.A4 1608040078	-
1/130 - GUIDE BRACKET BSD-1608040080.A4 1608040080	-
1/130 - GUIDE BRACKET BSD-1608040081.A3 1608040081	-
1/130 - GUIDE BRACKET BSD-1608040075.A3 1608040075	-
1/130 - GUIDE BRACKET BSD-1608040076.A4 1608040076	-
1/130 - GUIDE BRACKET BSD-1608040077.A3 1608040077	-
1/130 - GUIDE BRACKET BSD-1608040082.A4 1608040082	-
1/130 - GUIDE BRACKET BSD-1608040079.A3 1608040079	-
1/131 - LUBRICATING NIPPLE BSD-1609274002.A30 1609274002	-
1/132 - SUPPORT CLAMP BSD-1602305015.A3 1602305015	-
1/133 - COILED SPRING PIN 4x12-DIN 1481 BSD-2917760095.A5 2917760095	-
1/134 - ARM BRACKET BSD-1609280001.A2 1609280001	-
1/135 - COILED SPRING PIN 4x12-DIN 1481 BSD-2917760095.A4 2917760095	-
1/136 - SUPPORT PLATE BSD-1602307005.A4 1602307005	-
1/136 - SUPPORT PLATE BSD-1602307006.A3 1602307006	-
1/136 - SUPPORT PLATE BSD-1602307007.A4 1602307007	-
1/136 - SUPPORT PLATE BSD-1602307008.A3 1602307008	-
1/136 - SUPPORT PLATE BSD-1602307009.A4 1602307009	-
1/136 - SUPPORT PLATE BSD-1602307010.A3 1602307010	-
1/136 - SUPPORT PLATE BSD-1602307011.A4 1602307011	-
1/136 - SUPPORT PLATE BSD-1602307012.A3 1602307012	-
1/136 - SUPPORT PLATE BSD-1602309001.A3 1602309001	-
1/137 - INTERMEDIATE PLATE BSD-1600100014.A1 1600100014	-
1/137 - INTERMEDIATE PLATE BSD-1600100015.A6 1600100015	-
1/138 - SPRING LOCK WASHER B 8 DIN 127 BSD-2916680009.A5 2916680009	-
1/139 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x18-8.8 BSD-2910141240.A109 2910141240	£1.32	£1.58
1/140 - SCRAPER BSD-1602310010.A4 1602310010	-
1/140 - SCRAPER BSD-1602310011.A3 1602310011	-
1/140 - SCRAPER BSD-1602310012.A4 1602310012	-
1/140 - SCRAPER BSD-1602310008.A4 1602310008	-
1/140 - SCRAPER BSD-1602310009.A3 1602310009	-
1/140 - SCRAPER BSD-1602308010.A4 1602308010	-
1/140 - SCRAPER BSD-1602308012.A4 1602308012	-
1/140 - SCRAPER BSD-1602308011.A3 1602308011	-
1/141 - HEX SOCKET HEAD CAP SCREW BSD-1603414004.A4 1603414004	-
1/142 - THREADED BUSHING BSD-1600363009.A2 1600363009	-
1/143 - SET SCREW BSD-1603402011.A4 1603402011	-
1/143 - SET SCREW BSD-1603402008.A3 1603402008	-
1/143 - SET SCREW BSD-1603402009.A4 1603402009	-
1/143 - SET SCREW BSD-1603402010.A3 1603402010	-
1/143 - SET SCREW BSD-1603402012.A4 1603402012	-
1/145 - CROSS PIECE BSD-1608010009.A6 1608010009	-
1/146 - SLOTTED ROUND NUT BSD-1603342005.A6 1603342005	-
1/147 - CUT-OFF PUNCH BSD-1607930001.A3 1607930001	-
1/147 - CUT-OFF PUNCH BSD-1607930002.A4 1607930002	-
1/150 - TAPPET BSD-1603121013.A1 1603121013	-
1/151 - GUIDE SLEEVE BSD-1600506012.A2 1600506012	-
1/152 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x15-8.8 BSD-2910141237.A10 2910141237	-
1/153 - SPRING RETAINING RING DIN 472-14x1MM BSD-2916660002.A2 2916660002	-
6 - ROTOR WITHOUT WINDING BSD-1604080080.A3 1604080080	-
7 - STATOR 72V/200HZ.110V/300HZ BSD-1604229162.A6 1604229162	-
8 - ELEC. CABLE W/CONNECTION BSD-3604462043.A2 3604462043	£54.42	£65.30
8 - POWER SUPPLY CORD BSD-3604462041.A4 3604462041	-
9 - ON-OFF SWITCH BSD-1607200006.A71 1607200006	£81.81	£98.17
10 - SPINDLE WITH GEAR BSD-1606328082.A5 1606328082	-
11 - MOTOR HOUSING BSD-1605102082.A3 1605102082	-
12 - THREADED RING BSD-1603344017.A16 1603344017	-
13 - BEARING HOUSING BSD-1605820157.A3 1605820157	-
14 - SEAL RING BSD-1600209009.A72 1600209009	£6.85	£8.22
15 - GUIDE PULLEY BSD-1600500014.A61 1600500014	-
16 - COVER DISC BSD-1600134000.A6 1600134000	-
18 - SEAL BSD-1601015011.A3 1601015011	£3.80	£4.56
18/1 - PROFILE STRIP BSD-1601014001.A16 1601014001	-
19 - CYLINDRICAL GEAR Z=51 BSD-1606317058.A4 1606317058	-
20 - GROMMET BSD-1600306000.A17 1600306000	£2.05	£2.46
21 - PROTECTIVE COVER BSD-1600502004.A70 1600502004	£4.26	£5.11
22 - HANDLE BSD-1605132067.A142 1605132067	-
23 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A292 1600703009	£5.87	£7.04
24 - CONTROL LEVER BSD-1602026038.A145 1602026038	£5.30	£6.36
25 - NAMEPLATE BSD-3601106053.A32 3601106053	£5.57	£6.68
27 - HEX SOCKET HEAD CAP SCREW BSD-1603414003.A6 1603414003	-
29 - SET SCREW BSD-1603402004.A94 1603402004	£2.61	£3.13
30 - SEALING DISK dia18xdia10x4 MM BSD-1600108024.A64 1600108024	£1.84	£2.21
31 - SEALING DISK BSD-1600108048.A14 1600108048	£1.84	£2.21
32 - SEALING PLATE BSD-1600113003.A104 1600113003	£2.80	£3.36
33 - FASTENING CLAMP BSD-1601303003.A293 1601303003	£2.27	£2.72
35 - GROOVE BALL BEARING 12x28x8 BSD-1900900287.A57 1900900287	£21.68	£26.01
36 - GROOVE BALL BEARING BSD-1600900019.A1 1600900019	-
37 - GROOVE BALL BEARING 12x32x10 BSD-1900900302.A92 1900900302	-
38 - O-RING BSD-1120210000.A50 1120210000	-
39 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x45-8.8 BSD-2910141211.A10 2910141211	-
40 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x55-8.8 BSD-2910141215.A93 2910141215	£3.91	£4.69
42 - PAN HEAD SCREW DIN 85-MS-M 4x12 BSD-2910110122.A148 2910110122	£1.84	£2.21
44 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1700 2910021118	£1.84	£2.21
45 - SOCKET HEAD CAP SCREW DIN 84-AM4x20-8.8 BSD-2910021130.A161 2910021130	£1.84	£2.21
46 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x40-8.8 BSD-2910141209.A64 2910141209	£2.74	£3.29
47 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1701 2910021118	£1.84	£2.21
49 - SPRING WASHER DIN 137-A4 BSD-1600150006.A108 1600150006	-
50 - CLAMPING SADDLE BSD-3601321001.A761 3601321001	£3.72	£4.47
52 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A551 3603133001	£2.61	£3.13
54 - RETAINING RING BSD-2916610007.A0 2916610007	-
201 - STOP BRACKET BSD-1601331031.A5 1601331031	-
202 - SPRING LOCK WASHER DIN 127-A 8 BSD-2916680035.A13 2916680035	-
203 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x20-8.8 BSD-2910141242.A85 2910141242	£1.84	£2.21
651 - HOOK WRENCH BSD-1907950564.A4 1907950564	-
652 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A567 1907950007	£5.57	£6.68
653 - SLOTTED SPRING PIN 4x12 DIN 1481 BSD-2917761095.A6 2917761095	-
654 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x20-8.8 BSD-2910141242.A84 2910141242	£1.84	£2.21
655 - SPRING LOCK WASHER B 8 DIN 127 BSD-2916680009.A1 2916680009	-
656 - GREASE GUN BSD-1615437500.A3 1615437500	-
657 - SCREWDRIVER DIN 5270 1.6 BSD-1907959021.A3 1907959021	-
658 - AUXILIARY HANDLE M14 BSD-1602025022.A789 1602025022	£13.41	£16.09
658 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A190 1602025030	£19.91	£23.89
752 - ON-OFF SWITCH BSD-1607200006.A67 1607200006	£81.81	£98.17
752/1 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8 BSD-2910001052.A83 2910001052	£2.27	£2.72
752/2 - EXTENSION SPRING BSD-1604650009.A0 1604650009	£1.75	£2.10
752/4 - PAN HEAD SCREW DIN 85-AM4x8-4.8 BSD-2910091118.A355 2910091118	£1.84	£2.21
752/7 - DETENT ROLLER BSD-1603200007.A65 1603200007	-
753 - FIXING PLATE BSD-3601023015.A123 3601023015	£21.68	£26.01
754 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A424 2916690003	£1.75	£2.10
755 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1704 2910021118	£1.84	£2.21
