Bosch GR.77 / 0602119010 / --- Spare Parts

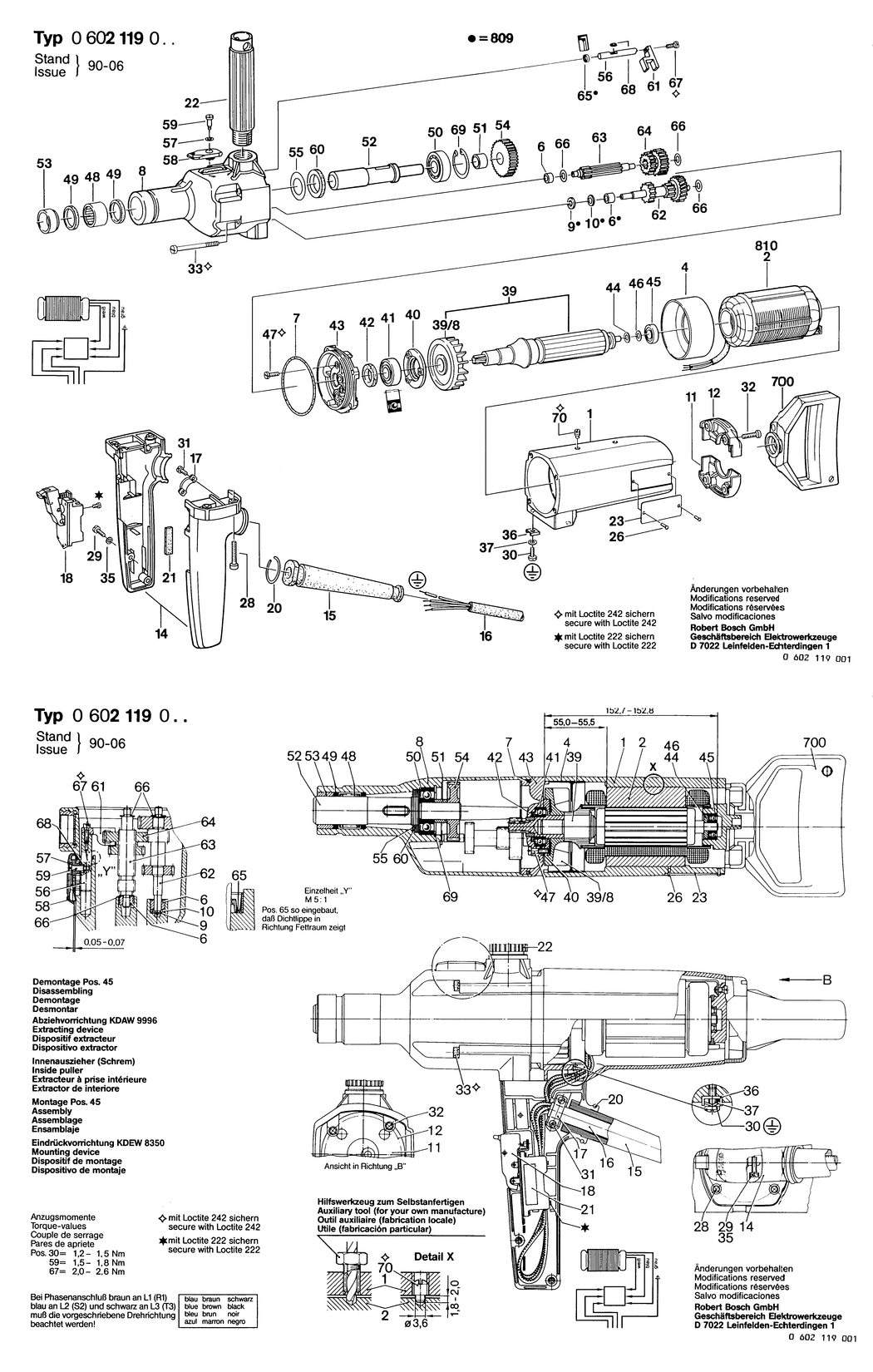

An exploded drawing and listing for the Bosch GR.77 / 0602119010 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605102054.A9 3605102054	-
4 - AIR-DEFLECTOR RING BSD-1600209002.A160 1600209002	£5.30	£6.36
6 - NEEDLE BEARING BSD-1600910013.A143 1600910013	£5.58	£6.70
7 - O-RING 74.0x3.0 MM BSD-1600210006.A116 1600210006	£1.75	£2.10
8 - SPINDLE BEARING BSD-3605806124.A6 3605806124	-
9 - SUPPORTING DISC BSD-1600000004.A4 1600000004	-
10 - SHIM 0.5 MM BSD-1600100631.A181 1600100631	£1.75	£2.10
11 - SEALING CAP BSD-3605500058.A37 3605500058	£13.12	£15.75
12 - SEALING CAP BSD-3605500059.A65 3605500059	£14.91	£17.89
14 - HANDLE BSD-3605132023.A15 3605132023	-
15 - GROMMET dia11.5-dia15.0x150 MM BSD-1600703009.A338 1600703009	£5.58	£6.70
16 - ASSEMBLY OF SERVICE PARTS BSD-3607030235.A2 3607030235	-
17 - FASTENING CLAMP BSD-1601303003.A193 1601303003	£2.16	£2.59
18 - SWITCH BSD-1607200038.A127 1607200038	£54.42	£65.30
20 - RETAINING RING 32 DIN 9045 BSD-2916600017.A38 2916600017	£1.32	£1.58
21 - INSULATING STRIP 33x10x6 MM BSD-1602381001.A480 1602381001	-
22 - HANDLE 400 MM BSD-1600763010.A35 1600763010	£40.80	£48.96
23 - NAMEPLATE BSD-3601106053.A348 3601106053	£5.30	£6.36
26 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A739 3603133001	£2.61	£3.13
28 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x22-8.8 BSD-2910141163.A4 2910141163	£1.75	£2.10
29 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A775 2910021122	£2.16	£2.59
30 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A262 2910110120	£1.75	£2.10
31 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A127 2910021116	£2.16	£2.59
32 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x18-8.8 BSD-2910141160.A27 2910141160	£2.16	£2.59
33 - SOCKET HEAD CAP SCREW BSD-3603414007.A6 3603414007	-
35 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A553 2916690003	£1.75	£2.10
36 - CLAMPING SADDLE BSD-3601321001.A562 3601321001	£3.72	£4.47
37 - SPRING WASHER dia4.2 MM BSD-3600150006.A451 3600150006	£2.61	£3.13
39 - ROTOR WITHOUT WINDING BSD-1604080056.A7 1604080056	-
40 - BEARING COVER BSD-1600501019.A433 1600501019	£23.86	£28.63
41 - GROOVE BALL BEARING 17x35x10 BSD-1600900001.A147 1600900001	-
42 - FELT DISC BSD-1600108003.A82 1600108003	£1.32	£1.58
43 - INTERMEDIATE BEARING BSD-3605820063.A6 3605820063	-
44 - SHIM BSD-1600A004DT.A6 1600A004DT	£2.16	£2.59
45 - MAGNETO BALL BEARING E 7 DIN 615 BSD-1900900005.A10 1900900005	£36.63	£43.96
46 - SHIM 0.2 MM BSD-1600100632.A157 1600100632	£1.75	£2.10
47 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A192 2910021125	£1.75	£2.10
48 - NEEDLE BEARING dia 14 MM BSD-1600910001.A6 1600910001	-
49 - RADIAL SEAL 25X32X4 BSD-3600283018.A6 3600283018	£12.04	£14.45
50 - GROOVE BALL BEARING BSD-1600900004.A17 1600900004	-
51 - SPACER BUSHING BSD-1600300028.A6 1600300028	-
52 - DRILLING SPINDLE BSD-1606135009.A5 1606135009	-
53 - GUIDE BUSHING BSD-1600201006.A8 1600201006	-
54 - CYLINDRICAL GEAR Z=50 BSD-1606317045.A50 1606317045	-
55 - SHIM 0.8 MM BSD-1600102678.A19 1600102678	-
56 - ADJUSTING BOLT BSD-1603104005.A36 1603104005	-
57 - SHIM 0.2 MM BSD-1420100620.A87 1420100620	£1.32	£1.58
58 - CONTROL LEVER BSD-1602026026.A30 1602026026	-
59 - SOCKET HEAD CAP SCREW M3.5x5.5 MM BSD-1603413005.A34 1603413005	£2.52	£3.02
60 - FELT WASHER BSD-1600205009.A16 1600205009	-
61 - CONTROL LEVER BSD-1602120006.A79 1602120006	-
62 - SPINDLE WITH GEAR Z=15/26/33 BSD-1606328060.A15 1606328060	-
63 - SPINDLE WITH GEAR Z=12 BSD-1606309036.A6 1606309036	-
64 - CYLINDRICAL GEAR Z=30/41 BSD-1606328059.A35 1606328059	-
65 - ROTARY SHAFT LIP SEAL BSD-1600283003.A50 1600283003	£4.26	£5.11
66 - SHIM 0.5 MM BSD-1600100631.A182 1600100631	£1.75	£2.10
67 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A776 2910021122	£2.16	£2.59
68 - SPRING LOCK WASHER DIN 127-B3.5 BSD-2916680004.A113 2916680004	-
69 - SPRING RETAINING RING DIN 472-42x1.75MM BSD-2916660019.A59 2916660019	£4.26	£5.11
70 - SET SCREW BSD-1603402002.A40 1603402002	£1.75	£2.10
71 - END SPLICE BSD-3604477008.A230 3604477008	£1.75	£2.10
100 - NEEDLE BEARING BSD-1600910013.A142 1600910013	£5.58	£6.70
651 - DRIFT BSD-3601030002.A22 3601030002	£12.04	£14.45
700 - HANDLE BSD-3605133010.A81 3605133010	-
800 - INTERMEDIATE BEARING BSD-3605820033.A35 3605820033	-
809 - SPINDLE BEARING BSD-3605806066.A45 3605806066	-
810 - STATOR 72V/300HZ BSD-1604229174.A0 1604229174	-

Attribute Name	Value
Brand	Bosch
