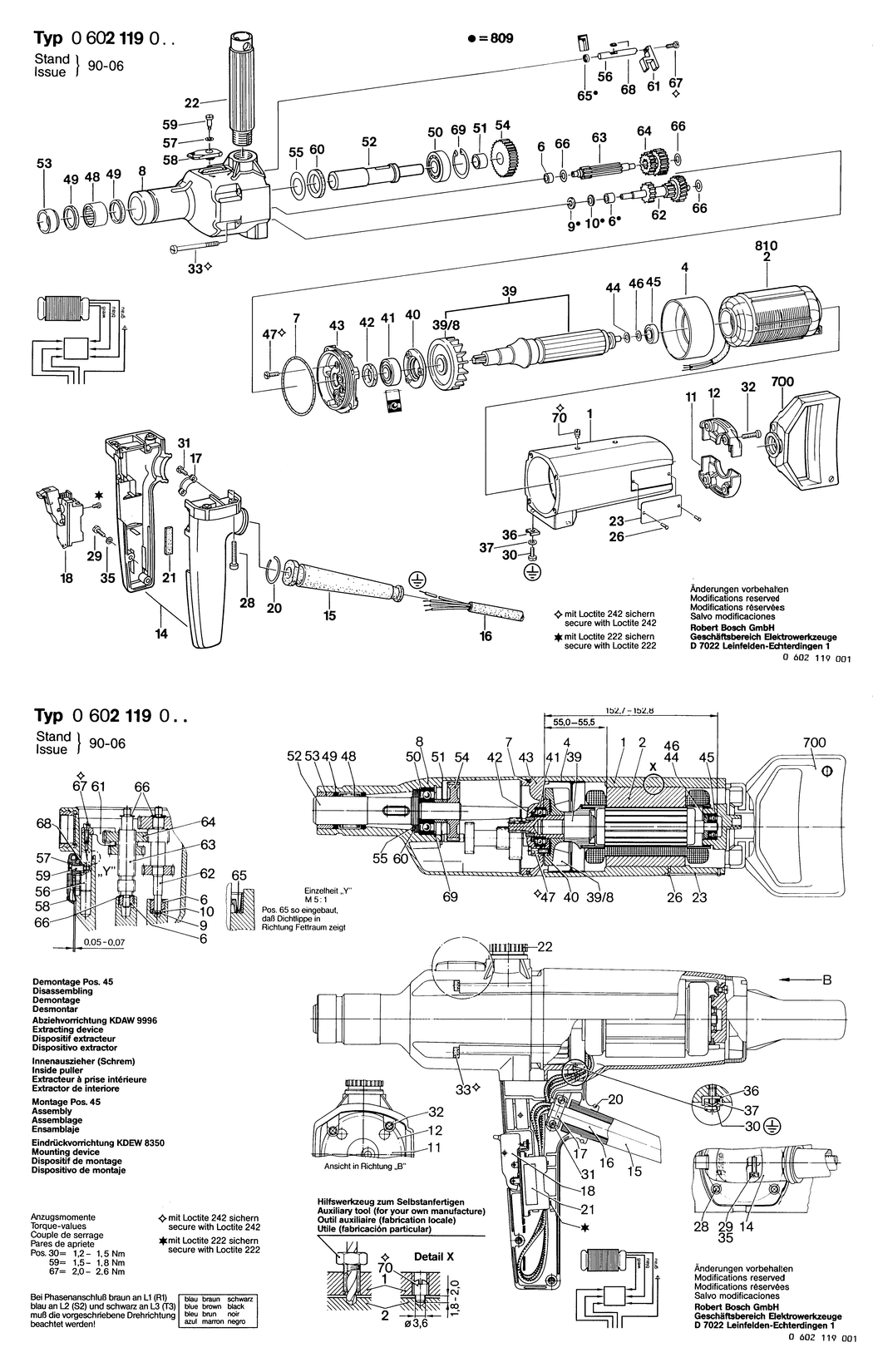

1 - MOTOR HOUSING
BSD-3605102054.A2
3605102054
|
-
|
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600209002.A154
1600209002
|
£5.30
|
£6.36
|
|
|
6 - NEEDLE BEARING
BSD-1600910013.A152
1600910013
|
£5.58
|
£6.70
|
|
|
7 - O-RING 74.0x3.0 MM
BSD-1600210006.A111
1600210006
|
£1.84
|
£2.21
|
|
|
8 - SPINDLE BEARING
BSD-3605806124.A10
3605806124
|
-
|
|
|
|
9 - SUPPORTING DISC
BSD-1600000004.A9
1600000004
|
-
|
|
|
|
10 - SHIM 0.5 MM
BSD-1600100631.A160
1600100631
|
£1.75
|
£2.10
|
|
|
11 - SEALING CAP
BSD-3605500058.A32
3605500058
|
£13.78
|
£16.54
|
|
|
12 - SEALING CAP
BSD-3605500059.A70
3605500059
|
£14.91
|
£17.89
|
|
|
14 - HANDLE
BSD-3605132023.A21
3605132023
|
-
|
|
|
|
15 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A333
1600703009
|
£5.87
|
£7.04
|
|
|
17 - FASTENING CLAMP
BSD-1601303003.A199
1601303003
|
£2.27
|
£2.72
|
|
|
18 - SWITCH
BSD-1607200038.A121
1607200038
|
£57.14
|
£68.57
|
|
|
20 - RETAINING RING 32 DIN 9045
BSD-2916600017.A32
2916600017
|
£1.32
|
£1.58
|
|
|
21 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A469
1602381001
|
-
|
|
|
|
22 - HANDLE 400 MM
BSD-1600763010.A40
1600763010
|
£42.84
|
£51.41
|
|
|
23 - NAMEPLATE
BSD-3601106053.A337
3601106053
|
£5.57
|
£6.68
|
|
|
26 - GROOVED NAIL DIN 1476-2x5 MM
BSD-3603133001.A727
3603133001
|
£2.61
|
£3.13
|
|
|
28 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x22-8.8
BSD-2910141163.A10
2910141163
|
£1.75
|
£2.10
|
|
|
29 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A788
2910021122
|
£2.27
|
£2.72
|
|
|
30 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A268
2910110120
|
£1.84
|
£2.21
|
|
|
31 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A115
2910021116
|
£2.27
|
£2.72
|
|
|
32 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x18-8.8
BSD-2910141160.A21
2910141160
|
£2.27
|
£2.72
|
|
|
33 - SOCKET HEAD CAP SCREW
BSD-3603414007.A11
3603414007
|
-
|
|
|
|
35 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A541
2916690003
|
£1.75
|
£2.10
|
|
|
36 - CLAMPING SADDLE
BSD-3601321001.A574
3601321001
|
£3.72
|
£4.47
|
|
|
37 - SPRING WASHER dia4.2 MM
BSD-3600150006.A463
3600150006
|
£2.74
|
£3.29
|
|
|
39 - ROTOR WITHOUT WINDING
BSD-1604080056.A3
1604080056
|
-
|
|
|
|
40 - BEARING COVER
BSD-1600501019.A438
1600501019
|
£25.05
|
£30.06
|
|
|
41 - GROOVE BALL BEARING 17x35x10
BSD-1600900001.A142
1600900001
|
-
|
|
|
|
42 - FELT DISC
BSD-1600108003.A77
1600108003
|
£1.38
|
£1.66
|
|
|
43 - INTERMEDIATE BEARING
BSD-3605820063.A10
3605820063
|
-
|
|
|
|
44 - SHIM
BSD-1600A004DT.A1
1600A004DT
|
£2.16
|
£2.59
|
|
|
45 - MAGNETO BALL BEARING E 7 DIN 615
BSD-1900900005.A6
1900900005
|
£36.63
|
£43.96
|
|
|
46 - SHIM 0.2 MM
BSD-1600100632.A167
1600100632
|
£1.84
|
£2.21
|
|
|
47 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A176
2910021125
|
£1.75
|
£2.10
|
|
|
48 - NEEDLE BEARING dia 14 MM
BSD-1600910001.A1
1600910001
|
-
|
|
|
|
49 - RADIAL SEAL 25X32X4
BSD-3600283018.A2
3600283018
|
£12.64
|
£15.17
|
|
|
50 - GROOVE BALL BEARING
BSD-1600900004.A13
1600900004
|
-
|
|
|
|
51 - SPACER BUSHING
BSD-1600300028.A1
1600300028
|
-
|
|
|
|
52 - DRILLING SPINDLE
BSD-1606135009.A1
1606135009
|
-
|
|
|
|
53 - GUIDE BUSHING
BSD-1600201006.A3
1600201006
|
-
|
|
|
|
54 - CYLINDRICAL GEAR Z=50
BSD-1606317045.A45
1606317045
|
-
|
|
|
|
55 - SHIM 0.8 MM
BSD-1600102678.A13
1600102678
|
-
|
|
|
|
56 - ADJUSTING BOLT
BSD-1603104005.A47
1603104005
|
-
|
|
|
|
57 - SHIM 0.2 MM
BSD-1420100620.A77
1420100620
|
£1.38
|
£1.66
|
|
|
58 - CONTROL LEVER
BSD-1602026026.A21
1602026026
|
-
|
|
|
|
59 - SOCKET HEAD CAP SCREW M3.5x5.5 MM
BSD-1603413005.A39
1603413005
|
£2.64
|
£3.17
|
|
|
60 - FELT WASHER
BSD-1600205009.A21
1600205009
|
-
|
|
|
|
61 - CONTROL LEVER
BSD-1602120006.A75
1602120006
|
-
|
|
|
|
62 - SPINDLE WITH GEAR Z=15/26/33
BSD-1606328060.A20
1606328060
|
-
|
|
|
|
63 - SPINDLE WITH GEAR Z=12
BSD-1606309036.A0
1606309036
|
-
|
|
|
|
64 - CYLINDRICAL GEAR Z=30/41
BSD-1606328059.A29
1606328059
|
-
|
|
|
|
65 - ROTARY SHAFT LIP SEAL
BSD-1600283003.A45
1600283003
|
£4.26
|
£5.11
|
|
|
66 - SHIM 0.5 MM
BSD-1600100631.A173
1600100631
|
£1.75
|
£2.10
|
|
|
67 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A787
2910021122
|
£2.27
|
£2.72
|
|
|
68 - SPRING LOCK WASHER DIN 127-B3.5
BSD-2916680004.A107
2916680004
|
-
|
|
|
|
69 - SPRING RETAINING RING DIN 472-42x1.75MM
BSD-2916660019.A64
2916660019
|
£4.26
|
£5.11
|
|
|
70 - SET SCREW
BSD-1603402002.A45
1603402002
|
£1.75
|
£2.10
|
|
|
71 - END SPLICE
BSD-3604477008.A235
3604477008
|
£1.75
|
£2.10
|
|
|
100 - NEEDLE BEARING
BSD-1600910013.A133
1600910013
|
£5.58
|
£6.70
|
|
|
651 - DRIFT
BSD-3601030002.A16
3601030002
|
£12.64
|
£15.17
|
|
|
700 - HANDLE
BSD-3605133010.A75
3605133010
|
-
|
|
|
|
800 - INTERMEDIATE BEARING
BSD-3605820033.A41
3605820033
|
-
|
|
|
|
809 - SPINDLE BEARING
BSD-3605806066.A50
3605806066
|
-
|
|
|
|
810 - STATOR 135V/200HZ. 200V/300HZ
BSD-1604229171.A3
1604229171
|
-
|
|
|
