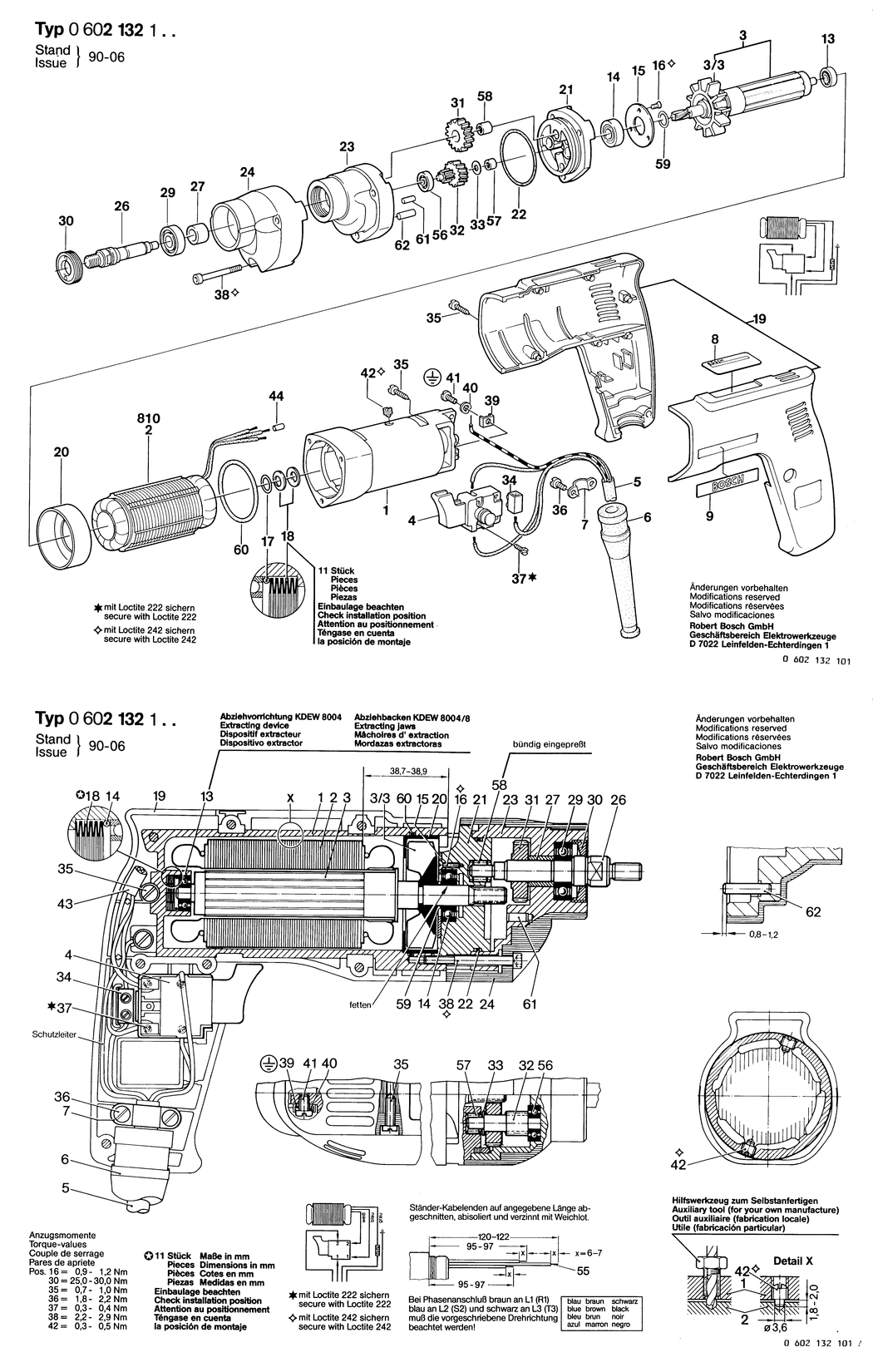

1 - MOTOR HOUSING
BSD-3605102034.A46
3605102034
|
£218.41
|
£262.09
|
|
|
3 - ROTOR
BSD-3604080021.A39
3604080021
|
£218.41
|
£262.09
|
|
|
3/3 - FAN
BSD-1606610105.A176
1606610105
|
£14.91
|
£17.89
|
|
|
4 - SWITCH
BSD-3607200003.A2
3607200003
|
£27.23
|
£32.68
|
|
|
5 - ELEC. CABLE W/CONNECTION
BSD-3604462050.A43
3604462050
|
£27.23
|
£32.68
|
|
|
6 - HOSE
BSD-3600703001.A4
3600703001
|
-
|
|
|
|
7 - FASTENING CLAMP
BSD-1601302014.A86
1601302014
|
£2.61
|
£3.13
|
|
|
8 - NAMEPLATE
BSD-3601106053.A872
3601106053
|
£5.30
|
£6.36
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110483.A10
1601110483
|
£2.61
|
£3.13
|
|
|
13 - GROOVE BALL BEARING 625-2Z DIN 625
BSD-1900905015.A98
1900905015
|
£30.42
|
£36.51
|
|
|
14 - BALL BEARING 7x22x7
BSD-1900905018.A371
1900905018
|
£18.96
|
£22.75
|
|
|
15 - RETAINING WASHER
BSD-3600190012.A110
3600190012
|
-
|
|
|
|
16 - COUNTERSUNK-HEAD SCREW DIN 963-M3x8-8.8
BSD-2910780050.A34
2910780050
|
-
|
|
|
|
17 - O-RING 12.0x2.25 MM
BSD-3600210039.A10
3600210039
|
£7.36
|
£8.83
|
|
|
18 - DISC SPRING
BSD-3600150013.A143
3600150013
|
£3.72
|
£4.47
|
|
|
19 - HANDLE
BSD-3605132038.A37
3605132038
|
£21.68
|
£26.01
|
|
|
20 - AIR-DEFLECTOR RING
BSD-1600502005.A72
1600502005
|
£2.61
|
£3.13
|
|
|
21 - BEARING HOUSING
BSD-3605820043.A33
3605820043
|
£135.25
|
£162.30
|
|
|
22 - O-RING 48.0x2.0 MM
BSD-1610210022.A34
1610210022
|
£1.66
|
£1.99
|
|
|
23 - GEAR HOUSING
BSD-3605106039.A14
3605106039
|
-
|
|
|
|
24 - INSULATING HOUSING
BSD-3605108096.A5
3605108096
|
£11.78
|
£14.13
|
|
|
26 - DRILLING SPINDLE
BSD-3603124012.A21
3603124012
|
-
|
|
|
|
27 - SPACER BUSHING
BSD-3600300016.A8
3600300016
|
£8.67
|
£10.41
|
|
|
29 - GROOVE BALL BEARING
BSD-1600900042.A25
1600900042
|
£5.58
|
£6.70
|
|
|
30 - THREADED RING M 28x1 MM
BSD-3603344013.A13
3603344013
|
£11.78
|
£14.13
|
|
|
31 - CYLINDRICAL GEAR Z=37
BSD-3606316022.A0
3606316022
|
-
|
|
|
|
32 - SPINDLE WITH GEAR Z=11/27
BSD-3606328008.A3
3606328008
|
-
|
|
|
|
33 - SHIM 0.50 MM
BSD-2600100613.A122
2600100613
|
£1.75
|
£2.10
|
|
|
34 - SOCKET-TERMINAL STRIP 1x1.5 MM/2
BSD-1901091012.A22
1901091012
|
£5.30
|
£6.36
|
|
|
35 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A337
2603490023
|
£1.75
|
£2.10
|
|
|
36 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A678
2910021116
|
£2.16
|
£2.59
|
|
|
37 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A180
2603410023
|
-
|
|
|
|
38 - HEX SOCKET HEAD CAP SCREW M 4x40 DIN 912-8.8
BSD-2910141138.A14
2910141138
|
£1.75
|
£2.10
|
|
|
39 - CLAMPING SADDLE
BSD-3601321001.A317
3601321001
|
£3.72
|
£4.47
|
|
|
40 - SPRING WASHER dia4.2 MM
BSD-3600150006.A270
3600150006
|
£2.61
|
£3.13
|
|
|
41 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A307
2910110120
|
£1.75
|
£2.10
|
|
|
42 - SET SCREW
BSD-3603402000.A356
3603402000
|
£1.75
|
£2.10
|
|
|
44 - END SPLICE
BSD-3604477008.A428
3604477008
|
£1.75
|
£2.10
|
|
|
56 - GROOVE BALL BEARING 5x16x5
BSD-1900900232.A48
1900900232
|
£16.74
|
£20.09
|
|
|
57 - NEEDLE BEARING
BSD-1600910012.A24
1600910012
|
£2.80
|
£3.36
|
|
|
58 - NEEDLE BEARING
BSD-1610910064.A44
1610910064
|
£2.52
|
£3.02
|
|
|
59 - O-RING 8.0x1.0 MM
BSD-1600210045.A141
1600210045
|
£1.75
|
£2.10
|
|
|
60 - O-RING 53.0x2.0 MM
BSD-3600210017.A23
3600210017
|
£3.72
|
£4.47
|
|
|
61 - STRAIGHT PIN
BSD-3603100040.A2
3603100040
|
£1.75
|
£2.10
|
|
|
62 - STRAIGHT PIN 4H 8x20 DIN 7
BSD-2917500122.A94
2917500122
|
£1.75
|
£2.10
|
|
|
66 - SHRINKABLE TUBE
BSD-3600707032.A7
3600707032
|
£2.52
|
£3.02
|
|
|
650 - CHUCK dia 33.3x50 MM
BSD-3608571001.A14
3608571001
|
-
|
|
|
|
810 - STATOR 265V/200HZ
BSD-3604229005.A17
3604229005
|
£306.65
|
£367.98
|
|
