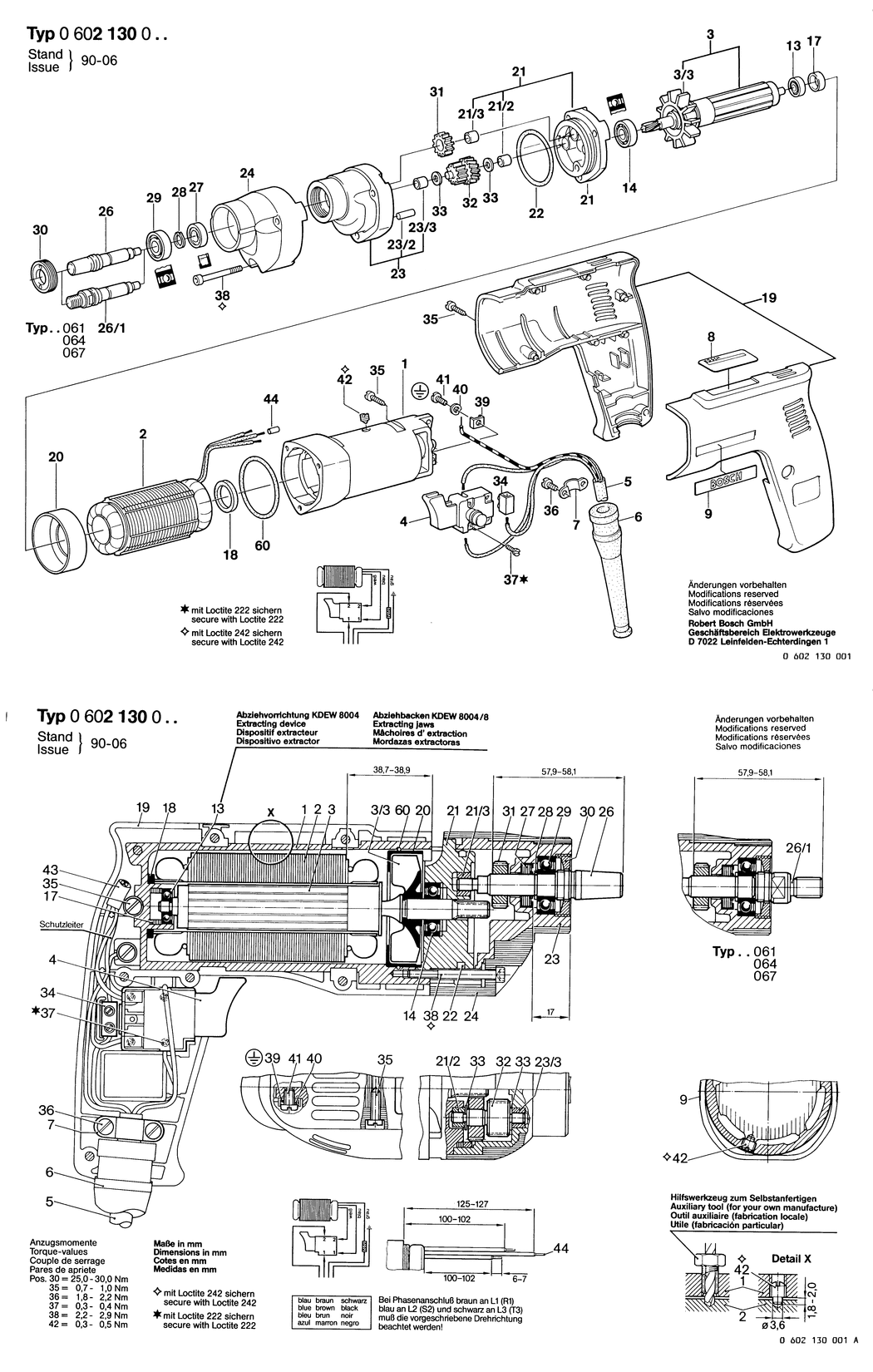

1 - MOTOR HOUSING
BSD-3605102034.A82
3605102034
|
£218.41
|
£262.09
|
|
|
2 - STATOR 265V/200HZ
BSD-3604229005.A0
3604229005
|
£306.65
|
£367.98
|
|
|
3 - ROTOR
BSD-3604080021.A19
3604080021
|
£229.32
|
£275.19
|
|
|
3/3 - FAN
BSD-1606610105.A99
1606610105
|
£15.65
|
£18.78
|
|
|
4 - SWITCH
BSD-3607200003.A34
3607200003
|
£28.59
|
£34.31
|
|
|
5 - ELEC. CABLE W/CONNECTION
BSD-3604462050.A88
3604462050
|
£28.59
|
£34.31
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A248
3600703011
|
£2.94
|
£3.53
|
|
|
7 - FASTENING CLAMP
BSD-1601302014.A441
1601302014
|
£2.74
|
£3.29
|
|
|
8 - NAMEPLATE
BSD-3601106053.A991
3601106053
|
£5.57
|
£6.68
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110130.A23
1601110130
|
-
|
|
|
|
13 - GROOVE BALL BEARING 5x16x5
BSD-1900900232.A85
1900900232
|
£16.74
|
£20.09
|
|
|
14 - GROOVE BALL BEARING 609 RSY/C3 DIN 625
BSD-1900905036.A11
1900905036
|
-
|
|
|
|
17 - RUBBER RING 6MM.dia12xdia16.4x3MM
BSD-3600206002.A110
3600206002
|
-
|
|
|
|
18 - SEAL RING
BSD-1600209011.A307
1600209011
|
£2.94
|
£3.53
|
|
|
19 - HANDLE
BSD-3605132038.A11
3605132038
|
£21.68
|
£26.01
|
|
|
20 - AIR-DEFLECTOR RING
BSD-1600502005.A34
1600502005
|
£2.61
|
£3.13
|
|
|
21 - BEARING HOUSING
BSD-3605820043.A17
3605820043
|
£142.02
|
£170.42
|
|
|
21/2 - BUSHING
BSD-3600300008.A92
3600300008
|
-
|
|
|
|
21/3 - BUSHING
BSD-3600300002.A8
3600300002
|
-
|
|
|
|
22 - O-RING 45x3MM
BSD-1900210146.A252
1900210146
|
£4.48
|
£5.37
|
|
|
23 - ASSEMBLY OF SERVICE PARTS
BSD-3607031325.A26
3607031325
|
-
|
|
|
|
23/2 - STRAIGHT PIN 4H 8x20 DIN 7
BSD-2917500122.A34
2917500122
|
£1.75
|
£2.10
|
|
|
23/3 - BUSHING
BSD-3600300008.A95
3600300008
|
-
|
|
|
|
24 - INSULATING HOUSING
BSD-3605108096.A48
3605108096
|
£11.78
|
£14.13
|
|
|
26 - DRILLING SPINDLE B 12 DIN 238
BSD-3603124001.A17
3603124001
|
-
|
|
|
|
27 - ROTARY SHAFT LIP SEAL
BSD-3600290006.A19
3600290006
|
-
|
|
|
|
28 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A75
2916650001
|
£2.74
|
£3.29
|
|
|
29 - GROOVE BALL BEARING 6000 Z DIN 625
BSD-1900905100.A37
1900905100
|
-
|
|
|
|
30 - THREADED RING M 28x1 MM
BSD-3603344013.A58
3603344013
|
£12.37
|
£14.84
|
|
|
31 - CYLINDRICAL GEAR Z=27
BSD-1606319017.A14
1606319017
|
-
|
|
|
|
32 - SPINDLE WITH GEAR Z=21/27
BSD-1606328094.A1
1606328094
|
-
|
|
|
|
33 - SHIM 0.50 MM
BSD-2600100613.A4
2600100613
|
£1.75
|
£2.10
|
|
|
34 - SOCKET-TERMINAL STRIP 1x1.5 MM/2
BSD-1901091012.A108
1901091012
|
£5.57
|
£6.68
|
|
|
35 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A703
2603490023
|
£1.84
|
£2.21
|
|
|
36 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A567
2910021116
|
£2.27
|
£2.72
|
|
|
37 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A214
2603410023
|
-
|
|
|
|
38 - HEX SOCKET HEAD CAP SCREW M 4x40 DIN 912-8.8
BSD-2910141138.A43
2910141138
|
£1.84
|
£2.21
|
|
|
39 - CLAMPING SADDLE
BSD-3601321001.A147
3601321001
|
£3.72
|
£4.47
|
|
|
40 - SPRING WASHER dia4.2 MM
BSD-3600150006.A150
3600150006
|
£2.74
|
£3.29
|
|
|
41 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A510
2910110120
|
£1.84
|
£2.21
|
|
|
42 - SET SCREW
BSD-3603402000.A290
3603402000
|
£1.84
|
£2.21
|
|
|
44 - END SPLICE
BSD-3604477008.A253
3604477008
|
£1.75
|
£2.10
|
|
|
60 - O-RING 53.0x2.0 MM
BSD-3600210017.A53
3600210017
|
£3.72
|
£4.47
|
|
|
650/800 - CHUCK WRENCH SG2
BSD-2607950007.A230
2607950007
|
£6.85
|
£8.22
|
|
