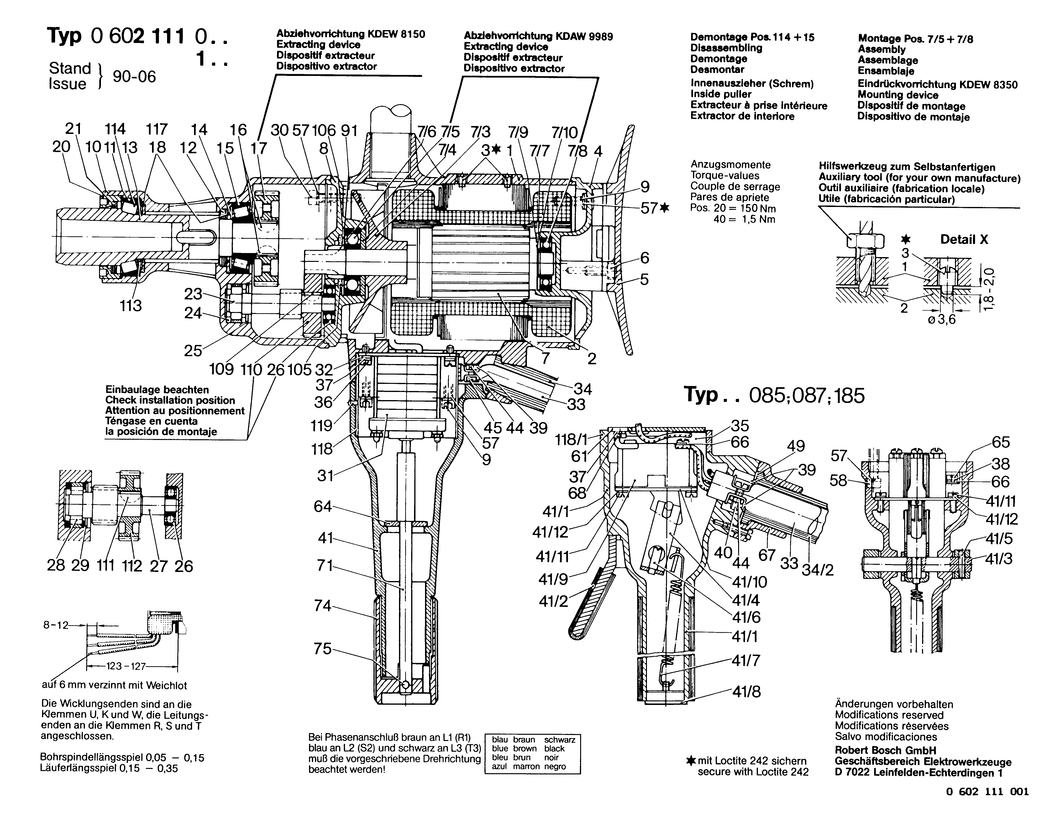

1 - MOTOR HOUSING
BSD-1605102013.A1
1605102013
|
-
|
|
|
|
2 - STATOR 220V/360HZ
BSD-1604229167.A0
1604229167
|
-
|
|
|
|
3 - SET SCREW
BSD-1603402004.A110
1603402004
|
£2.61
|
£3.13
|
|
|
4 - BEARING COVER
BSD-1605808006.A0
1605808006
|
-
|
|
|
|
5 - THRUST PLATE
BSD-1602311001.A2
1602311001
|
-
|
|
|
|
6 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x15-10.9
BSD-2910151196.A1
2910151196
|
-
|
|
|
|
7 - ROTOR WITHOUT WINDING
BSD-1604081002.A7
1604081002
|
-
|
|
|
|
7/3 - FAN
BSD-1606610004.A1
1606610004
|
-
|
|
|
|
7/4 - COVER DISC
BSD-1600120007.A1
1600120007
|
-
|
|
|
|
7/5 - MAGNETO BALL BEARING BO 17 D 615
BSD-1900900115.A13
1900900115
|
-
|
|
|
|
7/6 - OIL RETURN RING
BSD-1600313005.A1
1600313005
|
-
|
|
|
|
7/7 - SHIM 0.2 MM
BSD-1610101603.A35
1610101603
|
£1.84
|
£2.21
|
|
|
7/8 - ANG. CONTACT BALL BEARING E15T DIN 615
BSD-1900900111.A14
1900900111
|
-
|
|
|
|
7/9 - SHIM 0.2 MM
BSD-1610101603.A36
1610101603
|
£1.84
|
£2.21
|
|
|
7/10 - SHIM 0.20 MM
BSD-1200101608.A19
1200101608
|
-
|
|
|
|
8 - BEARING FLANGE
BSD-1605820065.A7
1605820065
|
-
|
|
|
|
9 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8
BSD-2910141201.A45
2910141201
|
£2.74
|
£3.29
|
|
|
10 - SPINDLE HOUSING
BSD-1605806107.A2
1605806107
|
-
|
|
|
|
11 - OUTER RING 302 05 DIN 720
BSD-1900911203.A1
1900911203
|
-
|
|
|
|
12 - SEALING DISK
BSD-1600108002.A2
1600108002
|
-
|
|
|
|
13 - DRILLING SPINDLE
BSD-1606135004.A1
1606135004
|
-
|
|
|
|
14 - SHIM 0.10 MM
BSD-1710102601.A44
1710102601
|
£1.75
|
£2.10
|
|
|
14 - SHIM 0.15 MM
BSD-1710102602.A0
1710102602
|
-
|
|
|
|
15 - TAPERED-ROLLER BEARING 30204 DIN 720
BSD-1900910202.A7
1900910202
|
-
|
|
|
|
16 - WOODRUFF KEY DIN 6888-4x6.5-ST60-2K
BSD-1900023008.A12
1900023008
|
-
|
|
|
|
17 - CYLINDRICAL GEAR Z=44
BSD-1606317027.A6
1606317027
|
-
|
|
|
|
18 - CUPPED WASHER
BSD-1600501036.A5
1600501036
|
-
|
|
|
|
20 - THREADED RING
BSD-1603344012.A2
1603344012
|
-
|
|
|
|
21 - SEALING DISK
BSD-1600108004.A6
1600108004
|
-
|
|
|
|
23 - SPINDLE WITH GEAR Z=12
BSD-1606309011.A7
1606309011
|
-
|
|
|
|
24 - CYL. ROLLER BEARING
BSD-3607020263.A23
3607020263
|
£71.84
|
£86.21
|
|
|
25 - RETAINING RING
BSD-1604601006.A5
1604601006
|
-
|
|
|
|
26 - GROOVE BALL BEARING 6200-2Z DIN 625
BSD-1900905232.A0
1900905232
|
£21.68
|
£26.01
|
|
|
27 - SPINDLE WITH GEAR Z=11
BSD-1606309012.A0
1606309012
|
-
|
|
|
|
28 - CYL. ROLLER BEARING I-82 006 M DIN 5412
BSD-3600905110.A2
3600905110
|
£47.95
|
£57.54
|
|
|
29 - RETAINING RING
BSD-1604601007.A1
1604601007
|
-
|
|
|
|
30 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x35-8.8
BSD-2910141207.A41
2910141207
|
-
|
|
|
|
32 - PLAIN WASHER 4.3 DIN 433-ST
BSD-2916011009.A16
2916011009
|
-
|
|
|
|
33 - CABLE
BSD-1604422017.A0
1604422017
|
-
|
|
|
|
34 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A793
3600703011
|
£2.94
|
£3.53
|
|
|
36 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1337
2910021118
|
£1.84
|
£2.21
|
|
|
37 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A350
2916690003
|
£1.75
|
£2.10
|
|
|
38 - CLAMPING SADDLE
BSD-3601321001.A442
3601321001
|
£3.72
|
£4.47
|
|
|
39 - FASTENING CLAMP
BSD-1601302002.A8
1601302002
|
-
|
|
|
|
40 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A268
2910021125
|
£1.75
|
£2.10
|
|
|
41 - HANDLE
BSD-1605132056.A2
1605132056
|
-
|
|
|
|
41/1 - HANDLE
BSD-1605132037.A5
1605132037
|
-
|
|
|
|
41/2 - CONTROL LEVER
BSD-1612098001.A11
1612098001
|
-
|
|
|
|
41/3 - BEARING BOLT
BSD-1603103002.A9
1603103002
|
-
|
|
|
|
41/4 - CONTROL LEVER
BSD-1611321004.A1
1611321004
|
-
|
|
|
|
41/5 - COILED SPRING PIN DIN 1481-4x18
BSD-2917760098.A5
2917760098
|
-
|
|
|
|
41/6 - SET SCREW DIN 417-M6x18-5.8
BSD-2912051199.A7
2912051199
|
-
|
|
|
|
41/7 - EXTENSION SPRING
BSD-1614650000.A0
1614650000
|
-
|
|
|
|
41/8 - SEALING CAP
BSD-1615500058.A11
1615500058
|
-
|
|
|
|
41/9 - ON-OFF SWITCH
BSD-1607200016.A1
1607200016
|
-
|
|
|
|
41/10 - FIXING PLATE
BSD-1600136001.A6
1600136001
|
-
|
|
|
|
41/11 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1335
2910021118
|
£1.84
|
£2.21
|
|
|
41/12 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A352
2916690003
|
£1.75
|
£2.10
|
|
|
44 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A690
2915011005
|
£1.84
|
£2.21
|
|
|
45 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A682
2910021122
|
£2.27
|
£2.72
|
|
|
49 - PLAIN WASHER
BSD-1600102006.A0
1600102006
|
£2.16
|
£2.59
|
|
|
57 - SPRING LOCK WASHER M6
BSD-2916690005.A28
2916690005
|
-
|
|
|
|
58 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x45-8.8
BSD-2910141211.A5
2910141211
|
-
|
|
|
|
61 - COVER PLATE
BSD-1600030004.A2
1600030004
|
-
|
|
|
|
64 - LOCKING WASHER
BSD-1600100009.A0
1600100009
|
-
|
|
|
|
65 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A85
2910110120
|
£1.84
|
£2.21
|
|
|
66 - SPRING WASHER DIN 137-A4
BSD-1600150006.A242
1600150006
|
-
|
|
|
|
67 - GUIDE SLEEVE
BSD-1600328026.A0
1600328026
|
-
|
|
|
|
91 - SHIM 0.30 MM
BSD-1600102601.A0
1600102601
|
-
|
|
|
|
91 - SHIM 0.10 MM
BSD-1600102602.A21
1600102602
|
-
|
|
|
|
91 - SHIM 0.15 MM
BSD-1600102603.A0
1600102603
|
-
|
|
|
|
105 - FELT DISC
BSD-1600108018.A137
1600108018
|
£2.61
|
£3.13
|
|
|
106 - SHIM 0.8 MM
BSD-1600102609.A14
1600102609
|
-
|
|
|
|
109 - WOODRUFF KEY DIN 6888 3x5 ST60-2
BSD-1900023005.A6
1900023005
|
£1.32
|
£1.58
|
|
|
110 - CYLINDRICAL GEAR Z=34
BSD-1606317008.A7
1606317008
|
-
|
|
|
|
111 - WOODRUFF KEY DIN6888-3x6.5-ST60-2K
BSD-1900023007.A3
1900023007
|
-
|
|
|
|
112 - CYLINDRICAL GEAR Z=36
BSD-1606317009.A0
1606317009
|
-
|
|
|
|
113 - CAGE 30 205 DIN 720
BSD-1900915203.A4
1900915203
|
-
|
|
|
|
114 - CONICAL ROLLER 30 205 DIN 720
BSD-1903203203.A1
1903203203
|
-
|
|
|
|
117 - CUPPED WASHER
BSD-1600501036.A3
1600501036
|
-
|
|
|
|
118/1 - CONNECTING FLANGE
BSD-1605700005.A2
1605700005
|
-
|
|
|
|
119 - BUTTON-HEAD RIVET 2x6 DIN660
BSD-2917031019.A3
2917031019
|
-
|
|
|
