Bosch ---- / 0602488118 / --- Spare Parts

Home Details Reviews Delivery

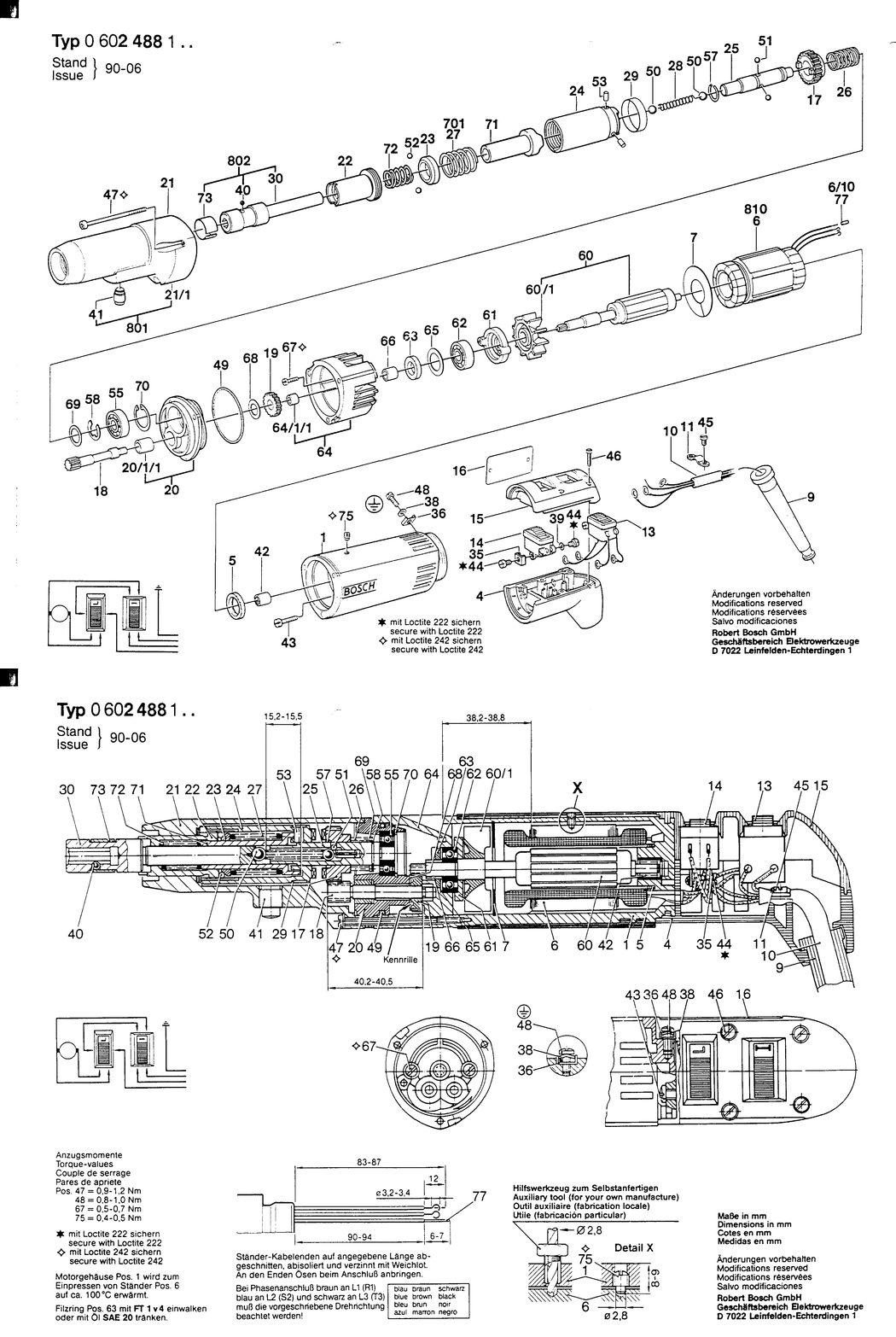

An exploded drawing and listing for the Bosch ---- / 0602488118 / ---

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3605102051.A7 3605102051	£142.02	£170.42
4 - HANDLE BSD-3605132046.A72 3605132046	-
5 - FELT WASHER BSD-1600205026.A130 1600205026	£2.74	£3.29
6/10 - END SPLICE A 0.5-6 DIN 46 228 BSD-1900452000.A55 1900452000	-
7 - AIR-DEFLECTOR RING BSD-1600117001.A43 1600117001	£2.16	£2.59
9 - GROMMET dia5.5-dia8.3x75 MM BSD-1600703012.A77 1600703012	£2.52	£3.02
10 - CABLE BSD-1604421025.A8 1604421025	-
11 - FASTENING CLAMP BSD-1601302001.A130 1601302001	£1.75	£2.10
13 - SWITCH BSD-1607200067.A32 1607200067	-
14 - REVERSING SWITCH BSD-1607200066.A64 1607200066	£66.68	£80.01
15 - HOUSING COVER BSD-3605500067.A31 3605500067	-
16 - NAMEPLATE BSD-3601106053.A966 3601106053	£5.57	£6.68
17 - CYLINDRICAL GEAR Z=34 BSD-1606325012.A6 1606325012	-
18 - SPINDLE WITH GEAR Z=10 BSD-1603160029.A0 1603160029	-
19 - CYLINDRICAL GEAR Z=25 BSD-1606319009.A1 1606319009	-
20 - BEARING HOUSING BSD-3605820053.A22 3605820053	-
20/1/1 - SINTERED-METAL BUSHING J6G7x10r6x8DIN1850 BSD-1900301008.A17 1900301008	£2.74	£3.29
21 - SPINDLE BEARING BSD-3605806123.A1 3605806123	-
22 - THREADED BUSHING BSD-3600364011.A0 3600364011	-
23 - THRUST RING BSD-1600201012.A7 1600201012	-
24 - CARRIER BSD-1606445006.A1 1606445006	-
25 - CONTROL SHAFT BSD-1603124092.A1 1603124092	-
26 - COMPRESSION SPRING BSD-1604616017.A0 1604616017	£2.80	£3.36
27 - COMPRESSION SPRING BSD-1604619012.A7 1604619012	-
28 - COMPRESSION SPRING BSD-1604611021.A1 1604611021	-
29 - RETAINING SNAP RING BSD-1600209013.A23 1600209013	-
30 - TOOLHOLDER BSD-3608508002.A4 3608508002	-
35 - CLAMPING SADDLE BSD-3601321004.A6 3601321004	£2.16	£2.59
39 - SPRING WASHER A 3 DIN 137-ST BSD-2916060003.A185 2916060003	£1.32	£1.58
40 - BALL DIN 5401-3.5 MM-III-ST BSD-1903230006.A58 1903230006	£2.27	£2.72
41 - PRESSURE SPINDLE BSD-1603203024.A4 1603203024	-
42 - NEEDLE-ROLLER BEARING BSD-3600910002.A32 3600910002	£27.23	£32.68
43 - TAPPING SCREW DIN 7971-BZ4.2x13 BSD-2910211025.A129 2910211025	£1.84	£2.21
44 - PAN HEAD SCREW DIN 85-AM3.5x15-4.8 BSD-2910091046.A101 2910091046	£1.84	£2.21
45 - SOCKET HEAD CAP SCREW DIN 84-AM3x6-5.8 BSD-2910011048.A118 2910011048	£1.75	£2.10
46 - TAPPING SCREW DIN 7971-BZ3.5x19 BSD-2910211013.A53 2910211013	-
47 - SOCKET HEAD CAP SCREW DIN 84-BM3x55-8.8 BSD-2910021076.A25 2910021076	-
49 - O-RING 35.0x1.5 MM BSD-1600210010.A95 1600210010	£2.80	£3.36
50 - BALL DIN 5401-6 G28 BSD-1903230011.A402 1903230011	£2.74	£3.29
51 - BALL DIN 5401-3.5 MM-III-ST BSD-1903230006.A57 1903230006	£2.27	£2.72
52 - BALL DIN 5401-3 MM-III-ST BSD-1903230004.A338 1903230004	£2.27	£2.72
53 - CYLINDRICAL ROLLER BSD-1603200011.A46 1603200011	-
55 - GROOVE BALL BEARING 6x19x6 BSD-1900905019.A285 1900905019	£14.91	£17.89
57 - RETAINING RING 10 DIN 9045 BSD-2916600006.A120 2916600006	£1.84	£2.21
58 - LOCKING WASHER 8 DIN 6799 BSD-2916080011.A23 2916080011	-
60 - ROTOR WITHOUT WINDING BSD-3604080000.A13 3604080000	-
60/1 - FAN BSD-1606610108.A24 1606610108	£13.12	£15.75
61 - CONICAL SPRING WASHER BSD-1600501030.A154 1600501030	-
62 - GROOVE BALL BEARING 6x19x6 BSD-1900900428.A93 1900900428	£17.58	£21.09
63 - FELT WASHER BSD-1600205025.A54 1600205025	-
64 - GEAR HOUSING BSD-3605806105.A5 3605806105	£108.30	£129.96
64/1/1 - SINTERED-METAL BUSHING BSD-1600301000.A9 1600301000	-
65 - SHIM 0.60 MM BSD-3600101016.A89 3600101016	-
66 - INTERMEDIATE RING BSD-1600300044.A56 1600300044	-
67 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8 BSD-2910001052.A238 2910001052	£2.27	£2.72
68 - SHIM BSD-1420100649.A29 1420100649	-
69 - SHIM BSD-2200101601.A0 2200101601	-
70 - SPRING RETAINING RING DIN 472-19x1MM BSD-2916660005.A14 2916660005	£1.75	£2.10
71 - COUPLING HALF 55Â° BSD-3606455026.A2 3606455026	-
72 - COMPRESSION SPRING BSD-3604618004.A0 3604618004	£4.48	£5.37
73 - HOLDING SPRING BSD-3604682003.A42 3604682003	-
75 - SET SCREW DIN 915-M4x6-45H BSD-2912081116.A393 2912081116	£2.61	£3.13
77 - END SPLICE A 0.5-6 DIN 46 228 BSD-1900452000.A57 1900452000	-
99 - REFERENCE PLATE BSD-3601119236.A25 3601119236	£3.91	£4.69
651 - SLOTTED SCREWDRIVER BSD-1607950037.A4 1607950037	£51.22	£61.47
701 - COMPRESSION SPRING BSD-1604618005.A2 1604618005	-
702 - SUSPENSION LOOP BSD-3604682001.A35 3604682001	-
703 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A756 2910021118	£1.84	£2.21
801 - SPINDLE BEARING BSD-3605806170.A8 3605806170	-
802 - TOOLHOLDER BSD-3608508003.A4 3608508003	-
810 - STATOR 42V/300HZ BSD-3604229004.A4 3604229004	-

Attribute Name	Value
Brand	Bosch
