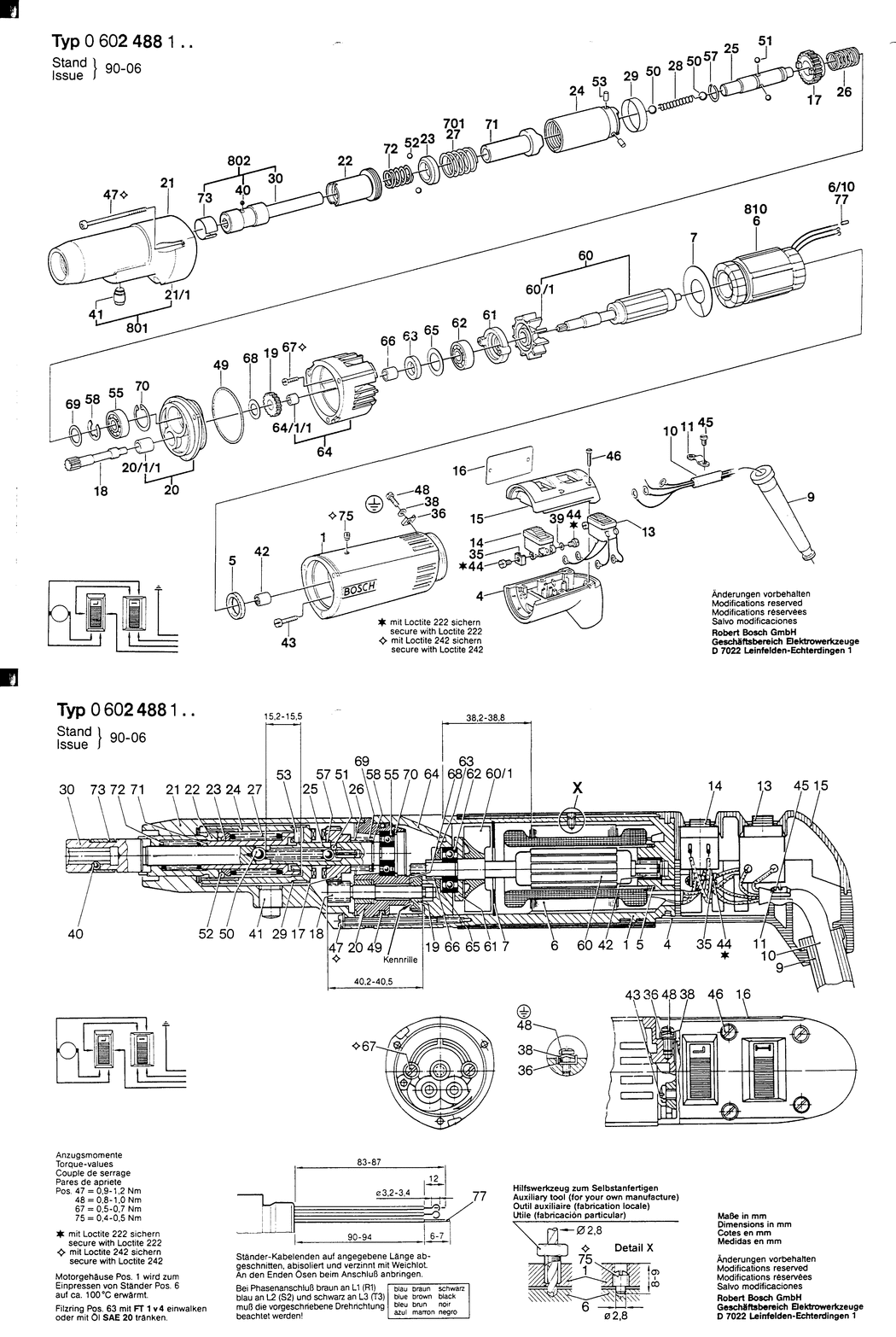

1 - MOTOR HOUSING
BSD-3605102051.A9
3605102051
|
£142.02
|
£170.42
|
|
|
4 - HANDLE
BSD-3605132046.A73
3605132046
|
-
|
|
|
|
5 - FELT WASHER
BSD-1600205026.A129
1600205026
|
£2.74
|
£3.29
|
|
|
6/10 - END SPLICE A 0.5-6 DIN 46 228
BSD-1900452000.A53
1900452000
|
-
|
|
|
|
7 - AIR-DEFLECTOR RING
BSD-1600117001.A44
1600117001
|
£2.16
|
£2.59
|
|
|
9 - GROMMET dia5.5-dia8.3x75 MM
BSD-1600703012.A79
1600703012
|
£2.52
|
£3.02
|
|
|
10 - ELEC. CABLE W/CONNECTION
BSD-3604462048.A33
3604462048
|
-
|
|
|
|
11 - FASTENING CLAMP
BSD-1601302001.A131
1601302001
|
£1.75
|
£2.10
|
|
|
13 - SWITCH
BSD-1607200067.A33
1607200067
|
-
|
|
|
|
14 - REVERSING SWITCH
BSD-1607200066.A63
1607200066
|
£66.68
|
£80.01
|
|
|
15 - HOUSING COVER
BSD-3605500067.A30
3605500067
|
-
|
|
|
|
16 - NAMEPLATE
BSD-3601106053.A964
3601106053
|
£5.57
|
£6.68
|
|
|
17 - CYLINDRICAL GEAR Z=34
BSD-1606325012.A4
1606325012
|
-
|
|
|
|
18 - SPINDLE WITH GEAR Z=10
BSD-1603160029.A1
1603160029
|
-
|
|
|
|
19 - CYLINDRICAL GEAR Z=25
BSD-1606319009.A3
1606319009
|
-
|
|
|
|
20 - BEARING HOUSING
BSD-3605820053.A24
3605820053
|
-
|
|
|
|
20/1/1 - SINTERED-METAL BUSHING J6G7x10r6x8DIN1850
BSD-1900301008.A18
1900301008
|
£2.74
|
£3.29
|
|
|
21 - SPINDLE BEARING
BSD-3605806123.A3
3605806123
|
-
|
|
|
|
22 - THREADED BUSHING
BSD-3600364011.A1
3600364011
|
-
|
|
|
|
23 - THRUST RING
BSD-1600201012.A6
1600201012
|
-
|
|
|
|
24 - CARRIER
BSD-1606445006.A3
1606445006
|
-
|
|
|
|
25 - CONTROL SHAFT
BSD-1603124092.A3
1603124092
|
-
|
|
|
|
26 - COMPRESSION SPRING
BSD-1604616017.A1
1604616017
|
£2.80
|
£3.36
|
|
|
27 - COMPRESSION SPRING
BSD-1604619012.A5
1604619012
|
-
|
|
|
|
28 - COMPRESSION SPRING
BSD-1604611021.A3
1604611021
|
-
|
|
|
|
29 - RETAINING SNAP RING
BSD-1600209013.A24
1600209013
|
-
|
|
|
|
30 - TOOLHOLDER
BSD-3608508002.A5
3608508002
|
-
|
|
|
|
35 - CLAMPING SADDLE
BSD-3601321004.A5
3601321004
|
£2.16
|
£2.59
|
|
|
36 - CLAMPING SADDLE
BSD-3601321002.A88
3601321002
|
£2.64
|
£3.17
|
|
|
38 - SPRING WASHER
BSD-3600150009.A16
3600150009
|
£2.80
|
£3.36
|
|
|
39 - SPRING WASHER A 3 DIN 137-ST
BSD-2916060003.A184
2916060003
|
£1.32
|
£1.58
|
|
|
40 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A56
1903230006
|
£2.27
|
£2.72
|
|
|
41 - PRESSURE SPINDLE
BSD-1603203024.A5
1603203024
|
-
|
|
|
|
42 - NEEDLE-ROLLER BEARING
BSD-3600910002.A34
3600910002
|
£27.23
|
£32.68
|
|
|
43 - TAPPING SCREW DIN 7971-BZ4.2x13
BSD-2910211025.A128
2910211025
|
£1.84
|
£2.21
|
|
|
44 - PAN HEAD SCREW DIN 85-AM3.5x15-4.8
BSD-2910091046.A99
2910091046
|
£1.84
|
£2.21
|
|
|
45 - SOCKET HEAD CAP SCREW DIN 84-AM3x6-5.8
BSD-2910011048.A117
2910011048
|
£1.75
|
£2.10
|
|
|
46 - TAPPING SCREW DIN 7971-BZ3.5x19
BSD-2910211013.A54
2910211013
|
-
|
|
|
|
47 - SOCKET HEAD CAP SCREW DIN 84-BM3x55-8.8
BSD-2910021076.A26
2910021076
|
-
|
|
|
|
48 - PAN HEAD SCREW DIN 85-AM3x8-MS
BSD-2910110050.A58
2910110050
|
£1.84
|
£2.21
|
|
|
49 - O-RING 35.0x1.5 MM
BSD-1600210010.A94
1600210010
|
£2.80
|
£3.36
|
|
|
50 - BALL DIN 5401-6 G28
BSD-1903230011.A403
1903230011
|
£2.74
|
£3.29
|
|
|
51 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A55
1903230006
|
£2.27
|
£2.72
|
|
|
52 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A339
1903230004
|
£2.27
|
£2.72
|
|
|
53 - CYLINDRICAL ROLLER
BSD-1603200011.A45
1603200011
|
-
|
|
|
|
55 - GROOVE BALL BEARING 6x19x6
BSD-1900905019.A287
1900905019
|
£14.91
|
£17.89
|
|
|
57 - RETAINING RING 10 DIN 9045
BSD-2916600006.A119
2916600006
|
£1.84
|
£2.21
|
|
|
58 - LOCKING WASHER 8 DIN 6799
BSD-2916080011.A24
2916080011
|
-
|
|
|
|
60 - ROTOR WITHOUT WINDING
BSD-3604080000.A14
3604080000
|
-
|
|
|
|
60/1 - FAN
BSD-1606610108.A27
1606610108
|
£13.12
|
£15.75
|
|
|
61 - CONICAL SPRING WASHER
BSD-1600501030.A155
1600501030
|
-
|
|
|
|
62 - GROOVE BALL BEARING 6x19x6
BSD-1900900428.A94
1900900428
|
£17.58
|
£21.09
|
|
|
63 - FELT WASHER
BSD-1600205025.A55
1600205025
|
-
|
|
|
|
64 - GEAR HOUSING
BSD-3605806105.A6
3605806105
|
£108.30
|
£129.96
|
|
|
64/1/1 - SINTERED-METAL BUSHING
BSD-1600301000.A8
1600301000
|
-
|
|
|
|
65 - SHIM 0.60 MM
BSD-3600101016.A87
3600101016
|
-
|
|
|
|
66 - INTERMEDIATE RING
BSD-1600300044.A58
1600300044
|
-
|
|
|
|
67 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8
BSD-2910001052.A240
2910001052
|
£2.27
|
£2.72
|
|
|
68 - SHIM
BSD-1420100649.A27
1420100649
|
-
|
|
|
|
69 - SHIM
BSD-2200101601.A2
2200101601
|
-
|
|
|
|
70 - SPRING RETAINING RING DIN 472-19x1MM
BSD-2916660005.A16
2916660005
|
£1.75
|
£2.10
|
|
|
71 - COUPLING HALF 55°
BSD-3606455026.A4
3606455026
|
-
|
|
|
|
72 - COMPRESSION SPRING
BSD-3604618004.A2
3604618004
|
£4.48
|
£5.37
|
|
|
73 - HOLDING SPRING
BSD-3604682003.A45
3604682003
|
-
|
|
|
|
75 - SET SCREW DIN 915-M4x6-45H
BSD-2912081116.A395
2912081116
|
£2.61
|
£3.13
|
|
|
77 - END SPLICE A 0.5-6 DIN 46 228
BSD-1900452000.A51
1900452000
|
-
|
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A27
3601119236
|
£3.91
|
£4.69
|
|
|
651 - SLOTTED SCREWDRIVER
BSD-1607950037.A1
1607950037
|
£51.22
|
£61.47
|
|
|
701 - COMPRESSION SPRING
BSD-1604618005.A4
1604618005
|
-
|
|
|
|
702 - SUSPENSION LOOP
BSD-3604682001.A32
3604682001
|
-
|
|
|
|
703 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A758
2910021118
|
£1.84
|
£2.21
|
|
|
801 - SPINDLE BEARING
BSD-3605806170.A6
3605806170
|
-
|
|
|
|
802 - TOOLHOLDER
BSD-3608508003.A1
3608508003
|
-
|
|
|
|
810 - STATOR 72V/200HZ
BSD-3604229002.A8
3604229002
|
-
|
|
|
