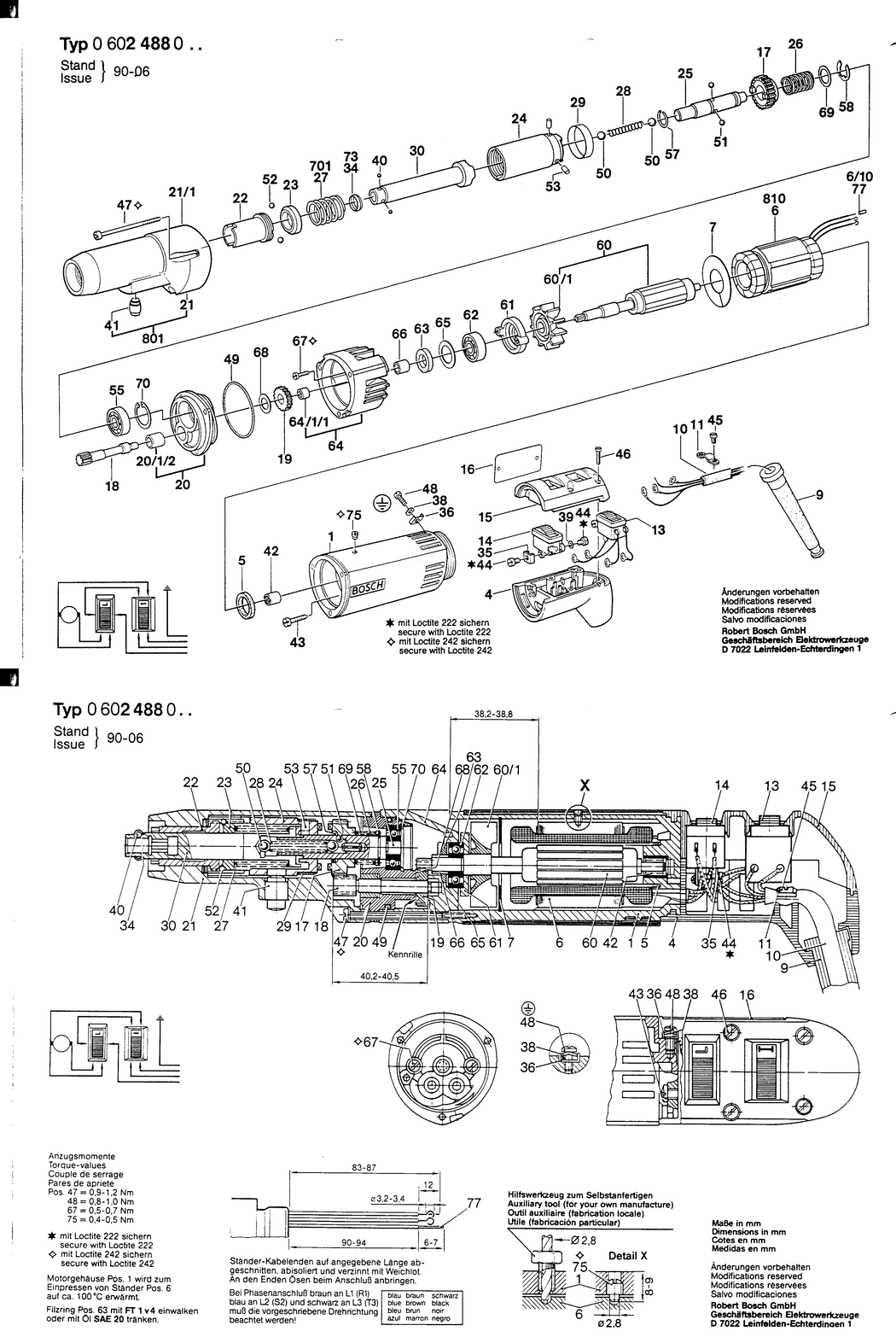

1 - MOTOR HOUSING
BSD-3605102051.A42
3605102051
|
£142.02
|
£170.42
|
|
|
4 - HANDLE
BSD-3605132046.A30
3605132046
|
-
|
|
|
|
5 - FELT WASHER
BSD-1600205026.A54
1600205026
|
£2.74
|
£3.29
|
|
|
6/10 - END SPLICE A 0.5-6 DIN 46 228
BSD-1900452000.A1
1900452000
|
-
|
|
|
|
7 - AIR-DEFLECTOR RING
BSD-1600117001.A111
1600117001
|
£2.16
|
£2.59
|
|
|
9 - GROMMET dia5.5-dia8.3x75 MM
BSD-1600703012.A52
1600703012
|
£2.52
|
£3.02
|
|
|
10 - ELEC. CABLE W/CONNECTION
BSD-3604462048.A20
3604462048
|
-
|
|
|
|
11 - FASTENING CLAMP
BSD-1601302001.A52
1601302001
|
£1.75
|
£2.10
|
|
|
13 - SWITCH
BSD-1607200067.A7
1607200067
|
-
|
|
|
|
14 - REVERSING SWITCH
BSD-1607200066.A91
1607200066
|
£66.68
|
£80.01
|
|
|
15 - HOUSING COVER
BSD-3605500067.A79
3605500067
|
-
|
|
|
|
16 - NAMEPLATE
BSD-1601106002.A0
1601106002
|
£1.75
|
£2.10
|
|
|
17 - CYLINDRICAL GEAR Z=34
BSD-1606325012.A29
1606325012
|
-
|
|
|
|
18 - SPINDLE WITH GEAR Z=10
BSD-1603160029.A29
1603160029
|
-
|
|
|
|
19 - CYLINDRICAL GEAR Z=25
BSD-1606319009.A23
1606319009
|
-
|
|
|
|
20 - BEARING HOUSING
BSD-3605820053.A16
3605820053
|
-
|
|
|
|
20/1/2 - SINTERED-METAL BUSHING J6G7x10r6x8DIN1850
BSD-1900301008.A14
1900301008
|
£2.74
|
£3.29
|
|
|
21 - SPINDLE BEARING
BSD-3605806123.A21
3605806123
|
-
|
|
|
|
21/1 - SPINDLE BEARING
BSD-1605806302.A24
1605806302
|
-
|
|
|
|
22 - THREADED BUSHING
BSD-1600364005.A5
1600364005
|
-
|
|
|
|
23 - THRUST RING
BSD-1600201012.A25
1600201012
|
-
|
|
|
|
24 - CARRIER
BSD-1606445006.A24
1606445006
|
-
|
|
|
|
25 - CONTROL SHAFT
BSD-1603124092.A8
1603124092
|
-
|
|
|
|
26 - COMPRESSION SPRING
BSD-1604616017.A38
1604616017
|
£2.80
|
£3.36
|
|
|
27 - COMPRESSION SPRING
BSD-1604619012.A25
1604619012
|
-
|
|
|
|
28 - COMPRESSION SPRING
BSD-1604611021.A13
1604611021
|
-
|
|
|
|
29 - RETAINING SNAP RING
BSD-1600209013.A5
1600209013
|
-
|
|
|
|
30 - CARRIER
BSD-3606455007.A4
3606455007
|
-
|
|
|
|
34 - SPRING LOCK WASHER
BSD-1600224011.A93
1600224011
|
-
|
|
|
|
35 - CLAMPING SADDLE
BSD-3601321004.A10
3601321004
|
£2.16
|
£2.59
|
|
|
36 - CLAMPING SADDLE
BSD-3601321002.A85
3601321002
|
£2.64
|
£3.17
|
|
|
38 - SPRING WASHER
BSD-3600150009.A14
3600150009
|
£2.80
|
£3.36
|
|
|
39 - SPRING WASHER A 3 DIN 137-ST
BSD-2916060003.A189
2916060003
|
£1.32
|
£1.58
|
|
|
40 - BALL DIN 5401-2.5MM-III-ST
BSD-1903230003.A128
1903230003
|
£2.74
|
£3.29
|
|
|
41 - PRESSURE SPINDLE
BSD-1603203024.A11
1603203024
|
-
|
|
|
|
42 - NEEDLE-ROLLER BEARING
BSD-3600910002.A39
3600910002
|
£27.23
|
£32.68
|
|
|
43 - TAPPING SCREW DIN 7971-BZ4.2x13
BSD-2910211025.A110
2910211025
|
£1.84
|
£2.21
|
|
|
44 - PAN HEAD SCREW DIN 85-AM3.5x15-4.8
BSD-2910091046.A82
2910091046
|
£1.84
|
£2.21
|
|
|
45 - SOCKET HEAD CAP SCREW DIN 84-AM3x6-5.8
BSD-2910011048.A108
2910011048
|
£1.75
|
£2.10
|
|
|
46 - TAPPING SCREW DIN 7971-BZ3.5x19
BSD-2910211013.A47
2910211013
|
-
|
|
|
|
47 - SOCKET HEAD CAP SCREW DIN 84-BM3x55-8.8
BSD-2910021076.A15
2910021076
|
-
|
|
|
|
48 - PAN HEAD SCREW DIN 85-AM3x8-MS
BSD-2910110050.A70
2910110050
|
£1.84
|
£2.21
|
|
|
49 - O-RING 35.0x1.5 MM
BSD-1600210010.A72
1600210010
|
£2.80
|
£3.36
|
|
|
50 - BALL DIN 5401-6 G28
BSD-1903230011.A405
1903230011
|
£2.74
|
£3.29
|
|
|
51 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A36
1903230006
|
£2.27
|
£2.72
|
|
|
52 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A364
1903230004
|
£2.27
|
£2.72
|
|
|
53 - CYLINDRICAL ROLLER
BSD-1603200011.A39
1603200011
|
-
|
|
|
|
55 - GROOVE BALL BEARING 6x19x6
BSD-1900905019.A293
1900905019
|
£14.91
|
£17.89
|
|
|
57 - RETAINING RING 10 DIN 9045
BSD-2916600006.A131
2916600006
|
£1.84
|
£2.21
|
|
|
58 - LOCKING WASHER 8 DIN 6799
BSD-2916080011.A22
2916080011
|
-
|
|
|
|
60 - ROTOR WITHOUT WINDING
BSD-3604080000.A20
3604080000
|
-
|
|
|
|
60/1 - FAN
BSD-1606610108.A32
1606610108
|
£13.12
|
£15.75
|
|
|
61 - CONICAL SPRING WASHER
BSD-1600501030.A117
1600501030
|
-
|
|
|
|
62 - GROOVE BALL BEARING 6x19x6
BSD-1900900428.A67
1900900428
|
£17.58
|
£21.09
|
|
|
63 - FELT WASHER
BSD-1600205025.A40
1600205025
|
-
|
|
|
|
64 - GEAR HOUSING
BSD-3605806105.A8
3605806105
|
£108.30
|
£129.96
|
|
|
64/1/1 - SINTERED-METAL BUSHING
BSD-1600301000.A1
1600301000
|
-
|
|
|
|
65 - SHIM 0.60 MM
BSD-3600101016.A64
3600101016
|
-
|
|
|
|
66 - INTERMEDIATE RING
BSD-1600300044.A90
1600300044
|
-
|
|
|
|
67 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8
BSD-2910001052.A245
2910001052
|
£2.27
|
£2.72
|
|
|
68 - SHIM
BSD-1420100649.A21
1420100649
|
-
|
|
|
|
69 - SHIM
BSD-2200101601.A8
2200101601
|
-
|
|
|
|
70 - SPRING RETAINING RING DIN 472-19x1MM
BSD-2916660005.A22
2916660005
|
£1.75
|
£2.10
|
|
|
73 - HOLDING SPRING
BSD-3604682003.A39
3604682003
|
-
|
|
|
|
75 - SET SCREW DIN 915-M4x6-45H
BSD-2912081116.A412
2912081116
|
£2.61
|
£3.13
|
|
|
77 - END SPLICE A 0.5-6 DIN 46 228
BSD-1900452000.A60
1900452000
|
-
|
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A57
3601119236
|
£3.91
|
£4.69
|
|
|
701 - COMPRESSION SPRING
BSD-1604618005.A0
1604618005
|
-
|
|
|
|
702 - SUSPENSION LOOP
BSD-3604682001.A42
3604682001
|
-
|
|
|
|
703 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A750
2910021118
|
£1.84
|
£2.21
|
|
|
801 - SPINDLE BEARING
BSD-3605806018.A18
3605806018
|
-
|
|
|
|
810 - STATOR 200V/300HZ
BSD-3604229001.A3
3604229001
|
£357.27
|
£428.72
|
|
