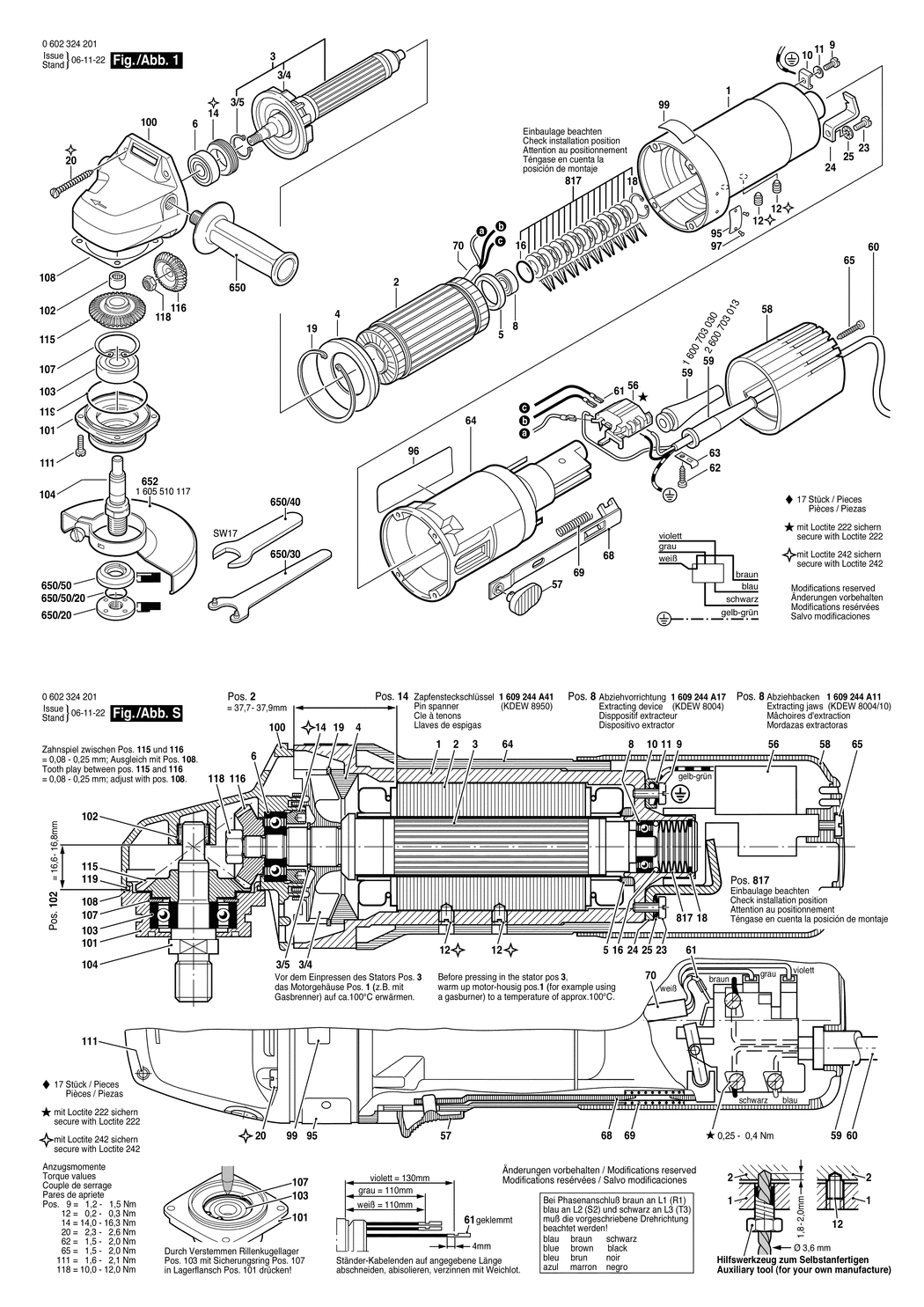

1 - MOTOR HOUSING
BSD-3605102069.A3
3605102069
|
£205.02
|
£246.03
|
|
|
2 - STATOR 72V/200HZ. 110V/300HZ. 135V/200HZ
BSD-3604229101.A3
3604229101
|
-
|
|
|
|
3 - ROTOR WITHOUT WINDING
BSD-3604080039.A10
3604080039
|
-
|
|
|
|
3/4 - FAN
BSD-3606610008.A14
3606610008
|
-
|
|
|
|
3/5 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A78
2916650006
|
£1.75
|
£2.10
|
|
|
4 - AIR-DEFLECTOR RING
BSD-3600209009.A12
3600209009
|
£2.94
|
£3.53
|
|
|
5 - SEAL RING
BSD-1600209011.A245
1600209011
|
£2.94
|
£3.53
|
|
|
6 - GROOVE BALL BEARING
BSD-3600905070.A10
3600905070
|
-
|
|
|
|
8 - GROOVE BALL BEARING
BSD-3600905068.A10
3600905068
|
-
|
|
|
|
9 - PAN HEAD SCREW DIN 85-AM4x8-MS
BSD-2910110118.A109
2910110118
|
£1.84
|
£2.21
|
|
|
10 - CLAMPING SADDLE
BSD-3601321001.A218
3601321001
|
£3.72
|
£4.47
|
|
|
11 - SPRING WASHER dia4.2 MM
BSD-3600150006.A325
3600150006
|
£2.74
|
£3.29
|
|
|
12 - SET SCREW
BSD-3603402000.A414
3603402000
|
£1.84
|
£2.21
|
|
|
14 - THREADED RING
BSD-3603344015.A12
3603344015
|
£42.84
|
£51.41
|
|
|
16 - O-RING 15x2 MM
BSD-1900210112.A151
1900210112
|
£2.61
|
£3.13
|
|
|
18 - SPRING RETAINING RING DIN 472-19x1MM
BSD-2916660005.A3
2916660005
|
£1.75
|
£2.10
|
|
|
19 - SPRING RETAINING RING
BSD-3600224032.A10
3600224032
|
-
|
|
|
|
20 - SLOTTED SHOULDER SCREW
BSD-3603412003.A12
3603412003
|
-
|
|
|
|
23 - PAN HEAD SCREW DIN 85-AM4x8-8.8
BSD-2910101118.A12
2910101118
|
-
|
|
|
|
24 - RETAINING BRACKET
BSD-3601303006.A13
3601303006
|
-
|
|
|
|
25 - TOOTHED LOCK WASHER DIN 6797-A4.3-FST
BSD-2916030006.A10
2916030006
|
£1.84
|
£2.21
|
|
|
56 - SWITCH
BSD-3607200024.A9
3607200024
|
£25.05
|
£30.06
|
|
|
57 - SWITCH HANDLE
BSD-1602026057.A117
1602026057
|
£2.07
|
£2.48
|
|
|
58 - HOUSING COVER
BSD-3600508025.A5
3600508025
|
-
|
|
|
|
59 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A450
2600703013
|
£2.74
|
£3.29
|
|
|
60 - ELEC. CABLE W/CONNECTION
BSD-3604462050.A19
3604462050
|
£28.59
|
£34.31
|
|
|
61 - RECEPTACLE B2.8-1DIN46 247BZ-BD
BSD-1904478007.A32
1904478007
|
-
|
|
|
|
62 - TAPPING SCREW DIN 7971-ST3.9x13-F
BSD-2910211018.A522
2910211018
|
£1.75
|
£2.10
|
|
|
63 - FASTENING CLAMP
BSD-1601302017.A27
1601302017
|
£1.84
|
£2.21
|
|
|
64 - HOUSING
BSD-3605108108.A7
3605108108
|
£66.68
|
£80.01
|
|
|
65 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A155
2910211021
|
£1.75
|
£2.10
|
|
|
68 - ADJUSTING SLIDE
BSD-1602319002.A217
1602319002
|
£2.74
|
£3.29
|
|
|
69 - COMPRESSION SPRING
BSD-1604611026.A21
1604611026
|
£1.84
|
£2.21
|
|
|
70 - SHRINKABLE TUBE
BSD-1610712034.A4
1610712034
|
£1.74
|
£2.09
|
|
|
95 - NAMEPLATE
BSD-1611104002.A19
1611104002
|
£1.38
|
£1.66
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601110162.A9
3601110162
|
-
|
|
|
|
97 - GROOVED NAIL DIN 1476-2x5 MM
BSD-3603133001.A13
3603133001
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A519
3601119236
|
£3.91
|
£4.69
|
|
|
100 - GEAR HOUSING
BSD-3605806136.A2
3605806136
|
-
|
|
|
|
101 - BEARING FLANGE
BSD-1607000936.A100
1607000936
|
£27.23
|
£32.68
|
|
|
102 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A112
1600910018
|
£5.57
|
£6.68
|
|
|
103 - GROOVE BALL BEARING
BSD-3600905069.A66
3600905069
|
£17.22
|
£20.67
|
|
|
104 - ASSEMBLY OF SERVICE PARTS M14
BSD-1607000933.A9
1607000933
|
-
|
|
|
|
107 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A741
2916660013
|
£2.16
|
£2.59
|
|
|
108 - SHIM 0.1 MM
BSD-1600136012.A237
1600136012
|
£1.75
|
£2.10
|
|
|
108 - SHIM 0.2 MM
BSD-1600136010.A243
1600136010
|
£2.61
|
£3.13
|
|
|
108 - SHIM 0.3 MM
BSD-1600136011.A86
1600136011
|
£2.16
|
£2.59
|
|
|
111 - THREAD-FORMING TAP. SCREW DIN 7500-TM4x12
BSD-2914471401.A9
2914471401
|
£1.75
|
£2.10
|
|
|
115 - CROWN GEAR Z=37
BSD-3606334073.A6
3606334073
|
£62.51
|
£75.01
|
|
|
116 - CROWN GEAR Z=21
BSD-3606333050.A3
3606333050
|
£62.51
|
£75.01
|
|
|
118 - HEX NUT DIN 934-M8-8-A
BSD-2915011009.A219
2915011009
|
£2.74
|
£3.29
|
|
|
119 - O-RING 46.0x1.1 MM
BSD-3600210124.A12
3600210124
|
£2.94
|
£3.53
|
|
|
650 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A166
160202509T
|
£3.91
|
£4.69
|
|
|
650/20 - ROUND NUT
BSD-2603340013.A11
2603340013
|
-
|
|
|
|
650/30 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A635
1607950052
|
£3.91
|
£4.69
|
|
|
650/40 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A356
2607950511
|
£4.48
|
£5.37
|
|
|
650/50 - FASTENING FLANGE
BSD-2605703023.A38
2605703023
|
-
|
|
|
|
650/50/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A1174
1600210039
|
£2.27
|
£2.72
|
|
|
652 - PROTECTIVE COVER
BSD-1600A0136N.A32
1600A0136N
|
£23.86
|
£28.63
|
|
|
817 - ASSEMBLY OF SERVICE PARTS
BSD-3607031284.A9
3607031284
|
-
|
|
|
