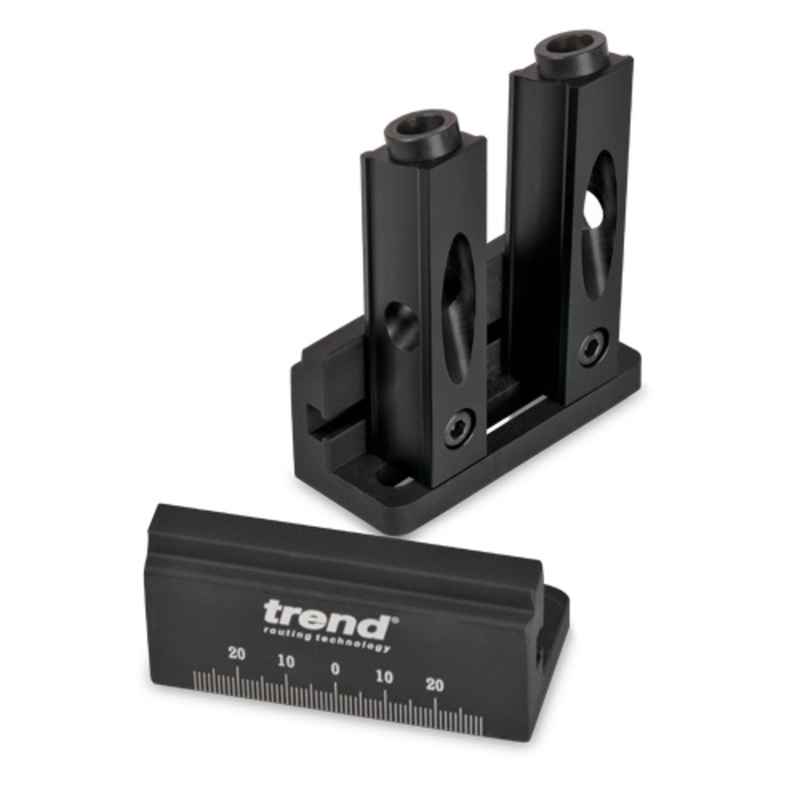

Trend Pocket Hole Jig Mini - Portable Pocket Hole Jig
Compact design perfect for repair work in situ on furniture cupboards and cabinets.
Supplied with twin bases for use on new work and repairs for increased diversity.

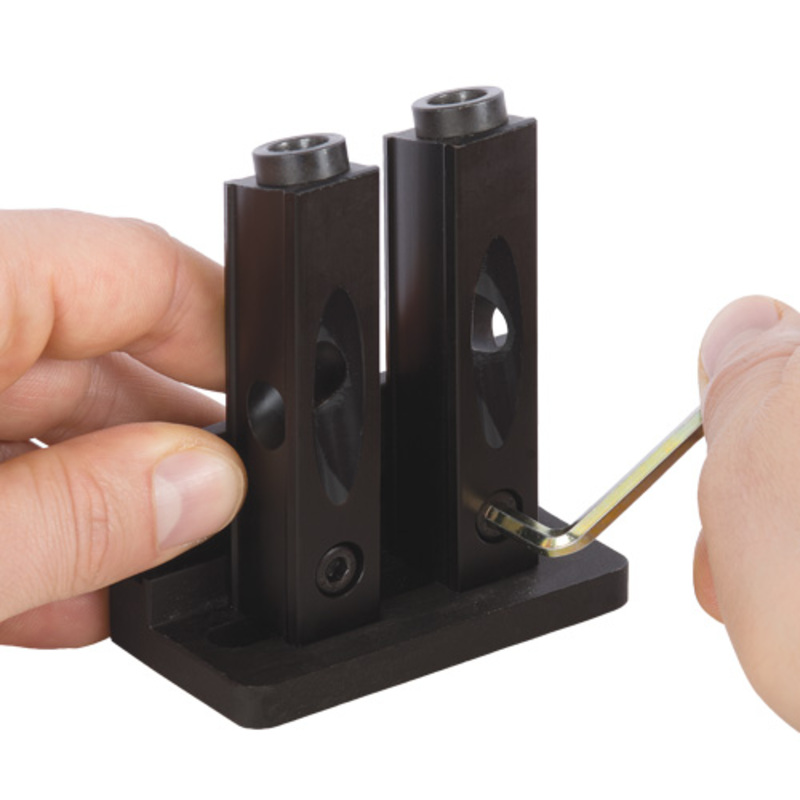

Fully adjustable from 18mm to 54mm centres for twin holes or stripped down for single pockets; ideal for repairs or joints on thinner components.
Comes ready to use complete with drill driver bit and screws.
High quality all metal build quality for durability solid performance and consistency in any project.

Specification:
Material thickness min.=16 mm
Material thickness max.=38 mm
Material width min.=38 mm
Hole pitch=18 mm-54 mm
Drill diameter=9.5 mm
Square drive bit size=No.2
Screw sizes=No.7 x 30 mm
Drilling angle=15 degrees

Includes:
50 x Dome head screws

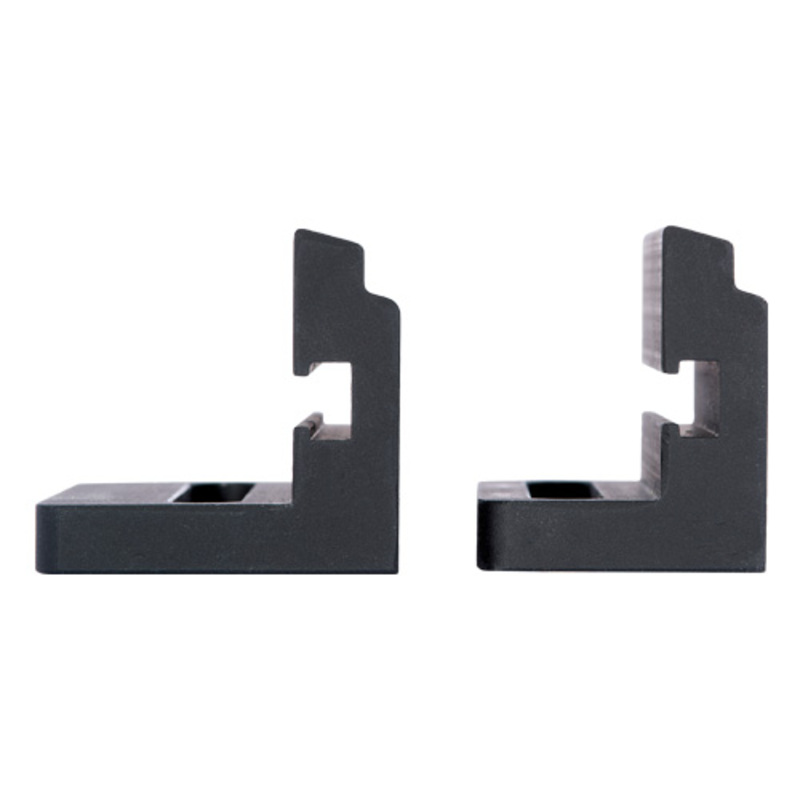

1 x Long base
1 x Short base

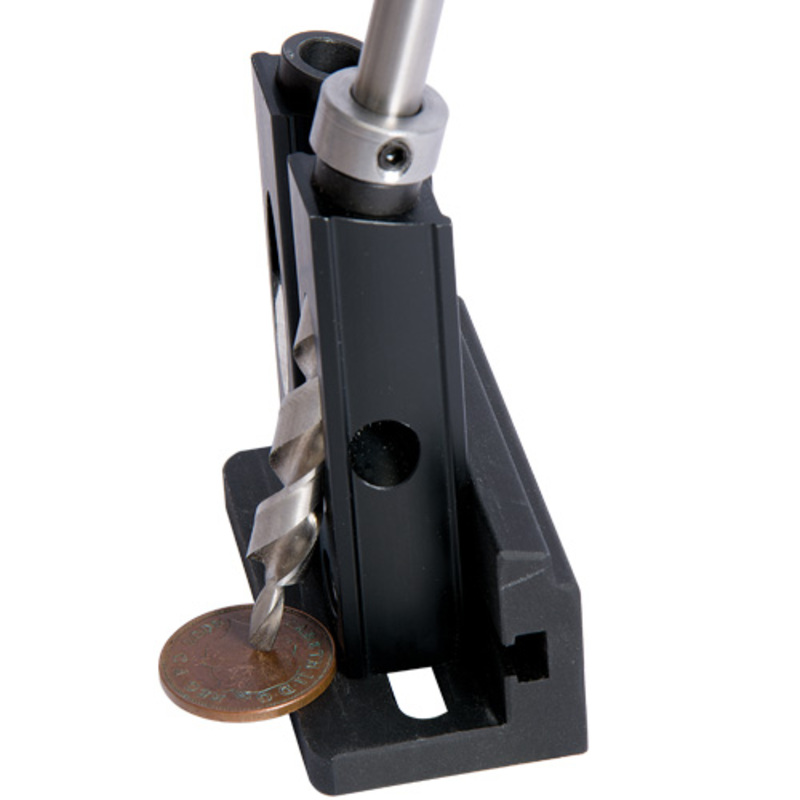

1 x HSS drill bit with collar
1 x 150mm Square drive bit
1 x Hex key 4mm A/F
1 x Hex key 2.5mm A/F
