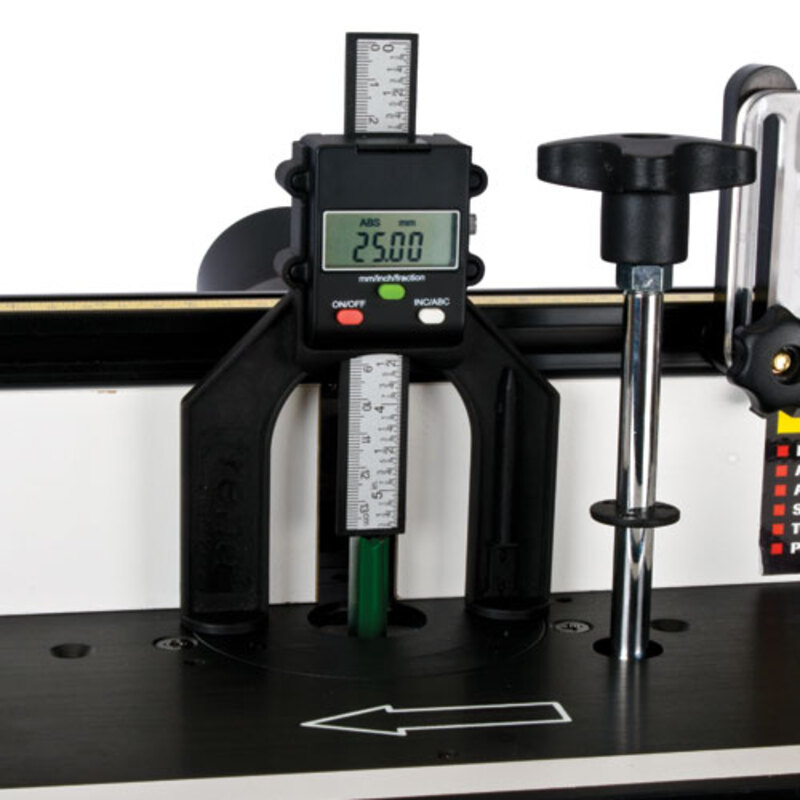

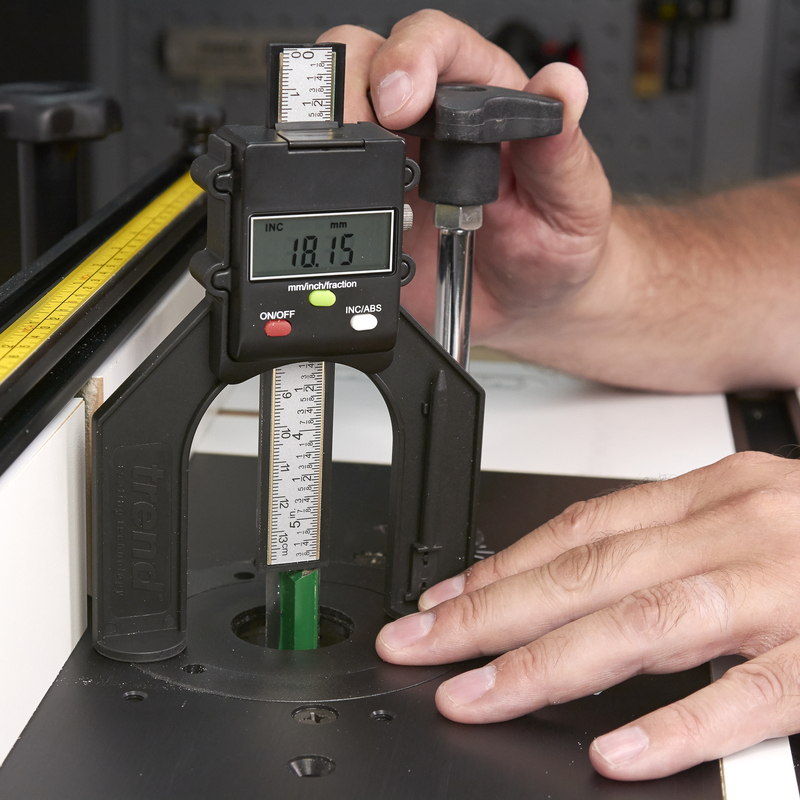

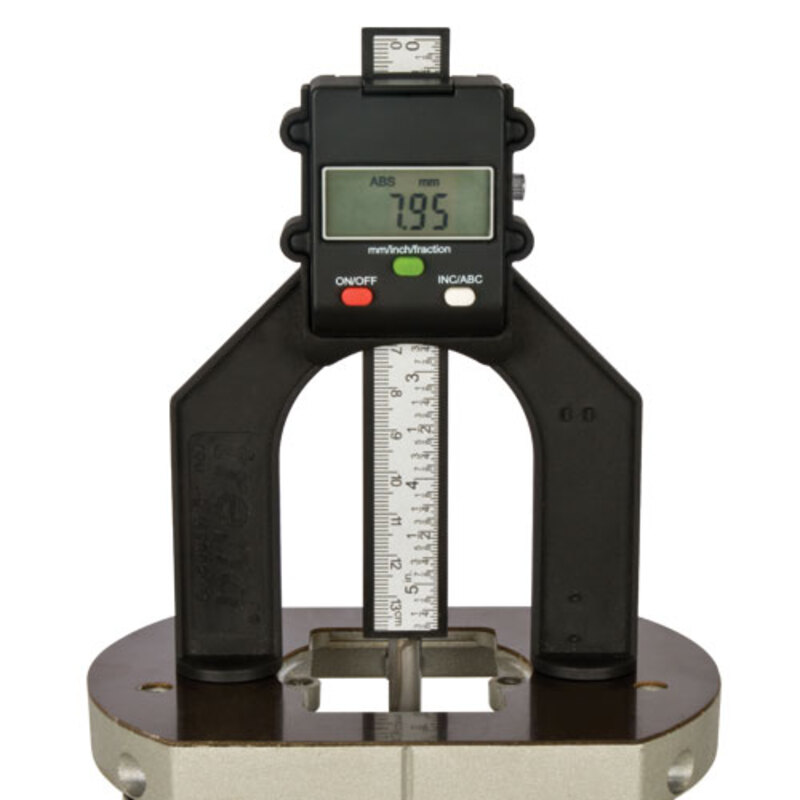

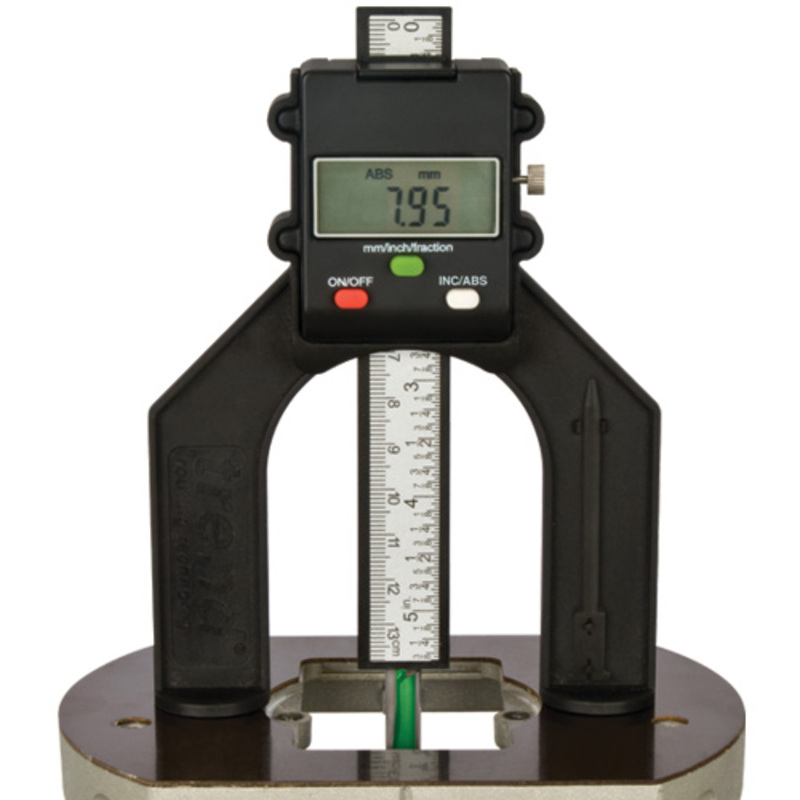

Digital depth gauge for router tables and saw benches. Horizontal and vertical measuring.
For hand routers router tables and saw benches.
LCD readout for mm imperial and fractions with auto shut off 5 mins.

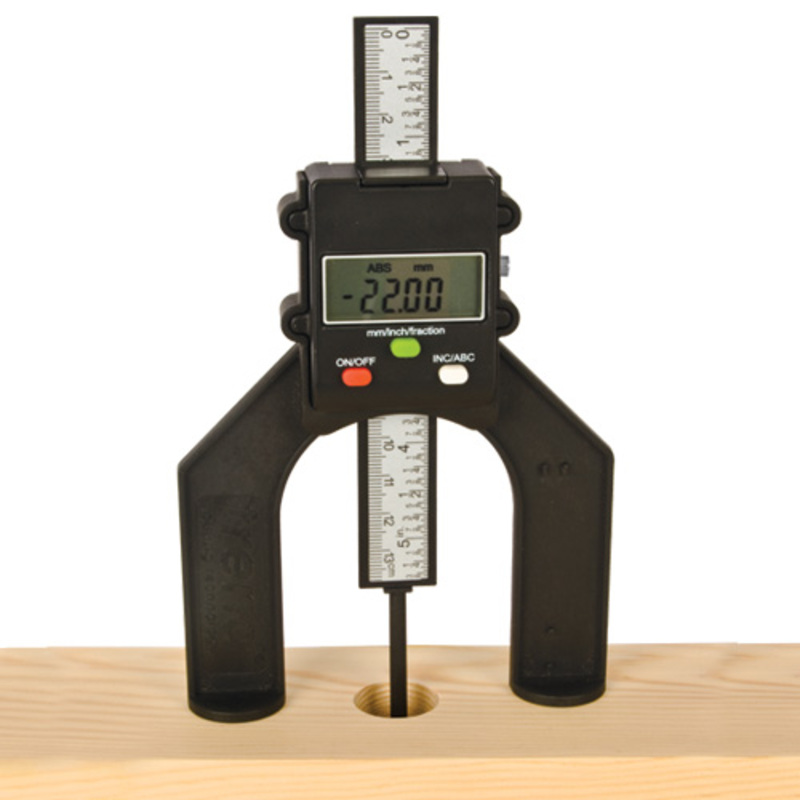

Removable pin to allow hole depths to be measured. Pin can be parked on arm. Hole depth 50.8mm (2 inch).
Self standing with magnetic feet and flat back.
Injection plastic moulding with plastic rule.
60mm wide aperture.
Read-out has relative co-ordinate and absolute function.

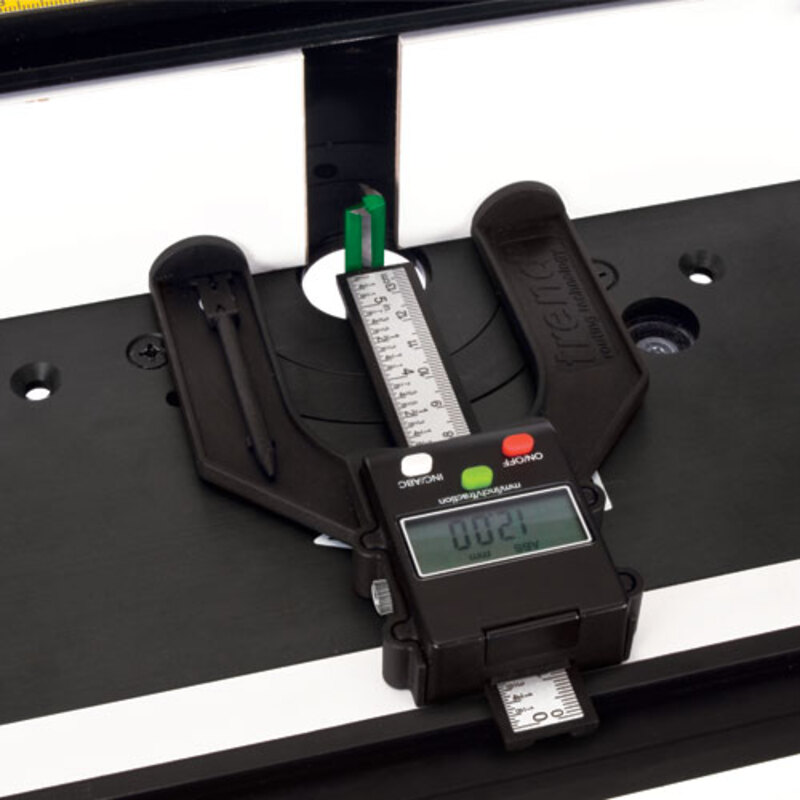

Includes small rebate clip that fits to the base of the rule to allow the rule to be set flush to a router table back fence.
For UK sale only.
Spare battery available ref. BAT/CR2032/3V.

Specification:
Measuring range=80 mm (3-1/8inch)
Opening width=60 mm (2-3/8inch)
Resolution=0.05 mm (0.002inch)
Accuracy=+/- 0.1 mm (0.004inch)
Repeatability=+/- 0.1 mm (0.004inch)
Max. measuring speed=1.5 m/s (60 in/s)
Weight=92g
Voltage=3 volt
ABS mode (Absolute)=Measuring single amounts from Zero
INC mode (Relative)=Measuring from last point
End of life=See below for Environmental Policy link

Includes:
1 x 3V CR2032 lithium battery
1 x Small rebate clip
