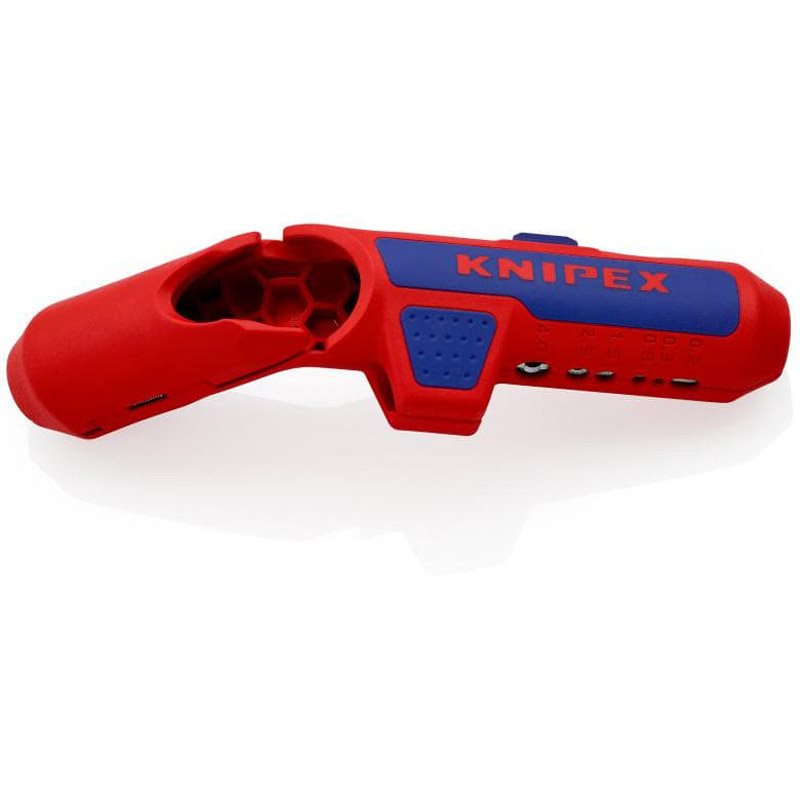

For fast and precise stripping of all common round and damp-proof installation cables (e.g. NYM cable 3 x 1.5 mm² up to 5 x 2,5 mm²), data cables (e.g. twisted pair) and coax cables
Innovative, ergonomic pistol grip design for easy cutting, stripping and longitudinal cut of the sheath
For left-handers
Conical, slimmed down tool ends for better access in confined areas
Stripping device for cross-sections 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4 mm²
Simplified insertion of single wires for stripping using location ridges
With opening spring and locking device
Easy insertion of coax and data cable thanks to opening aid
Multi-component design with a soft plastic zone for comfortable use and a secure grip
Housing made from stable glass fibre reinforced plastic

Article No.
16 95 02 SB
EAN
4003773082910
Weight
75 g
Dimensions
135 x 85 x 37 mm
REACH compliant
contains SVHC
RoHS compliant
not applicable
Stripping capacities round cable (diameter)
Ø 8 – 13 mm
Wire stripping value for conductors and strands
0.2 — 4.0 mm²
Stripping capacities for coax cable (diameter)
Ø 4.8 – 7.5 mm
Wire stripping value for data cable
CAT 5 - 7, Twisted pair (UTP/STP)
Stripping capacities
Ø 8.0 — 13.0 mm
