For fast and precise stripping of all common round and damp-proof installation cables (e.g. NYM cable 3 x 1.5 mm² up to 5 x 2,5 mm²), data cables (e.g. twisted pair) and coax cables

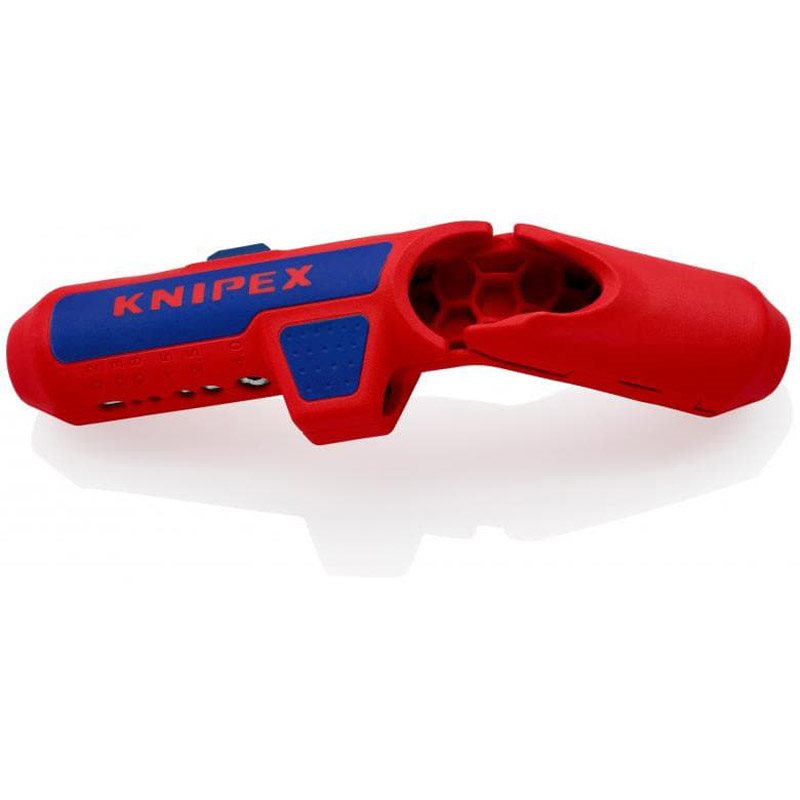

Innovative, ergonomic pistol grip design for easy cutting, stripping and longitudinal cut of the sheath
Conical, slimmed down tool ends for better access in confined areas
Stripping device for cross-sections 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4 mm²
Simplified insertion of single wires for stripping using location ridges
With opening spring and locking device
Easy insertion of coax and data cable thanks to opening aid
Multi-component design with a soft plastic zone for comfortable use and a secure grip
Housing made from stable glass fibre reinforced plastic

Article No.
16 95 01 SB
EAN
4003773079927
Weight
75 g
Dimensions
135 x 85 x 37 mm
REACH compliant
contains SVHC
RoHS compliant
not applicable
Stripping capacities round cable (diameter)
Ø 8 – 13 mm
Wire stripping value for conductors and strands
0.2 — 4.0 mm²
Stripping capacities for coax cable (diameter)
Ø 4.8 – 7.5 mm
Wire stripping value for data cable
CAT 5 - 7, Twisted pair (UTP/STP)
Stripping capacities
Ø 8.0 — 13.0 mm
