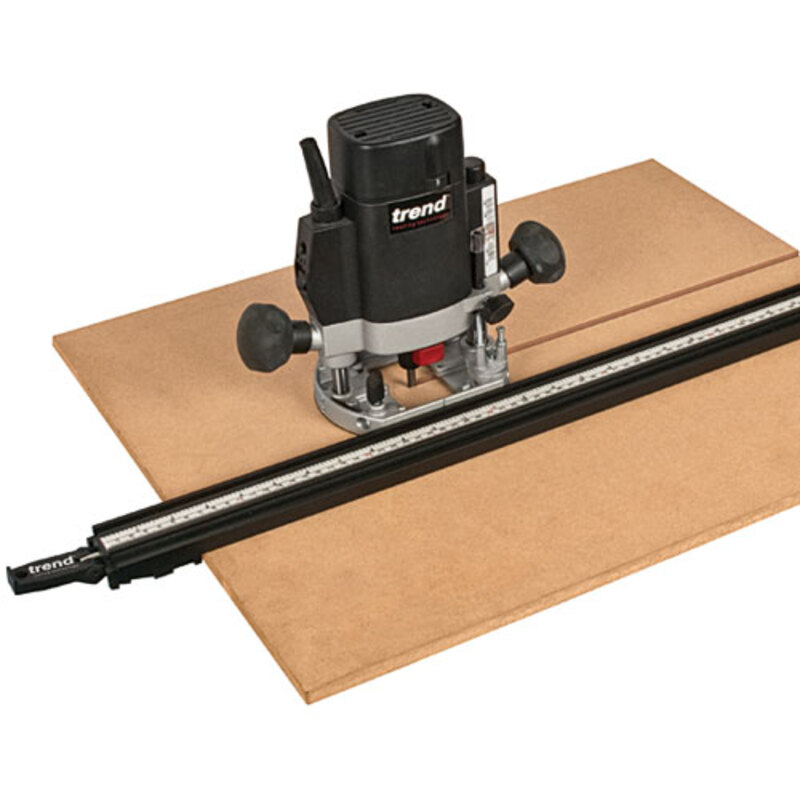

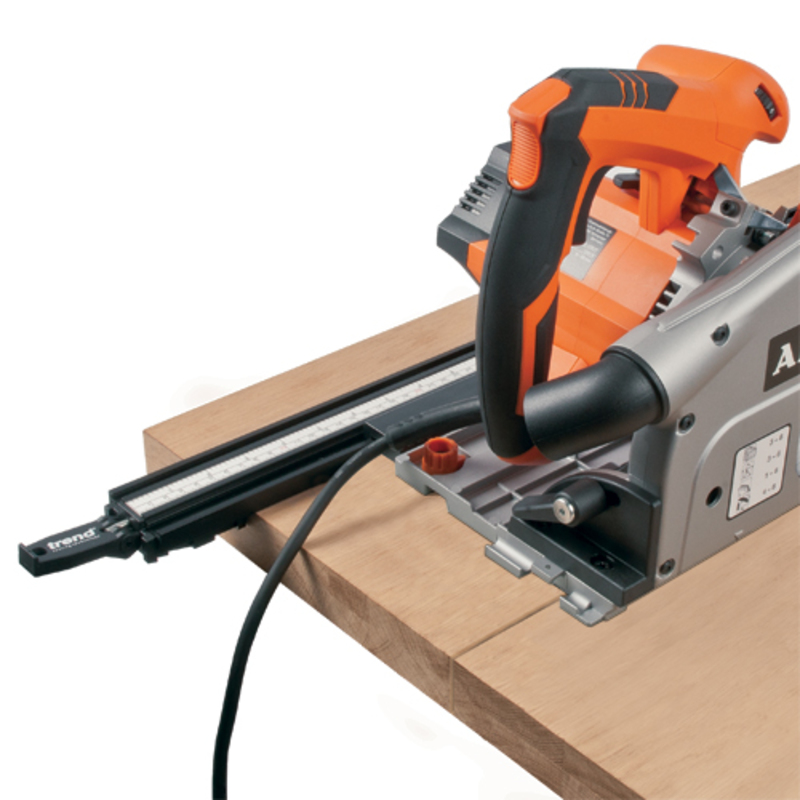

For accurate guiding of router saws and jigsaws.

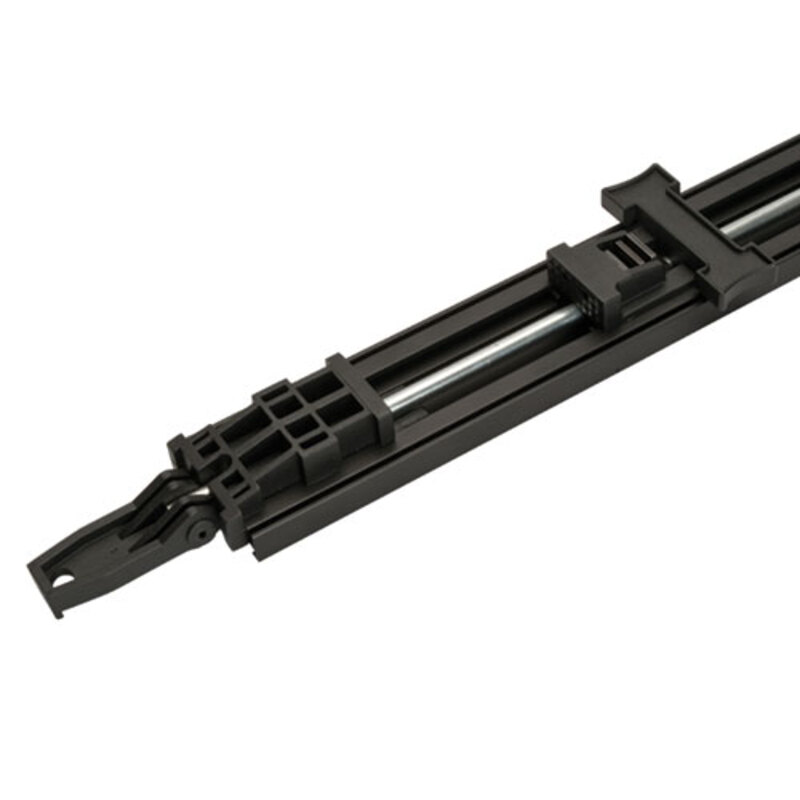

Integral clamping jaws and a locking lever provide a quick way of clamping the guide batten.
Ideal for holding and clamping work pieces.

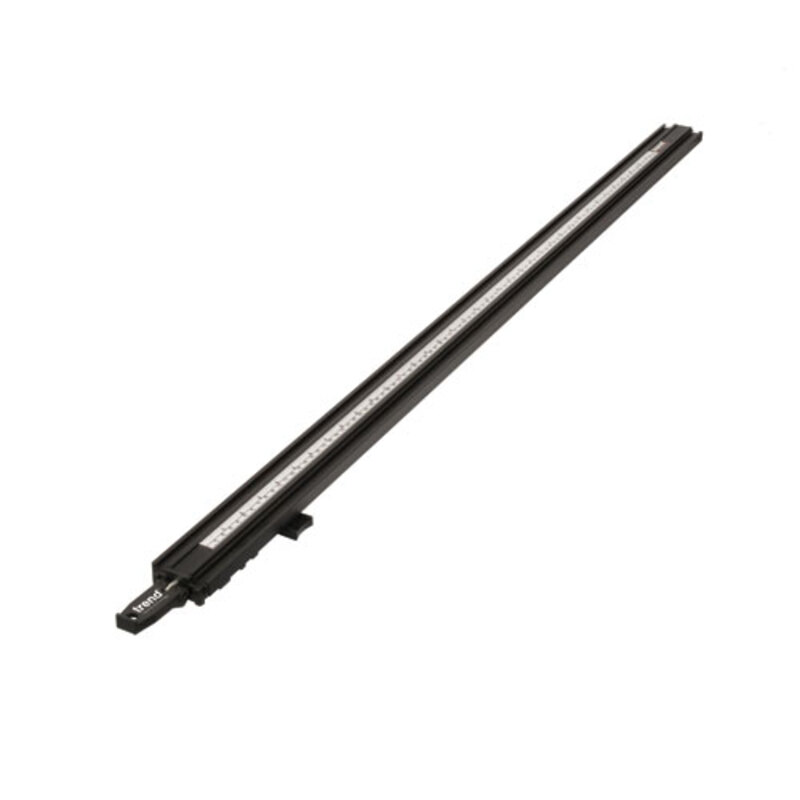

Aluminium extrusion incorporating T-slots.
The clamps are fitted with a metric/imperial scale for setting lengths and stop positions. Scale can be positioned by removing 20mm of the self adhesive backing.
Three lengths of clamp available 24 inch 36 inch and 50 inch.
Router not included.
Patent No. US7 007 731.

Specification:
Max clamp length=36 inches (915 mm)
Min clamp length=1/2 inch (12.7 mm)
Extrusion width=54mm
Extrusion height=15.8mm
Overall length=1140mm
Length fixed jaw to end of handle=125mm
Length max position of sliding jaw to clamp end=98mm
Sliding jaw finger wing width =73mm
