Elu SH50EK Type 1 Chipping Hammer Spare Parts

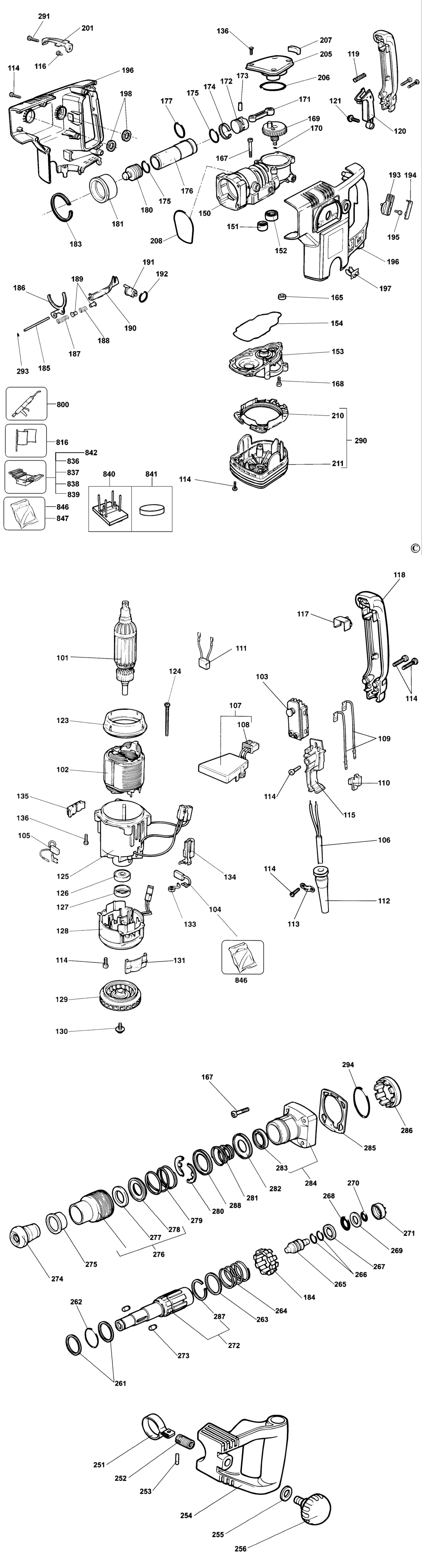

An exploded drawing and spare parts listing for the Elu SH50EK Type 1 Chipping Hammer

	Ex VAT	Inc VAT
101 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A87292 000000-00	-
101 - ARMATURE 230V GB 240V BDE-571059-00.A8 571059-00	£131.46	£157.75
102 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A87293 000000-00	-
102 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A87294 000000-00	-
103 - SWITCH BDE-326087-00.A4 326087-00	-
104 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A87295 000000-00	-
104 - SERVICE BRUSH GB 240V BDE-326961-00.A16 326961-00	£17.03	£20.44
105 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A87302 000000-00	-
105 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A87303 000000-00	-
106 - CORDSET GB 115V BDE-330061-20.A3 330061-20	£50.60	£60.72
106 - CORDSET GB 240V BDE-324438-73.A24 324438-73	-
107 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A87296 000000-00	-
107 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A87297 000000-00	-
108 - NO LONGER AVAILABLE BDE-000000-00.A87298 000000-00	-
109 - NO LONGER AVAILABLE BDE-000000-00.A87299 000000-00	-
110 - NO LONGER AVAILABLE BDE-000000-00.A87300 000000-00	-
111 - NO LONGER AVAILABLE BDE-000000-00.A87301 000000-00	-
112 - CORD PROTECTOR BDE-323091-01.A22 323091-01	£1.50	£1.80
113 - CORD CLAMP BDE-821070.A360 821070	£1.50	£1.80
114 - SCREW BDE-330065-08.A197 330065-08	£1.50	£1.80
115 - NO LONGER AVAILABLE BDE-000000-00.A87304 000000-00	-
116 - SCREW BDE-330065-05.A79 330065-05	£1.50	£1.80
117 - NO LONGER AVAILABLE BDE-000000-00.A87305 000000-00	-
118 - NO LONGER AVAILABLE BDE-000000-00.A87306 000000-00	-
119 - SPRING BDE-326438-00.A0 326438-00	-
120 - NO LONGER AVAILABLE BDE-000000-00.A87307 000000-00	-
121 - NO LONGER AVAILABLE BDE-000000-00.A87308 000000-00	-
123 - NO LONGER AVAILABLE BDE-000000-00.A87309 000000-00	-
124 - SCREW BDE-330065-11.A34 330065-11	£1.50	£1.80
125 - NO LONGER AVAILABLE BDE-000000-00.A87310 000000-00	-
126 - BEARING BDE-577745-00.A21 577745-00	£7.85	£9.42
127 - SLEEVE BDE-325279-00.A38 325279-00	-
128 - COVER BDE-326934-01.A8 326934-01	-
129 - FAN BDE-577736-00.A14 577736-00	-
130 - SCREW BDE-324119-02.A52 324119-02	£1.50	£1.80
131 - SHUTTER BDE-326579-00.A4 326579-00	£2.26	£2.71
133 - BRUSH SPRING BDE-326667-00.A31 326667-00	£1.50	£1.80
134 - HOLDER BDE-326933-01.A21 326933-01	£3.30	£3.96
135 - NO LONGER AVAILABLE BDE-000000-00.A21066 000000-00	-
136 - SCREW TORX BDE-324007-11.A49 324007-11	£1.50	£1.80
150 - NO LONGER AVAILABLE BDE-000000-00.A21067 000000-00	-
151 - BEARING FROM DATE CODE 97-22 BDE-330004-32.A3 330004-32	£7.85	£9.42
151 - BEARING NEEDLE UPTO DATE CODE 97-21 BDE-918877-05.A11 918877-05	£18.42	£22.10
151 - NO LONGER AVAILABLE UPTO DATE CODE 96-12 BDE-000000-00.A21071 000000-00	-
152 - BEARING FROM DATE CODE 97-22 BDE-330004-33.A33 330004-33	-
152 - BEARING NEEDLE UPTO DATE CODE 97-21 BDE-918877-06.A14 918877-06	£14.19	£17.03
153 - NO LONGER AVAILABLE BDE-000000-00.A21068 000000-00	-
154 - SEAL BDE-325936-00.A26 325936-00	£3.70	£4.44
165 - SEAL BDE-327141-02.A15 327141-02	£2.78	£3.34
167 - SCREW BDE-918825-02.A28 918825-02	£1.50	£1.80
168 - NO LONGER AVAILABLE BDE-000000-00.A21069 000000-00	-
169 - NO LONGER AVAILABLE BDE-000000-00.A21070 000000-00	-
170 - O RING BDE-323711-26.A70 323711-26	£1.50	£1.80
171 - CON ROD BDE-325002-00.A29 325002-00	£3.30	£3.96
172 - NO LONGER AVAILABLE BDE-000000-00.A21072 000000-00	-
173 - PIN BDE-330041-22.A20 330041-22	£1.50	£1.80
174 - RETAINER BDE-325905-00.A48 325905-00	£1.50	£1.80
175 - O RING BDE-323711-11.A14 323711-11	£1.50	£1.80
176 - CYLINDER BDE-326098-03.A13 326098-03	£38.80	£46.56
177 - O RING BDE-323711-21.A14 323711-21	£1.50	£1.80
180 - RAM BDE-329319-00.A4 329319-00	-
181 - INSERT BDE-326008-00.A5 326008-00	£2.21	£2.65
183 - CIRCLIP BDE-323763-03.A15 323763-03	£1.42	£1.70
184 - SPINDLE LOCK BDE-1005697-00.A20 1005697-00	-
185 - SHAFT BDE-325880-02.A26 325880-02	£3.80	£4.56
186 - SELECTOR FORK BDE-325160-00.A18 325160-00	-
187 - SPRING BDE-323395-08.A22 323395-08	£1.82	£2.19
188 - SPRING BDE-323395-09.A26 323395-09	-
189 - SPACER BDE-326093-00.A30 326093-00	£1.82	£2.19
190 - NO LONGER AVAILABLE BDE-000000-00.A21073 000000-00	-
191 - NO LONGER AVAILABLE BDE-000000-00.A21074 000000-00	-
192 - O RING BDE-323711-07.A41 323711-07	£1.82	£2.19
193 - LEVER SA BDE-326507-00.A10 326507-00	-
194 - NO LONGER AVAILABLE BDE-000000-00.A21075 000000-00	-
195 - NO LONGER AVAILABLE BDE-000000-00.A21076 000000-00	-
196 - NO LONGER AVAILABLE BDE-000000-00.A21077 000000-00	-
197 - NO LONGER AVAILABLE BDE-000000-00.A21078 000000-00	-
198 - NO LONGER AVAILABLE BDE-000000-00.A21079 000000-00	-
201 - NO LONGER AVAILABLE BDE-000000-00.A21080 000000-00	-
205 - NO LONGER AVAILABLE BDE-000000-00.A21081 000000-00	-
206 - O RING BDE-323711-22.A23 323711-22	£1.50	£1.80
207 - FILTER BDE-326824-00.A16 326824-00	-
208 - O RING BDE-323711-17.A16 323711-17	£1.78	£2.13
210 - NO LONGER AVAILABLE BDE-000000-00.A21082 000000-00	-
211 - NO LONGER AVAILABLE BDE-000000-00.A21083 000000-00	-
251 - COLLAR BDE-326555-00.A28 326555-00	£5.88	£7.06
252 - BUSH BDE-326552-00.A26 326552-00	£7.18	£8.62
253 - PIN BDE-N079374.A13 N079374	£1.50	£1.80
254 - SIDE HANDLE BDE-327146-00.A3 327146-00	£24.39	£29.27
255 - WASHER BDE-323753-18.A4 323753-18	£1.50	£1.80
256 - KNOB BDE-327351-00.A5 327351-00	£18.91	£22.69
261 - WASHER BDE-323753-11.A44 323753-11	£3.80	£4.56
262 - O RING BDE-323711-14.A15 323711-14	£1.42	£1.70
263 - WASHER BDE-323753-14.A5 323753-14	£1.42	£1.70
264 - SPRING BDE-323395-07.A35 323395-07	£1.50	£1.80
265 - REPAIR KIT BDE-579580-00.A13 579580-00	£38.80	£46.56
266 - O RING Upto date code 29-01 BDE-323711-10.A35 323711-10	£1.50	£1.80
266 - SEAL From date code 30-01 BDE-577484-00.A5 577484-00	£16.03	£19.24
267 - WASHER BDE-582381-00.A22 582381-00	£5.88	£7.06
268 - O RING BDE-577744-02.A47 577744-02	£1.82	£2.19
269 - WASHER BDE-323753-16.A28 323753-16	£3.80	£4.56
270 - O RING BDE-N210233.A20 N210233	£1.50	£1.80
271 - CAP BDE-326044-00.A2 326044-00	£3.70	£4.44
272 - SPINDLE BDE-493133-00.A7 493133-00	£153.22	£183.86
273 - ROLLER BDE-325878-00.A27 325878-00	£1.50	£1.80
274 - LIP SEAL BDE-329816-00.A8 329816-00	£3.30	£3.96
275 - COLLAR BDE-326575-02.A10 326575-02	£1.50	£1.80
276 - SLEEVE SA BDE-479247-00.A24 479247-00	£7.18	£8.62
277 - PART NLS ORDER SLEEVE SA 479247-00 BDE-000000-03.A67 000000-03	-
278 - PART NLS ORDER SLEEVE SA 479247-00 BDE-000000-03.A68 000000-03	-
279 - SPRING BDE-323395-06.A26 323395-06	£1.50	£1.80
280 - HALF WASHER BDE-325929-00.A19 325929-00	£1.50	£1.80
281 - SPRING BDE-487118-00.A41 487118-00	£1.50	£1.80
282 - SPRING GUIDE BDE-325930-00.A19 325930-00	£1.50	£1.80
283 - SEAL BDE-327141-00.A25 327141-00	£1.82	£2.19
284 - CASTING SA BDE-326125-00.A1 326125-00	£65.52	£78.62
285 - GASKET BDE-325935-00.A16 325935-00	-
286 - SPINDLE LOCK BDE-588560-00.A30 588560-00	-
287 - RING BDE-323763-04.A33 323763-04	-
288 - GUIDE BDE-327208-00.A19 327208-00	£1.50	£1.80
290 - END CAP SA BDE-326784-01.A6 326784-01	£18.42	£22.10
291 - SCREW BDE-324007-10.A37 324007-10	£1.50	£1.80
293 - NO LONGER AVAILABLE BDE-000000-00.A21239 000000-00	-
294 - O RING BDE-323711-28.A5 323711-28	£1.42	£1.70
800 - GREASE 100 GMS BDE-328771-02.A30 328771-02	£18.91	£22.69
816 - NO LONGER AVAILABLE SMALL 44MM X 49MM BDE-000000-00.A21150 000000-00	-
816 - NO LONGER AVAILABLE LARGE 70MM X 53MM BDE-000000-00.A21151 000000-00	-
836 - NO LONGER AVAILABLE UPTO DATE CODE 97-21 BDE-000000-00.A21152 000000-00	-
836 - SERVICE TOOL FROM DATE CODE 97-22 BDE-559508-98.A11 559508-98	£71.44	£85.73
837 - NO LONGER AVAILABLE FROM DATE CODE 97-22 BDE-000000-00.A21153 000000-00	-
837 - NO LONGER AVAILABLE UPTO DATE CODE 97-21 BDE-000000-00.A21154 000000-00	-
838 - S.T.PULLER BDE-559510-99.A12 559510-99	£87.82	£105.39
839 - S.T.SUPPORT JIG BDE-559656-99.A6 559656-99	£71.44	£85.73
840 - S.T.ASSEMBLY JIG BDE-559597-99.A30 559597-99	£38.80	£46.56
841 - S.T.BLOCK BDE-559598-99.A16 559598-99	-
842 - S.T.MANDREL FROM DATE CODE 97-22 BDE-559602-99.A14 559602-99	£47.08	£56.49
846 - BRUSH PAIR 230V GB 240V BDE-N542573.A7 N542573	-
846 - BRUSH PAIR 120V GB 115V BDE-327148-03.A5 327148-03	-
847 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A21155 000000-00	-
847 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A21156 000000-00	-
