Elu BHA24K Type 1 Rotary Hammer Spare Parts

Home Details Reviews Delivery

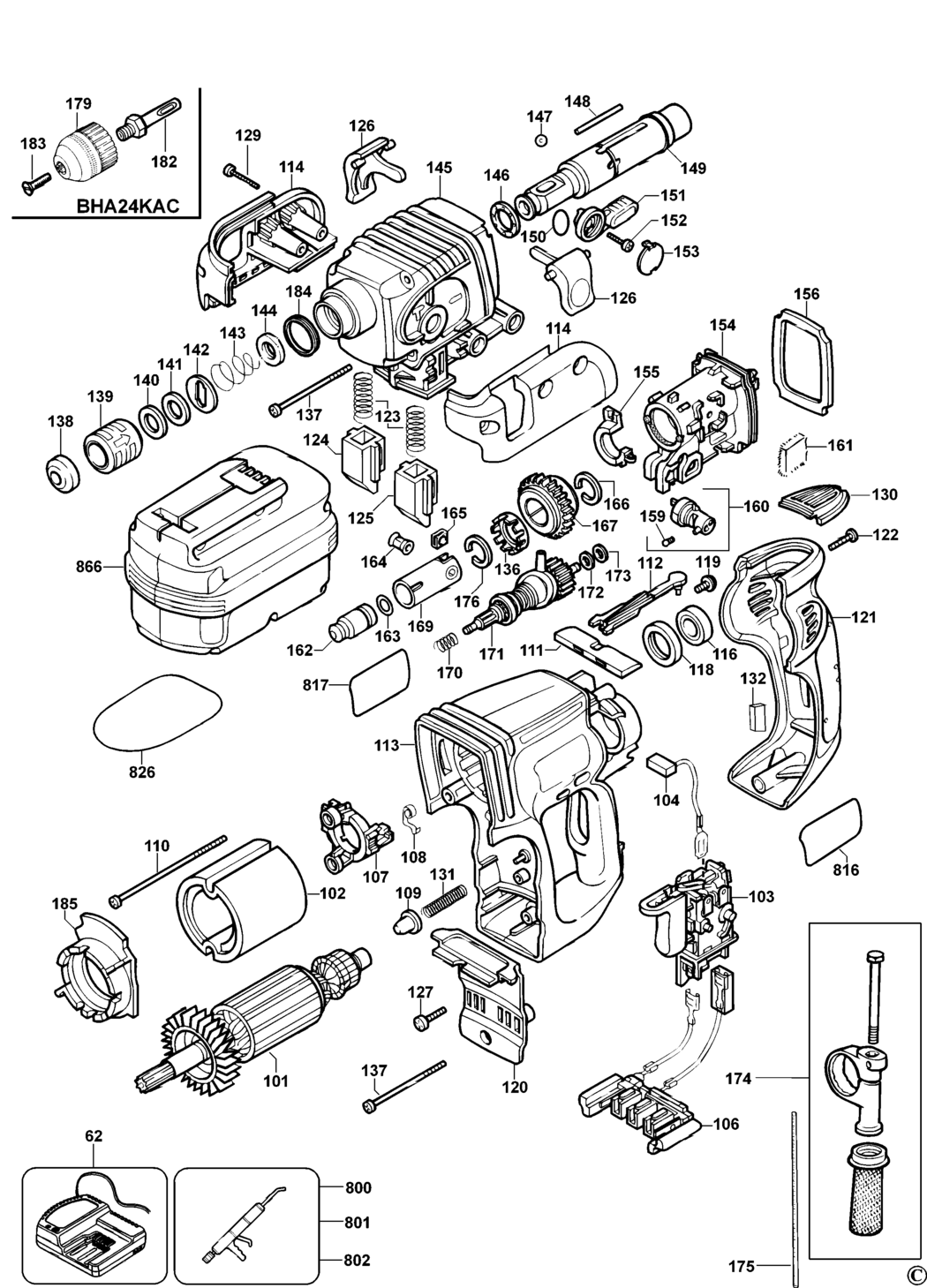

An exploded drawing and spare parts listing for the Elu BHA24K Type 1 Rotary Hammer

	Ex VAT	Inc VAT
62 - NO LONGER AVAILABLE GB BDE-000000-00.A87348 000000-00	-
101 - NO LONGER AVAILABLE BDE-000000-00.A87349 000000-00	-
102 - NO LONGER AVAILABLE BDE-000000-00.A87350 000000-00	-
103 - SWITCH SA BDE-487136-00.A3 487136-00	£59.41	£71.29
104 - BRUSH & LEAD BDE-487114-00.A4 487114-00	-
106 - NO LONGER AVAILABLE BDE-000000-00.A87351 000000-00	-
107 - BRUSH FRAME BDE-487154-00.A0 487154-00	-
108 - BRUSH SPRING BDE-445860-00.A40 445860-00	£1.66	£1.99
109 - KNOB BDE-487086-00.A9 487086-00	£1.78	£2.13
110 - NO LONGER AVAILABLE BDE-000000-00.A87352 000000-00	-
111 - NO LONGER AVAILABLE BDE-000000-00.A87353 000000-00	-
112 - NO LONGER AVAILABLE BDE-000000-00.A87354 000000-00	-
113 - MOTOR HOUSING SA BDE-329861-01.A4 329861-01	£23.75	£28.50
114 - COVER SA BDE-487100-00.A3 487100-00	-
116 - BEARING BDE-330003-60.A95 330003-60	£2.87	£3.44
118 - SLEEVE BDE-935030.A3 935030	-
119 - SCREW BDE-329794-00.A52 329794-00	£1.66	£1.99
120 - NO LONGER AVAILABLE BDE-000000-00.A87355 000000-00	-
121 - NO LONGER AVAILABLE BDE-000000-00.A87356 000000-00	-
122 - SCREW BDE-330065-08.A196 330065-08	£1.66	£1.99
123 - SPRING BDE-329876-00.A0 329876-00	£1.66	£1.99
124 - BLOCK RH BDE-329948-01.A1 329948-01	£1.78	£2.13
125 - BLOCK LH BDE-329948-00.A3 329948-00	£1.78	£2.13
126 - NO LONGER AVAILABLE BDE-000000-00.A87357 000000-00	-
127 - SCREW BDE-330065-06.A169 330065-06	£1.66	£1.99
129 - NO LONGER AVAILABLE BDE-000000-00.A87358 000000-00	-
130 - NO LONGER AVAILABLE BDE-000000-00.A87359 000000-00	-
131 - SPRING BDE-323395-32.A9 323395-32	£2.32	£2.78
132 - BUMPER BDE-930026-01.A115 930026-01	£1.66	£1.99
136 - SPACER BDE-327110-00.A21 327110-00	£1.78	£2.13
137 - SCREW BDE-324044-02.A37 324044-02	£1.66	£1.99
138 - CAP BDE-323489-00.A136 323489-00	£1.66	£1.99
139 - COLLAR BDE-576756-00.A76 576756-00	-
140 - SPACER Upto date code 47-00 BDE-323480-00.A60 323480-00	£1.88	£2.26
141 - WASHER Upto date code 47-00 BDE-323492-00.A56 323492-00	-
142 - WASHER BDE-578387-00.A270 578387-00	£1.66	£1.99
143 - SPRING BDE-871690.A231 871690	£1.66	£1.99
144 - SEAL SA BDE-324432-00.A50 324432-00	£6.06	£7.27
145 - NO LONGER AVAILABLE BDE-000000-00.A87360 000000-00	-
146 - WASHER BDE-329907-00.A30 329907-00	£8.08	£9.70
147 - NO LONGER AVAILABLE BDE-000000-00.A87361 000000-00	-
148 - PIN BDE-325880-03.A21 325880-03	-
149 - NO LONGER AVAILABLE BDE-000000-00.A87362 000000-00	-
150 - O RING BDE-916323.A28 916323	-
151 - LEVER BDE-327119-00.A18 327119-00	£1.88	£2.26
152 - SCREW BDE-323924-08.A9 323924-08	£1.66	£1.99
153 - COVER BDE-328809-00.A42 328809-00	-
154 - NO LONGER AVAILABLE BDE-000000-00.A87363 000000-00	-
155 - SHIELD BDE-328507-00.A21 328507-00	£3.70	£4.44
156 - NO LONGER AVAILABLE BDE-000000-00.A87364 000000-00	-
159 - DETENT BDE-326467-00.A307 326467-00	£1.66	£1.99
160 - CAM BDE-327094-01.A26 327094-01	£3.39	£4.07
161 - FILTER BDE-327093-00.A10 327093-00	£1.66	£1.99
162 - RAM SA BDE-N032136.A42 N032136	-
163 - O RING BDE-577168-00.A23 577168-00	£1.66	£1.99
164 - AXLE BDE-487143-00.A9 487143-00	£8.08	£9.70
165 - SHIM BDE-327072-00.A1 327072-00	£2.32	£2.78
166 - CIRCLIP BDE-323762-02.A0 323762-02	£1.66	£1.99
167 - CLUTCH SA BDE-487401-00.A16 487401-00	£23.75	£28.50
169 - PISTON BDE-487067-00.A23 487067-00	£20.50	£24.60
170 - SPRING BDE-323395-33.A23 323395-33	£1.78	£2.13
171 - INTER SHAFT SA BDE-586535-00.A3 586535-00	£72.28	£86.73
172 - BEARING AXIAL BDE-324430-03.A65 324430-03	-
173 - WASHER 7 BDE-324431-03.A57 324431-03	-
174 - HANDLE SIDE SA BDE-939794-02.A118 939794-02	£15.01	£18.01
175 - DEPTH STOP BDE-580787-00.A185 580787-00	£1.66	£1.99
176 - CIRCLIP BDE-323762-08.A4 323762-08	£1.66	£1.99
179 - CHUCK SA BHA24KAC BDE-583096-02.A24 583096-02	£69.63	£83.56
182 - ADAPTOR BHA24KAC BDE-352065.A15 352065	£15.01	£18.01
183 - SCREW BHA24KAC BDE-945013-00.A23 945013-00	£1.66	£1.99
184 - SEAL BDE-581092-00.A3 581092-00	£2.71	£3.25
185 - NO LONGER AVAILABLE BDE-000000-00.A87365 000000-00	-
800 - GREASE 90 GMS BDE-870889-02.A446 870889-02	£8.08	£9.70
801 - BIT GREASE 50G BDE-328771-07.A41 328771-07	£7.40	£8.88
802 - GREASE 10 GMS BDE-487130-04.A86 487130-04	£3.92	£4.70
816 - NO LONGER AVAILABLE BDE-000000-00.A87366 000000-00	-
817 - NO LONGER AVAILABLE BDE-000000-00.A87367 000000-00	-
826 - NO LONGER AVAILABLE BDE-000000-00.A87368 000000-00	-
866 - NO LONGER AVAILABLE GB BDE-000000-00.A87369 000000-00	-

Attribute Name	Value
Brand	Elu
