Elu BH35EK Type 1 Rotary Hammer Spare Parts

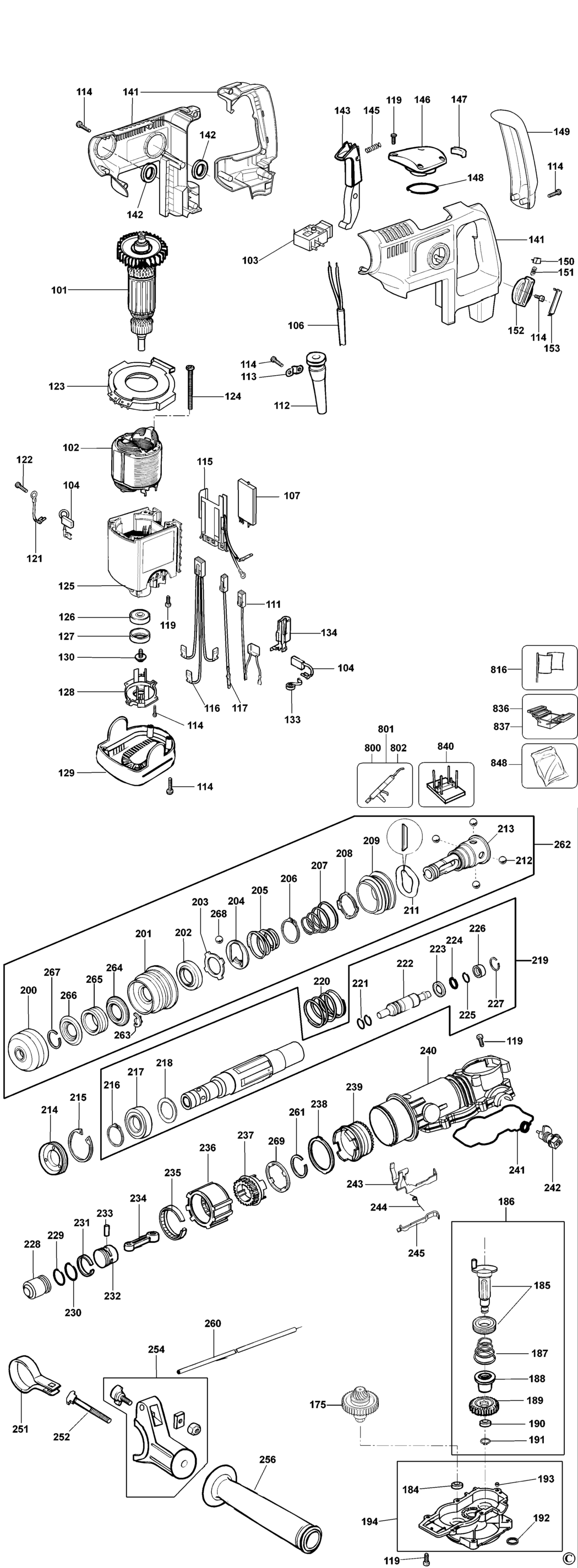

An exploded drawing and spare parts listing for the Elu BH35EK Type 1 Rotary Hammer

	Ex VAT	Inc VAT
101 - NO LONGER AVAILABLE BDE-000000-00.A17972 000000-00	-
102 - FIELD 230V BDE-377653-08.A0 377653-08	-
103 - SWITCH SA BDE-487175-49.A1 487175-49	-
104 - BRUSH KIT BDE-487131-00.A1 487131-00	-
107 - ELECTRONIC 230V BDE-328649-20.A6 328649-20	-
111 - CAPACITOR SA BDE-487087-00.A2 487087-00	£5.72	£6.87
112 - CORD PROTECTOR BDE-323091-01.A71 323091-01	£1.66	£1.99
113 - CORD CLAMP BDE-821070.A462 821070	£1.66	£1.99
114 - SCREW BDE-330065-08.A3 330065-08	£1.66	£1.99
115 - HOLDER BDE-329845-00.A9 329845-00	£15.63	£18.76
116 - LEAD SA BDE-329777-00.A2 329777-00	£3.70	£4.44
117 - LEAD SA BDE-329776-00.A6 329776-00	£2.21	£2.65
119 - SCREW TORX BDE-324007-11.A53 324007-11	£1.66	£1.99
121 - LEAD BDE-328856-01.A0 328856-01	£1.66	£1.99
122 - SCREW BDE-330065-24.A1 330065-24	£1.66	£1.99
123 - GUIDE BDE-327486-00.A6 327486-00	-
124 - SCREW BDE-330065-21.A4 330065-21	£1.66	£1.99
125 - NO LONGER AVAILABLE BDE-000000-00.A17973 000000-00	-
126 - BEARING BDE-N542566.A3 N542566	£12.17	£14.60
127 - SLEEVE BDE-325279-00.A22 325279-00	-
128 - HOLDER BEARING BDE-327487-00.A2 327487-00	£1.66	£1.99
129 - END CAP BDE-327489-01.A6 327489-01	£3.70	£4.44
130 - SCREW BDE-324119-02.A27 324119-02	£1.66	£1.99
133 - BRUSH SPRING BDE-326667-00.A59 326667-00	£1.66	£1.99
134 - HOLDER BDE-326933-01.A26 326933-01	£3.30	£3.96
141 - CLAMSHELL BDE-327589-09.A0 327589-09	£18.42	£22.10
142 - RING BDE-327577-00.A1 327577-00	£1.66	£1.99
143 - TRIGGER BDE-487094-01.A7 487094-01	£3.70	£4.44
145 - SPRING BDE-326438-00.A28 326438-00	-
146 - COVER HOUSING BDE-327499-02.A1 327499-02	-
147 - FILTER BDE-327586-00.A7 327586-00	-
148 - O RING BDE-323711-15.A7 323711-15	£1.66	£1.99
149 - SWITCH COVER BDE-327500-00.A7 327500-00	-
150 - NO LONGER AVAILABLE BDE-000000-00.A17974 000000-00	-
151 - SPRING BDE-323395-31.A1 323395-31	£1.66	£1.99
152 - LEVER BDE-327501-00.A1 327501-00	£1.78	£2.13
153 - CAP BDE-327509-00.A1 327509-00	£1.66	£1.99
175 - NO LONGER AVAILABLE BDE-000000-00.A17975 000000-00	-
184 - BEARING BDE-330003-39.A96 330003-39	£2.78	£3.34
185 - BEARING SA BDE-487074-49.A1 487074-49	-
186 - NO LONGER AVAILABLE BDE-000000-00.A17976 000000-00	-
187 - SPRING BDE-328769-00.A1 328769-00	-
188 - SLEEVE BDE-327507-00.A7 327507-00	£11.87	£14.24
189 - NO LONGER AVAILABLE BDE-000000-00.A17977 000000-00	-
190 - BEARING BDE-323872-05.A0 323872-05	£1.78	£2.13
191 - CIRCLIP BDE-324822-05.A8 324822-05	£1.66	£1.99
192 - SEAL BDE-327141-03.A3 327141-03	£12.17	£14.60
193 - SLEEVE BDE-327575-00.A18 327575-00	£1.66	£1.99
194 - CASTING SA BDE-327568-00.A7 327568-00	£25.05	£30.06
200 - LIP SEAL BDE-487147-00.A0 487147-00	-
201 - COLLAR SA BDE-487149-00.A0 487149-00	£2.71	£3.25
202 - NO LONGER AVAILABLE BDE-000000-00.A17978 000000-00	-
203 - GUIDE BDE-487148-00.A2 487148-00	£1.66	£1.99
204 - WASHER BDE-487153-00.A0 487153-00	£1.66	£1.99
205 - NO LONGER AVAILABLE BDE-000000-00.A17989 000000-00	-
206 - CIRCLIP BDE-324822-00.A0 324822-00	-
207 - SPRING BDE-487118-00.A42 487118-00	£1.66	£1.99
208 - NO LONGER AVAILABLE BDE-000000-00.A17979 000000-00	-
209 - NO LONGER AVAILABLE BDE-000000-00.A17980 000000-00	-
211 - NO LONGER AVAILABLE BDE-000000-00.A17981 000000-00	-
212 - NO LONGER AVAILABLE BDE-000000-00.A17982 000000-00	-
213 - NO LONGER AVAILABLE BDE-000000-00.A17983 000000-00	-
214 - NO LONGER AVAILABLE BDE-000000-00.A17984 000000-00	-
215 - RETAINER BDE-575279-00.A0 575279-00	£3.70	£4.44
216 - NO LONGER AVAILABLE BDE-000000-00.A17985 000000-00	-
217 - NO LONGER AVAILABLE BDE-000000-00.A17986 000000-00	-
218 - NO LONGER AVAILABLE BDE-000000-00.A17987 000000-00	-
219 - NO LONGER AVAILABLE BDE-000000-00.A17988 000000-00	-
220 - SPRING BDE-323395-26.A0 323395-26	£1.66	£1.99
221 - O RING BDE-323711-39.A4 323711-39	£1.66	£1.99
222 - NO LONGER AVAILABLE BDE-000000-00.A17990 000000-00	-
223 - WASHER BDE-327533-00.A3 327533-00	£5.72	£6.87
224 - O RING BDE-323711-31.A4 323711-31	£1.66	£1.99
225 - O RING BDE-323711-32.A0 323711-32	-
226 - NO LONGER AVAILABLE BDE-000000-00.A17991 000000-00	-
227 - NO LONGER AVAILABLE BDE-000000-00.A17992 000000-00	-
228 - NO LONGER AVAILABLE BDE-000000-00.A17993 000000-00	-
229 - O RING BDE-487037-00.A7 487037-00	£10.85	£13.02
230 - O RING BDE-323711-10.A40 323711-10	£1.66	£1.99
231 - PISTON RING BDE-325905-01.A2 325905-01	£1.66	£1.99
232 - PISTON BDE-327520-00.A0 327520-00	£12.17	£14.60
233 - PIN BDE-329818-00.A8 329818-00	-
234 - CON ROD BDE-327519-00.A8 327519-00	-
235 - RING BDE-327492-00.A1 327492-00	£1.66	£1.99
236 - BUSH BDE-327528-00.A0 327528-00	£1.78	£2.13
237 - SLEEVE BDE-327527-00.A8 327527-00	£9.17	£11.00
238 - WASHER BDE-327553-00.A1 327553-00	£1.66	£1.99
239 - NO LONGER AVAILABLE BDE-000000-00.A17994 000000-00	-
240 - HOUSING SA BDE-477193-00.A8 477193-00	£78.95	£94.74
241 - SEAL BDE-327518-00.A0 327518-00	£1.66	£1.99
242 - CAM BDE-327502-00.A7 327502-00	£1.66	£1.99
243 - FORK BDE-327504-00.A6 327504-00	£2.71	£3.25
244 - SPRING BDE-327574-00.A0 327574-00	£1.66	£1.99
245 - LEVER BDE-327505-00.A0 327505-00	£2.21	£2.65
251 - COLLAR BDE-327493-00.A7 327493-00	£7.18	£8.62
252 - BOLT BDE-327544-00.A1 327544-00	£3.70	£4.44
254 - CLAMP SA BDE-487103-49.A7 487103-49	-
256 - HANDLE BDE-327545-00.A7 327545-00	£10.57	£12.68
260 - DEPTH ROD BDE-326205-00.A46 326205-00	£3.70	£4.44
261 - RETAINER BDE-323763-07.A1 323763-07	£1.66	£1.99
262 - HOLDER TOOL BDE-575568-00.A0 575568-00	-
263 - NO LONGER AVAILABLE BDE-000000-00.A17995 000000-00	-
264 - NO LONGER AVAILABLE BDE-000000-00.A17996 000000-00	-
265 - NO LONGER AVAILABLE BDE-000000-00.A17997 000000-00	-
266 - WASHER BDE-487151-00.A2 487151-00	-
267 - NO LONGER AVAILABLE BDE-000000-00.A17998 000000-00	-
268 - BALL BDE-487033-01.A0 487033-01	-
269 - WASHER BDE-329590-00.A6 329590-00	£1.66	£1.99
800 - NO LONGER AVAILABLE BDE-000000-00.A17999 000000-00	-
801 - GREASE 100 GMS BDE-586778-04.A8 586778-04	£40.21	£48.25
802 - BIT GREASE 50G BDE-328771-07.A21 328771-07	£7.18	£8.62
816 - NO LONGER AVAILABLE BDE-000000-00.A18000 000000-00	-
836 - SERVICE TOOL BDE-559613-99.A0 559613-99	£38.80	£46.56
837 - SERVICE TOOL BDE-559611-99.A0 559611-99	£34.00	£40.80
840 - SERVICE TOOL BDE-559610-99.A4 559610-99	£24.39	£29.27
848 - NO LONGER AVAILABLE BDE-000000-00.A18001 000000-00	-
