Black & Decker KD1001K Type 2 Rotary Hammer Spare Parts

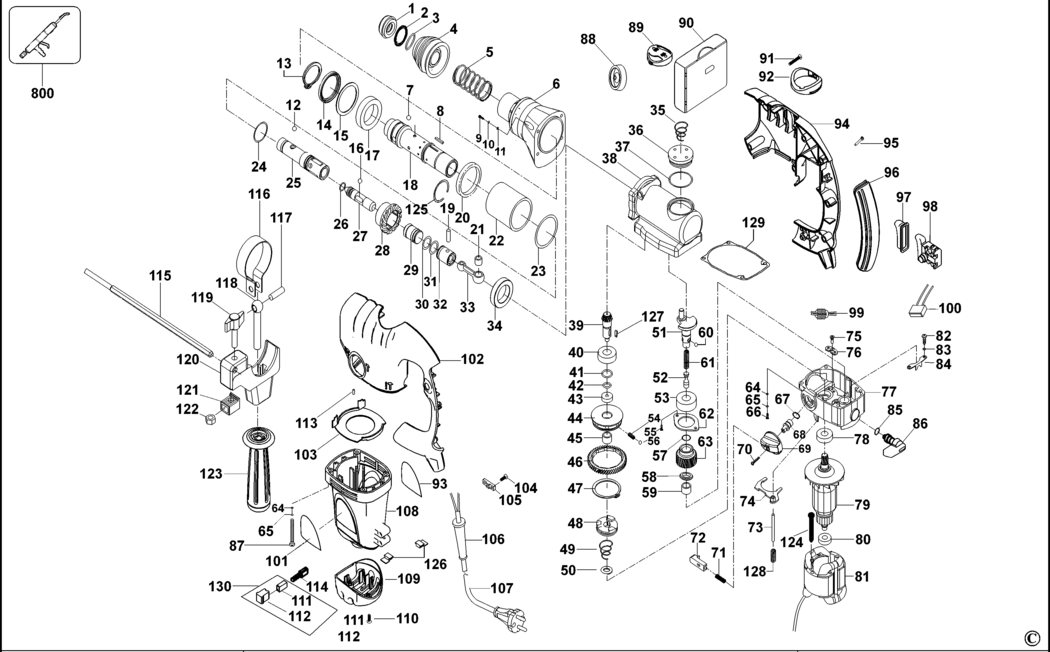

An exploded drawing and spare parts listing for the Black & Decker KD1001K Type 2 Rotary Hammer

	Ex VAT	Inc VAT
1 - LIP SEAL BDE-597393-00.A1 597393-00	£1.66	£1.99
2 - CIRCLIP BDE-1003524-00.A0 1003524-00	£1.66	£1.99
3 - O RING BDE-1004509-00.A1 1004509-00	£1.66	£1.99
4 - SLEEVE SA BDE-597396-00.A1 597396-00	£4.69	£5.63
5 - SPRING BDE-597397-00.A1 597397-00	£1.66	£1.99
6 - HOUSING FRONT BDE-1003525-00.A1 1003525-00	£18.42	£22.10
7 - BALL STEEL BDE-597399-00.A1 597399-00	£1.66	£1.99
8 - INSERT BDE-597400-00.A1 597400-00	-
9 - SCREW BDE-597401-00.A1 597401-00	£1.66	£1.99
10 - WASHER SPRING BDE-597402-00.A1 597402-00	£1.66	£1.99
11 - WASHER BDE-597403-00.A1 597403-00	£1.66	£1.99
12 - BALL STEEL BDE-597404-00.A1 597404-00	£1.66	£1.99
13 - CIRCLIP BDE-1003530-00.A0 1003530-00	-
14 - SEAL BDE-1003526-00.A0 1003526-00	£2.21	£2.65
15 - O RING BDE-597407-00.A1 597407-00	£1.66	£1.99
16 - BEARING BDE-597409-00.A1 597409-00	£5.72	£6.87
17 - BALL STEEL BDE-597408-00.A1 597408-00	£1.66	£1.99
18 - CYLINDER BDE-1003527-00.A1 1003527-00	£18.42	£22.10
19 - PIN BDE-597411-00.A1 597411-00	-
20 - RING BDE-597412-00.A1 597412-00	£1.66	£1.99
21 - BEARING NEEDLE BDE-597413-00.A1 597413-00	£7.01	£8.41
22 - BUSH BDE-597414-00.A1 597414-00	£1.66	£1.99
23 - O RING BDE-597415-00.A1 597415-00	£1.66	£1.99
24 - O RING BDE-597416-00.A1 597416-00	-
25 - SPINDLE BDE-1004509-01.A1 1004509-01	£14.57	£17.48
26 - O RING BDE-597418-00.A1 597418-00	£1.66	£1.99
27 - BEAT PIECE BDE-597419-00.A1 597419-00	£3.22	£3.86
28 - GEAR BDE-597420-00.A1 597420-00	£10.85	£13.02
29 - RAM BDE-597421-00.A1 597421-00	£3.22	£3.86
30 - O RING BDE-597422-00.A1 597422-00	£1.66	£1.99
31 - O RING BDE-597423-00.A1 597423-00	£1.66	£1.99
32 - PISTON BDE-597424-00.A1 597424-00	-
33 - CON ROD BDE-597425-00.A1 597425-00	-
34 - BEARING BDE-597426-00.A1 597426-00	£1.66	£1.99
35 - SPRING BDE-597427-00.A0 597427-00	£1.66	£1.99
36 - COVER BDE-597428-00.A2 597428-00	£1.66	£1.99
37 - O RING BDE-597429-00.A0 597429-00	£1.66	£1.99
38 - CRANKCASE BDE-597430-00.A2 597430-00	£18.42	£22.10
39 - PINION GEAR BDE-597431-00.A0 597431-00	-
40 - BEARING BDE-597432-00.A2 597432-00	£5.72	£6.87
41 - WASHER BDE-597433-00.A0 597433-00	£1.66	£1.99
42 - RING BDE-597434-00.A2 597434-00	£1.66	£1.99
43 - BEARING BDE-597435-00.A0 597435-00	£1.78	£2.13
44 - WHEEL BDE-597436-00.A2 597436-00	£15.63	£18.76
45 - BEARING NEEDLE BDE-597437-00.A0 597437-00	£1.78	£2.13
46 - GEAR BDE-597438-00.A2 597438-00	£10.57	£12.68
47 - CIRCLIP BDE-597439-00.A0 597439-00	£1.66	£1.99
48 - CLUTCH SA BDE-597440-00.A2 597440-00	£5.72	£6.87
49 - SPRING BDE-597441-00.A0 597441-00	£1.66	£1.99
50 - WASHER BDE-597443-00.A0 597443-00	£1.66	£1.99
51 - CRANK BDE-597444-00.A2 597444-00	-
52 - SPINDLE BDE-597445-00.A0 597445-00	£1.66	£1.99
53 - BEARING BDE-597446-00.A2 597446-00	£5.72	£6.87
54 - SPRING BDE-597447-00.A0 597447-00	£1.66	£1.99
55 - SCREW BDE-597448-00.A2 597448-00	£1.66	£1.99
56 - BALL STEEL BDE-597449-00.A0 597449-00	£1.66	£1.99
57 - RING BDE-597450-00.A2 597450-00	£1.66	£1.99
58 - SEAL BDE-597451-00.A0 597451-00	£1.66	£1.99
59 - BEARING BDE-597452-00.A2 597452-00	£1.66	£1.99
60 - BALL BDE-597453-00.A0 597453-00	£1.66	£1.99
61 - SPRING BDE-597454-00.A2 597454-00	£1.66	£1.99
62 - COVER BEARING BDE-597455-00.A0 597455-00	£1.66	£1.99
63 - GEAR BDE-597456-00.A2 597456-00	£7.85	£9.42
64 - WASHER BDE-597457-00.A0 597457-00	£1.66	£1.99
65 - WASHER SPRING BDE-597458-00.A2 597458-00	£1.66	£1.99
66 - SCREW BDE-597459-00.A0 597459-00	£1.66	£1.99
67 - RING BDE-597460-00.A2 597460-00	£1.66	£1.99
68 - SHAFT BDE-597461-00.A0 597461-00	-
69 - KNOB BDE-597462-00.A2 597462-00	£1.66	£1.99
70 - SCREW BDE-597463-00.A0 597463-00	£1.66	£1.99
71 - SPRING BDE-597464-00.A2 597464-00	-
72 - COVER BDE-597465-00.A0 597465-00	£1.66	£1.99
73 - BOLT BDE-597466-00.A2 597466-00	£1.66	£1.99
74 - FORK BDE-597468-00.A1 597468-00	£1.78	£2.13
75 - SCREW BDE-597469-00.A1 597469-00	£1.66	£1.99
76 - STOP BDE-597470-00.A1 597470-00	-
77 - GEARBOX BDE-597471-00.A1 597471-00	£15.63	£18.76
78 - BEARING BDE-597472-00.A1 597472-00	£5.88	£7.06
79 - ARMATURE 230V BDE-597473-00.A1 597473-00	-
80 - BEARING BDE-597474-00.A1 597474-00	-
81 - FIELD 230V BDE-597475-00.A1 597475-00	-
82 - SCREW BDE-597476-00.A1 597476-00	£1.66	£1.99
83 - WASHER SPRING BDE-597477-00.A1 597477-00	£1.66	£1.99
84 - LOCKING DEVICE BDE-597478-00.A1 597478-00	£1.66	£1.99
85 - O RING BDE-597479-00.A1 597479-00	£1.66	£1.99
86 - KNOB BDE-597480-00.A1 597480-00	£4.58	£5.49
87 - SCREW BDE-597481-00.A1 597481-00	£1.66	£1.99
88 - DUST GUARD BDE-597482-00.A1 597482-00	£1.66	£1.99
89 - COVER BDE-597483-00.A1 597483-00	£1.66	£1.99
90 - CASE BDE-597484-00.A1 597484-00	£40.21	£48.25
91 - SCREW BDE-597485-00.A1 597485-00	£1.66	£1.99
92 - INSERT BDE-597486-00.A1 597486-00	£1.66	£1.99
93 - NO LONGER AVAILABLE BDE-000000-00.A128340 000000-00	-
94 - HOUSING RH BDE-597488-00.A1 597488-00	£15.63	£18.76
95 - SCREW BDE-597489-00.A1 597489-00	£1.66	£1.99
96 - HANDLE COVER BDE-597490-00.A1 597490-00	£1.78	£2.13
97 - SWITCH COVER BDE-597491-00.A1 597491-00	£1.66	£1.99
98 - SWITCH BDE-597492-00.A1 597492-00	-
99 - CHOKE BDE-597493-00.A1 597493-00	£1.66	£1.99
100 - CAPACITOR BDE-1004531-00.A2 1004531-00	£1.66	£1.99
101 - BRAND LABEL BDE-597495-00.A1 597495-00	£1.66	£1.99
102 - HOUSING LH BDE-597496-00.A1 597496-00	£15.63	£18.76
103 - BAFFLE BDE-1003601-00.A1 1003601-00	£1.66	£1.99
104 - SCREW BDE-597498-00.A1 597498-00	£1.66	£1.99
105 - CORD CLAMP BDE-597499-00.A1 597499-00	£1.66	£1.99
106 - CORD PROTECTOR BDE-597500-00.A1 597500-00	£1.66	£1.99
107 - CORDSET (M/PLUG) GB BDE-1003709-00.A0 1003709-00	£18.42	£22.10
108 - HOUSING MOTOR BDE-597502-00.A1 597502-00	£17.03	£20.44
109 - END CAP BDE-1004509-03.A0 1004509-03	£3.22	£3.86
110 - SCREW BDE-597504-00.A0 597504-00	£1.66	£1.99
111 - BRUSHBOX SA BDE-1004075-01.A3 1004075-01	-
112 - BRUSHBOX SA BDE-1004075-01.A4 1004075-01	-
113 - DAMPER BDE-597507-00.A2 597507-00	£1.66	£1.99
114 - BRUSH 230V BDE-597508-00.A0 597508-00	£4.69	£5.63
115 - DEPTH STOP BDE-597509-00.A2 597509-00	£1.66	£1.99
116 - CLAMP BDE-597510-00.A0 597510-00	£1.66	£1.99
117 - BOLT BDE-597511-00.A2 597511-00	£1.66	£1.99
118 - NUT BDE-597512-00.A0 597512-00	£1.66	£1.99
119 - SCREW WING BDE-597513-00.A2 597513-00	£1.66	£1.99
120 - HOLDER BDE-597514-00.A0 597514-00	£1.78	£2.13
121 - CLAMP BDE-597515-00.A2 597515-00	£1.66	£1.99
122 - NUT BDE-597516-00.A0 597516-00	£1.66	£1.99
123 - SIDE HANDLE BDE-597517-00.A2 597517-00	£4.58	£5.49
124 - SCREW BDE-597518-00.A0 597518-00	£1.66	£1.99
125 - RING BDE-597519-00.A2 597519-00	£1.66	£1.99
126 - RUBBER PAD BDE-597520-00.A0 597520-00	£1.66	£1.99
127 - INSERT BDE-597442-00.A1 597442-00	£1.66	£1.99
128 - SPRING BDE-597467-00.A0 597467-00	£1.66	£1.99
129 - GASKET BDE-1003529-00.A0 1003529-00	£1.66	£1.99
130 - BRUSHBOX SA BDE-1004075-01.A5 1004075-01	-
800 - GREASE 90 GMS 20 GMs BDE-870889-02.A561 870889-02	£8.08	£9.70
