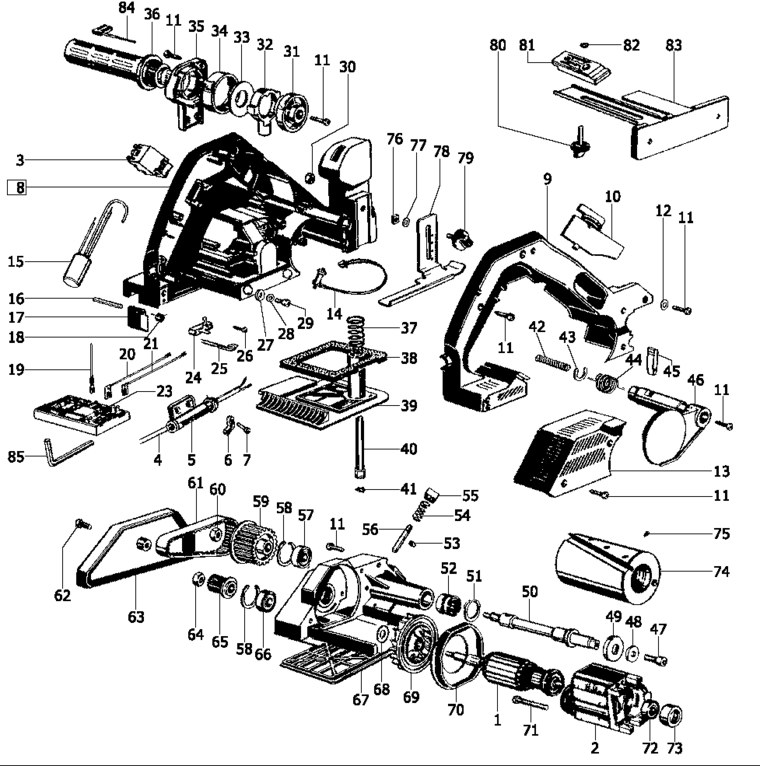

An exploded diagram and spare parts listing for the Festool HL 850 E 220V / 487905
Ex VAT Inc VAT
1 - ARMATURE 230V FSP-492300.A2 492300 £121.34 £145.61
2 - FIELD ASSEMBLY 230V FSP-492302.A3 492302 £75.82 £90.99
3 - SWITCH FSP-490843.A8 490843 £45.68 £54.81
4 - NO LONGER AVAILABLE FSP-00000.A6147 00000 -
4 - CABLE EU FSP-457600.A4 457600 £25.08 £30.09
5 - CABLE GROMMET FSP-437024.A6 437024 £2.00 £2.40
6 - CABLE CLAMP FSP-439288.A11 439288 £2.00 £2.40
7 - RAISED-HEAD SCREW 3.5 X 16 MM FSP-228663.A62 228663 £2.00 £2.40
8 - MOTOR HOUSING FSP-485889.A4 485889 £118.15 £141.78
9 - COVER FSP-715176.A9 715176 £16.48 £19.77
10 - ROCKER FSP-715039.A9 715039 £3.14 £3.77
11 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A198 228567 £2.00 £2.40
12 - SPRING DISC FSP-200762.A3 200762 £2.00 £2.40
13 - MOTOR COVER FSP-455589.A7 455589 £4.81 £5.77
14 - COIL SHELL FSP-612012.A6 612012 £15.41 £18.49
15 - INTERFERENCE CAPACITOR FSP-715125.A0 715125 £8.98 £10.78
16 - CYLINDER PIN FSP-228651.A9 228651 £2.00 £2.40
17 - SUPPORT FSP-715030.A1 715030 £2.00 £2.40
18 - TORSION SPRING FSP-715033.A12 715033 £2.00 £2.40
19 - FLEXIBLE LEAD FSP-715124.A4 715124 £2.00 £2.40
20 - NO LONGER AVAILABLE FSP-00000.A6148 00000 -
21 - NO LONGER AVAILABLE FSP-00000.A6149 00000 -
24 - BRUSH HOLDER MIT KOHLE (PAAR) 230V FSP-488915.A16 488915 £19.04 £22.85
25 - PLUG-IN BRACKET FSP-443331.A9 443331 £2.00 £2.40
26 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A269 219031 £2.00 £2.40
27 - RING FSP-715166.A0 715166 £4.06 £4.87
28 - WASHER 5.3 MM FSP-200577.A2 200577 £2.00 £2.40
29 - RAISED-HEAD SCREW FSP-476787.A3 476787 £2.00 £2.40
30 - HEXAGON NUT M6 FSP-228689.A14 228689 £2.00 £2.40
31 - CAM FSP-715053.A1 715053 £6.42 £7.71
32 - HEAD PIECE FSP-715055.A1 715055 £11.05 £13.26
33 - WASHER FSP-715037.A7 715037 £2.00 £2.40
34 - CLAMPING RING FSP-715054.A8 715054 £2.66 £3.19
35 - COVER FSP-715051.A1 715051 £2.82 £3.39
36 - GRIP FSP-715052.A8 715052 £10.92 £13.10
37 - PRESSURE SPRING FSP-715029.A7 715029 £2.00 £2.40
38 - NEOPRENE SEAL FSP-715022.A1 715022 £3.81 £4.57
39 - ADJUSTING TABLE FSP-487656.A1 487656 £40.21 £48.25
40 - CHEESE HEAD SCREW FSP-400040.A5 400040 £2.00 £2.40
41 - TOOTH RING FSP-213646.A6 213646 £2.00 £2.40
42 - PRESSURE SPRING FSP-715038.A1 715038 £2.00 £2.40
43 - CIRCLIP FSP-228656.A1 228656 £2.00 £2.40
44 - TORSION SPRING FSP-715020.A1 715020 £3.68 £4.42
45 - PUSHER FSP-715049.A1 715049 £2.00 £2.40
46 - HOOD FSP-715048.A8 715048 £4.69 £5.63
47 - CHEESE HEAD SCREW M6 X 16 FSP-200685.A11 200685 £2.00 £2.40
48 - WASHER FSP-402935.A1 402935 £2.00 £2.40
49 - CLAMPING FLANGE FSP-715036.A1 715036 £2.00 £2.40
50 - PLANING SHAFT FSP-715015.A4 715015 £37.00 £44.40
51 - SNAP RING FSP-202930.A3 202930 £2.00 £2.40
52 - NEEDLE BEARING FSP-788849.A9 788849 £29.92 £35.91
53 - CIRCLIP FSP-229597.A9 229597 £2.00 £2.40
54 - PRESSURE SPRING FSP-715027.A3 715027 £2.00 £2.40
55 - CAP FSP-715050.A8 715050 £2.00 £2.40
56 - BOLT FSP-715021.A7 715021 £4.24 £5.09
57 - BALL BEARING FSP-400583.A9 400583 £6.64 £7.97
58 - SNAP RING FSP-209608.A3 209608 £2.00 £2.40
59 - TOOTH DISC FSP-715034.A2 715034 £15.97 £19.16
60 - HEXAGON NUT M6 FSP-228689.A15 228689 £2.00 £2.40
61 - TOOTHED BELT FSP-714043.A5 714043 £12.98 £15.57
62 - RAISED-HEAD SCREW FSP-476787.A7 476787 £2.00 £2.40
63 - GEAR COVER FSP-455585.A0 455585 £6.09 £7.31
64 - HEXAGON NUT M6 FSP-772997.A4 772997 £2.00 £2.40
65 - TOOTH DISC FSP-715035.A7 715035 £4.92 £5.91
66 - BALL BEARING FSP-789575.A70 789575 £5.99 £7.19
67 - BEARING FLANGE FSP-487655.A7 487655 £98.03 £117.64
68 - SHIM RING FSP-782510.A22 782510 £2.00 £2.40
69 - FAN FSP-715024.A18 715024 £2.00 £2.40
70 - AIR GUIDE WASHER FSP-715017.A4 715017 £2.00 £2.40
71 - RAISED-HEAD SCREW 4 X 50 MM FSP-228707.A39 228707 £2.00 £2.40
72 - BALL BEARING FSP-228559.A25 228559 £4.06 £4.87
73 - BEARING RING FSP-438613.A79 438613 £2.00 £2.40
74 - PLANING HEAD FSP-484520.A2 484520 £108.26 £129.91
75 - THREADED PIN M4 X 8 FSP-715102.A2 715102 £2.00 £2.40
76 - SQUARE NUT M6 FSP-228566.A3 228566 £2.00 £2.40
77 - O-RING FSP-200052.A9 200052 £2.00 £2.40
78 - REBATE STOP FSP-715040.A2 715040 £8.81 £10.57
79 - ROTARY KNOB FSP-436195.A65 436195 £2.00 £2.40
80 - ROTARY KNOB M6 X 28 FSP-436420.A11 436420 £2.00 £2.40
81 - SLIP PIECE FSP-715156.A10 715156 £9.43 £11.32
82 - O-RING FSP-200052.A10 200052 £2.00 £2.40
83 - STOP FSP-715056.A7 715056 £22.96 £27.55
84 - PIN KEY FSP-439803.A12 439803 £5.05 £6.06
85 - SCREWDRIVER FSP-202752.A49 202752 £2.00 £2.40
