Fein MSfo 869-1d (300Hz 200V) / 78206500260 Spare Parts

Fein MSfo 869-1d 𨌀Hz 200V) / 78206500260 Spare Parts

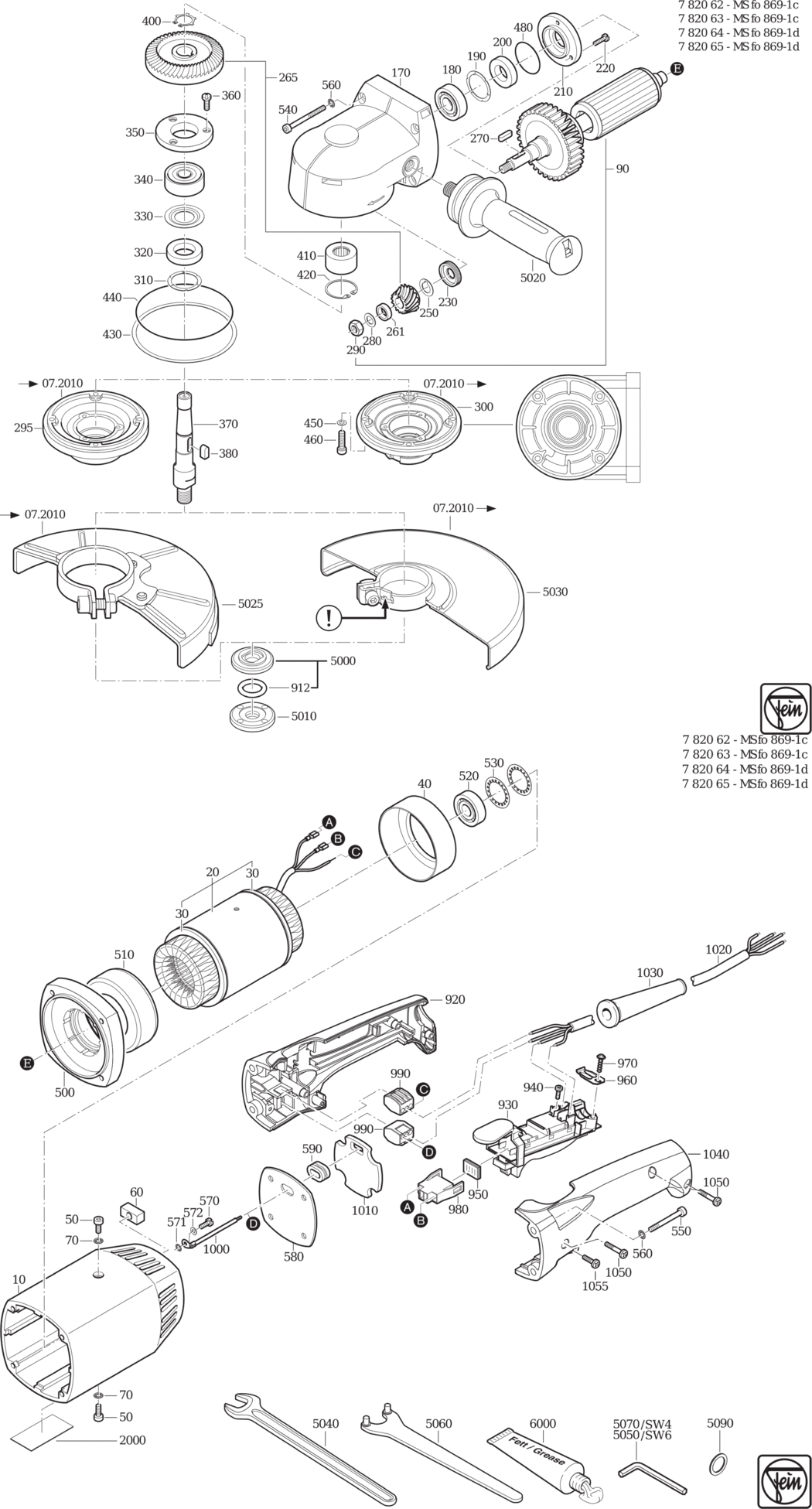

An exploded diagram and spare parts listing for the Fein MSfo 869-1d (300Hz 200V) / 78206500260

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903141002.A12 31903141002	£235.29	£282.35
20 - STATOR FEI-51819004160.A4 51819004160	£652.47	£782.96
30 - RING FEI-31419034005.A18 31419034005	£6.58	£7.90
40 - SLEEVE FEI-30517009003.A3 30517009003	£39.08	£46.89
50 - CYLINDER HEAD SCREW FEI-43033008058.A29 43033008058	£1.60	£1.92
60 - PLUG FEI-31415032009.A5 31415032009	£6.34	£7.61
70 - CIRCLIP M5 FEI-42443004057.A276 42443004057	£1.60	£1.92
90 - ROTOR FEI-33508046020.A4 33508046020	£375.27	£450.32
170 - GEARBOX HOUSING FEI-31206079008.A4 31206079008	£199.88	£239.85
180 - GROOVED BALL BEARING FEI-41701218024.A17 41701218024	£8.92	£10.70
190 - DISC FEI-32411062009.A7 32411062009	£1.60	£1.92
200 - FELT RING FEI-30601074004.A6 30601074004	£1.75	£2.10
210 - FLANGE FEI-32416067000.A2 32416067000	£32.18	£38.62
220 - CYLINDER HEAD SCREW FEI-43050002049.A6 43050002049	£1.60	£1.92
230 - SEALING RING FEI-32612103000.A2 32612103000	£12.50	£15.00
250 - DISC FEI-32624029026.A29 32624029026	£1.60	£1.92
250 - DISC FEI-32624029032.A6 32624029032	£2.25	£2.70
265 - BEVEL GEAR Z=20/42 FEI-33809082016.A0 33809082016	£307.28	£368.73
270 - FEATHER KEY FEI-40221017004.A14 40221017004	£1.60	£1.92
280 - CIRCLIP FEI-30240313000.A14 30240313000	-
290 - NUT FEI-42019001088.A12 42019001088	£9.49	£11.39
300 - BEARING PLATE FEI-32419144010.A2 32419144010	£83.61	£100.33
310 - DISC FEI-32411062009.A8 32411062009	£1.60	£1.92
320 - FELT RING FEI-30601049000.A1 30601049000	£1.60	£1.92
330 - SEALING RING FEI-42639008005.A8 42639008005	£5.02	£6.03
340 - GROOVED BALL BEARING FEI-41701224024.A39 41701224024	£12.19	£14.63
350 - PLATE FEI-32416058009.A29 32416058009	£19.56	£23.47
360 - CYLINDER HEAD SCREW FEI-43050002049.A5 43050002049	£1.60	£1.92
370 - SHAFT FEI-33406138007.A3 33406138007	£83.15	£99.78
380 - FEATHER KEY FEI-40223026004.A2 40223026004	£2.34	£2.81
400 - CIRCLIP FEI-42641001002.A7 42641001002	£1.60	£1.92
410 - NEEDLE BEARING FEI-41706002002.A28 41706002002	£40.91	£49.09
420 - CIRCLIP FEI-42616020004.A2 42616020004	£1.60	£1.92
430 - DISC FEI-32624055030.A9 32624055030	£5.71	£6.85
430 - DISC FEI-32624055024.A9 32624055024	£6.80	£8.16
440 - SEALING RING FEI-40612002009.A22 40612002009	£4.26	£5.11
450 - SEALING RING FEI-40611001002.A53 40611001002	£1.60	£1.92
460 - CYLINDER HEAD SCREW M5X20 FEI-43033012056.A4 43033012056	£1.60	£1.92
480 - SEALING RING FEI-40612007002.A5 40612007002	-
500 - AIR GUIDE RING FEI-32602063006.A16 32602063006	£73.83	£88.60
510 - SLEEVE FEI-30517010005.A15 30517010005	£40.32	£48.38
520 - GROOVED BALL BEARING FEI-41701010026.A36 41701010026	£8.93	£10.72
530 - CUP SPRING FEI-30905035002.A8 30905035002	£1.60	£1.92
540 - CYLINDER HEAD SCREW FEI-43035022053.A9 43035022053	£1.60	£1.92
550 - CYLINDER HEAD SCREW FEI-43035020051.A53 43035020051	£1.60	£1.92
560 - CIRCLIP M5 FEI-42443004057.A275 42443004057	£1.60	£1.92
570 - FLAT HEADED SCREW FEI-43003029048.A12 43003029048	-
571 - LOCK WASHER FEI-42439013046.A26 42439013046	£1.60	£1.92
572 - DISC FEI-42404005048.A104 42404005048	£1.60	£1.92
580 - INSULATION BOARD FEI-31408056000.A28 31408056000	£7.32	£8.79
590 - INSULATING RING FEI-31406033009.A31 31406033009	£2.86	£3.43
912 - SEALING RING FEI-40612000007.A218 40612000007	£1.60	£1.92
920 - HANDLE HALF SHELL FEI-31204179010.A75 31204179010	£33.48	£40.17
930 - SWITCH FEI-30701316010.A24 30701316010	£83.94	£100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A32 43041035047	£1.60	£1.92
950 - SEAL FEI-31324121000.A19 31324121000	£9.47	£11.37
960 - CABLE CLAMPING PIECE FEI-32431042008.A42 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A14 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A4 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A138 31412063000	£3.93	£4.72
1000 - CONNECTING CABLE FEI-30719640010.A26 30719640010	£2.66	£3.19
1010 - PLATE FEI-30605042008.A31 30605042008	£5.45	£6.54
1020 - CABLE FEI-30706335010.A0 30706335010	£78.97	£94.76
1030 - CABLE GROMMET FEI-31413094007.A104 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A12 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A135 43070031003	£1.60	£1.92
1055 - SCREW FEI-43070038007.A34 43070038007	£1.60	£1.92
5000 - INNER FLANGE FEI-63801182010.A36 63801182010	£14.88	£17.86
5010 - THREADED FLANGE FEI-63802052000.A31 63802052000	£14.88	£17.86
5020 - ANTI-VIBRATION HANDLE FEI-32119117015.A13 32119117015	£58.22	£69.87
5030 - SAFETY HOOD FEI-31810269020.A10 31810269020	£56.28	£67.54
5040 - JAW SPANNER SW17 FEI-62903011005.A1 62903011005	£7.22	£8.67
5060 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A241 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003135.A66 32160003135	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A676 34130054061	-

Attribute Name	Value
Brand	Fein
