Fein MSh 843-1 (200Hz 265V) / 78231900200 Spare Parts

Fein MSh 843-1 𨈀Hz 265V) / 78231900200 Spare Parts

Home Details Reviews Delivery

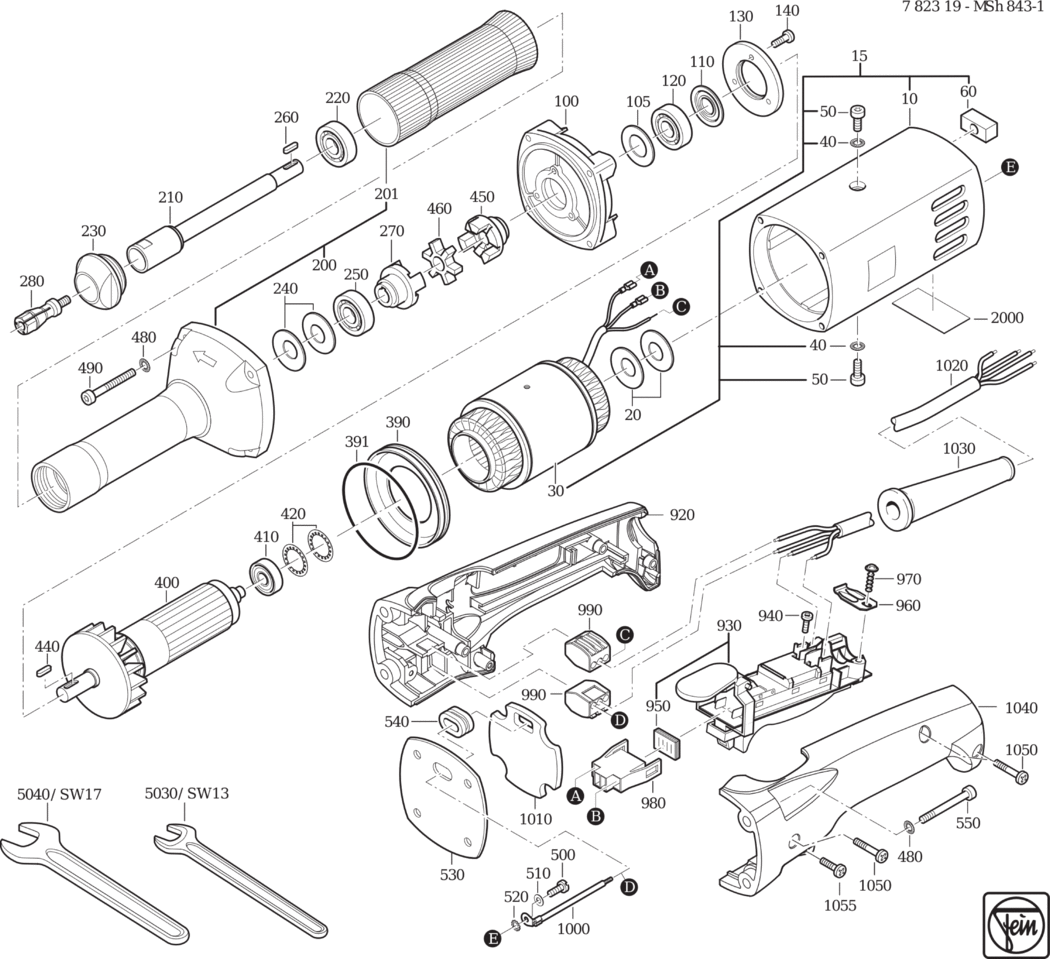

An exploded diagram and spare parts listing for the Fein MSh 843-1 (200Hz 265V) / 78231900200

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903178003.A1 31903178003	£181.17	£217.40
15 - MOTOR HOUSING WITH STAT FEI-52831004060.A3 52831004060	-
20 - SEALING RING FEI-30605076004.A3 30605076004	£3.58	£4.30
30 - STATOR FEI-51831004060.A0 51831004060	-
40 - CIRCLIP M4 FEI-42443003043.A134 42443003043	£1.60	£1.92
50 - CYLINDER HEAD SCREW FEI-43035003043.A4 43035003043	£1.60	£1.92
60 - PLUG FEI-31415032009.A1 31415032009	£6.34	£7.61
100 - INTERMEDIATE GEAR BOX FEI-31506292003.A1 31506292003	£85.36	£102.43
105 - DISC FEI-32624056033.A1 32624056033	£2.74	£3.29
110 - SEALING RING FEI-42639028003.A32 42639028003	£5.74	£6.89
120 - GROOVED BALL BEARING FEI-41701007038.A116 41701007038	£10.17	£12.20
130 - PLATE FEI-32416088006.A1 32416088006	£40.75	£48.90
140 - FILLISTER HEAD SCREW FEI-43064008044.A9 43064008044	£1.60	£1.92
200 - COLLAR BEARING FEI-31510072002.A3 31510072002	£132.54	£159.05
201 - PROTECTIVE HOSE FEI-31413193008.A4 31413193008	£8.96	£10.75
210 - SHAFT FEI-33406227006.A9 33406227006	£200.78	£240.93
220 - GROOVED BALL BEARING FEI-41701010032.A4 41701010032	£13.90	£16.68
230 - SLEEVE FEI-30514101007.A1 30514101007	£59.22	£71.06
240 - CUP SPRING FEI-30905012008.A4 30905012008	£1.60	£1.92
250 - GROOVED BALL BEARING FEI-41701020130.A15 41701020130	£11.73	£14.08
260 - FEATHER KEY FEI-40221006001.A4 40221006001	£2.60	£3.12
270 - CLUTCH PART FEI-30102072001.A14 30102072001	£57.78	£69.34
280 - COLLETS FEI-63207059006.A14 63207059006	£40.45	£48.54
390 - AIR GUIDE RING FEI-31428065017.A4 31428065017	£30.80	£36.96
391 - SEALING RING FEI-40612049000.A5 40612049000	£7.56	£9.07
400 - ROTOR FEI-33502051016.A1 33502051016	£284.26	£341.11
410 - GROOVED BALL BEARING FEI-41701204026.A5 41701204026	£7.20	£8.64
420 - CUP SPRING FEI-30905039001.A12 30905039001	£1.60	£1.92
440 - FEATHER KEY FEI-40221006001.A3 40221006001	£2.60	£3.12
450 - CLUTCH PART FEI-30102072001.A13 30102072001	£57.78	£69.34
460 - CLUTCH PART FEI-30102071008.A23 30102071008	£12.11	£14.53
480 - CIRCLIP M5 FEI-42443004057.A279 42443004057	£1.60	£1.92
490 - CYLINDER HEAD SCREW FEI-43035097059.A24 43035097059	£1.60	£1.92
500 - FLAT HEADED SCREW FEI-43003029048.A16 43003029048	-
510 - DISC FEI-42404005048.A95 42404005048	£1.60	£1.92
520 - LOCK WASHER FEI-42439013046.A31 42439013046	£1.60	£1.92
530 - INSULATION BOARD FEI-31408056000.A31 31408056000	£7.32	£8.79
540 - INSULATING RING FEI-31406033009.A29 31406033009	£2.86	£3.43
550 - CYLINDER HEAD SCREW FEI-43035020051.A49 43035020051	£1.60	£1.92
920 - HANDLE HALF SHELL FEI-31204179010.A85 31204179010	£33.48	£40.17
930 - SWITCH FEI-30701316010.A18 30701316010	£83.94	£100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A22 43041035047	£1.60	£1.92
950 - SEAL FEI-31324121000.A28 31324121000	£9.47	£11.37
960 - CABLE CLAMPING PIECE FEI-32431042008.A52 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A23 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A8 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A135 31412063000	£3.93	£4.72
1000 - CONNECTING CABLE FEI-30719640010.A20 30719640010	£2.66	£3.19
1010 - PLATE FEI-30605042008.A23 30605042008	£5.45	£6.54
1020 - CABLE FEI-30706338010.A30 30706338010	-
1030 - CABLE GROMMET FEI-31413094007.A107 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A1 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A126 43070031003	£1.60	£1.92
1055 - SCREW FEI-43070038007.A25 43070038007	£1.60	£1.92
5030 - JAW SPANNER SW13 FEI-62901007007.A45 62901007007	£11.61	£13.93
5040 - JAW SPANNER SW17 FEI-62903002009.A22 62903002009	£11.61	£13.93
9000 - OPERATING INSTRUCTIONS FEI-34101072060.A6 34101072060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A665 34130054061	-
