Black & Decker BD5 Type 1 Sander/grinder Spare Parts

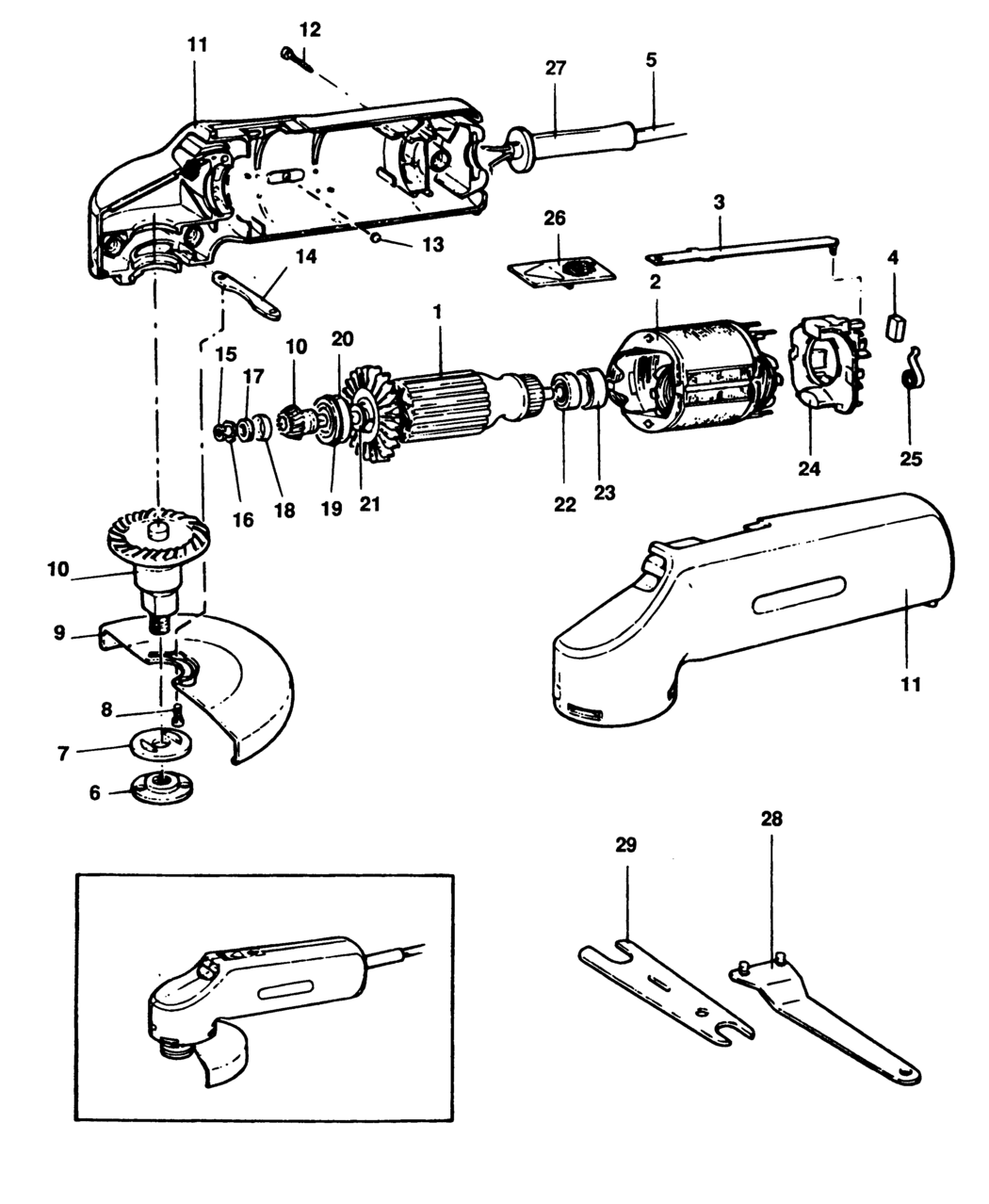

An exploded drawing and spare parts listing for the Black & Decker BD5 Type 1 Sander/grinder

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A68553 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A68554 000000-00	-
4 - BRUSH 230V BDE-930760-00.A8 930760-00	£5.88	£7.06
5 - NO LONGER AVAILABLE GB BDE-000000-00.A68555 000000-00	-
6 - OUTER FLANGE BDE-947214-00.A10 947214-00	£7.85	£9.42
7 - INNER FLANGE BDE-391968-00.A11 391968-00	-
8 - SCREW BDE-930224-00.A26 930224-00	£1.50	£1.80
9 - NO LONGER AVAILABLE BDE-000000-00.A68556 000000-00	-
10 - NO LONGER AVAILABLE BD5 BDE-000000-00.A68557 000000-00	-
10 - NO LONGER AVAILABLE DN5 ONLY BDE-000000-00.A68558 000000-00	-
11 - NO LONGER AVAILABLE BD5 BDE-000000-00.A68559 000000-00	-
11 - NO LONGER AVAILABLE DN5 ONLY BDE-000000-00.A68560 000000-00	-
12 - SCREW BDE-930079-01.A176 930079-01	£1.42	£1.70
14 - NO LONGER AVAILABLE BDE-000000-00.A68561 000000-00	-
15 - NO LONGER AVAILABLE BDE-000000-00.A68562 000000-00	-
16 - NO LONGER AVAILABLE BDE-000000-00.A68563 000000-00	-
17 - NO LONGER AVAILABLE BDE-000000-00.A68564 000000-00	-
18 - NO LONGER AVAILABLE BDE-000000-00.A68565 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A68566 000000-00	-
20 - BEARING BDE-577745-00.A275 577745-00	£7.85	£9.42
21 - WASHER BDE-930753-00.A69 930753-00	£1.50	£1.80
22 - BEARING DN5 ONLY BDE-330003-02.A131 330003-02	-
22 - BEARING BD5 BDE-330003-34.A2 330003-34	£24.39	£29.27
23 - HOLDER BEARING BDE-930029-00.A95 930029-00	£1.50	£1.80
24 - NO LONGER AVAILABLE BDE-000000-00.A68567 000000-00	-
25 - BRUSH SPRING BDE-930090-00.A93 930090-00	£1.50	£1.80
26 - NO LONGER AVAILABLE BDE-000000-00.A68571 000000-00	-
27 - PROTECTOR BDE-949835-01.A19 949835-01	-
28 - NO LONGER AVAILABLE BDE-000000-00.A68568 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A68569 000000-00	-

Attribute Name	Value
Brand	Black & Decker
