Black & Decker G720 Type 1 Small Angle Grinder Spare Parts

Home Details Reviews Delivery

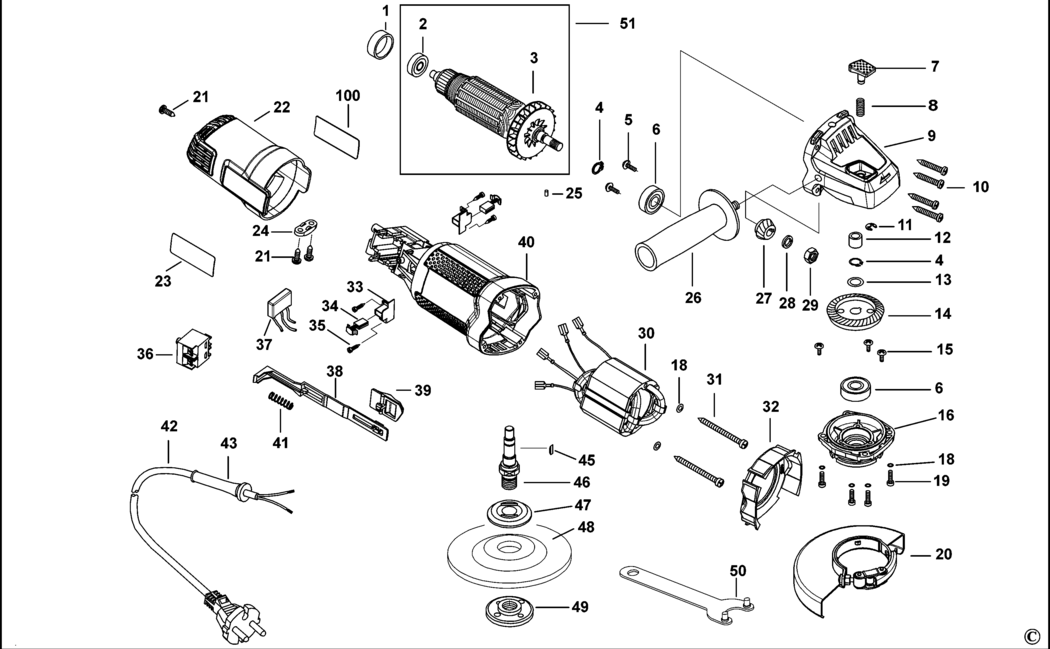

An exploded drawing and spare parts listing for the Black & Decker G720 Type 1 Small Angle Grinder

	Ex VAT	Inc VAT
1 - BEARING HOLDER BDE-5140003-59.A4 5140003-59	£1.66	£1.99
2 - BEARING BDE-5140003-60.A0 5140003-60	£3.92	£4.70
3 - ARMATURE SA No. 51 BDE-1004734-10.A5 1004734-10	£42.48	£50.98
4 - LOCKING RING BDE-5140003-64.A8 5140003-64	£1.66	£1.99
5 - SCREW BDE-5140003-89.A0 5140003-89	£1.66	£1.99
6 - BEARING BDE-5140003-66.A0 5140003-66	£3.92	£4.70
7 - LOCK PIN BDE-5140121-89.A3 5140121-89	£1.66	£1.99
8 - SPRING BDE-5140065-70.A0 5140065-70	£1.66	£1.99
9 - GEARCASE BDE-5140121-90.A0 5140121-90	£11.18	£13.41
10 - SCREW BDE-5140065-72.A4 5140065-72	£1.66	£1.99
11 - LOCKING RING BDE-5140003-64.A9 5140003-64	£1.66	£1.99
12 - BEARING BDE-5140003-72.A4 5140003-72	£1.66	£1.99
13 - WASHER BDE-5140003-73.A0 5140003-73	£1.66	£1.99
14 - GEAR BDE-5140003-75.A3 5140003-75	£9.69	£11.63
15 - SCREW BDE-5140003-94.A4 5140003-94	£1.66	£1.99
16 - HOUSING FRONT BDE-5140121-91.A3 5140121-91	£4.83	£5.80
18 - WASHER BDE-5140003-79.A0 5140003-79	-
19 - SCREW BDE-5140003-80.A3 5140003-80	-
20 - GUARD BDE-5140003-81.A0 5140003-81	£3.39	£4.07
21 - SCREW BDE-5140003-99.A5 5140003-99	£1.66	£1.99
22 - END CAP BDE-5140121-94.A0 5140121-94	£7.40	£8.88
24 - CORD CLAMP BDE-5140002-48.A4 5140002-48	-
25 - LOCK SCREW BDE-5140003-88.A4 5140003-88	-
26 - HANDLE BDE-5140003-90.A4 5140003-90	-
27 - PINION BDE-5140003-91.A0 5140003-91	£9.41	£11.29
28 - WASHER SPRING BDE-5140003-92.A4 5140003-92	£1.66	£1.99
29 - NUT BDE-5140003-93.A0 5140003-93	£1.66	£1.99
30 - STATOR SA 220V BDE-5140003-95.A0 5140003-95	£12.53	£15.04
31 - SCREW BDE-5140004-04.A4 5140004-04	£1.66	£1.99
32 - BAFFLE FAN BDE-5140122-02.A0 5140122-02	£1.66	£1.99
33 - BRUSH HOLDER BDE-5140002-37.A0 5140002-37	£1.66	£1.99
34 - BRUSH PAIR BDE-90601642.A2 90601642	£1.66	£1.99
37 - CAPACITOR BDE-90606319.A0 90606319	£2.21	£2.65
37 - PAD BDE-5140004-01.A0 5140004-01	-
38 - LEVER BDE-5140122-05.A3 5140122-05	£1.66	£1.99
39 - BUTTON BDE-5140122-06.A0 5140122-06	£1.66	£1.99
40 - HOUSING BDE-5140122-01.A3 5140122-01	£12.53	£15.04
41 - SPRING BDE-5140065-88.A2 5140065-88	-
43 - SLEEVE BDE-5140002-29.A4 5140002-29	£1.66	£1.99
45 - WOODRUFF KEY BDE-5140004-05.A0 5140004-05	£1.66	£1.99
46 - SPINDLE BDE-5140004-06.A2 5140004-06	£1.66	£1.99
47 - FLANGE BDE-5140002-52.A0 5140002-52	£1.66	£1.99
48 - DISC BDE-5140065-90.A2 5140065-90	£2.71	£3.25
49 - NUT BDE-5140004-07.A0 5140004-07	£1.66	£1.99
50 - SPANNER BDE-5140005-89.A3 5140005-89	-
51 - ARMATURE SA BDE-1004734-10.A6 1004734-10	£42.48	£50.98
100 - BRAND LABEL BDE-90599226.A1 90599226	£1.66	£1.99
