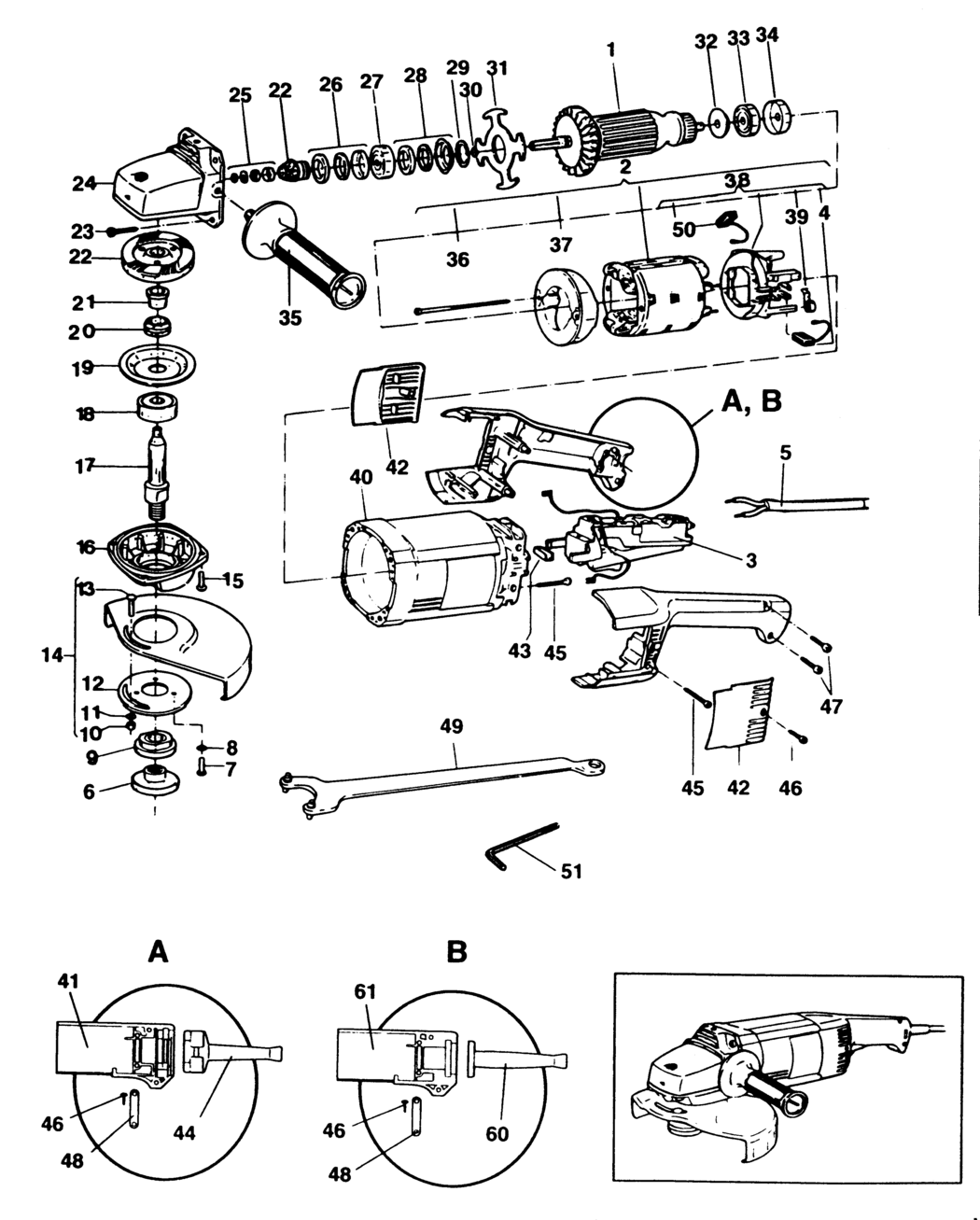

1 - NO LONGER AVAILABLE GB 240V
BDE-000000-00.A7947
000000-00
|
-
|
|
|
|
1 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A7948
000000-00
|
-
|
|
|
|
1 - NO LONGER AVAILABLE AU-NZ (5933 ONLY)
BDE-000000-00.A7949
000000-00
|
-
|
|
|
|
2 - NO LONGER AVAILABLE GB 240V
BDE-000000-00.A7950
000000-00
|
-
|
|
|
|
2 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A7951
000000-00
|
-
|
|
|
|
2 - NO LONGER AVAILABLE AU-NZ (5933 ONLY)
BDE-000000-00.A7952
000000-00
|
-
|
|
|
|
3 - NO LONGER AVAILABLE GB 240V
BDE-000000-00.A7953
000000-00
|
-
|
|
|
|
3 - NO LONGER AVAILABLE AU-NZ (5933 ONLY)
BDE-000000-00.A7954
000000-00
|
-
|
|
|
|
3 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A7955
000000-00
|
-
|
|
|
|
4 - BRUSH CUT OFF 230V AU-NZ (5933 ONLY)
BDE-940160-03.A30
940160-03
|
£14.57
|
£17.48
|
|
|
4 - BRUSH CUT OFF 115V GB 115V
BDE-940160-02.A44
940160-02
|
-
|
|
|
|
4 - BRUSH CUT OFF 230V GB 240V
BDE-940160-03.A25
940160-03
|
£14.57
|
£17.48
|
|
|
5 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A7956
000000-00
|
-
|
|
|
|
5 - NO LONGER AVAILABLE GB 240V
BDE-000000-00.A7957
000000-00
|
-
|
|
|
|
5 - CABLE AU-NZ (5933 ONLY)
BDE-940611.A1
940611
|
-
|
|
|
|
6 - FLANGE
BDE-931771.A3
931771
|
£10.85
|
£13.02
|
|
|
7 - SCREW
BDE-933058-00.A79
933058-00
|
£1.66
|
£1.99
|
|
|
8 - WASHER
BDE-932369.A49
932369
|
-
|
|
|
|
9 - FLANGE
BDE-930927.A16
930927
|
-
|
|
|
|
10 - NUT
BDE-860083-03.A235
860083-03
|
£1.66
|
£1.99
|
|
|
11 - WASHER
BDE-930925.A121
930925
|
-
|
|
|
|
12 - NO LONGER AVAILABLE
BDE-000000-00.A7961
000000-00
|
-
|
|
|
|
13 - SCREW
BDE-949892-07.A24
949892-07
|
£1.66
|
£1.99
|
|
|
14 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A7958
000000-00
|
-
|
|
|
|
14 - NO LONGER AVAILABLE GB 240V
BDE-000000-00.A7959
000000-00
|
-
|
|
|
|
14 - NO LONGER AVAILABLE AU-NZ (5933 ONLY)
BDE-000000-00.A7960
000000-00
|
-
|
|
|
|
15 - SCREW
BDE-949887-01.A115
949887-01
|
£1.66
|
£1.99
|
|
|
16 - GEARCASE COVER
BDE-947962-00.A24
947962-00
|
-
|
|
|
|
17 - SPINDLE
BDE-578243-00.A54
578243-00
|
£19.40
|
£23.28
|
|
|
18 - NO LONGER AVAILABLE
BDE-000000-00.A7962
000000-00
|
-
|
|
|
|
19 - FLANGE
BDE-930924.A7
930924
|
-
|
|
|
|
20 - SEAL
BDE-930923.A93
930923
|
-
|
|
|
|
21 - SPACER
BDE-930922.A9
930922
|
£1.66
|
£1.99
|
|
|
22 - NO LONGER AVAILABLE
BDE-000000-00.A7963
000000-00
|
-
|
|
|
|
23 - NO LONGER AVAILABLE
BDE-000000-00.A7964
000000-00
|
-
|
|
|
|
24 - NO LONGER AVAILABLE
BDE-000000-00.A7965
000000-00
|
-
|
|
|
|
25 - NO LONGER AVAILABLE
BDE-000000-00.A7966
000000-00
|
-
|
|
|
|
26 - SEAL SA
BDE-930909.A117
930909
|
-
|
|
|
|
27 - BEARING
BDE-330003-14.A88
330003-14
|
£7.85
|
£9.42
|
|
|
28 - SEAL SA
BDE-931067-00.A68
931067-00
|
£1.66
|
£1.99
|
|
|
29 - SPACER
BDE-931062.A59
931062
|
£1.66
|
£1.99
|
|
|
30 - O RING
BDE-930028-00.A255
930028-00
|
£1.66
|
£1.99
|
|
|
31 - FLANGE
BDE-931066-00.A88
931066-00
|
£1.82
|
£2.19
|
|
|
32 - SPACER
BDE-N174055.A90
N174055
|
£1.66
|
£1.99
|
|
|
33 - BEARING
BDE-577745-00.A322
577745-00
|
£7.85
|
£9.42
|
|
|
34 - SLEEVE
BDE-938332-00.A85
938332-00
|
£1.66
|
£1.99
|
|
|
35 - HANDLE SIDE SA
BDE-933499.A58
933499
|
-
|
|
|
|
36 - SCREW
BDE-931072.A42
931072
|
-
|
|
|
|
37 - BAFFLE
BDE-931073-00.A40
931073-00
|
£1.66
|
£1.99
|
|
|
38 - NO LONGER AVAILABLE AU-NZ (5933 ONLY)
BDE-000000-00.A7967
000000-00
|
-
|
|
|
|
38 - NO LONGER AVAILABLE GB 115V
BDE-000000-00.A7968
000000-00
|
-
|
|
|
|
38 - NO LONGER AVAILABLE GB 240V
BDE-000000-00.A7969
000000-00
|
-
|
|
|
|
39 - SPRING
BDE-931076-00.A57
931076-00
|
£1.66
|
£1.99
|
|
|
40 - NO LONGER AVAILABLE
BDE-000000-00.A7970
000000-00
|
-
|
|
|
|
41 - NO LONGER AVAILABLE
BDE-000000-00.A7971
000000-00
|
-
|
|
|
|
42 - COVER
BDE-933364-02.A4
933364-02
|
£1.66
|
£1.99
|
|
|
43 - SHOCK ABSORBER
BDE-930934-00.A100
930934-00
|
£1.66
|
£1.99
|
|
|
44 - CORD PROTECTOR AU-NZ (5933 ONLY)
BDE-931113-00.A31
931113-00
|
£1.66
|
£1.99
|
|
|
44 - CORD PROTECTOR GB 115V
BDE-937325-00.A24
937325-00
|
£1.66
|
£1.99
|
|
|
44 - CORD PROTECTOR GB 240V
BDE-930981-00.A58
930981-00
|
£1.66
|
£1.99
|
|
|
45 - SCREW
BDE-931297-00.A178
931297-00
|
£1.66
|
£1.99
|
|
|
46 - SCREW
BDE-931469-02.A150
931469-02
|
£1.66
|
£1.99
|
|
|
47 - SCREW
BDE-930284-01.A87
930284-01
|
£1.66
|
£1.99
|
|
|
48 - CORD CLAMP
BDE-931477-00.A32
931477-00
|
£1.66
|
£1.99
|
|
|
49 - WRENCH PIN
BDE-938733.A70
938733
|
£7.18
|
£8.62
|
|
|
50 - BRUSH CUT OFF 230V AU-NZ (5933 ONLY)
BDE-940160-03.A28
940160-03
|
£14.57
|
£17.48
|
|
|
50 - BRUSH CUT OFF 115V GB 115V
BDE-940160-02.A42
940160-02
|
-
|
|
|
|
50 - BRUSH CUT OFF 230V GB 240V
BDE-940160-03.A27
940160-03
|
£14.57
|
£17.48
|
|
|
51 - WRENCH
BDE-807043.A129
807043
|
£1.66
|
£1.99
|
|
|
60 - CORD PROTECTOR GB 240V
BDE-947964-01.A31
947964-01
|
£3.80
|
£4.56
|
|
|
60 - CORD PROTECTOR GB 115V
BDE-947964-00.A31
947964-00
|
£10.85
|
£13.02
|
|
|
60 - CORD PROTECTOR AU-NZ (5933 ONLY)
BDE-947964-02.A29
947964-02
|
£1.66
|
£1.99
|
|
|
61 - NO LONGER AVAILABLE
BDE-000000-00.A7972
000000-00
|
-
|
|
|
