Bosch PKP 20 E / 0603264148 / F 230 Volt Spare Parts

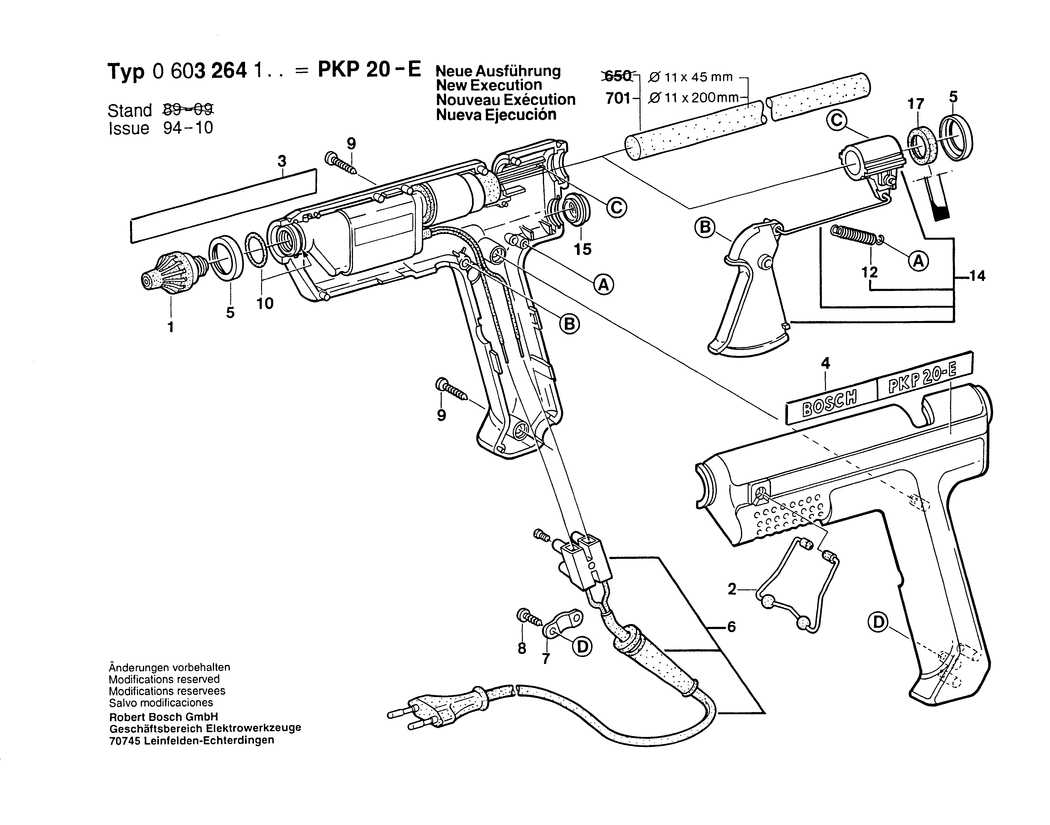

An exploded drawing and listing for the Bosch PKP 20 E / 0603264148 / F 230 Volt

	Ex VAT	Inc VAT
1 - NOZZLE BODY BSD-1609201241.A4 1609201241	£11.30	£13.56
2 - TRANSPORT BRACKET BSD-1609201242.A8 1609201242	-
3 - NAMEPLATE BSD-1601110297.A0 1601110297	-
4 - STICKER BSD-1601110294.A3 1601110294	-
5 - CLAMPING SLEEVE BSD-1609201243.A2 1609201243	£1.75	£2.10
6 - CABLE BSD-1609201244.A5 1609201244	-
7 - FASTENING CLAMP BSD-1609201245.A0 1609201245	-
8 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A380 2910211006	£1.75	£2.10
9 - TAPPING SCREW DIN 7971-BZ2.9x16 BSD-2910211007.A154 2910211007	£1.75	£2.10
10 - O-RING BSD-1609201246.A6 1609201246	-
12 - EXTENSION SPRING BSD-1609201417.A5 1609201417	£1.75	£2.10
14 - PARTS SET BSD-1609202404.A0 1609202404	£18.96	£22.75
14 - PARTS SET BSD-1609202403.A3 1609202403	-
15 - SEALING CAP BSD-1609202405.A3 1609202405	-
15 - SIGNAL DISK BSD-1609201420.A0 1609201420	-
16 - NEGATIVE-GLOW LAMP BSD-1609201421.A3 1609201421	-
17 - RETAINING SNAP RING BSD-1609201422.A0 1609201422	£2.80	£3.36
701 - THERMOPLASTIC ADHESIVE dia 11x200 MM BSD-1609201396.A6 1609201396	£13.48	£16.17

Attribute Name	Value
Brand	Bosch
