Bostitch GFN1664K Type B Nailer Spare Parts

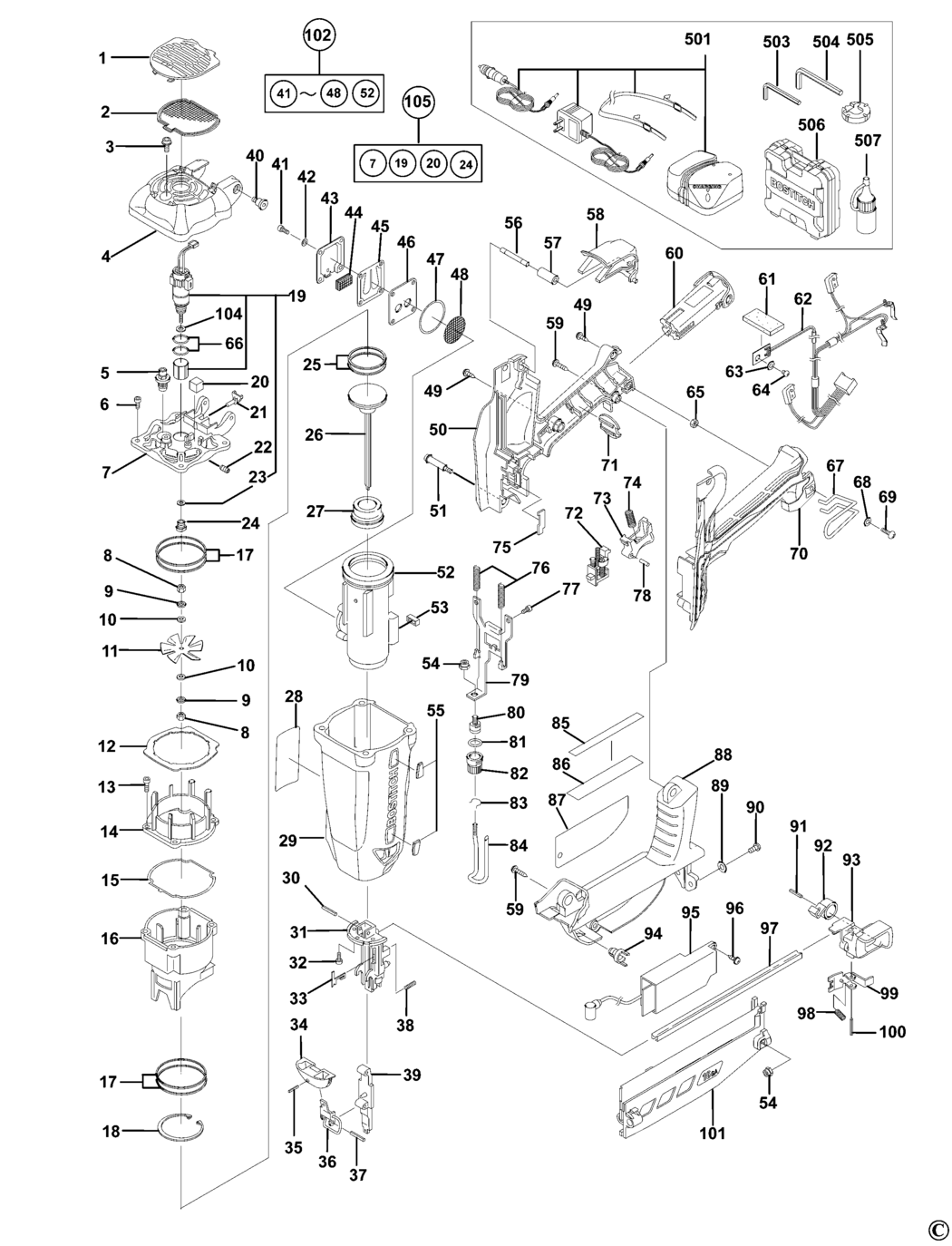

An exploded drawing and spare parts listing for the Bostitch GFN1664K Type B Nailer

	Ex VAT	Inc VAT
1 - COVER BDE-9R192230.A1 9R192230	£2.78	£3.34
2 - FILTER BDE-9R192231.A0 9R192231	£19.90	£23.88
3 - SCREW BDE-9R192232.A1 9R192232	£2.78	£3.34
4 - COVER-TOP BDE-9R192353.A0 9R192353	£7.18	£8.62
5 - SPARK PLUG BDE-9R192110.A2 9R192110	£5.88	£7.06
6 - NUT BDE-9R192235.A0 9R192235	-
7 - CYLINDER HEAD BDE-9R192236.A1 9R192236	£44.14	£52.97
8 - NUT BDE-9R192237.A0 9R192237	£3.30	£3.96
9 - WASHER SPRING BDE-9R192238.A1 9R192238	£3.30	£3.96
10 - WASHER BDE-9R192239.A0 9R192239	£3.30	£3.96
11 - FAN BDE-9R192240.A1 9R192240	£5.88	£7.06
12 - PLATE BDE-9R192241.A0 9R192241	-
13 - SCREW BDE-9R192118.A2 9R192118	£3.80	£4.56
14 - GUIDE SUPPORT BDE-9R192243.A1 9R192243	£17.48	£20.97
15 - GASKET BDE-9R192244.A0 9R192244	-
16 - HOUSING BDE-9R192245.A1 9R192245	£19.90	£23.88
17 - PISTON RING BDE-9R192246.A0 9R192246	-
18 - RING BDE-9R192247.A1 9R192247	£2.78	£3.34
19 - MOTOR SA & MOUNT BDE-9R192254.A0 9R192254	£126.63	£151.96
20 - SPACER BDE-9R192248.A0 9R192248	£2.78	£3.34
21 - ADAPTOR BDE-9R192127.A2 9R192127	-
22 - GRUB SCREW BDE-9R192128.A0 9R192128	£1.82	£2.19
23 - WASHER BDE-9R192251.A1 9R192251	£2.78	£3.34
24 - COVER BDE-9R192252.A0 9R192252	£5.88	£7.06
25 - PISTON RING BDE-9R192255 9R192255	£9.41	£11.29
26 - PISTON BDE-9R192149 9R192149	£47.08	£56.49
27 - BUMPER BDE-9R192257 9R192257	-
28 - LABEL BDE-FT71695-16 FT71695-16	£1.50	£1.80
29 - HOUSING BDE-9R192162 9R192162	£25.70	£30.84
30 - PIN BDE-9R192167.A1 9R192167	£2.78	£3.34
31 - GUIDE BDE-9R192173 9R192173	£38.80	£46.56
32 - SCREW BDE-9R192262.A1 9R192262	£2.78	£3.34
33 - PLATE BDE-9R192174 9R192174	£2.78	£3.34
34 - COVER BDE-9R192204.A1 9R192204	£5.88	£7.06
35 - ROLLPIN BDE-9R192264.A0 9R192264	£2.78	£3.34
36 - LEVER LOCK BDE-9R192213 9R192213	-
37 - ROLLPIN BDE-9R192261.A1 9R192261	£2.78	£3.34
38 - SPRING BDE-9R192233 9R192233	£2.78	£3.34
39 - GUIDE BDE-9R192256 9R192256	£25.70	£30.84
40 - BOLT BDE-9R192253.A1 9R192253	£2.78	£3.34
41 - SCREW BDE-9R192274.A1 9R192274	£2.78	£3.34
42 - SPRING BDE-9R192150.A0 9R192150	£2.78	£3.34
43 - COVER BDE-9R192276.A0 9R192276	£10.85	£13.02
44 - MUFFLER BDE-9R192277.A1 9R192277	£5.88	£7.06
45 - VALVE REED BDE-9R192278.A0 9R192278	£7.18	£8.62
46 - PLATE BDE-9R192279.A1 9R192279	£5.88	£7.06
47 - O RING BDE-9R192280.A0 9R192280	£2.78	£3.34
48 - GRILLE BDE-9R192281.A1 9R192281	£7.18	£8.62
49 - SCREW BDE-9R192267.A1 9R192267	£1.82	£2.19
50 - HANDLE BDE-9R192357.A1 9R192357	£17.48	£20.97
51 - SCREW BDE-9R192269.A1 9R192269	£2.78	£3.34
52 - CYLINDER BDE-9R192258 9R192258	£65.52	£78.62
53 - STOP RUBBER BDE-9R192270.A0 9R192270	-
54 - LOCK-NUT BDE-9R192189.A2 9R192189	£1.82	£2.19
55 - PROTECTOR BDE-9R192359.A1 9R192359	-
56 - PIN BDE-9R192282.A0 9R192282	-
57 - PIPE BDE-9R192283.A1 9R192283	-
58 - ACTUATOR BDE-9R192284.A0 9R192284	£5.88	£7.06
59 - SCREW BDE-9R192171.A2 9R192171	£1.50	£1.80
60 - BATTERY 3.6V - 1.5AH - 5.4WH GB BDE-9B12070R-EU.A0 9B12070R-EU	£125.16	£150.19
61 - SUPPORT BDE-9R192286.A1 9R192286	£2.78	£3.34
62 - SET OF LEAD WIRES BDE-9R192287.A0 9R192287	£71.44	£85.73
63 - WASHER BDE-9R192116.A2 9R192116	£1.82	£2.19
64 - SCREW BDE-9R192289.A1 9R192289	£1.82	£2.19
65 - LOCK NUT BDE-9R192290.A0 9R192290	£2.78	£3.34
66 - O RING BDE-9R192331.A1 9R192331	£2.78	£3.34
67 - HOOK BDE-9R192312.A0 9R192312	£9.41	£11.29
68 - WASHER BDE-9R192313.A1 9R192313	£2.78	£3.34
69 - SCREW BDE-9R192314.A0 9R192314	£2.78	£3.34
70 - HANDLE BDE-9R192358.A0 9R192358	£18.91	£22.69
71 - SUPPORT BDE-9R192292.A1 9R192292	£2.78	£3.34
72 - STOP BDE-9R192298.A1 9R192298	£7.85	£9.42
73 - TRIGGER BDE-9R192294.A1 9R192294	£2.78	£3.34
74 - SPRING BDE-9R192293.A0 9R192293	£2.78	£3.34
75 - PIN BDE-9R192295.A0 9R192295	£3.80	£4.56
76 - COVER BDE-9R192296.A1 9R192296	£2.78	£3.34
77 - SPRING BDE-9R192297.A0 9R192297	£2.78	£3.34
78 - PIN BDE-9R192295.A1 9R192295	£3.80	£4.56
79 - ARM BDE-9R192300 9R192300	£14.57	£17.48
80 - LEVER BDE-9R192301.A0 9R192301	£7.85	£9.42
81 - O RING BDE-9R192302.A1 9R192302	£1.82	£2.19
82 - ADJUSTER BDE-9R192375 9R192375	£5.88	£7.06
83 - SPRING BDE-9R192304.A1 9R192304	£2.78	£3.34
84 - LEVER BDE-9R192260 9R192260	£10.85	£13.02
85 - LABEL GB BDE-FT71695-12 FT71695-12	£1.50	£1.80
86 - LABEL GB BDE-FT71695-11.A1 FT71695-11	£1.50	£1.80
87 - WARNING LABEL BDE-FT71695-10.A0 FT71695-10	£1.42	£1.70
88 - COVER BDE-9R192263 9R192263	£14.57	£17.48
89 - WASHER BDE-9R192310.A1 9R192310	£2.26	£2.71
90 - SCREW BDE-9R192311 9R192311	£2.78	£3.34
91 - ROLLPIN BDE-9R192261.A0 9R192261	£2.78	£3.34
92 - SPRING BDE-9R192316 9R192316	-
93 - GUIDE BDE-9R192363 9R192363	-
94 - PRISM BDE-9R192321.A0 9R192321	£2.78	£3.34
95 - CONTROLLER BDE-9R192322.A1 9R192322	£144.10	£172.92
96 - SCREW BDE-9R192323.A0 9R192323	£2.78	£3.34
97 - RAIL BDE-9R192324 9R192324	£16.03	£19.24
98 - SPRING BDE-9R192325 9R192325	£1.82	£2.19
99 - GUIDE BDE-9R192326 9R192326	£5.88	£7.06
100 - PIN BDE-9R192320 9R192320	£2.78	£3.34
101 - MAGAZINE BDE-9R192328 9R192328	£24.39	£29.27
102 - CYLINDER SA BDE-9R192329 9R192329	£126.63	£151.96
104 - WASHER BDE-9R192352.A1 9R192352	£1.50	£1.80
105 - CYLINDER HEAD BDE-9R192330.A0 9R192330	£174.63	£209.56
501 - CHARGER GB GB BDE-9B12071R-U.A1 9B12071R-U	£157.18	£188.61
504 - HEX KEY 4 MM BDE-099056-06.A0 099056-06	£1.50	£1.80
505 - FOOT BDE-9R192333 9R192333	-
506 - KIT BOX BDE-9R192364 9R192364	£47.08	£56.49
507 - OIL BDE-SB-20CL.A2 SB-20CL	£18.91	£22.69
