Bosch ART 25 F / 0600822168 / GB 230 Volt Spare Parts

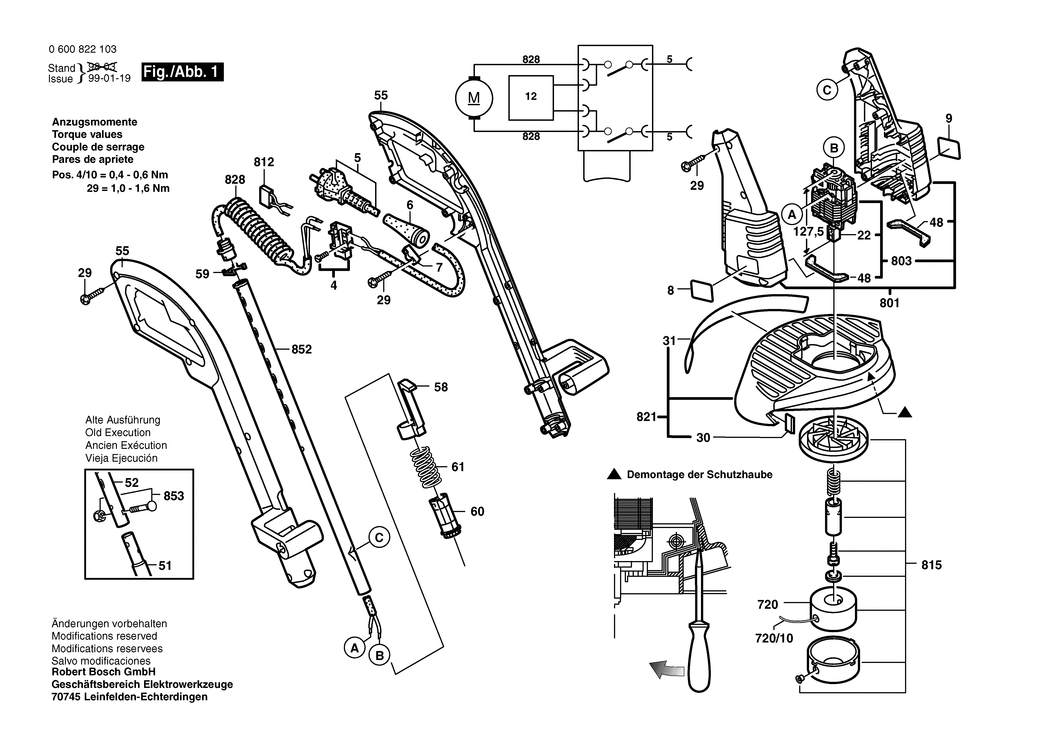

An exploded drawing and listing for the Bosch ART 25 F / 0600822168 / GB 230 Volt

	Ex VAT	Inc VAT
4 - SWITCH BSD-1607200116.A10 1607200116	-
5 - POWER SUPPLY CORD GB 240V 10.2m 2 x 1.0mm H05 VV-F BSD-1604460184.A7 1604460184	£33.73	£40.48
6 - GROMMET dia7.2-dia9.5x81 MM BSD-1600703026.A34 1600703026	£2.16	£2.59
7 - CABLE CLIP BSD-2601035001.A214 2601035001	£1.75	£2.10
9 - MANUFACTURER'S NAMEPLATE BSD-1601118035.A4 1601118035	-
22 - SUPPORT CLAMP BSD-1608040116.A5 1608040116	-
29 - OVAL-HEAD SCREW 4x18 MM.TORX T20 BSD-2914201506.A152 2914201506	£1.75	£2.10
30 - CUTTER PLATE BSD-1608635042.A13 1608635042	-
48 - RUBBER PLATE BSD-1601016012.A7 1601016012	-
55 - HANDLE COVER BSD-1605133040.A9 1605133040	-
58 - GUIDE SLEEVE BSD-1600499008.A3 1600499008	-
59 - STOP PLATE BSD-1602388032.A0 1602388032	-
60 - SPRING SLEEVE BSD-1600499009.A7 1600499009	-
61 - COMPRESSION SPRING BSD-1604615013.A10 1604615013	-
801 - ALTERNATING-CURRENT MOTOR BSD-1607220033.A6 1607220033	-
803 - ALTERNATING-CURRENT MOTOR BSD-1607220033.A7 1607220033	-
812 - SUPPRESSION FILTER BSD-1607328028.A543 1607328028	£5.30	£6.36
815 - CUTTING LINE CARTRIDGE BSD-F016102658.A16 F016102658	-
821 - PROTECTIVE COVER BSD-1607000954.A4 1607000954	-
828 - CONNECTING CABLE BSD-1604420024.A3 1604420024	-
852 - GUIDE TUBE BSD-1607000870.A0 1607000870	-
853 - ROUND-HEAD BOLT BSD-1607000255.A4 1607000255	-

Attribute Name	Value
Brand	Bosch
