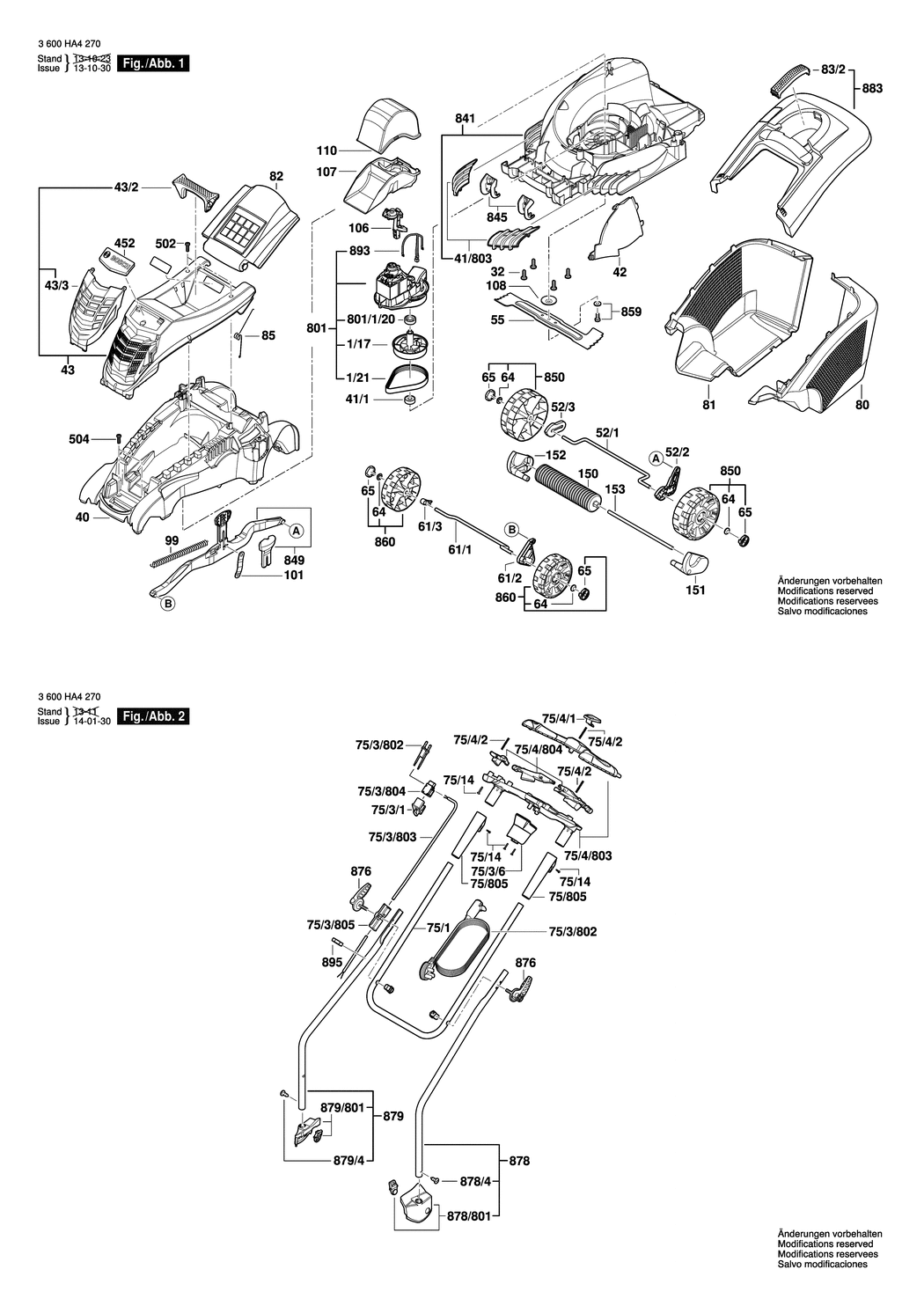

1/17 - DRIVE SHAFT
BSD-F016L65108.A34
F016L65108
|
£13.78
|
£16.54
|
|
|
1/21 - DRIVE BELT
BSD-F016L65109.A67
F016L65109
|
£17.22
|
£20.67
|
|
|
32 - SELF-CUTTING SCREW
BSD-F016L37433.A110
F016L37433
|
£1.75
|
£2.10
|
|
|
40 - MOWER DECK
BSD-F016L69542.A13
F016L69542
|
£25.05
|
£30.06
|
|
|
41/1 - BEARING 6003
BSD-F016L64387.A35
F016L64387
|
£5.57
|
£6.68
|
|
|
41/803 - COVER PANEL
BSD-F016104304.A13
F016104304
|
-
|
|
|
|
42 - COVER PANEL
BSD-F016L66041.A32
F016L66041
|
-
|
|
|
|
43 - MOTOR HOOD
BSD-F016L68149.A22
F016L68149
|
£28.68
|
£34.41
|
|
|
43/2 - CARRYING HANDLE
BSD-F016L68084.A38
F016L68084
|
£2.27
|
£2.72
|
|
|
43/3 - GRILLE
BSD-F016L68150.A15
F016L68150
|
£5.57
|
£6.68
|
|
|
52/1 - AXLE
BSD-F016L68529.A59
F016L68529
|
£4.99
|
£5.99
|
|
|
52/2 - LEVER
BSD-F016L90582.A186
F016L90582
|
-
|
|
|
|
52/3 - SPACER
BSD-F016L90583.A6
F016L90583
|
£2.45
|
£2.94
|
|
|
55 - CUTTER BLADE
BSD-F016L68216.A5
F016L68216
|
£21.52
|
£25.83
|
|
|
61/1 - AXLE
BSD-F016L68528.A3
F016L68528
|
£5.26
|
£6.31
|
|
|
61/2 - LEVER
BSD-F016L90581.A5
F016L90581
|
£8.17
|
£9.80
|
|
|
61/3 - SPACER
BSD-F016L90585.A187
F016L90585
|
£1.75
|
£2.10
|
|
|
64 - RATCHET CAP
BSD-F016L68095.A16
F016L68095
|
£1.84
|
£2.21
|
|
|
65 - COVER
BSD-F016L68116.A5
F016L68116
|
£1.84
|
£2.21
|
|
|
75/1 - HANDLE
BSD-F016L90608.A62
F016L90608
|
£17.22
|
£20.67
|
|
|
75/3/1 - SWITCH HOUSING
BSD-F016L67220.A2
F016L67220
|
£7.72
|
£9.27
|
|
|
75/3/6 - SWITCH HOUSING
BSD-F016L67216.A14
F016L67216
|
£5.87
|
£7.04
|
|
|
75/3/802 - POWER SUPPLY CORD UK 10m
BSD-F016104504.A6
F016104504
|
£35.42
|
£42.51
|
|
|
75/3/803 - CONNECTING CABLE
BSD-F016104164.A4
F016104164
|
£12.37
|
£14.84
|
|
|
75/3/804 - SWITCH KIT
BSD-F016104162.A60
F016104162
|
£13.12
|
£15.75
|
|
|
75/3/805 - CABLE GUIDE
BSD-F016104213.A126
F016104213
|
£9.11
|
£10.93
|
|
|
75/4/1 - PUSH-BUTTON
BSD-F016L67150.A133
F016L67150
|
£2.19
|
£2.63
|
|
|
75/4/2 - BUTTON SPRING
BSD-F016L67151.A8
F016L67151
|
£1.75
|
£2.10
|
|
|
75/4/803 - HOUSING SET
BSD-F016104360.A37
F016104360
|
£17.22
|
£20.67
|
|
|
75/4/804 - SWITCH SEGMENT
BSD-F016104160.A53
F016104160
|
£11.37
|
£13.64
|
|
|
75/14 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A805
F016T49429
|
£1.84
|
£2.21
|
|
|
75/805 - SLEEVE
BSD-F016104361.A50
F016104361
|
£4.26
|
£5.11
|
|
|
80 - COLLECTOR BOX BOTTOM L/H
BSD-F016L64304.A77
F016L64304
|
£22.76
|
£27.31
|
|
|
81 - COLLECTOR BOX BOTTOM R/H
BSD-F016L64338.A71
F016L64338
|
£17.22
|
£20.67
|
|
|
82 - GUARD FLAP
BSD-F016L66137.A131
F016L66137
|
£13.32
|
£15.99
|
|
|
83/2 - HANDLE
BSD-F016L66441.A169
F016L66441
|
£4.99
|
£5.99
|
|
|
85 - SPRING
BSD-F016L66165.A37
F016L66165
|
£2.97
|
£3.56
|
|
|
99 - SPRING
BSD-F016L59327.A182
F016L59327
|
£2.94
|
£3.53
|
|
|
101 - LEAF SPRING
BSD-F016L68117.A75
F016L68117
|
£1.75
|
£2.10
|
|
|
106 - WIRE GUIDE
BSD-F016L90579.A59
F016L90579
|
£35.12
|
£42.15
|
|
|
107 - BAFFLE
BSD-F016L68501.A35
F016L68501
|
£3.99
|
£4.79
|
|
|
108 - BEARING COVER
BSD-F016L67627.A141
F016L67627
|
£2.71
|
£3.25
|
|
|
110 - BAFFLE
BSD-F016L68448.A14
F016L68448
|
£3.51
|
£4.21
|
|
|
150 - ROLLER DRUM
BSD-F016L66175.A14
F016L66175
|
-
|
|
|
|
151 - BRACKET
BSD-F016L64900.A53
F016L64900
|
-
|
|
|
|
152 - BRACKET
BSD-F016L64901.A29
F016L64901
|
-
|
|
|
|
153 - SPINDLE
BSD-F016L65870.A6
F016L65870
|
£6.94
|
£8.33
|
|
|
452 - COMPANY LOGO Rotak 43
BSD-F016L68222.A5
F016L68222
|
£2.64
|
£3.17
|
|
|
502 - TORX HEAD SCREW
BSD-F016L68124.A51
F016L68124
|
£1.84
|
£2.21
|
|
|
504 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A806
F016T49429
|
£1.84
|
£2.21
|
|
|
801 - MOTOR
BSD-F016103596.A35
F016103596
|
£140.87
|
£169.04
|
|
|
801/1/20 - BEARING
BSD-F016L64594.A111
F016L64594
|
£3.94
|
£4.73
|
|
|
841 - HOUSING
BSD-F016104400.A13
F016104400
|
£39.13
|
£46.96
|
|
|
845 - COVER PANEL
BSD-F016104425.A26
F016104425
|
£3.34
|
£4.01
|
|
|
849 - LINKAGE PART
BSD-F016104303.A34
F016104303
|
-
|
|
|
|
850 - WHEEL
BSD-F016104306.A33
F016104306
|
£9.11
|
£10.93
|
|
|
859 - SCREW AND WASHER ASSEMBLY
BSD-F016104350.A35
F016104350
|
£2.05
|
£2.46
|
|
|
860 - WHEEL
BSD-F016104305.A28
F016104305
|
£10.61
|
£12.73
|
|
|
876 - CLAMPING LEVER
BSD-F016L67530.A83
F016L67530
|
£11.87
|
£14.24
|
|
|
878 - BOTTOM HANDLE
BSD-F016104928.A17
F016104928
|
£14.08
|
£16.89
|
|
|
878/4 - SCREW M5x8 Csk Hd.
BSD-F016L36542.A387
F016L36542
|
£2.62
|
£3.14
|
|
|
878/801 - MOUNTING BRACKET
BSD-F016104926.A12
F016104926
|
£3.99
|
£4.79
|
|
|
879 - BOTTOM HANDLE
BSD-F016104929.A10
F016104929
|
-
|
|
|
|
879/4 - SCREW M5x8 Csk Hd.
BSD-F016L36542.A386
F016L36542
|
£2.62
|
£3.14
|
|
|
879/801 - MOUNTING BRACKET
BSD-F016104927.A9
F016104927
|
£3.99
|
£4.79
|
|
|
883 - COVER
BSD-F016103608.A120
F016103608
|
£28.59
|
£34.31
|
|
|
893 - THERMAL PROTECTOR
BSD-F016103605.A60
F016103605
|
£12.64
|
£15.17
|
|
|
895 - CABLE CLIP
BSD-F016L66895.A135
F016L66895
|
£1.84
|
£2.21
|
|
