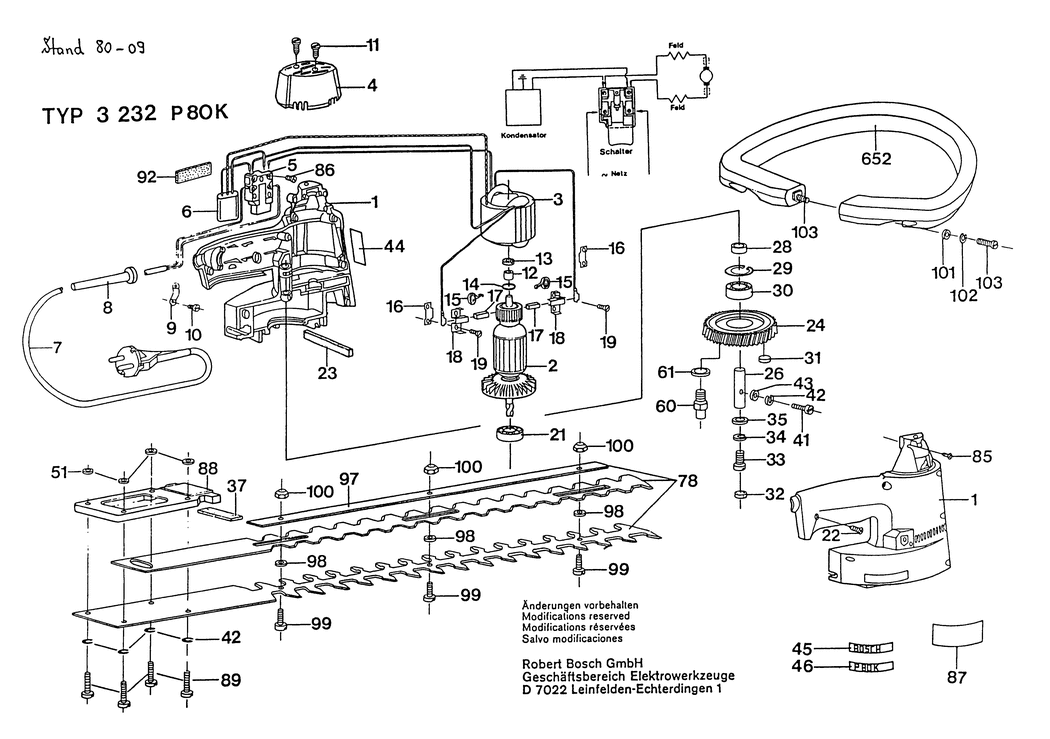

1 - HOUSING SECTION
BSD-2605104927.A19
2605104927
|
-
|
|
|
|
2 - ARMATURE 220V
BSD-2604010516.A11
2604010516
|
-
|
|
|
|
3 - POLE SHOE 220V
BSD-1604220071.A5
1604220071
|
-
|
|
|
|
4 - SEALING CAP
BSD-1605500066.A69
1605500066
|
-
|
|
|
|
5 - ON-OFF SWITCH
BSD-1607200060.A37
1607200060
|
-
|
|
|
|
8 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A63
1600703016
|
£1.75
|
£2.10
|
|
|
8 - GROMMET dia9.5 MM
BSD-2600703006.A159
2600703006
|
-
|
|
|
|
8 - GROMMET dia8.2 MM
BSD-2600703008.A84
2600703008
|
£1.84
|
£2.21
|
|
|
9 - FASTENING CLAMP
BSD-1601302014.A209
1601302014
|
£2.74
|
£3.29
|
|
|
10 - TAPPING SCREW DIN 7971-BZ3.9x6.5
BSD-2910211016.A65
2910211016
|
-
|
|
|
|
11 - TAPPING SCREW DIN 7971-BZ3.9x9.5
BSD-2910211017.A51
2910211017
|
-
|
|
|
|
12 - SINTERED-METAL BUSHING
BSD-1600301900.A80
1600301900
|
-
|
|
|
|
13 - FELT WASHER
BSD-1600205023.A123
1600205023
|
£1.38
|
£1.66
|
|
|
14 - O-RING 8.0x2.5 MM
BSD-1610210014.A24
1610210014
|
-
|
|
|
|
15 - SPIRAL SPRING
BSD-1604652004.A129
1604652004
|
£2.74
|
£3.29
|
|
|
16 - BRUSH PLATE
BSD-1601034025.A42
1601034025
|
-
|
|
|
|
18 - BRUSH HOLDER
BSD-1601323007.A74
1601323007
|
-
|
|
|
|
19 - TAPPING SCREW DIN 7972-BZ2.9x6.5
BSD-2910601004.A35
2910601004
|
-
|
|
|
|
21 - BALL BEARING 8x22x7
BSD-1900905029.A135
1900905029
|
£22.60
|
£27.12
|
|
|
22 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A595
2910611019
|
£2.94
|
£3.53
|
|
|
23 - FELT STRIP
BSD-1601005003.A19
1601005003
|
-
|
|
|
|
24 - CYLINDRICAL GEAR Z=61
BSD-2606320020.A32
2606320020
|
-
|
|
|
|
26 - BEARING BOLT
BSD-2603103009.A14
2603103009
|
-
|
|
|
|
28 - SHIM WASHER
BSD-2600200003.A20
2600200003
|
-
|
|
|
|
29 - SPRING RETAINING RING 30x1.2MM. DIN 472
BSD-2916660012.A51
2916660012
|
£1.75
|
£2.10
|
|
|
30 - GROOVE BALL BEARING
BSD-2600900003.A13
2600900003
|
-
|
|
|
|
31 - FELT DISC
BSD-2600005003.A5
2600005003
|
-
|
|
|
|
32 - FELT DISC
BSD-2600005001.A22
2600005001
|
-
|
|
|
|
33 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A175
2910021154
|
£1.75
|
£2.10
|
|
|
34 - SPRING LOCK WASHER DIN 128-A5-FST
BSD-2916690004.A79
2916690004
|
£1.75
|
£2.10
|
|
|
35 - PLAIN WASHER 5-ST
BSD-2916021011.A16
2916021011
|
-
|
|
|
|
37 - FELT STRIP
BSD-2601005003.A6
2601005003
|
-
|
|
|
|
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A680
2910021125
|
£1.75
|
£2.10
|
|
|
42 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A793
2916690003
|
£1.75
|
£2.10
|
|
|
43 - PLAIN WASHER DIN 125-A4.3-ST
BSD-2916011010.A149
2916011010
|
£1.84
|
£2.21
|
|
|
44 - NAMEPLATE
BSD-2601105051.A13
2601105051
|
-
|
|
|
|
45 - MANUFACTURER'S NAMEPLATE
BSD-1601110013.A167
1601110013
|
-
|
|
|
|
46 - REFERENCE PLATE
BSD-2601110024.A2
2601110024
|
-
|
|
|
|
51 - LOCKING WASHER
BSD-2600113008.A15
2600113008
|
-
|
|
|
|
53 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A298
2915011007
|
-
|
|
|
|
60 - STUD BOLT
BSD-2603527007.A4
2603527007
|
-
|
|
|
|
61 - SHIM 0.2 MM
BSD-2600101651.A15
2600101651
|
-
|
|
|
|
61 - SHIM 0.3 MM
BSD-2600101654.A6
2600101654
|
£2.33
|
£2.80
|
|
|
78 - SET OF KNIVES
BSD-2608635074.A10
2608635074
|
-
|
|
|
|
85 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A290
2603490017
|
£2.27
|
£2.72
|
|
|
86 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2237
2603410001
|
£1.84
|
£2.21
|
|
|
87 - STICKER
BSD-2601110022.A19
2601110022
|
-
|
|
|
|
88 - COVER PLATE
BSD-2601010023.A12
2601010023
|
-
|
|
|
|
89 - PAN HEAD SCREW M 4x20 MM
BSD-2603410016.A14
2603410016
|
-
|
|
|
|
92 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A149
1602381001
|
-
|
|
|
|
97 - GUIDE
BSD-2601000033.A8
2601000033
|
-
|
|
|
|
98 - SUPPORTING DISC
BSD-2600100027.A9
2600100027
|
-
|
|
|
|
99 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A679
2910021125
|
£1.75
|
£2.10
|
|
|
100 - HEX NUT DIN 985-M4-8
BSD-2915061002.A38
2915061002
|
£1.84
|
£2.21
|
|
|
101 - PLAIN WASHER DIN 125-A 6.4-ST
BSD-2916011014.A327
2916011014
|
£1.84
|
£2.21
|
|
|
102 - SPRING LOCK WASHER M6
BSD-2916690005.A110
2916690005
|
-
|
|
|
|
103 - SOCKET HEAD CAP SCREW DIN 84-AM6x20-5.8
BSD-2910011201.A0
2910011201
|
-
|
|
|
|
652 - STRAP-SHAPED HANDLE
BSD-2602025004.A13
2602025004
|
-
|
|
|
|
700 - DUST BAG
BSD-1605411023.A13
1605411023
|
-
|
|
|
|
800 - .
BSD-0603299003.A2
0603299003
|
-
|
|
|
|
800 - REPAIR SET
BSD-0603299002.A19
0603299002
|
-
|
|
|
|
801 - PARTS SET
BSD-0603907203.A8
0603907203
|
-
|
|
|
|
817 - CARBON BRUSH
BSD-1604321900.A54
1604321900
|
-
|
|
|
