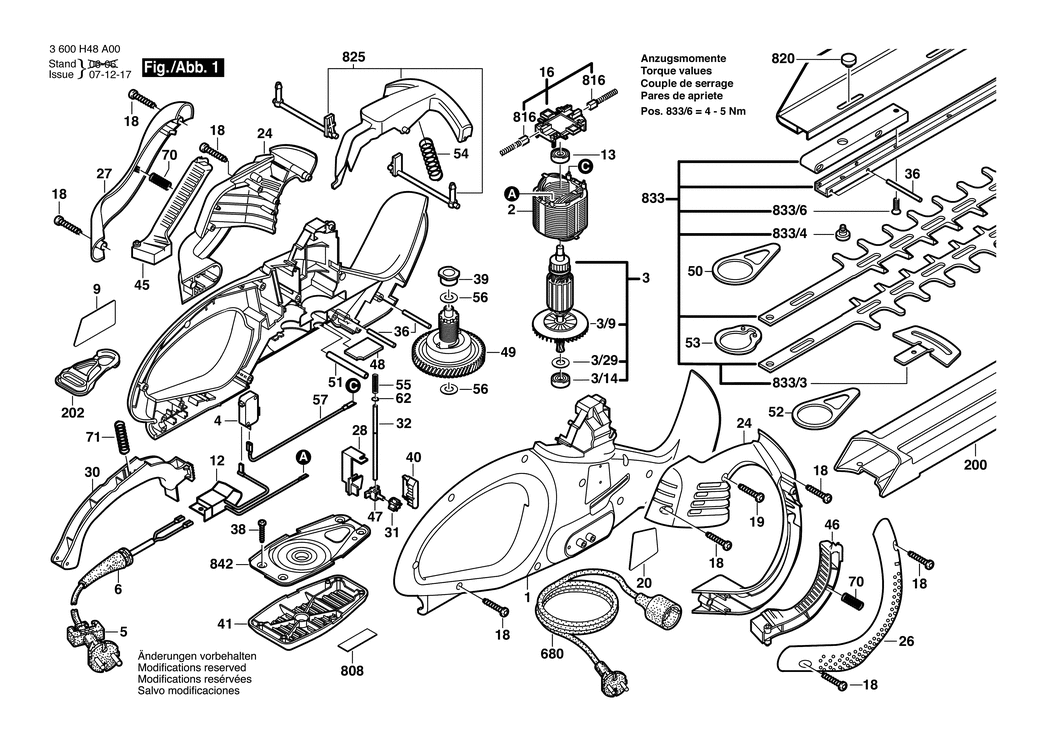

1 - HOUSING SECTION
BSD-2609002758.A17
2609002758
|
£37.27
|
£44.72
|
|
|
2 - FIELD 220-240V
BSD-2609001193.A15
2609001193
|
£18.96
|
£22.75
|
|
|
3 - ARMATURE 220-240V
BSD-2609001195.A0
2609001195
|
£45.67
|
£54.80
|
|
|
3/9 - FAN
BSD-2609001188.A7
2609001188
|
£2.16
|
£2.59
|
|
|
3/14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A170
2600905021
|
£8.67
|
£10.41
|
|
|
3/29 - SPACER RING
BSD-2600209003.A18
2600209003
|
£2.16
|
£2.59
|
|
|
4 - SWITCH
BSD-2607200446.A53
2607200446
|
-
|
|
|
|
5 - POWER SUPPLY CORD CH 0.46m 2 x 1.0mm H05 VV-F
BSD-1604460436.A20
1604460436
|
£8.67
|
£10.41
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A280
2600703017
|
£2.61
|
£3.13
|
|
|
9 - MANUFACTURER'S NAMEPLATE AHS 6000 PRO-T
BSD-2609001444.A0
2609001444
|
£3.34
|
£4.01
|
|
|
12 - INTERFERENCE SUPPR.CHOKE
BSD-2609003984.A8
2609003984
|
£8.67
|
£10.41
|
|
|
13 - FLANGED BEARING
BSD-2605805004.A46
2605805004
|
£8.67
|
£10.41
|
|
|
16 - BRUSH PLATE
BSD-1600A012AZ.A136
1600A012AZ
|
£11.30
|
£13.56
|
|
|
18 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A201
2603490023
|
£1.75
|
£2.10
|
|
|
18 - TORX OVAL-HEAD SCREW 4x20
BSD-2609001403.A19
2609001403
|
£1.75
|
£2.10
|
|
|
19 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A1032
2603490024
|
£1.75
|
£2.10
|
|
|
20 - REFERENCE PLATE
BSD-2609001437.A1
2609001437
|
£3.34
|
£4.01
|
|
|
24 - STRAP-SHAPED HANDLE
BSD-2609002910.A1
2609002910
|
£21.42
|
£25.71
|
|
|
26 - FIXING ELEMENT
BSD-2609005342.A25
2609005342
|
£4.26
|
£5.11
|
|
|
27 - FIXING ELEMENT
BSD-2609005343.A50
2609005343
|
£5.58
|
£6.70
|
|
|
28 - SUPPORT
BSD-2608040167.A65
2608040167
|
£4.75
|
£5.70
|
|
|
30 - SWITCH SEGMENT
BSD-2609003055.A9
2609003055
|
£2.80
|
£3.36
|
|
|
31 - SWITCH WHEEL
BSD-2606319105.A22
2606319105
|
£1.75
|
£2.10
|
|
|
32 - COUPLING
BSD-2609004249.A7
2609004249
|
£2.16
|
£2.59
|
|
|
36 - STRAIGHT PIN
BSD-2609002714.A57
2609002714
|
£1.75
|
£2.10
|
|
|
38 - TORX OVAL-HEAD SCREW 4x8
BSD-2603490020.A81
2603490020
|
£1.75
|
£2.10
|
|
|
39 - BUSHING
BSD-2600301073.A4
2600301073
|
£3.72
|
£4.47
|
|
|
40 - SHIFTER ROD
BSD-2608040163.A10
2608040163
|
£1.75
|
£2.10
|
|
|
41 - COVER
BSD-2605808938.A6
2605808938
|
£8.67
|
£10.41
|
|
|
45 - SWITCH SEGMENT
BSD-2608001901.A17
2608001901
|
£12.04
|
£14.45
|
|
|
46 - SWITCH SEGMENT
BSD-2608001902.A18
2608001902
|
£12.04
|
£14.45
|
|
|
47 - CONTROL ELEMENT
BSD-2606314102.A4
2606314102
|
£2.61
|
£3.13
|
|
|
48 - SUPPORT
BSD-2608005081.A5
2608005081
|
£3.72
|
£4.47
|
|
|
49 - SLIDING CLUTCH
BSD-2606440026.A4
2606440026
|
£52.15
|
£62.58
|
|
|
50 - CONNECTING ROD
BSD-2602001013.A15
2602001013
|
£13.12
|
£15.75
|
|
|
51 - STRAIGHT PIN
BSD-2603101053.A13
2603101053
|
£1.75
|
£2.10
|
|
|
52 - CONNECTING ROD
BSD-2602001012.A4
2602001012
|
£12.04
|
£14.45
|
|
|
53 - SPACER
BSD-2606440043.A1
2606440043
|
£10.10
|
£12.12
|
|
|
54 - COMPRESSION SPRING
BSD-2604610045.A52
2604610045
|
£1.75
|
£2.10
|
|
|
55 - COMPRESSION SPRING
BSD-2604610073.A3
2604610073
|
-
|
|
|
|
56 - SHIM 0.3 MM
BSD-2600101617.A251
2600101617
|
£1.75
|
£2.10
|
|
|
57 - CONNECTING CABLE
BSD-2604448234.A67
2604448234
|
£2.16
|
£2.59
|
|
|
62 - LOCKING WASHER
BSD-2916080905.A79
2916080905
|
£1.75
|
£2.10
|
|
|
70 - COMPRESSION SPRING
BSD-2604610090.A3
2604610090
|
£1.75
|
£2.10
|
|
|
71 - COMPRESSION SPRING
BSD-2604610074.A73
2604610074
|
£1.75
|
£2.10
|
|
|
200 - KNIFE GUARD
BSD-2605411152.A20
2605411152
|
£13.12
|
£15.75
|
|
|
202 - STRAIN-RELIEF CLAMP
BSD-3601398000.A11
3601398000
|
£5.30
|
£6.36
|
|
|
680 - EXTENSION CABLE EU 230V. 20 M
BSD-F016L65235.A2
F016L65235
|
-
|
|
|
|
808 - NAMEPLATE
BSD-2609001500.A0
2609001500
|
£3.72
|
£4.47
|
|
|
816 - CARBON-BRUSH SET
BSD-2604321925.A130
2604321925
|
£8.67
|
£10.41
|
|
|
820 - KNURLED THUMBSCREW
BSD-2603345021.A11
2603345021
|
-
|
|
|
|
825 - SWITCH SEGMENT
BSD-2608001903.A58
2608001903
|
-
|
|
|
|
833 - SET OF KNIVES
BSD-2607009914.A0
2607009914
|
£72.18
|
£86.62
|
|
|
833/3 - PROTECTOR
BSD-2601020016.A23
2601020016
|
£5.58
|
£6.70
|
|
|
833/4 - THREAD-FORMING TAP. SCREW
BSD-2603413040.A43
2603413040
|
£2.16
|
£2.59
|
|
|
833/6 - TORX OVAL-HEAD SCREW
BSD-2603421011.A12
2603421011
|
£6.52
|
£7.83
|
|
|
842 - PIVOT PLATE
BSD-2609001601.A0
2609001601
|
£8.67
|
£10.41
|
|
