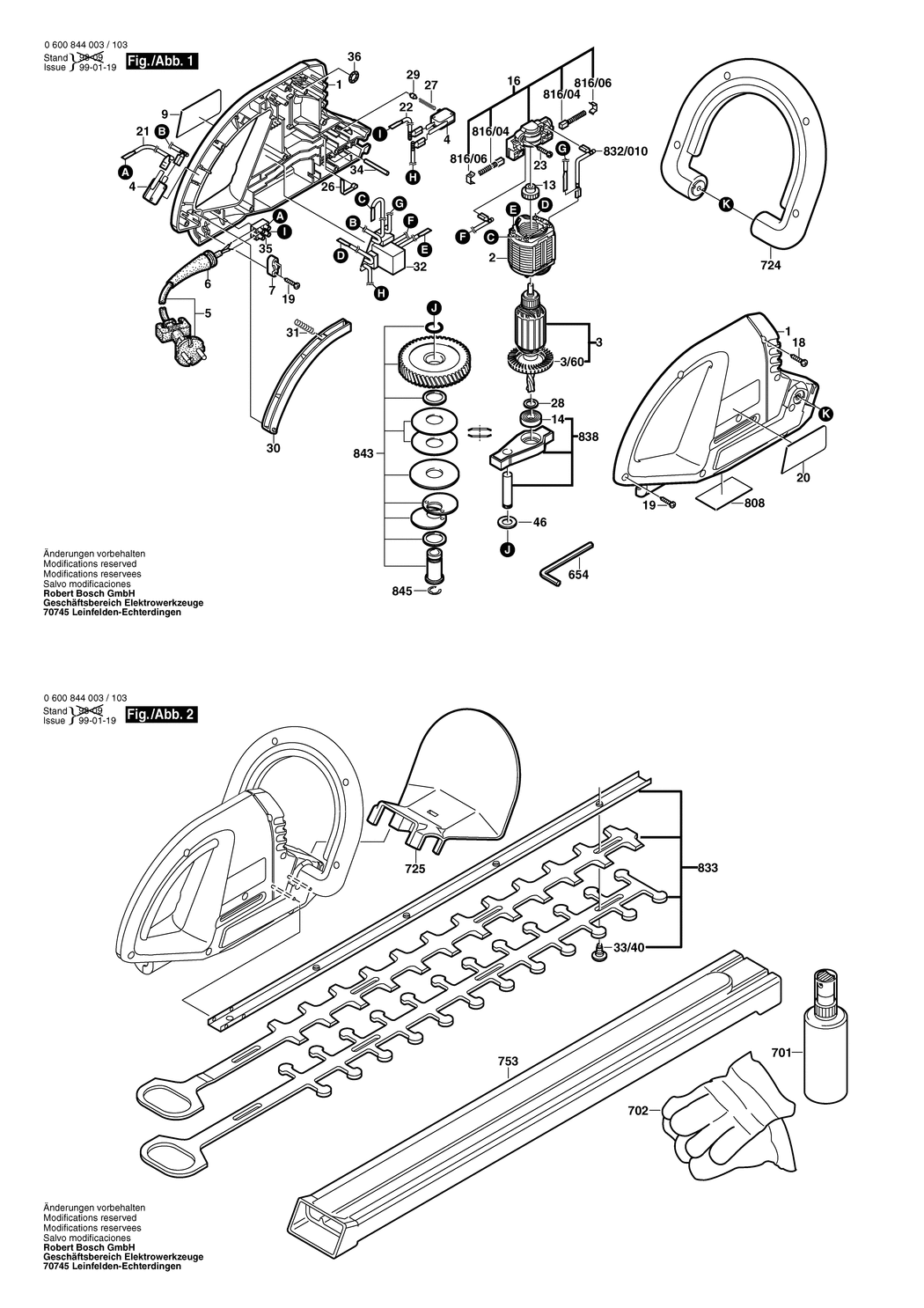

1 - HOUSING SECTION
BSD-2605104512.A44
2605104512
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220423.A233
2604220423
|
£25.68
|
£30.81
|
|
|
3 - ARMATURE 220-230V
BSD-2604010604.A69
2604010604
|
-
|
|
|
|
3/60 - FAN
BSD-2606610027.A158
2606610027
|
£2.80
|
£3.36
|
|
|
4 - ON-OFF SWITCH
BSD-2607200316.A37
2607200316
|
-
|
|
|
|
5 - POWER SUPPLY CORD EU 0.46m 2 x 1.0mm H05 VV-F
BSD-2604460255.A69
2604460255
|
£8.67
|
£10.41
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A106
2600703017
|
£2.74
|
£3.29
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1720
2601035001
|
£1.84
|
£2.21
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601119835.A0
2601119835
|
-
|
|
|
|
13 - BUSHING
BSD-2600300077.A15
2600300077
|
-
|
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A256
2600905021
|
£8.67
|
£10.41
|
|
|
16 - BRUSH PLATE
BSD-2609992625.A10
2609992625
|
-
|
|
|
|
18 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A671
2603490024
|
£1.84
|
£2.21
|
|
|
19 - SCREW 4x16
BSD-2603490022.A2043
2603490022
|
£1.84
|
£2.21
|
|
|
20 - REFERENCE PLATE
BSD-2601118342.A33
2601118342
|
-
|
|
|
|
21 - CONNECTING CABLE L=243 MM
BSD-2604448171.A40
2604448171
|
-
|
|
|
|
22 - CONNECTING CABLE L=273 MM
BSD-2604448162.A53
2604448162
|
-
|
|
|
|
23 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A505
2603490023
|
£1.84
|
£2.21
|
|
|
26 - CONTACT SPRING
BSD-2601329057.A199
2601329057
|
-
|
|
|
|
27 - COMPRESSION SPRING
BSD-2604619013.A44
2604619013
|
-
|
|
|
|
28 - SPACER RING
BSD-2600209003.A98
2600209003
|
£2.16
|
£2.59
|
|
|
29 - SHIFTER ROD
BSD-2608040076.A9
2608040076
|
£1.75
|
£2.10
|
|
|
30 - SWITCH SEGMENT
BSD-2608001011.A73
2608001011
|
-
|
|
|
|
31 - COMPRESSION SPRING
BSD-2604610028.A127
2604610028
|
£1.84
|
£2.21
|
|
|
32 - CONTROL UNIT
BSD-2607230025.A38
2607230025
|
-
|
|
|
|
33/40 - THREAD-FORMING TAP. SCREW
BSD-2603413026.A97
2603413026
|
-
|
|
|
|
34 - STRAIGHT PIN
BSD-2609002714.A192
2609002714
|
£1.84
|
£2.21
|
|
|
35 - CLAMPING STRIP
BSD-2604490012.A69
2604490012
|
-
|
|
|
|
36 - O-RING 5.0x1.5 MM
BSD-1900210000.A219
1900210000
|
£1.84
|
£2.21
|
|
|
46 - SHIM 0.3 MM
BSD-2600101617.A181
2600101617
|
£1.84
|
£2.21
|
|
|
52 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A601
2603490018
|
£1.75
|
£2.10
|
|
|
654 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A1154
1907950006
|
£4.48
|
£5.37
|
|
|
701 - OIL SPRAY TIN
BSD-1609200399.A6
1609200399
|
£9.18
|
£11.01
|
|
|
702 - PROTECTIVE GLOVE
BSD-2607000134.A30
2607000134
|
-
|
|
|
|
724 - STRAP-SHAPED HANDLE
BSD-2602025106.A16
2602025106
|
-
|
|
|
|
725 - PROTECTIVE SHIELD
BSD-2607001192.A9
2607001192
|
-
|
|
|
|
753 - OIL RESERVOIR
BSD-2605411040.A4
2605411040
|
-
|
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A4853
160111A3H3
|
£2.74
|
£3.29
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2607014005.A51
2607014005
|
-
|
|
|
|
816/06 - RATCHET CAP
BSD-2601322017.A40
2601322017
|
£1.84
|
£2.21
|
|
|
816/06 - RATCHET CAP
BSD-2601322013.A438
2601322013
|
£1.84
|
£2.21
|
|
|
832/010 - CONNECTING CABLE L=34 MM
BSD-2604448173.A14
2604448173
|
£1.32
|
£1.58
|
|
|
833 - SET OF KNIVES 600 MM
BSD-2607001314.A0
2607001314
|
-
|
|
|
|
838 - BUSHING
BSD-2605807926.A38
2605807926
|
-
|
|
|
|
843 - OVERLOAD CLUTCH
BSD-2606319901.A45
2606319901
|
-
|
|
|
|
845 - LOCKING WASHER DIN 6799-7-FSt
BSD-2916080910.A218
2916080910
|
£2.16
|
£2.59
|
|
