Bosch UniversalChainPole 18 / 3600HB3100 / EU 18 Volt Spare Parts

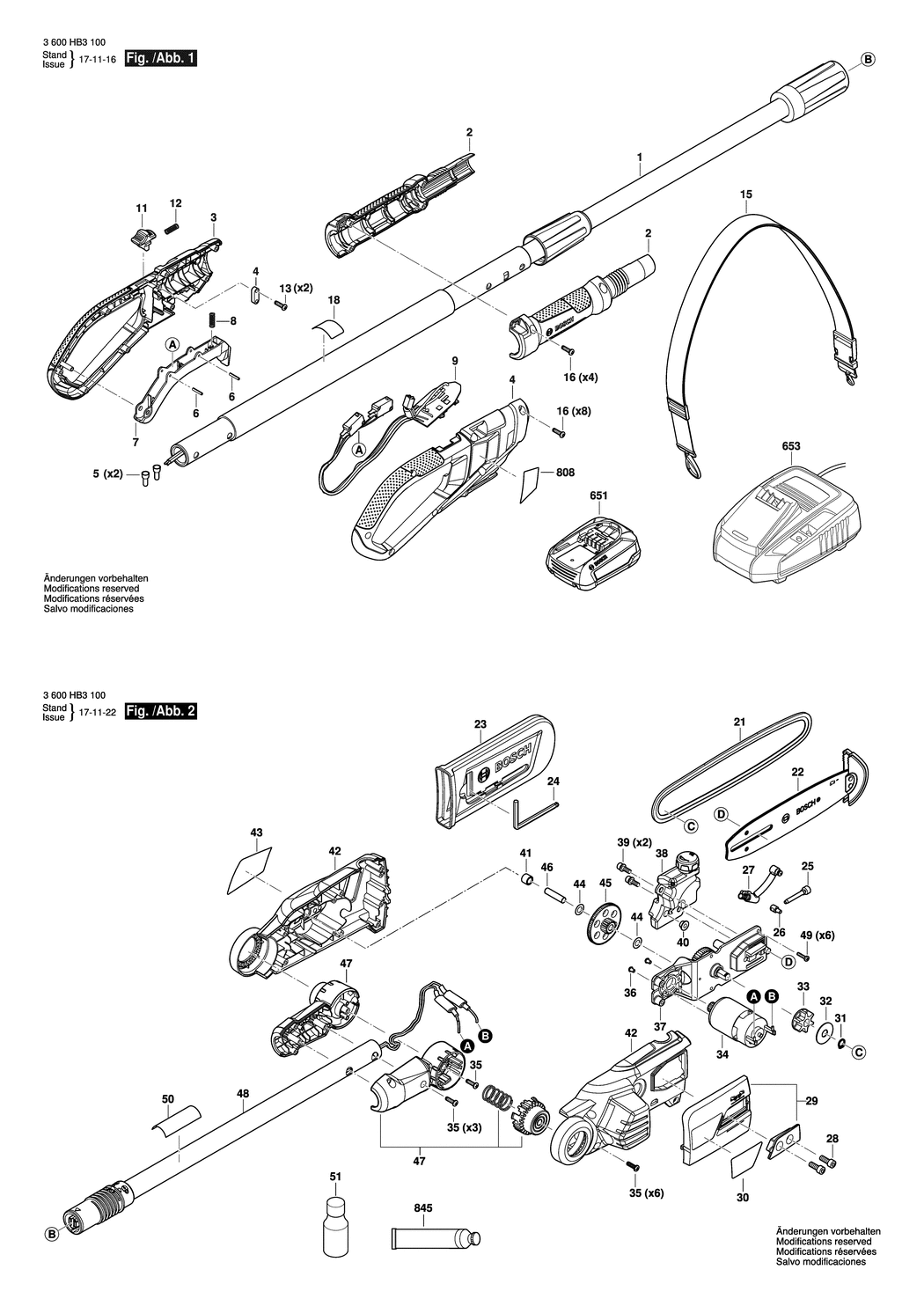

An exploded drawing and listing for the Bosch UniversalChainPole 18 / 3600HB3100 / EU 18 Volt

	Ex VAT	Inc VAT
1 - TUBE BSD-F016F05187.A0 F016F05187	£21.68	£26.01
2 - HOUSING BSD-F016F05218.A1 F016F05218	£6.52	£7.83
3 - HOUSING BSD-F016F05219.A0 F016F05219	£14.91	£17.89
4 - CLAMP BSD-F016F05220.A1 F016F05220	£1.75	£2.10
5 - CAP BSD-F016F05221.A0 F016F05221	£1.75	£2.10
6 - PIN BSD-F016F05222.A1 F016F05222	£14.91	£17.89
7 - TRIGGER BSD-F016F05223.A0 F016F05223	£2.16	£2.59
8 - SPRING BSD-F016F05224.A1 F016F05224	£1.75	£2.10
9 - PRINTED-BOARD ASSEMBLY BSD-F016F05188.A0 F016F05188	-
11 - BUTTON BSD-F016F05227.A1 F016F05227	£1.75	£2.10
12 - SPRING BSD-F016F05228.A0 F016F05228	£1.75	£2.10
13 - SCREW BSD-F016F05229.A1 F016F05229	£1.75	£2.10
15 - CHEST HARNESS BSD-F016F05230.A0 F016F05230	£18.96	£22.75
16 - SCREW ST4.6 x 17 BSD-F016F05231.A3 F016F05231	£1.75	£2.10
18 - LABEL BSD-F016F05232.A0 F016F05232	£1.75	£2.10
21 - CHAIN BSD-F016F05190.A1 F016F05190	£27.23	£32.68
22 - BAR BSD-F016F05191.A0 F016F05191	£31.64	£37.97
23 - COVER BSD-F016F05192.A0 F016F05192	£6.52	£7.83
24 - HEXAGON SOCKET SCREW KEY BSD-F016F05193.A0 F016F05193	£3.72	£4.47
25 - SCREW BSD-F016F05194.A0 F016F05194	£3.72	£4.47
26 - HOLDER BSD-F016F05195.A0 F016F05195	£1.75	£2.10
27 - PUMP BSD-F016F05196.A0 F016F05196	£10.10	£12.12
28 - HEX SCREW M6 x16 BSD-F016F05197.A0 F016F05197	£1.75	£2.10
29 - COVER BSD-F016F05198.A0 F016F05198	£10.10	£12.12
30 - MANUFACTURER'S NAMEPLATE UniversalChainPole 18 BSD-F016F05199.A0 F016F05199	£2.61	£3.13
31 - RING BSD-F016F05200.A0 F016F05200	£1.75	£2.10
32 - WASHER BSD-F016F05201.A0 F016F05201	£1.75	£2.10
33 - SPROCKET BSD-F016F05202.A0 F016F05202	£6.52	£7.83
34 - MOTOR BSD-F016F05203.A0 F016F05203	£45.67	£54.80
35 - SCREW ST4.6 x 17 BSD-F016F05231.A2 F016F05231	£1.75	£2.10
36 - SCREW M4 x8 BSD-F016F05204.A0 F016F05204	£1.75	£2.10
37 - GEAR BOX BSD-F016F05205.A0 F016F05205	£33.74	£40.49
38 - TANK BSD-F016F05206.A0 F016F05206	£11.30	£13.56
39 - SCREW M5 x16 BSD-F016F05207.A0 F016F05207	£1.75	£2.10
40 - WASHER BSD-F016F05208.A0 F016F05208	£1.75	£2.10
41 - BEARING BSD-F016F05209.A0 F016F05209	£4.26	£5.11
42 - MOTOR HOUSING BSD-F016F05210.A0 F016F05210	£18.96	£22.75
43 - MANUFACTURER'S NAMEPLATE UniversalChainPole 18 BSD-F016F05211.A0 F016F05211	£2.61	£3.13
44 - WASHER BSD-F016F05212.A0 F016F05212	£1.75	£2.10
45 - PLATE BSD-F016F05213.A0 F016F05213	£11.30	£13.56
46 - SHAFT BSD-F016F05214.A0 F016F05214	£1.75	£2.10
47 - ROTATOR BSD-F016F05240.A1 F016F05240	£10.10	£12.12
48 - TUBE BSD-F016F05215.A0 F016F05215	£27.23	£32.68
49 - SCREW BSD-F016F05229.A2 F016F05229	£1.75	£2.10
50 - WARNING LABEL BSD-F016F05255.A1 F016F05255	£1.75	£2.10
51 - BOTTLE BSD-F016F05216.A0 F016F05216	£16.41	£19.69
651 - BATTERY PACK PBA 18V 2.5Ah W-B BSD-2607337199.A27 2607337199	£81.81	£98.17
653 - FAST CHARGER EU AL 1830 CV 230/14.4-18V 1h BSD-2607225965.A31 2607225965	£48.38	£58.06
653 - CHARGER GB AL 1830 CV 230/14.4-18V 1h BSD-2607225967.A5 2607225967	£68.42	£82.10
653 - CHARGER AUS AL 1830 CV 230/14.4-18V 1h BSD-2607225969.A16 2607225969	£68.42	£82.10
808 - NAMEPLATE BSD-F016F05189.A0 F016F05189	£2.61	£3.13
845 - GREASE TUBE Albida BSD-3605430003.A49 3605430003	£27.23	£32.68

Attribute Name	Value
Brand	Bosch
