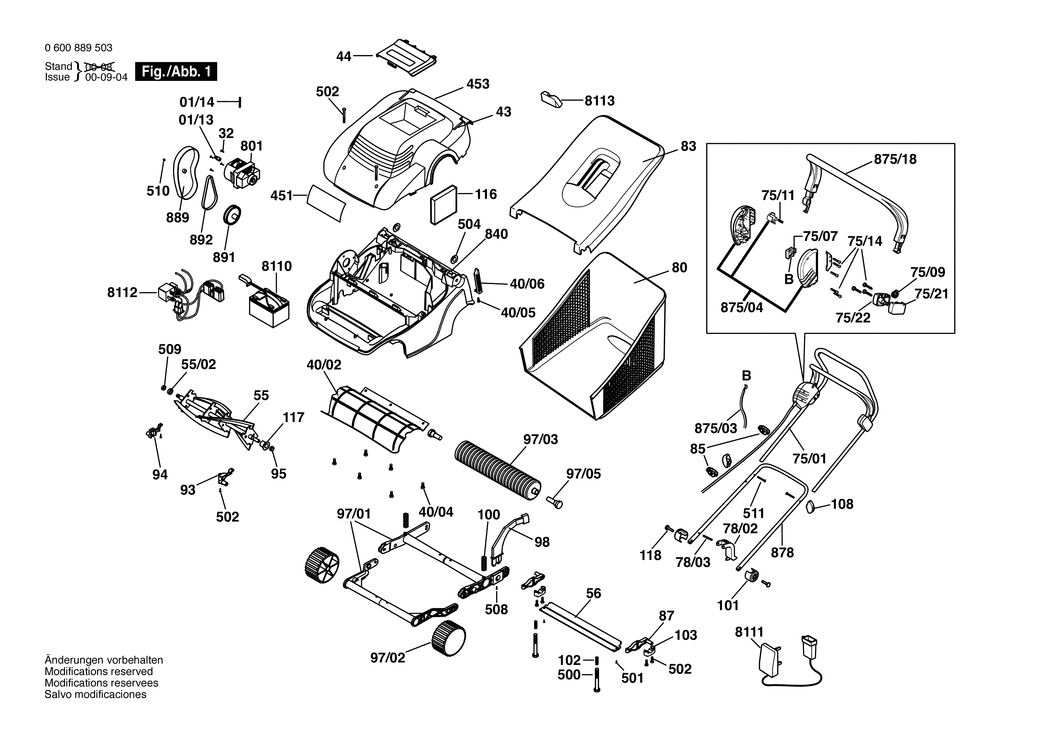

01/13 - PINION
BSD-F016L62280.A8
F016L62280
|
-
|
|
|
|
01/14 - COILED SPRING PIN
BSD-F016T44492.A21
F016T44492
|
£2.74
|
£3.29
|
|
|
32 - SELF-CUTTING SCREW
BSD-F016L37433.A254
F016L37433
|
£1.75
|
£2.10
|
|
|
40/02 - DEFLECTOR PLATE
BSD-F016L62281.A8
F016L62281
|
-
|
|
|
|
40/04 - SELF-CUTTING SCREW 3x8 MM
BSD-F016L66420.A12
F016L66420
|
£2.74
|
£3.29
|
|
|
40/05 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A116
F016T49429
|
£1.84
|
£2.21
|
|
|
40/06 - INSERT
BSD-F016L63327.A11
F016L63327
|
-
|
|
|
|
43 - COVER
BSD-F016L62401.A1
F016L62401
|
-
|
|
|
|
44 - COVER
BSD-F016L62398.A1
F016L62398
|
-
|
|
|
|
55 - CYLINDER
BSD-F016L62486.A6
F016L62486
|
-
|
|
|
|
55/02 - GROOVE BALL BEARING 6200-2Z DIN 625
BSD-1900905232.A153
1900905232
|
£21.68
|
£26.01
|
|
|
56 - LOWER BLADE
BSD-F016L63318.A4
F016L63318
|
-
|
|
|
|
75/01 - HANDLE
BSD-F016L62651.A7
F016L62651
|
£20.42
|
£24.51
|
|
|
75/07 - ON-OFF SWITCH
BSD-F016L59288.A12
F016L59288
|
£5.87
|
£7.04
|
|
|
75/09 - SPIRAL SPRING
BSD-F016T49633.A31
F016T49633
|
£2.27
|
£2.72
|
|
|
75/11 - COMPRESSION SPRING
BSD-F016T49226.A111
F016T49226
|
-
|
|
|
|
75/14 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A55
F016T49429
|
£1.84
|
£2.21
|
|
|
75/21 - HOLDER
BSD-F016T49629.A30
F016T49629
|
-
|
|
|
|
75/22 - HOLDER
BSD-F016T49628.A1
F016T49628
|
-
|
|
|
|
78/02 - STOPPING PIECE
BSD-F016L62669.A0
F016L62669
|
£3.51
|
£4.21
|
|
|
78/03 - COILED SPRING PIN
BSD-F016L62760.A5
F016L62760
|
£1.84
|
£2.21
|
|
|
80 - COLLECTOR BOX BOTTOM
BSD-F016L62300.A4
F016L62300
|
£20.42
|
£24.51
|
|
|
83 - COLLECTOR BOX TOP
BSD-F016L62299.A8
F016L62299
|
£15.65
|
£18.78
|
|
|
85 - CABLE CLEAT
BSD-F016L11580.A20
F016L11580
|
£1.84
|
£2.21
|
|
|
87 - BLADE HOLDER
BSD-F016L62272.A5
F016L62272
|
£4.99
|
£5.99
|
|
|
93 - CONNECTING TERMINAL L/H
BSD-F016L62278.A11
F016L62278
|
£1.75
|
£2.10
|
|
|
94 - CONNECTING TERMINAL R/H
BSD-F016L62279.A1
F016L62279
|
£1.84
|
£2.21
|
|
|
95 - BUSHING
BSD-F016T40513.A12
F016T40513
|
£6.85
|
£8.22
|
|
|
97/01 - LINKAGE
BSD-F016102751.A12
F016102751
|
£35.12
|
£42.15
|
|
|
97/02 - WHEEL
BSD-F016L62270.A17
F016L62270
|
£3.51
|
£4.21
|
|
|
97/03 - ROLLER
BSD-F016L62282.A4
F016L62282
|
£8.49
|
£10.19
|
|
|
97/05 - STUB SHAFT
BSD-F016L63341.A24
F016L63341
|
£3.99
|
£4.79
|
|
|
98 - HANDLE
BSD-F016L62292.A3
F016L62292
|
£6.16
|
£7.39
|
|
|
100 - COMPRESSION SPRING
BSD-F016L62298.A11
F016L62298
|
-
|
|
|
|
101 - PIVOT
BSD-F016L62285.A18
F016L62285
|
-
|
|
|
|
102 - COMPRESSION SPRING
BSD-F016L62284.A7
F016L62284
|
-
|
|
|
|
103 - CLAMPING BLOCK
BSD-F016L62283.A15
F016L62283
|
£1.84
|
£2.21
|
|
|
108 - WING NUT
BSD-F016L66136.A146
F016L66136
|
£4.48
|
£5.37
|
|
|
116 - AIR FILTER
BSD-F016L62487.A0
F016L62487
|
-
|
|
|
|
117 - BEARING RING
BSD-F016L62488.A14
F016L62488
|
£1.75
|
£2.10
|
|
|
118 - PIVOT PIN
BSD-F016L64240.A25
F016L64240
|
-
|
|
|
|
451 - MANUFACTURER'S NAMEPLATE
BSD-F016L62405.A0
F016L62405
|
-
|
|
|
|
453 - REFERENCE PLATE
BSD-F016L62409.A2
F016L62409
|
£2.45
|
£2.94
|
|
|
454 - STICKER
BSD-F016L63314.A5
F016L63314
|
-
|
|
|
|
500 - BOLT
BSD-F016L62288.A7
F016L62288
|
£1.95
|
£2.34
|
|
|
501 - SCREW M5x8 Csk Hd.
BSD-F016L36542.A418
F016L36542
|
£2.62
|
£3.14
|
|
|
502 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A56
F016T49429
|
£1.84
|
£2.21
|
|
|
504 - SET RING 12 MM T40
BSD-F016T49100.A5
F016T49100
|
£1.95
|
£2.34
|
|
|
508 - SELF-CUTTING SCREW
BSD-F016L37433.A265
F016L37433
|
£1.75
|
£2.10
|
|
|
509 - NUT
BSD-F016L62388.A12
F016L62388
|
£3.51
|
£4.21
|
|
|
510 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A54
F016T49429
|
£1.84
|
£2.21
|
|
|
511 - BOLT M6x50
BSD-F016L59277.A2
F016L59277
|
£3.99
|
£4.79
|
|
|
801 - DC MOTOR
BSD-F016L80954.A1
F016L80954
|
-
|
|
|
|
840 - CHASSIS
BSD-F016102380.A11
F016102380
|
£33.45
|
£40.14
|
|
|
875/03 - CONNECTING CABLE
BSD-F016102756.A0
F016102756
|
£8.17
|
£9.80
|
|
|
875/04 - ASSEMBLY KIT
BSD-F016103136.A13
F016103136
|
-
|
|
|
|
875/18 - CONTROL BAR
BSD-F016102331.A4
F016102331
|
-
|
|
|
|
878 - HANDLE
BSD-F016102330.A1
F016102330
|
£15.46
|
£18.55
|
|
|
889 - BELT COVER
BSD-F016102356.A25
F016102356
|
£4.99
|
£5.99
|
|
|
891 - PULLEY
BSD-F016102357.A4
F016102357
|
£3.99
|
£4.79
|
|
|
892 - DRIVE BELT
BSD-F016102358.A25
F016102358
|
£7.78
|
£9.33
|
|
|
8111 - BATTERY CHARGER CH 230/12V
BSD-F016102775.A0
F016102775
|
-
|
|
|
|
8112 - BATTERY LEAD
BSD-F016102758.A0
F016102758
|
£25.05
|
£30.06
|
|
|
8113 - FUSE
BSD-F016102176.A12
F016102176
|
£3.51
|
£4.21
|
|
|
8110 - BATTERY SET 12Ah
BSD-F016102757.A2
F016102757
|
-
|
|
|
