Fein GRIT GI 150 / 79020400403 Spare Parts

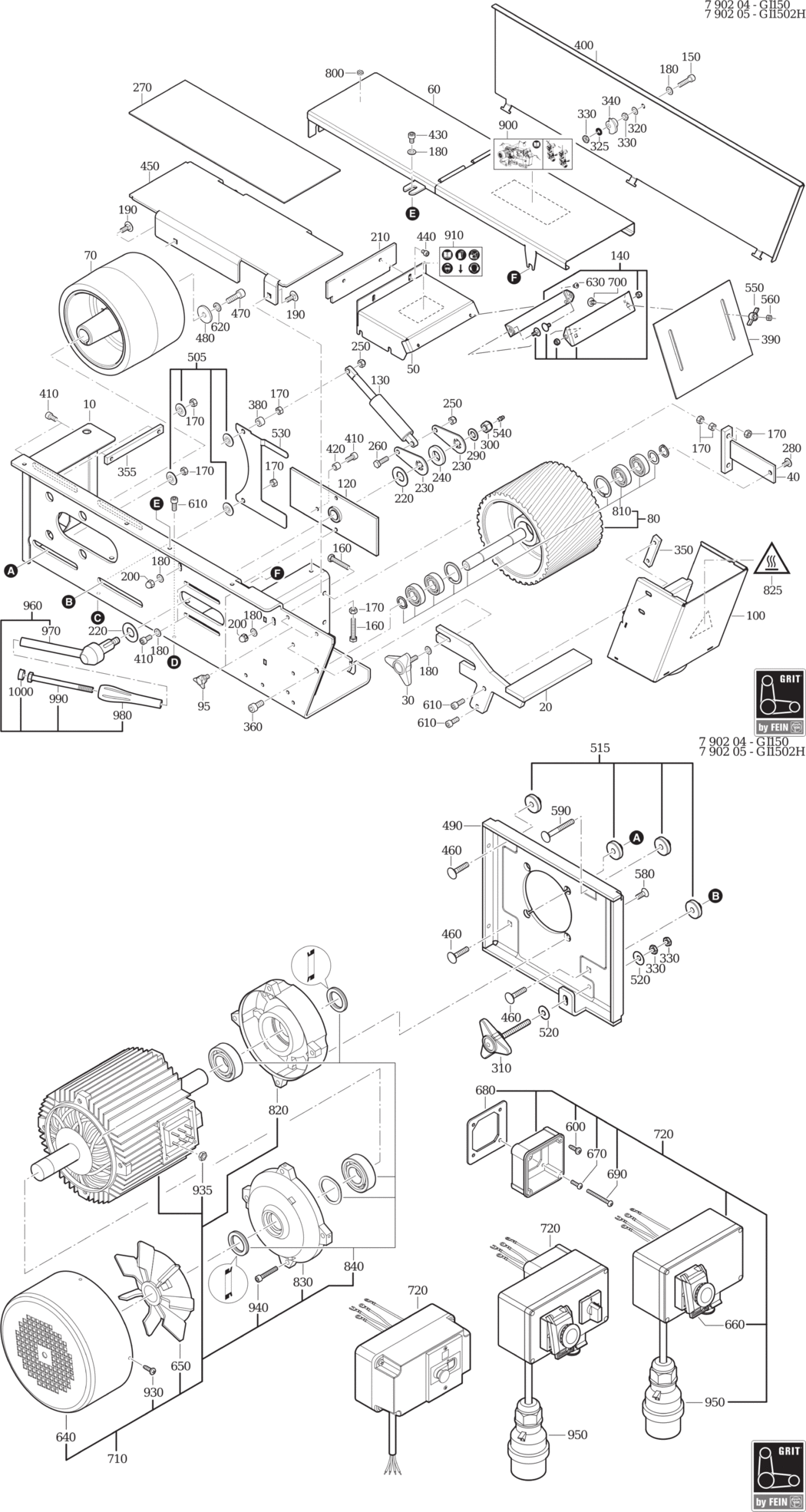

An exploded diagram and spare parts listing for the Fein GRIT GI 150 / 79020400403

	Ex VAT	Inc VAT
10 - HOUSING FEI-39000000915.A9 39000000915	-
20 - WORKPIECE SUPPORT FEI-39000000178.A2 39000000178	-
30 - HANDLE M8X30 FEI-39000000171.A95 39000000171	£20.96	£25.15
40 - HOLDER FEI-39000004723.A39 39000004723	-
50 - COVER FEI-39000000186.A1 39000000186	£114.65	£137.58
60 - COVER FEI-39000000187.A6 39000000187	-
70 - DRIVE WHEEL FEI-39000001102.A18 39000001102	£584.68	£701.61
80 - CONTACT WHEEL FEI-39000000288.A17 39000000288	£470.48	£564.57
95 - HANDLE M8 FEI-39000000085.A6 39000000085	£17.68	£21.22
100 - SPARK BOX FEI-39000004709.A3 39000004709	-
120 - PLATE FEI-39000000135.A9 39000000135	-
130 - SPRING FEI-39000000161.A28 39000000161	£123.79	£148.55
140 - ADJUSTMENT UNIT FEI-39000004710.A4 39000004710	-
150 - SCREW FEI-39000000111.A28 39000000111	-
160 - SCREW FEI-39000000154.A2 39000000154	-
170 - NUT FEI-39000000045.A44 39000000045	-
180 - DISC FEI-39000000090.A57 39000000090	£1.60	£1.92
190 - BOLT M8X45 FEI-39000000153.A55 39000000153	£3.15	£3.78
200 - NUT FEI-39000000044.A31 39000000044	-
210 - SUPPORT FEI-39000000181.A6 39000000181	£74.89	£89.87
220 - CUP SPRING 20 4X2 FEI-39000000160.A14 39000000160	-
230 - ADJUSTMENT UNIT FEI-39000000127.A2 39000000127	-
240 - DISC FEI-39000002813.A34 39000002813	-
250 - NUT FEI-39000000061.A35 39000000061	£2.94	£3.53
260 - SCREW M8X25 FEI-39000000152.A2 39000000152	-
270 - GRAPHITE COATING 155X430 MM FEI-39000005048.A2 39000005048	£70.96	£85.15
280 - SCREW FEI-39000000048.A23 39000000048	-
290 - DISC D12 FEI-39000000163.A31 39000000163	-
300 - NUT FEI-39000000063.A17 39000000063	-
310 - HANDLE M8X75 FEI-39000000162.A9 39000000162	-
320 - DISC FEI-39000000148.A5 39000000148	-
325 - DISC FEI-39000006362.A4 39000006362	-
330 - NUT FEI-39000000047.A66 39000000047	-
340 - LOCKING BAR FEI-39000000087.A30 39000000087	-
350 - FITTING FEI-39000000167.A19 39000000167	-
355 - FITTING FEI-39000000185.A10 39000000185	-
360 - SCREW FEI-39000000099.A73 39000000099	-
380 - BUSH FEI-39000000131.A12 39000000131	£14.39	£17.27
390 - EYE GUARD FEI-39000005624.A2 39000005624	£61.46	£73.75
400 - COVER FEI-39000000130.A25 39000000130	£184.92	£221.91
410 - SCREW FEI-39000000165.A45 39000000165	-
420 - BUSH FEI-39000000129.A9 39000000129	-
430 - SCREW FEI-39000000595.A4 39000000595	-
440 - SCREW M6X8 FEI-39000000149.A15 39000000149	-
450 - SANDING TABLE FEI-39000000182.A1 39000000182	-
460 - BOLT M8X35 FEI-39000000145.A31 39000000145	-
470 - SCREW FEI-39000000827.A29 39000000827	£3.83	£4.60
480 - DISC FEI-39000000168.A11 39000000168	£23.47	£28.16
490 - FLANGE FEI-39000000126.A26 39000000126	-
505 - BUSH VE 4 FEI-39000000125.A1 39000000125	-
515 - BUSH VE 4 FEI-39000000124.A12 39000000124	-
520 - CUP SPRING 8 2X0 9 MM FEI-39000000089.A40 39000000089	-
530 - PLATE FEI-39000000123.A1 39000000123	-
540 - NIPPLE M6 FEI-39000000155.A33 39000000155	-
550 - HANDLE FEI-39000005826.A10 39000005826	£8.38	£10.05
560 - NUT FEI-39000000166.A3 39000000166	£1.60	£1.92
580 - FLAT HEADED SCREW FEI-39000000040.A6 39000000040	-
590 - BOLT M8X60 FEI-39000000143.A11 39000000143	-
600 - SHEET METAL SCREW FEI-39000000541.A1 39000000541	-
610 - SCREW FEI-39000000083.A23 39000000083	-
620 - CIRCLIP FEI-39000000724.A11 39000000724	£2.65	£3.18
630 - SCREW FEI-39000000464.A14 39000000464	-
640 - HOOD FEI-39000000219.A24 39000000219	£80.41	£96.49
650 - BLADE FEI-39000000218.A11 39000000218	£56.15	£67.38
660 - FLAP SWITCH FEI-39000000479.A60 39000000479	£45.72	£54.86
670 - SCREW FEI-39000001138.A32 39000001138	-
680 - SEAL FEI-39000000540.A51 39000000540	-
690 - SCREW FEI-39000001139.A16 39000001139	-
700 - SCREW FEI-39000005654.A19 39000005654	-
710 - MOTOR 4 0KW 3000 RPM FEI-39000000156.A1 39000000156	£847.11	£1016.53
720 - SWITCH GI150/75 400V50HZ FEI-39000000172.A0 39000000172	-
800 - STOP FEI-39000005540.A4 39000005540	-
810 - SHAFT FEI-39000001521.A1 39000001521	-
820 - FLANGE B14 FEI-39000001644.A35 39000001644	£116.83	£140.20
825 - SIGN FEI-39000006105.A24 39000006105	-
830 - COVER 4 KW FEI-39000005290.A11 39000005290	£85.86	£103.03
840 - SERVICE KIT FEI-39000001656.A23 39000001656	-
900 - SIGN FEI-39000006142.A13 39000006142	-
910 - SIGN FEI-39000006100.A60 39000006100	£3.17	£3.80
930 - FILLISTER HEAD SCREW FEI-43041040048.A78 43041040048	£1.60	£1.92
935 - NUT FEI-39000000720.A28 39000000720	-
940 - SCREW M6X30 FEI-39000000444.A53 39000000444	-
950 - CABLE WITH PLUG FEI-39000001701.A15 39000001701	-
960 - LEVER FEI-39000000711.A0 39000000711	-
970 - HANDLE FEI-39000004711.A0 39000004711	£114.77	£137.72
980 - HANDLE FEI-32119114005.A42 32119114005	-
990 - SCREW FEI-39000006227.A8 39000006227	-
1000 - PLUG FEI-41115012001.A32 41115012001	-
