Festool CS 50 EBG GB 240V / 201429 Spare Parts

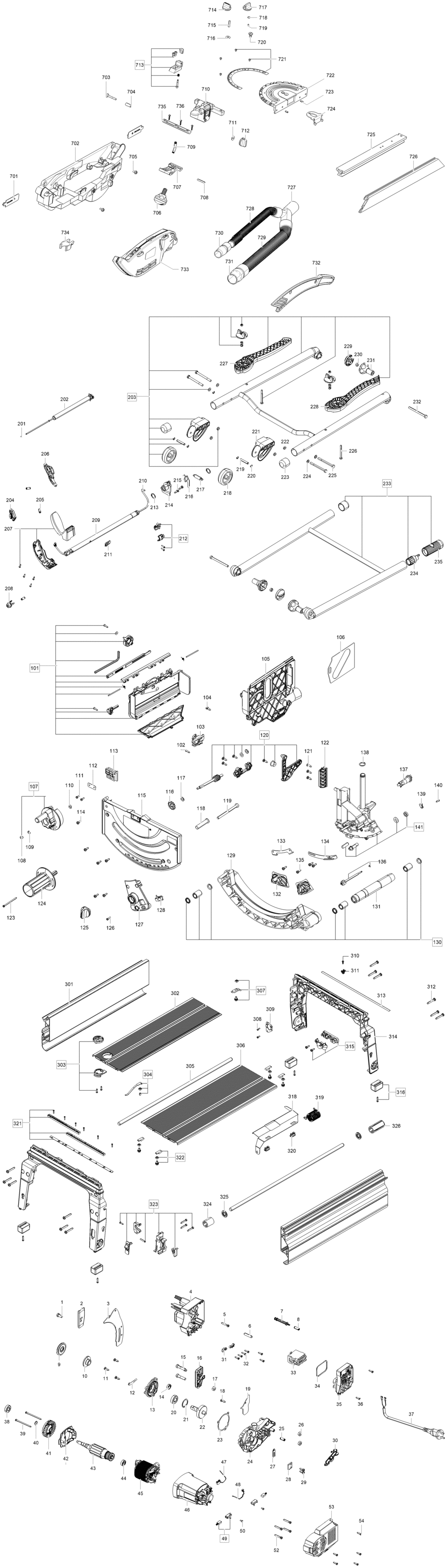

An exploded diagram and spare parts listing for the Festool CS 50 EBG GB 240V / 201429

	Ex VAT	Inc VAT
1 - CHEESE HEAD SCREW M8 X 16 FSP-774346.A4 774346	£2.00	£2.40
2 - SPACER WEDGE PLATE FSP-463751.A6 463751	£2.82	£3.38
3 - SPACER WEDGE FSP-10023701.A1 10023701	£40.21	£48.25
4 - HOUSING FSP-470102.A4 470102	£11.63	£13.96
5 - SCREW FSP-401038.A11 401038	£2.00	£2.40
6 - CONTACT SPRING FSP-469925.A1 469925	£2.00	£2.40
7 - TAPPET FSP-463934.A0 463934	£2.00	£2.40
8 - PRESSURE SPRING FSP-463590.A17 463590	£2.00	£2.40
9 - CLAMPING NUT FSP-465326.A1 465326	£48.12	£57.74
10 - FLANGE FSP-463195.A9 463195	£7.68	£9.21
11 - SCREW FSP-400709.A51 400709	£2.00	£2.40
12 - CONTACT SPRING FSP-466698.A2 466698	£2.00	£2.40
13 - GEAR COVER FSP-202487.A0 202487	£31.36	£37.63
14 - BALL BEARING FSP-401518.A11 401518	£8.12	£9.74
15 - CHEESE HEAD SCREW FSP-400735.A4 400735	£2.00	£2.40
16 - SPACER WEDGE HOLDER FSP-492010.A8 492010	£19.45	£23.34
17 - HEXAGON NUT M8 FSP-200719.A46 200719	£2.00	£2.40
18 - SCREW FSP-400709.A50 400709	£2.00	£2.40
19 - PROTECTIVE PLATE FSP-10023706.A1 10023706	£3.12	£3.75
20 - BALL BEARING FSP-789595.A29 789595	£8.79	£10.55
21 - SNAP RING FSP-401246.A20 401246	£2.00	£2.40
22 - GEAR SHAFT FSP-465606.A6 465606	£53.77	£64.52
23 - GASKET FSP-463990.A0 463990	£2.00	£2.40
24 - GEAR HOUSING FSP-492321.A3 492321	£75.03	£90.04
25 - PRESSURE SPRING FSP-463590.A16 463590	£2.00	£2.40
26 - HEXAGON NUT M8 FSP-200719.A47 200719	£2.00	£2.40
27 - ADJUSTMENT BRACKET FSP-492307.A6 492307	£16.90	£20.28
28 - GLIDE PLATE FSP-463197.A0 463197	£2.00	£2.40
29 - SCREW FSP-400709.A49 400709	£2.00	£2.40
30 - LEVER FSP-470064.A3 470064	£2.00	£2.40
31 - CABLE CLAMP FSP-761618.A32 761618	£2.00	£2.40
32 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A123 228713	£2.00	£2.40
33 - PROTECT SWITCH 230 V FSP-463936.A6 463936	£34.39	£41.27
34 - GASKET FSP-463933.A9 463933	£2.00	£2.40
35 - ELECTRONIC FSP-493626.A0 493626	£115.32	£138.39
36 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A126 228713	£2.00	£2.40
37 - CABLE WITH PLUG GB 240V FSP-465231.A0 465231	£22.70	£27.24
38 - BALL BEARING FSP-401576.A24 401576	£7.86	£9.43
39 - RAISED-HEAD SCREW 4.0 X 70 MM FSP-442415.A47 442415	£2.00	£2.40
40 - SNAP RING FSP-200619.A44 200619	£2.00	£2.40
41 - FAN FSP-463280.A3 463280	£4.41	£5.29
42 - AIR DUCT FSP-463512.A8 463512	£2.66	£3.19
43 - ARMATURE FSP-205200.A4 205200	£108.95	£130.74
44 - BALL BEARING FSP-400626.A6 400626	£5.98	£7.18
45 - FIELD ASSEMBLY 230V EQ / EBQ FSP-491713.A7 491713	£58.13	£69.76
46 - MOTOR HOUSING FSP-463199.A9 463199	£12.54	£15.05
47 - SPEED INDICATOR FSP-493567.A4 493567	£18.18	£21.81
48 - PTC RESISTOR FSP-491722.A11 491722	£20.22	£24.26
49 - BRUSH (PAIR) 230V FSP-491704.A8 491704	£17.85	£21.42
50 - RAISED-HEAD SCREW 3.5 X 8 MM FSP-219047.A93 219047	£2.00	£2.40
52 - SCREW FSP-401038.A10 401038	£2.00	£2.40
53 - HOUSING COVER FSP-463200.A0 463200	£8.62	£10.34
54 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A125 228713	£2.00	£2.40
101 - FLAP FSP-10030844.A3 10030844	£37.00	£44.40
102 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A124 228713	£2.00	£2.40
103 - SLIDE FSP-463350.A0 463350	£3.19	£3.83
104 - SCREW FSP-400709.A48 400709	£2.00	£2.40
105 - HOOD FSP-10023702.A2 10023702	£15.85	£19.02
106 - PROTECTION FSP-463300.A1 463300	£2.00	£2.40
107 - CRANK FSP-488159.A16 488159	£18.49	£22.19
108 - HEXAGON NUT M6 FSP-228541.A22 228541	£2.00	£2.40
109 - WASHER 6.4 MM FSP-200578.A48 200578	£2.00	£2.40
110 - WASHER FSP-447790.A1 447790	£2.00	£2.40
111 - RAISED-HEAD SCREW M4 X 14 FSP-445566.A4 445566	£2.00	£2.40
112 - SHEET METAL FSP-463299.A8 463299	£2.00	£2.40
113 - SUPPORTING BEARING FSP-465449.A4 465449	£8.81	£10.57
114 - SCREW FSP-400709.A47 400709	£2.00	£2.40
115 - SCREEN FSP-10023855.A0 10023855	£25.20	£30.24
116 - GEAR FSP-463179.A3 463179	£6.75	£8.10
117 - WASHER 8.4 MM FSP-200579.A18 200579	£2.00	£2.40
118 - SLEEVE FSP-463400.A1 463400	£9.86	£11.83
119 - HEXAGON SCREW M8 X 110 FSP-400734.A8 400734	£2.00	£2.40
120 - DEPTH ADJUSTER FSP-492253.A4 492253	£33.57	£40.28
121 - SCREW FSP-400709.A46 400709	£2.00	£2.40
122 - GUIDE RAIL FSP-463189.A5 463189	£2.00	£2.40
123 - RAISED-HEAD SCREW 4.0 X 70 MM FSP-442415.A48 442415	£2.00	£2.40
124 - KNOB LEVER FSP-463178.A6 463178	£11.18	£13.42
125 - ROTARY KNOB M8 FSP-483162.A15 483162	£5.30	£6.36
126 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A127 228713	£2.00	£2.40
127 - COVER FSP-491925.A3 491925	£8.05	£9.66
128 - INDICATOR FSP-463181.A4 463181	£2.00	£2.40
129 - SUPPORT FSP-202485.A0 202485	£84.30	£101.16
130 - BEARING SLEEVE FSP-492251.A5 492251	£66.90	£80.28
131 - GUIDE TUBE FSP-202486.A9 202486	£39.50	£47.40
132 - NUTENSTEIN FSP-463176.A3 463176	£2.00	£2.40
133 - CLAMPING PLATE FSP-463251.A8 463251	£2.00	£2.40
134 - END STOP FSP-463281.A6 463281	£4.06	£4.87
135 - SCREW FSP-400709.A45 400709	£2.00	£2.40
136 - PUSHER FSP-492248.A3 492248	£23.65	£28.38
137 - CLOSURE FSP-463725.A3 463725	£3.07	£3.68
138 - SNAP RING FSP-400788.A0 400788	£2.00	£2.40
139 - CLIP FSP-458614.A7 458614	£2.00	£2.40
140 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-400691.A4 400691	£2.00	£2.40
141 - SWIVELING SEGMENT FSP-492322.A6 492322	£91.53	£109.84
201 - WASHER FSP-222490.A13 222490	£2.00	£2.40
202 - SHOCK ABSORBER FSP-491760.A6 491760	£35.90	£43.08
203 - LEG FSP-10030845.A0 10030845	£92.23	£110.68
204 - SWITCH MODUL FSP-492274.A6 492274	£49.05	£58.86
205 - PRESSURE SPRING FSP-463590.A15 463590	£2.00	£2.40
206 - SWITCH MECHANISM FSP-492117.A8 492117	£6.46	£7.75
207 - GRIP FSP-492250.A4 492250	£17.12	£20.55
208 - BUTTON FSP-463673.A5 463673	£2.00	£2.40
209 - PIPE FSP-10023867.A3 10023867	£46.72	£56.07
210 - TRAILING CABLE FSP-10176889.A3 10176889	£41.70	£50.04
211 - CONNECTING MEMBER FSP-463918.A0 463918	£15.44	£18.53
212 - CLAMPING FSP-204745.A0 204745	£7.62	£9.14
213 - SNAP RING FSP-200352.A5 200352	£2.00	£2.40
214 - FLANGE FSP-463260.A1 463260	£4.62	£5.54
215 - SCREW FSP-400709.A44 400709	£2.00	£2.40
216 - SHEET METAL FSP-464030.A9 464030	£2.00	£2.40
217 - DRAW SPRING FSP-464031.A0 464031	£3.16	£3.79
218 - WHEEL FSP-766488.A4 766488	£22.52	£27.02
219 - BOLT FSP-10024062.A1 10024062	£2.00	£2.40
220 - SNAP RING FSP-615477.A4 615477	£2.00	£2.40
221 - HOLDER FSP-10024831.A1 10024831	£2.00	£2.40
222 - NUT M8 FSP-618497.A4 618497	£2.00	£2.40
223 - RUBBER FOOT FSP-465163.A2 465163	£3.12	£3.75
224 - WASHER 8.4 MM FSP-200579.A19 200579	£2.00	£2.40
225 - HEXAGON SCREW FSP-10029228.A0 10029228	£2.00	£2.40
226 - SCREW FSP-10023530.A5 10023530	£2.00	£2.40
227 - LEG FSP-10020001.A2 10020001	£11.05	£13.26
228 - LEG FSP-10020002.A3 10020002	£11.05	£13.26
229 - UPPER SECTION OF PISTOL FSP-447534.A36 447534	£2.00	£2.40
230 - HEXAGON NUT M8 FSP-200735.A65 200735	£2.00	£2.40
231 - LOWER SECTION OF PISTOL FSP-492148.A1 492148	£4.72	£5.66
232 - HEXAGON SCREW FSP-464713.A9 464713	£2.00	£2.40
233 - FOLDAWAY LEG FSP-10198251.A3 10198251	£75.93	£91.12
234 - ADJUSTMENT FSP-448178.A41 448178	£2.00	£2.40
235 - FOOT FSP-465883.A12 465883	£13.48	£16.18
301 - SIDE WALL FSP-463205.A1 463205	£87.80	£105.36
302 - TABLE TOP INSERT FSP-10045447.A2 10045447	£46.09	£55.31
303 - TURN LOCK FASTENER FSP-492257.A3 492257	£20.34	£24.41
304 - SPRING FSP-492259.A3 492259	£15.91	£19.09
305 - AXLE FSP-705620.A0 705620	£44.10	£52.92
306 - PLATE FSP-10007882.A0 10007882	£59.78	£71.73
307 - SPRING FSP-492258.A6 492258	£15.78	£18.93
308 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-400691.A5 400691	£2.00	£2.40
309 - BEARING SHEET FSP-448236.A29 448236	£2.00	£2.40
310 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-219071.A25 219071	£2.00	£2.40
311 - CLAMP SHOE FSP-467630.A6 467630	£2.00	£2.40
312 - RAISED-HEAD SCREW FSP-401137.A13 401137	£2.00	£2.40
313 - STICKER FSP-463724.A8 463724	£3.50	£4.20
314 - PORTAL FSP-10029970.A0 10029970	£76.14	£91.37
315 - CLAMPING FSP-492262.A3 492262	£16.63	£19.96
316 - RUBBER PEDAL FSP-204747.A3 204747	£32.59	£39.11
318 - RAM PROTECTION FSP-10024406.A0 10024406	£18.97	£22.76
319 - DRAW SPRING FSP-465456.A6 465456	£11.52	£13.83
320 - GUIDE FSP-10018211.A4 10018211	£2.00	£2.40
321 - SCALE FSP-492256.A6 492256	£29.84	£35.81
322 - SPRING FSP-10030842.A3 10030842	£9.04	£10.85
323 - SWITCH FSP-10030843.A0 10030843	£47.80	£57.36
324 - SLEEVE FSP-464027.A9 464027	£2.00	£2.40
325 - SHOCK ABSORBER FSP-465528.A3 465528	£2.00	£2.40
326 - SLEEVE FSP-464028.A0 464028	£2.00	£2.40
327 - SPRING WASHER FSP-832605.A1 832605	£2.00	£2.40
701 - PLATE FSP-465145.A6 465145	£2.00	£2.40
702 - BAG FSP-10032097.A1 10032097	£28.70	£34.44
703 - ROUND-HEAD SCREW M6 X 40 FSP-228534.A43 228534	£2.00	£2.40
704 - SPACER BUSH FSP-448066.A8 448066	£9.59	£11.51
705 - SCREW M6 X 12 FSP-449888.A30 449888	£2.00	£2.40
706 - GRIP FSP-487893.A30 487893	£7.24	£8.69
707 - CLAMP SUPPORT FSP-10031568.A24 10031568	£14.60	£17.52
708 - SLEEVE 6 X 36 MM FSP-400289.A30 400289	£2.00	£2.40
709 - PRESSURE SPRING FSP-448064.A8 448064	£2.00	£2.40
710 - TERMINAL FSP-204748.A0 204748	£39.55	£47.46
711 - WASHER 6.4 MM FSP-228546.A36 228546	£2.00	£2.40
712 - ROTARY KNOB M6 FSP-483350.A54 483350	£6.30	£7.56
713 - SUPPORT FSP-489181.A20 489181	£30.82	£36.99
714 - ROTARY KNOB FSP-440713.A21 440713	£2.64	£3.17
715 - STUD SCREW FSP-464525.A9 464525	£2.00	£2.40
716 - WASHER 6.4 MM FSP-228546.A37 228546	£2.00	£2.40
717 - ROTARY KNOB FSP-487755.A34 487755	£9.03	£10.84
718 - WASHER FSP-448471.A28 448471	£3.62	£4.34
719 - FLAT HEAD SCREW M4 X 8 FSP-219043.A52 219043	£2.00	£2.40
720 - FLAT HEAD SCREW FSP-448065.A33 448065	£3.81	£4.57
721 - SCALE FSP-488156.A21 488156	£25.04	£30.05
722 - SWIVELING SEGMENT FSP-448014.A28 448014	£34.26	£41.11
723 - SLEEVE 5 X 12 MM FSP-228692.A20 228692	£2.00	£2.40
724 - CLAMPING PLATE FSP-10023711.A1 10023711	£4.44	£5.33
725 - GUIDING PROFILE FSP-10023709.A1 10023709	-
726 - STOP PROFILE FSP-10023710.A6 10023710	£36.30	£43.56
727 - Y-PIECE FSP-450575.A16 450575	£25.45	£30.54
728 - HOSE 27 X 2 M FSP-459250.A11 459250	£38.39	£46.07
729 - HOSE 36 X 1.5 M FSP-459251.A13 459251	£38.39	£46.07
730 - CONNECTING SLEEVE FSP-577162.A43 577162	£16.25	£19.50
731 - REDUCING SLEEVE. ANTISTATIC FSP-452358.A21 452358	£26.08	£31.30
732 - WORKPIECE HOLDER FSP-10023700.A7 10023700	£8.48	£10.18
733 - SAFETY DEVICE FSP-10023759.A6 10023759	£43.63	£52.36
734 - CLAMP FSP-450158.A12 450158	£2.00	£2.40
735 - SLIDING GUIDE FSP-450031.A4 450031	£4.00	£4.80
736 - RAISED-HEAD SCREW 4.0 X 20 MM FSP-228567.A20 228567	£2.00	£2.40

Attribute Name	Value
Brand	Festool

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Festool CS 50 EBG GB 240V / 201429 Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Festool CS 50 EBG GB 240V / 201429 Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Festool CS 50 EBG GB 240V / 201429 Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
