Festool OF 2200 EB GB 110V / 496071 Spare Parts

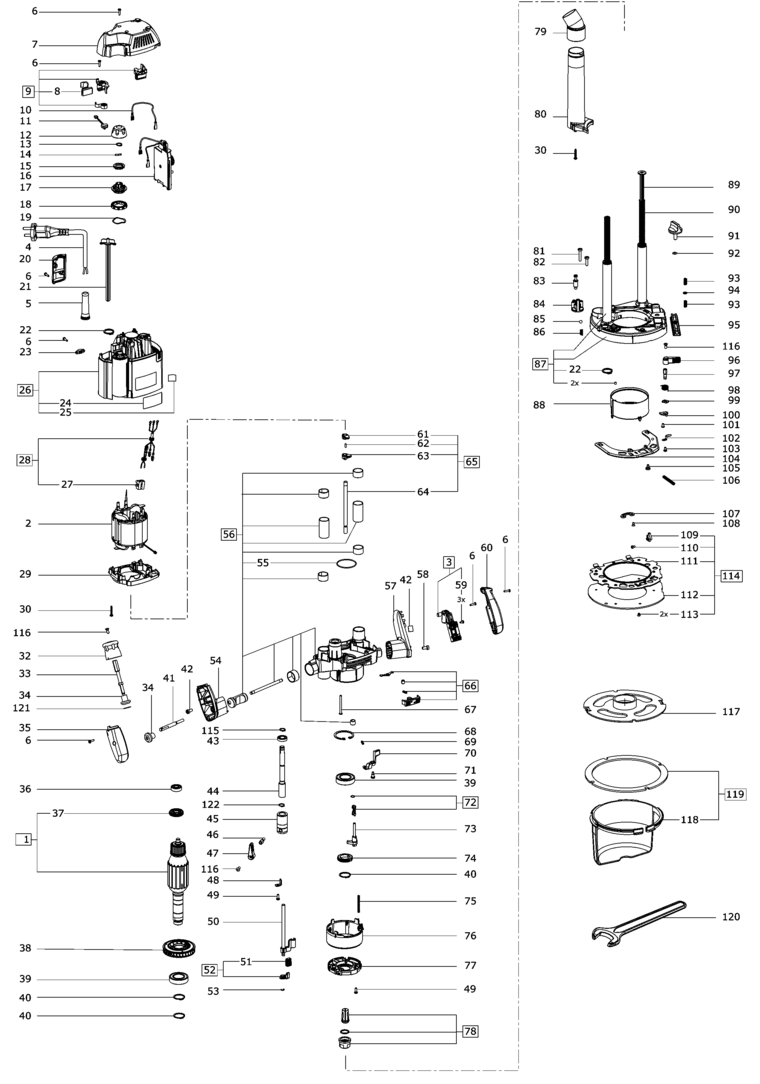

An exploded diagram and spare parts listing for the Festool OF 2200 EB GB 110V / 496071

	Ex VAT	Inc VAT
1 - ARMATURE FSP-496077.A0 496077	£180.97	£217.16
2 - FIELD ASSEMBLY 230 V FSP-495220.A0 495220	£148.29	£177.95
3 - SWITCH FSP-495038.A2 495038	£29.49	£35.39
4 - CABLE WITH PLUG GB 110V FSP-471932.A0 471932	£25.08	£30.09
5 - CABLE GROMMET FSP-470571.A2 470571	£2.00	£2.40
6 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A8 400468	£2.00	£2.40
7 - HOUSING COVER FSP-470321.A1 470321	£8.62	£10.34
8 - KOHLE-A (PAIR) FSP-722092.A2 722092	£29.19	£35.03
9 - BRUSH HOLDER (PAIR) FSP-722091.A1 722091	£42.10	£50.52
10 - FLEXIBLE LEAD FSP-471929.A1 471929	£2.00	£2.40
11 - TACHOMETER COIL FSP-457920.A1 457920	£7.37	£8.84
12 - UPPER SECTION OF PISTOL FSP-471476.A4 471476	£2.97	£3.56
13 - SNAP RING FSP-200619.A6 200619	£2.00	£2.40
14 - PLATE SPRING FSP-457753.A31 457753	£2.00	£2.40
15 - BACK-UP RING FSP-474251.A1 474251	£2.00	£2.40
16 - ELECTRONIC 110-120V FSP-494349.A0 494349	£84.98	£101.97
17 - KNOB LEVER FSP-470599.A1 470599	£2.00	£2.40
18 - THUMBWHEEL FSP-470601.A2 470601	£4.75	£5.70
19 - COMPENSATING WASHER 28 X 34.5 X 0.3 MM FSP-400988.A0 400988	£2.00	£2.40
20 - COVER FSP-470322.A2 470322	£2.00	£2.40
21 - SPRING HOLDER FSP-473469.A1 473469	£2.00	£2.40
22 - SNAP RING FSP-400951.A1 400951	£2.00	£2.40
23 - CABLE CLAMP FSP-431899.A59 431899	£2.00	£2.40
24 - SPEED DIAGRAM FSP-471141.A2 471141	£2.00	£2.40
25 - NAMEPLATE FSP-471142.A1 471142	£2.00	£2.40
26 - MOTOR HOUSING FSP-495041.A1 495041	£45.53	£54.64
27 - INSULATING SCREW FSP-470807.A0 470807	£2.00	£2.40
28 - CABLE HARNESS FSP-494350.A1 494350	£33.19	£39.83
29 - AIR GUIDE WASHER FSP-470594.A2 470594	£4.24	£5.09
30 - RAISED-HEAD SCREW 3.5 X 25 MM FSP-228725.A23 228725	£2.00	£2.40
32 - KNOB LEVER FSP-471179.A2 471179	£6.29	£7.55
33 - DRIVE SHAFT FSP-470501.A0 470501	£12.78	£15.33
34 - CONICAL GEAR WHEEL FSP-470342.A1 470342	£14.62	£17.54
35 - HANDLE COVER FSP-470575.A2 470575	£3.86	£4.63
36 - BALL BEARING FSP-400932.A1 400932	£9.45	£11.34
37 - SOLENOID RING FSP-477255.A1 477255	£5.58	£6.69
38 - FAN FSP-470593.A1 470593	£15.69	£18.83
39 - BALL BEARING FSP-400908.A3 400908	£17.64	£21.17
40 - SNAP RING FSP-400636.A7 400636	£2.00	£2.40
41 - CLAMPING BOLT FSP-470502.A3 470502	£16.48	£19.77
42 - SCREW FSP-465131.A8 465131	£2.00	£2.40
43 - BALL BEARING FSP-400962.A2 400962	£7.99	£9.59
44 - THREADED ROD FSP-477056.A1 477056	£22.02	£26.42
45 - SCREW SLEEVE FSP-477055.A0 477055	£30.12	£36.15
46 - BOLT FSP-474450.A2 474450	£4.41	£5.29
47 - LEVER FSP-457074.A3 457074	£2.00	£2.40
48 - STOP ANGLE FSP-470505.A1 470505	£2.00	£2.40
49 - RAISED-HEAD SCREW M4 X 12 FSP-400050.A22 400050	£2.00	£2.40
50 - DEPTH STOP FSP-471674.A2 471674	£14.90	£17.88
51 - CAP FSP-471673.A1 471673	£2.00	£2.40
52 - CAM FSP-495214.A0 495214	£37.80	£45.36
53 - CIRCLIP FSP-400948.A3 400948	£2.00	£2.40
54 - PART OF GRIP FSP-470574.A1 470574	£3.20	£3.84
55 - O-RING FSP-400905.A9 400905	£2.00	£2.40
56 - BEARING COVER FSP-495213.A0 495213	£120.84	£145.01
59 - RAISED-HEAD SCREW M3.5 X 5 FSP-455593.A0 455593	£2.00	£2.40
61 - GRIP FSP-470596.A1 470596	£5.31	£6.37
62 - THREADED PIN M3 X 10 FSP-400790.A0 400790	£2.00	£2.40
63 - INDICATOR FSP-470597.A2 470597	£5.31	£6.37
64 - CONNECTING ROD FSP-470602.A1 470602	£17.20	£20.64
65 - CONNECTING ROD FSP-495222.A1 495222	£37.80	£45.36
66 - ROCKER FSP-495215.A3 495215	£36.14	£43.37
67 - RAISED-HEAD SCREW 4 X 50 MM FSP-228707.A52 228707	£2.00	£2.40
68 - SNAP RING FSP-771487.A11 771487	£2.00	£2.40
69 - PRESSURE SPRING FSP-462615.A3 462615	£2.00	£2.40
70 - SWIVEL LEVER FSP-471690.A1 471690	£2.00	£2.40
71 - FLANGE BOLT FSP-464228.A5 464228	£2.00	£2.40
72 - TORSION SPRING FSP-495221.A2 495221	£7.06	£8.47
73 - CATCH FSP-494884.A2 494884	£13.90	£16.68
74 - GEAR FSP-465184.A5 465184	£4.53	£5.44
75 - PRESSURE SPRING FSP-470805.A3 470805	£2.00	£2.40
76 - HOOD FSP-470708.A2 470708	£4.69	£5.63
77 - COVER FSP-703429.A1 703429	£4.06	£4.87
78 - COLLET D 12.7 FSP-494465.A6 494465	£43.67	£52.40
79 - ANGLE PIECE FSP-10024533.A1 10024533	£3.88	£4.65
80 - EXTRACTOR CONNECTOR FSP-470030.A3 470030	£7.99	£9.59
81 - FLAT HEAD SCREW M5 FSP-436813.A19 436813	£2.00	£2.40
82 - FLAT HEAD SCREW M5 X 20 FSP-436811.A15 436811	£2.00	£2.40
83 - SPECIAL SCREW FSP-470981.A0 470981	£11.18	£13.42
84 - STOP FSP-470049.A2 470049	£11.30	£13.56
85 - BALL FSP-783305.A1 783305	£2.00	£2.40
86 - PRESSURE SPRING FSP-436528.A12 436528	£2.00	£2.40
87 - PLATE FSP-495216.A0 495216	£99.12	£118.94
88 - HOOD FSP-470029.A0 470029	£4.18	£5.02
89 - BOLT FSP-473468.A2 473468	£2.00	£2.40
90 - PRESSURE SPRING FSP-470441.A2 470441	£3.20	£3.84
91 - ROTARY KNOB M8 FSP-471986.A1 471986	£4.81	£5.77
92 - SHIM RING FSP-400884.A33 400884	£2.00	£2.40
93 - PRESSURE SPRING FSP-444754.A9 444754	£2.00	£2.40
94 - O-RING FSP-200916.A2 200916	£2.00	£2.40
95 - CLAMPING SUPPORT FSP-470036.A2 470036	£28.25	£33.90
96 - LEVER FSP-471388.A1 471388	£2.00	£2.40
97 - BOLT FSP-470041.A2 470041	£10.32	£12.39
98 - LEG SPRING FSP-470048.A1 470048	£2.00	£2.40
99 - BOARD WASHER FSP-473320.A2 473320	£2.00	£2.40
100 - SWITCHING CLIP FSP-471873.A1 471873	£5.42	£6.50
101 - RAISED-HEAD SCREW M4 X 10 FSP-400663.A1 400663	£2.00	£2.40
102 - BENDING SPRING FSP-470039.A2 470039	£2.00	£2.40
103 - RAISED-HEAD SCREW M4 X 8 FSP-228570.A26 228570	£2.00	£2.40
104 - CLAMPING PLATE FSP-470040.A1 470040	£14.38	£17.25
105 - FLANGE BOLT FSP-471477.A0 471477	£2.00	£2.40
106 - PRESSURE SPRING FSP-470716.A1 470716	£2.00	£2.40
107 - BEARING BRIDGE FSP-470033.A0 470033	£2.00	£2.40
108 - FLAT HEAD SCREW M4 X 8 FSP-228737.A2 228737	£2.00	£2.40
109 - SLIDING SHOE FSP-470890.A2 470890	£2.00	£2.40
110 - CHEESE HEAD SCREW M4 X 6 FSP-453584.A1 453584	£2.00	£2.40
111 - CLAMPING PLATE FSP-470034.A3 470034	£18.72	£22.46
112 - CROSSHEADED GUIDE FSP-470035.A1 470035	£26.08	£31.30
113 - FLAT HEAD SCREW M4 X 6 FSP-401021.A4 401021	£2.00	£2.40
114 - PLATE FSP-495217.A2 495217	£52.47	£62.96
115 - CIRCLIP FSP-401013.A3 401013	£2.00	£2.40
116 - CHEESE-HEAD COUNTERSUNK SCREW M5 X 10 FSP-401015.A0 401015	£2.00	£2.40
117 - COPYING RING D 40 FSP-494626.A2 494626	£16.37	£19.64
118 - HOOD FSP-473822.A3 473822	£4.31	£5.17
119 - CHIP DEFLECTOR FSP-494670.A1 494670	£34.57	£41.48
120 - OPEN ENDED SPANNER SW 24 (->2008) FSP-772051.A6 772051	£11.98	£14.38
121 - WASHER FSP-208623.A13 208623	£2.00	£2.40
122 - O-RING FSP-200204.A7 200204	£2.00	£2.40
123 - SCALE FSP-470504.A0 470504	£2.00	£2.40
124 - GRIP FSP-204220.A1 204220	£26.01	£31.21
