Festool SR 303 E-AS / 583069 Spare Parts

Home Details Reviews Delivery

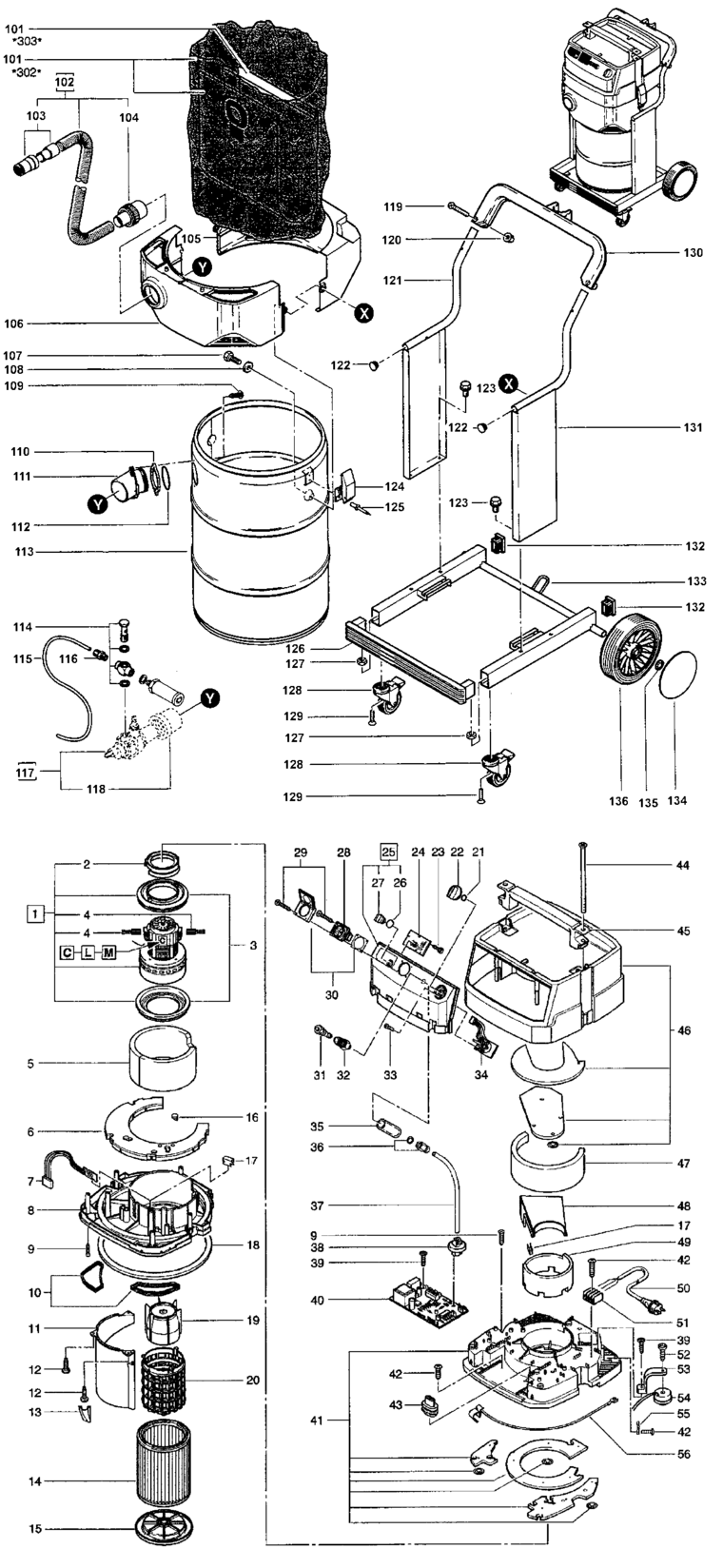

An exploded diagram and spare parts listing for the Festool SR 303 E-AS / 583069

	Ex VAT	Inc VAT
1 - MOTOR 230 V FSP-490755.A55 490755	£223.23	£267.88
2 - MOTOR BEARING RING FSP-490668.A99 490668	£29.53	£35.44
3 - MOTOR BEARING RING FSP-490668.A100 490668	£29.53	£35.44
4 - SHUT-OFF BRUSH (PAIR) 230V FSP-452876.A49 452876	£38.82	£46.58
4 - CARBON BRUSH FSP-625316.A0 625316	£45.55	£54.66
4 - NO LONGER AVAILABLE FSP-00000.A1555 00000	-
5 - NO LONGER AVAILABLE FSP-00000.A1556 00000	-
6 - NO LONGER AVAILABLE FSP-00000.A1557 00000	-
6 - NO LONGER AVAILABLE FSP-00000.A1558 00000	-
7 - NO LONGER AVAILABLE FSP-00000.A1559 00000	-
8 - NO LONGER AVAILABLE FSP-00000.A1560 00000	-
8 - NO LONGER AVAILABLE FSP-00000.A1561 00000	-
9 - FLAT HEAD SCREW FSP-412054.A26 412054	£1.63	£1.96
11 - NO LONGER AVAILABLE FSP-00000.A1562 00000	-
11 - NO LONGER AVAILABLE FSP-00000.A1563 00000	-
12 - NO LONGER AVAILABLE FSP-00000.A1564 00000	-
13 - NO LONGER AVAILABLE FSP-00000.A1565 00000	-
14 - ABSOLUTE FILTER FSP-486241.A27 486241	£53.94	£64.73
15 - CLAMPING SCREW FSP-412092.A8 412092	£30.19	£36.23
16 - NO LONGER AVAILABLE FSP-00000.A1531 00000	-
16 - NO LONGER AVAILABLE FSP-00000.A1532 00000	-
17 - NO LONGER AVAILABLE FSP-00000.A1533 00000	-
17 - NO LONGER AVAILABLE FSP-00000.A1534 00000	-
18 - SEALING RING FSP-412039.A50 412039	£60.31	£72.37
19 - NO LONGER AVAILABLE FSP-00000.A1535 00000	-
19 - NO LONGER AVAILABLE FSP-00000.A1536 00000	-
20 - NO LONGER AVAILABLE FSP-00000.A1537 00000	-
20 - NO LONGER AVAILABLE FSP-00000.A1538 00000	-
21 - O-RING FSP-625308.A30 625308	£8.48	£10.18
22 - NO LONGER AVAILABLE FSP-00000.A1522 00000	-
23 - NO LONGER AVAILABLE FSP-00000.A1523 00000	-
23 - NO LONGER AVAILABLE FSP-00000.A1524 00000	-
24 - NO LONGER AVAILABLE FSP-00000.A1525 00000	-
25 - NO LONGER AVAILABLE FSP-00000.A1526 00000	-
25 - NO LONGER AVAILABLE FSP-00000.A1527 00000	-
26 - O-RING FSP-222037.A16 222037	-
27 - ROTARY KNOB FSP-445241.A34 445241	£9.76	£11.71
28 - NO LONGER AVAILABLE FSP-00000.A1528 00000	-
28 - SOCKET EU FSP-445235.A12 445235	£40.08	£48.10
28 - NO LONGER AVAILABLE FSP-00000.A1529 00000	-
29 - NO LONGER AVAILABLE FSP-00000.A1530 00000	-
30 - COVER FSP-200504.A133 200504	£12.85	£15.42
33 - FLAT HEAD SCREW M4 X 12 FSP-228555.A7 228555	£2.00	£2.40
34 - ROTARY SWITCH FSP-450752.A25 450752	£175.33	£210.40
39 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-412063.A64 412063	£5.31	£6.37
40 - FLOW SENSOR ELECTRONICS FSP-450751.A5 450751	£240.36	£288.43
41 - PLATE FSP-487119.A37 487119	£158.57	£190.28
42 - RAISED-HEAD SCREW 3.5 X 18 MM FSP-412094.A75 412094	£1.63	£1.96
43 - NO LONGER AVAILABLE FSP-00000.A1497 00000	-
43 - NO LONGER AVAILABLE FSP-00000.A1498 00000	-
44 - CHEESE-HEAD COUNTERSUNK SCREW FSP-445248.A23 445248	£3.56	£4.27
45 - NO LONGER AVAILABLE FSP-00000.A1542 00000	-
46 - NO LONGER AVAILABLE FSP-00000.A1543 00000	-
46 - NO LONGER AVAILABLE FSP-00000.A1544 00000	-
47 - NO LONGER AVAILABLE FSP-00000.A1545 00000	-
47 - NO LONGER AVAILABLE FSP-00000.A1546 00000	-
48 - NO LONGER AVAILABLE FSP-00000.A1547 00000	-
48 - NO LONGER AVAILABLE FSP-00000.A1548 00000	-
49 - NO LONGER AVAILABLE FSP-00000.A1549 00000	-
50 - NO LONGER AVAILABLE FSP-00000.A1550 00000	-
50 - CABLE 7.5 M EU FSP-452078.A83 452078	£64.02	£76.83
50 - NO LONGER AVAILABLE FSP-00000.A1539 00000	-
51 - NO LONGER AVAILABLE FSP-00000.A1540 00000	-
51 - NO LONGER AVAILABLE FSP-00000.A1541 00000	-
52 - SCREW 4.2 X 13 MM FSP-447136.A14 447136	£1.63	£1.96
53 - NO LONGER AVAILABLE FSP-00000.A1495 00000	-
53 - NO LONGER AVAILABLE FSP-00000.A1496 00000	-
54 - PIEZO BEEPER FSP-763572.A6 763572	£40.80	£48.96
55 - NO LONGER AVAILABLE FSP-00000.A1492 00000	-
56 - NO LONGER AVAILABLE FSP-00000.A1493 00000	-
56 - NO LONGER AVAILABLE FSP-00000.A1494 00000	-
101 - TWO-PLY FILTER BAG FSP-487790.A1 487790	£54.58	£65.49
102 - SUCTION HOSE FSP-500677.A22 500677	-
103 - CONNECTING SLEEVE FSP-577162.A7 577162	£16.25	£19.50
105 - NO LONGER AVAILABLE FSP-00000.A1499 00000	-
106 - NO LONGER AVAILABLE FSP-00000.A1500 00000	-
107 - SCREW M6 X 20 FSP-453472.A13 453472	£2.00	£2.40
108 - WASHER 6.4 MM FSP-200578.A12 200578	£2.00	£2.40
109 - NO LONGER AVAILABLE FSP-00000.A1501 00000	-
110 - NO LONGER AVAILABLE FSP-00000.A1502 00000	-
111 - NO LONGER AVAILABLE FSP-00000.A1503 00000	-
112 - NO LONGER AVAILABLE FSP-00000.A1504 00000	-
112 - NO LONGER AVAILABLE FSP-00000.A1505 00000	-
113 - NO LONGER AVAILABLE FSP-00000.A1506 00000	-
119 - FLAT HEAD SCREW M6 X 40 FSP-400326.A11 400326	£6.09	£7.31
120 - NO LONGER AVAILABLE FSP-00000.A1518 00000	-
121 - NO LONGER AVAILABLE FSP-00000.A1519 00000	-
122 - NO LONGER AVAILABLE FSP-00000.A1520 00000	-
123 - NO LONGER AVAILABLE FSP-00000.A1521 00000	-
124 - FLAP FSP-438702.A1 438702	£36.57	£43.88
125 - NO LONGER AVAILABLE FSP-00000.A1514 00000	-
126 - NO LONGER AVAILABLE FSP-00000.A1515 00000	-
127 - HEXAGON NUT M8 FSP-200719.A10 200719	£2.00	£2.40
128 - NO LONGER AVAILABLE FSP-00000.A1516 00000	-
129 - NO LONGER AVAILABLE FSP-00000.A1517 00000	-
135 - CLAMPING RING FSP-448717.A2 448717	£4.75	£5.70
