Festool SR 302 LE-AS / 583197 Spare Parts

Home Details Reviews Delivery

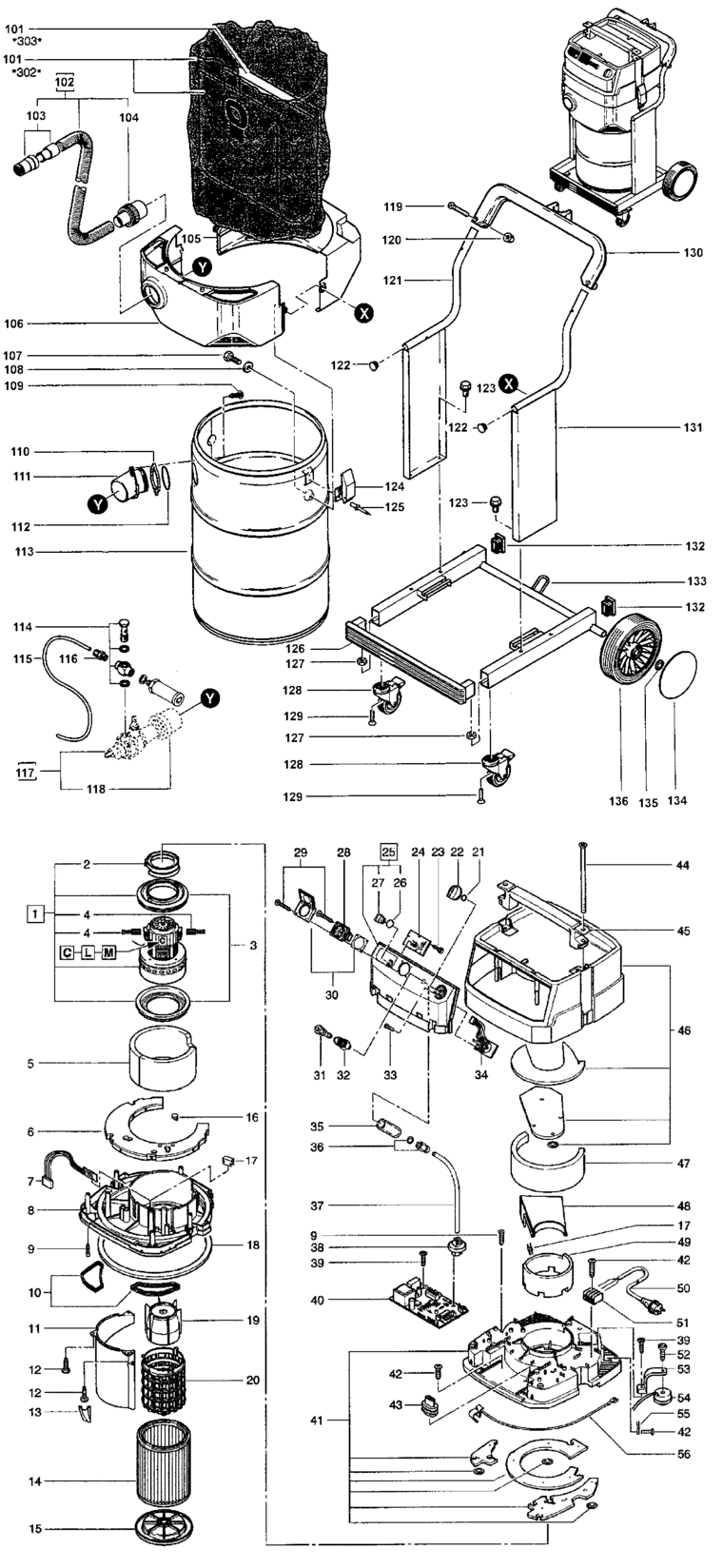

An exploded diagram and spare parts listing for the Festool SR 302 LE-AS / 583197

	Ex VAT	Inc VAT
1 - MOTOR 230 V FSP-490755.A35 490755	£223.23	£267.88
2 - MOTOR BEARING RING FSP-490668.A69 490668	£29.53	£35.44
3 - MOTOR BEARING RING FSP-490668.A70 490668	£29.53	£35.44
4 - SHUT-OFF BRUSH (PAIR) 230V FSP-452876.A26 452876	£38.82	£46.58
4 - CARBON BRUSH FSP-625316.A14 625316	£45.55	£54.66
4 - NO LONGER AVAILABLE FSP-00000.A336 00000	-
5 - NO LONGER AVAILABLE FSP-00000.A337 00000	-
6 - NO LONGER AVAILABLE FSP-00000.A338 00000	-
6 - NO LONGER AVAILABLE FSP-00000.A339 00000	-
7 - NO LONGER AVAILABLE FSP-00000.A340 00000	-
8 - NO LONGER AVAILABLE FSP-00000.A341 00000	-
8 - NO LONGER AVAILABLE FSP-00000.A342 00000	-
9 - FLAT HEAD SCREW FSP-412054.A40 412054	£1.63	£1.96
11 - NO LONGER AVAILABLE FSP-00000.A343 00000	-
11 - NO LONGER AVAILABLE FSP-00000.A344 00000	-
12 - NO LONGER AVAILABLE FSP-00000.A345 00000	-
13 - NO LONGER AVAILABLE FSP-00000.A346 00000	-
14 - ABSOLUTE FILTER FSP-486241.A14 486241	£53.94	£64.73
15 - CLAMPING SCREW FSP-412092.A20 412092	£30.19	£36.23
16 - NO LONGER AVAILABLE FSP-00000.A508 00000	-
16 - NO LONGER AVAILABLE FSP-00000.A509 00000	-
17 - NO LONGER AVAILABLE FSP-00000.A510 00000	-
17 - NO LONGER AVAILABLE FSP-00000.A511 00000	-
18 - SEALING RING FSP-412039.A42 412039	£60.31	£72.37
19 - NO LONGER AVAILABLE FSP-00000.A512 00000	-
19 - NO LONGER AVAILABLE FSP-00000.A513 00000	-
20 - NO LONGER AVAILABLE FSP-00000.A514 00000	-
20 - NO LONGER AVAILABLE FSP-00000.A515 00000	-
21 - O-RING FSP-625308.A59 625308	£8.48	£10.18
22 - NO LONGER AVAILABLE FSP-00000.A501 00000	-
23 - NO LONGER AVAILABLE FSP-00000.A502 00000	-
23 - NO LONGER AVAILABLE FSP-00000.A503 00000	-
24 - NO LONGER AVAILABLE FSP-00000.A504 00000	-
25 - NO LONGER AVAILABLE FSP-00000.A505 00000	-
26 - O-RING FSP-222037.A6 222037	-
27 - ROTARY KNOB FSP-445241.A45 445241	£9.76	£11.71
28 - NO LONGER AVAILABLE FSP-00000.A506 00000	-
28 - SOCKET EU FSP-445235.A3 445235	£40.08	£48.10
29 - NO LONGER AVAILABLE FSP-00000.A507 00000	-
30 - COVER FSP-200504.A92 200504	£12.85	£15.42
31 - NO LONGER AVAILABLE FSP-00000.A488 00000	-
32 - NO LONGER AVAILABLE FSP-00000.A489 00000	-
33 - FLAT HEAD SCREW M4 X 12 FSP-228555.A28 228555	£2.00	£2.40
34 - ROTARY SWITCH FSP-450752.A20 450752	£175.33	£210.40
35 - NO LONGER AVAILABLE FSP-00000.A490 00000	-
36 - NO LONGER AVAILABLE FSP-00000.A491 00000	-
37 - HOSE FSP-626534.A36 626534	£11.68	£14.01
38 - PRESSURE SWITCH FSP-436877.A31 436877	£46.34	£55.61
39 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-412063.A55 412063	£5.31	£6.37
40 - FLOW SENSOR ELECTRONICS FSP-450751.A11 450751	£240.36	£288.43
41 - PLATE FSP-487119.A45 487119	£158.57	£190.28
42 - RAISED-HEAD SCREW 3.5 X 18 MM FSP-412094.A63 412094	£1.63	£1.96
43 - NO LONGER AVAILABLE FSP-00000.A467 00000	-
43 - NO LONGER AVAILABLE FSP-00000.A468 00000	-
44 - CHEESE-HEAD COUNTERSUNK SCREW FSP-445248.A12 445248	£3.56	£4.27
45 - NO LONGER AVAILABLE FSP-00000.A492 00000	-
46 - NO LONGER AVAILABLE FSP-00000.A493 00000	-
46 - NO LONGER AVAILABLE FSP-00000.A494 00000	-
47 - NO LONGER AVAILABLE FSP-00000.A495 00000	-
47 - NO LONGER AVAILABLE FSP-00000.A496 00000	-
48 - NO LONGER AVAILABLE FSP-00000.A497 00000	-
48 - NO LONGER AVAILABLE FSP-00000.A498 00000	-
49 - NO LONGER AVAILABLE FSP-00000.A499 00000	-
50 - NO LONGER AVAILABLE FSP-00000.A500 00000	-
50 - CABLE 7.5 M EU FSP-452078.A64 452078	£64.02	£76.83
51 - NO LONGER AVAILABLE FSP-00000.A469 00000	-
51 - NO LONGER AVAILABLE FSP-00000.A470 00000	-
52 - SCREW 4.2 X 13 MM FSP-447136.A5 447136	£1.63	£1.96
53 - NO LONGER AVAILABLE FSP-00000.A471 00000	-
53 - NO LONGER AVAILABLE FSP-00000.A472 00000	-
54 - PIEZO BEEPER FSP-763572.A14 763572	£40.80	£48.96
55 - NO LONGER AVAILABLE FSP-00000.A462 00000	-
56 - NO LONGER AVAILABLE FSP-00000.A463 00000	-
56 - NO LONGER AVAILABLE FSP-00000.A464 00000	-
101 - DESCRIPTION UNAVAILABLE FSP-000000.A236 000000	-
102 - SUCTION HOSE FSP-500677.A0 500677	-
103 - CONNECTING SLEEVE FSP-577162.A31 577162	£16.25	£19.50
105 - NO LONGER AVAILABLE FSP-00000.A465 00000	-
106 - NO LONGER AVAILABLE FSP-00000.A466 00000	-
107 - SCREW M6 X 20 FSP-453472.A16 453472	£2.00	£2.40
108 - WASHER 6.4 MM FSP-200578.A42 200578	£2.00	£2.40
109 - NO LONGER AVAILABLE FSP-00000.A474 00000	-
110 - NO LONGER AVAILABLE FSP-00000.A475 00000	-
111 - NO LONGER AVAILABLE FSP-00000.A476 00000	-
112 - NO LONGER AVAILABLE FSP-00000.A477 00000	-
112 - NO LONGER AVAILABLE FSP-00000.A478 00000	-
113 - NO LONGER AVAILABLE FSP-00000.A479 00000	-
114 - T-PIECE FSP-4951.A19 4951	£42.57	£51.08
115 - HOSE FSP-10014024.A10 10014024	-
116 - NO LONGER AVAILABLE FSP-00000.A473 00000	-
118 - TAPER FSP-439584.A26 439584	£46.09	£55.31
119 - FLAT HEAD SCREW M6 X 40 FSP-400326.A14 400326	£6.09	£7.31
120 - NO LONGER AVAILABLE FSP-00000.A484 00000	-
121 - NO LONGER AVAILABLE FSP-00000.A485 00000	-
122 - NO LONGER AVAILABLE FSP-00000.A486 00000	-
123 - NO LONGER AVAILABLE FSP-00000.A487 00000	-
124 - FLAP FSP-438702.A26 438702	£36.57	£43.88
125 - NO LONGER AVAILABLE FSP-00000.A480 00000	-
126 - NO LONGER AVAILABLE FSP-00000.A481 00000	-
127 - HEXAGON NUT M8 FSP-200719.A59 200719	£2.00	£2.40
128 - NO LONGER AVAILABLE FSP-00000.A482 00000	-
129 - NO LONGER AVAILABLE FSP-00000.A483 00000	-
135 - CLAMPING RING FSP-448717.A6 448717	£4.75	£5.70
