Festool SR 202 LE-AS / 583221 Spare Parts

Home Details Reviews Delivery

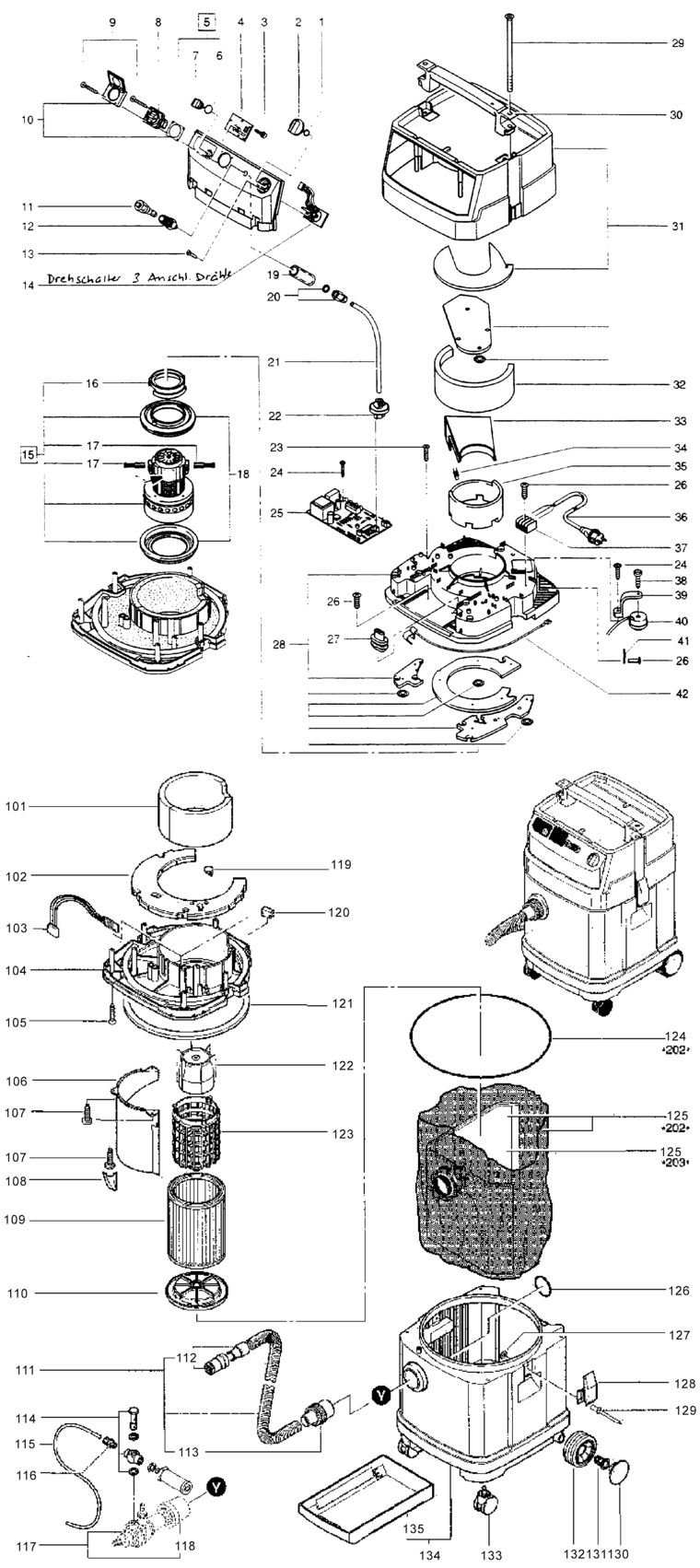

An exploded diagram and spare parts listing for the Festool SR 202 LE-AS / 583221

	Ex VAT	Inc VAT
1 - O-RING FSP-625308.A11 625308	£8.48	£10.18
2 - NO LONGER AVAILABLE FSP-00000.A3679 00000	-
3 - NO LONGER AVAILABLE FSP-00000.A3680 00000	-
3 - NO LONGER AVAILABLE FSP-00000.A3681 00000	-
4 - NO LONGER AVAILABLE FSP-00000.A3682 00000	-
5 - NO LONGER AVAILABLE FSP-00000.A3683 00000	-
6 - O-RING FSP-222037.A36 222037	-
7 - ROTARY KNOB FSP-445241.A5 445241	£9.76	£11.71
8 - NO LONGER AVAILABLE FSP-00000.A3689 00000	-
8 - SOCKET EU FSP-445235.A36 445235	£40.08	£48.10
9 - NO LONGER AVAILABLE FSP-00000.A3690 00000	-
10 - COVER FSP-200504.A79 200504	£12.85	£15.42
11 - NO LONGER AVAILABLE FSP-00000.A3687 00000	-
12 - NO LONGER AVAILABLE FSP-00000.A3688 00000	-
13 - FLAT HEAD SCREW M4 X 12 FSP-228555.A51 228555	£2.00	£2.40
14 - ROTARY SWITCH FSP-450752.A10 450752	£175.33	£210.40
15 - MOTOR 230 V FSP-490755.A11 490755	£223.23	£267.88
16 - MOTOR BEARING RING FSP-490668.A0 490668	£29.53	£35.44
17 - SHUT-OFF BRUSH (PAIR) 230V FSP-452876.A120 452876	£38.82	£46.58
17 - CARBON BRUSH FSP-625316.A19 625316	£45.55	£54.66
17 - NO LONGER AVAILABLE FSP-00000.A3667 00000	-
18 - MOTOR BEARING RING FSP-490668.A1 490668	£29.53	£35.44
19 - NO LONGER AVAILABLE FSP-00000.A3665 00000	-
20 - NO LONGER AVAILABLE FSP-00000.A3666 00000	-
21 - HOSE FSP-626534.A11 626534	£11.68	£14.01
22 - PRESSURE SWITCH FSP-436877.A11 436877	£46.34	£55.61
23 - FLAT HEAD SCREW FSP-412054.A70 412054	£1.63	£1.96
24 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-412063.A30 412063	£5.31	£6.37
25 - FLOW SENSOR ELECTRONICS FSP-450751.A20 450751	£240.36	£288.43
26 - RAISED-HEAD SCREW 3.5 X 18 MM FSP-412094.A36 412094	£1.63	£1.96
27 - NO LONGER AVAILABLE FSP-00000.A3609 00000	-
27 - NO LONGER AVAILABLE FSP-00000.A3610 00000	-
28 - PLATE FSP-487119.A15 487119	£158.57	£190.28
29 - CHEESE-HEAD COUNTERSUNK SCREW FSP-445248.A57 445248	£3.56	£4.27
30 - NO LONGER AVAILABLE FSP-00000.A3668 00000	-
31 - NO LONGER AVAILABLE FSP-00000.A3669 00000	-
31 - NO LONGER AVAILABLE FSP-00000.A3670 00000	-
32 - NO LONGER AVAILABLE FSP-00000.A3671 00000	-
32 - NO LONGER AVAILABLE FSP-00000.A3672 00000	-
33 - NO LONGER AVAILABLE FSP-00000.A3673 00000	-
33 - NO LONGER AVAILABLE FSP-00000.A3674 00000	-
34 - NO LONGER AVAILABLE FSP-00000.A3675 00000	-
34 - NO LONGER AVAILABLE FSP-00000.A3676 00000	-
35 - NO LONGER AVAILABLE FSP-00000.A3677 00000	-
36 - NO LONGER AVAILABLE FSP-00000.A3678 00000	-
36 - CABLE 7.5 M EU FSP-452078.A14 452078	£64.02	£76.83
37 - NO LONGER AVAILABLE FSP-00000.A3605 00000	-
37 - NO LONGER AVAILABLE FSP-00000.A3606 00000	-
38 - SCREW 4.2 X 13 MM FSP-447136.A33 447136	£1.63	£1.96
39 - NO LONGER AVAILABLE FSP-00000.A3607 00000	-
39 - NO LONGER AVAILABLE FSP-00000.A3608 00000	-
40 - PIEZO BEEPER FSP-763572.A34 763572	£40.80	£48.96
41 - NO LONGER AVAILABLE FSP-00000.A3596 00000	-
42 - NO LONGER AVAILABLE FSP-00000.A3597 00000	-
42 - NO LONGER AVAILABLE FSP-00000.A3598 00000	-
101 - NO LONGER AVAILABLE FSP-00000.A3599 00000	-
102 - NO LONGER AVAILABLE FSP-00000.A3600 00000	-
102 - NO LONGER AVAILABLE FSP-00000.A3601 00000	-
103 - NO LONGER AVAILABLE FSP-00000.A3602 00000	-
104 - NO LONGER AVAILABLE FSP-00000.A3603 00000	-
104 - NO LONGER AVAILABLE FSP-00000.A3604 00000	-
105 - FLAT HEAD SCREW FSP-412054.A69 412054	£1.63	£1.96
106 - NO LONGER AVAILABLE FSP-00000.A3611 00000	-
106 - NO LONGER AVAILABLE FSP-00000.A3612 00000	-
107 - NO LONGER AVAILABLE FSP-00000.A3613 00000	-
108 - NO LONGER AVAILABLE FSP-00000.A3614 00000	-
109 - ABSOLUTE FILTER FSP-486241.A5 486241	£53.94	£64.73
110 - CLAMPING SCREW FSP-412092.A38 412092	£30.19	£36.23
111 - SUCTION HOSE FSP-500677.A55 500677	-
112 - CONNECTING SLEEVE FSP-577162.A67 577162	£16.25	£19.50
114 - T-PIECE FSP-4951.A20 4951	£42.57	£51.08
115 - HOSE FSP-10014024.A22 10014024	-
116 - NO LONGER AVAILABLE FSP-00000.A3615 00000	-
118 - TAPER FSP-439584.A3 439584	£46.09	£55.31
119 - NO LONGER AVAILABLE FSP-00000.A3616 00000	-
119 - NO LONGER AVAILABLE FSP-00000.A3617 00000	-
120 - NO LONGER AVAILABLE FSP-00000.A3618 00000	-
120 - NO LONGER AVAILABLE FSP-00000.A3619 00000	-
121 - SEALING RING FSP-412039.A25 412039	£60.31	£72.37
122 - NO LONGER AVAILABLE FSP-00000.A3628 00000	-
122 - NO LONGER AVAILABLE FSP-00000.A3629 00000	-
123 - NO LONGER AVAILABLE FSP-00000.A3630 00000	-
123 - NO LONGER AVAILABLE FSP-00000.A3631 00000	-
124 - NO LONGER AVAILABLE FSP-00000.A3632 00000	-
124 - NO LONGER AVAILABLE FSP-00000.A3633 00000	-
125 - TWO-PLY FILTER BAG FSP-487482.A9 487482	£72.01	£86.41
126 - NO LONGER AVAILABLE FSP-00000.A3625 00000	-
126 - NO LONGER AVAILABLE FSP-00000.A3626 00000	-
127 - WASHER 4.3 MM FSP-200576.A36 200576	£2.00	£2.40
128 - FLAP FSP-438702.A36 438702	£36.57	£43.88
129 - NO LONGER AVAILABLE FSP-00000.A3627 00000	-
130 - PLASTIC PLUG FSP-445211.A30 445211	-
131 - PLASTIC PLUG FSP-445210.A6 445210	£7.72	£9.26
132 - WHEEL FSP-445209.A30 445209	£20.94	£25.13
133 - GUIDE ROLL FSP-445212.A6 445212	£30.31	£36.37
134 - NO LONGER AVAILABLE FSP-00000.A3622 00000	-
135 - NO LONGER AVAILABLE FSP-00000.A3623 00000	-
135 - NO LONGER AVAILABLE FSP-00000.A3624 00000	-
