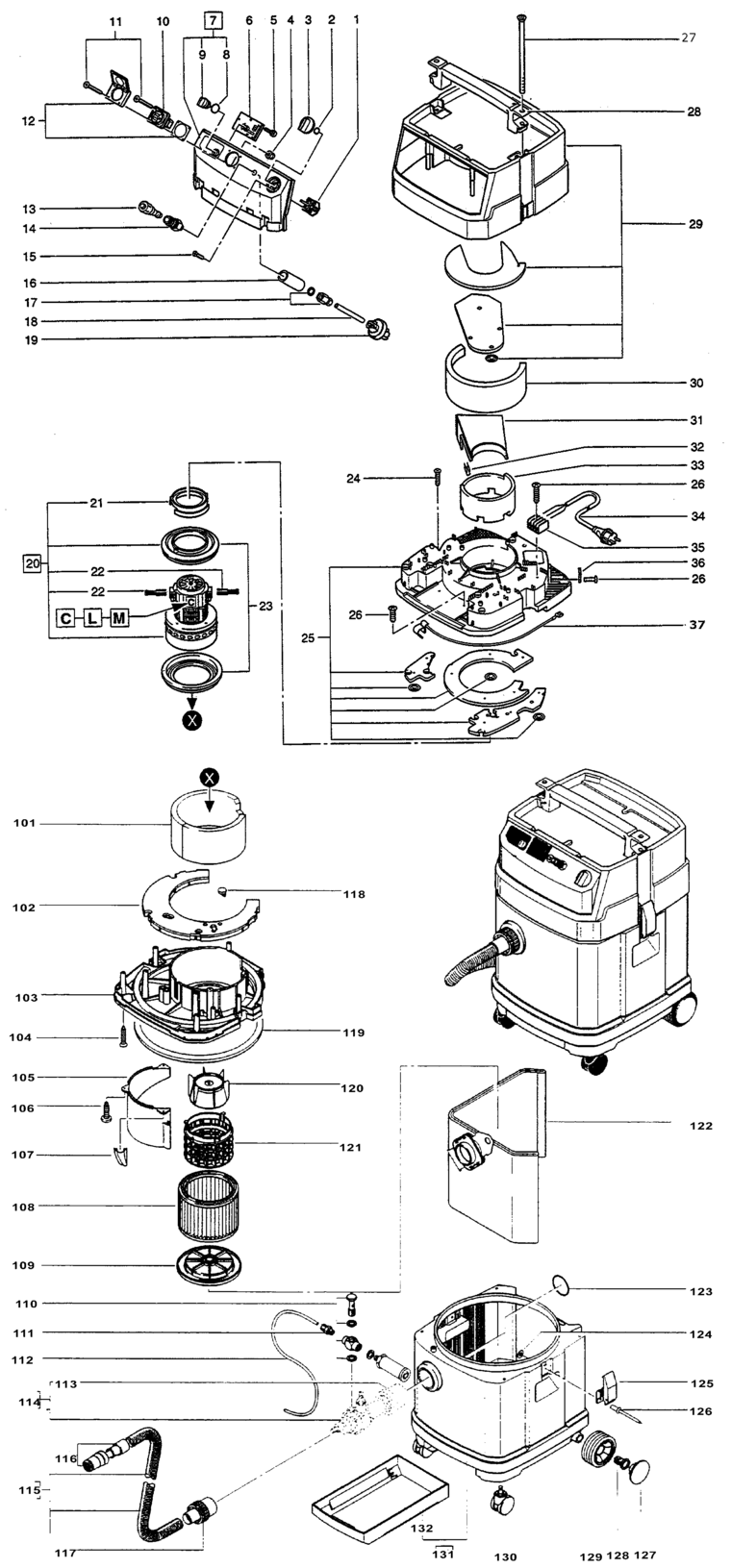

An exploded diagram and spare parts listing for the Festool SR 201 LE-AS / 583184
Ex VAT Inc VAT
1 - NO LONGER AVAILABLE FSP-00000.A5373 00000 -
2 - O-RING FSP-625308.A23 625308 £8.48 £10.18
3 - NO LONGER AVAILABLE FSP-00000.A5366 00000 -
5 - NO LONGER AVAILABLE FSP-00000.A5367 00000 -
6 - AUTOMATIC SWITCH FSP-450781.A15 450781 £217.48 £260.97
7 - NO LONGER AVAILABLE FSP-00000.A5368 00000 -
8 - O-RING FSP-222037.A45 222037 -
9 - ROTARY KNOB FSP-445241.A17 445241 £9.76 £11.71
10 - SOCKET EU FSP-445235.A27 445235 £40.08 £48.10
11 - CHEESE HEAD SCREW M5 X 20 FSP-446264.A8 446264 £1.75 £2.10
11 - NO LONGER AVAILABLE FSP-00000.A5429 00000 -
12 - COVER FSP-200504.A32 200504 £12.85 £15.42
13 - NO LONGER AVAILABLE FSP-00000.A5430 00000 -
14 - NO LONGER AVAILABLE FSP-00000.A5431 00000 -
15 - FLAT HEAD SCREW M4 X 12 FSP-228555.A44 228555 £2.00 £2.40
16 - NO LONGER AVAILABLE FSP-00000.A5427 00000 -
17 - NO LONGER AVAILABLE FSP-00000.A5428 00000 -
18 - HOSE FSP-626534.A15 626534 £11.68 £14.01
19 - PRESSURE SWITCH FSP-436877.A9 436877 £46.34 £55.61
20 - MOTOR 230 V FSP-490755.A15 490755 £223.23 £267.88
21 - MOTOR BEARING RING FSP-490668.A40 490668 £29.53 £35.44
22 - SHUT-OFF BRUSH (PAIR) 230V FSP-452876.A77 452876 £38.82 £46.58
22 - CARBON BRUSH FSP-625316.A28 625316 £45.55 £54.66
22 - NO LONGER AVAILABLE FSP-00000.A5417 00000 -
23 - MOTOR BEARING RING FSP-490668.A39 490668 £29.53 £35.44
24 - FLAT HEAD SCREW FSP-412054.A82 412054 £1.63 £1.96
25 - PLATE FSP-487119.A5 487119 £158.57 £190.28
26 - RAISED-HEAD SCREW 3.5 X 18 MM FSP-412094.A15 412094 £1.63 £1.96
27 - CHEESE-HEAD COUNTERSUNK SCREW FSP-445248.A44 445248 £3.56 £4.27
28 - NO LONGER AVAILABLE FSP-00000.A5432 00000 -
29 - NO LONGER AVAILABLE FSP-00000.A5433 00000 -
30 - NO LONGER AVAILABLE FSP-00000.A5434 00000 -
31 - NO LONGER AVAILABLE FSP-00000.A5435 00000 -
32 - NO LONGER AVAILABLE FSP-00000.A5436 00000 -
33 - NO LONGER AVAILABLE FSP-00000.A5437 00000 -
34 - CABLE 7.5 M EU FSP-452078.A46 452078 £64.02 £76.83
35 - NO LONGER AVAILABLE FSP-00000.A5418 00000 -
36 - NO LONGER AVAILABLE FSP-00000.A5419 00000 -
37 - NO LONGER AVAILABLE FSP-00000.A5420 00000 -
101 - NO LONGER AVAILABLE FSP-00000.A5421 00000 -
102 - NO LONGER AVAILABLE FSP-00000.A5422 00000 -
103 - NO LONGER AVAILABLE FSP-00000.A5423 00000 -
104 - FLAT HEAD SCREW FSP-412054.A81 412054 £1.63 £1.96
105 - NO LONGER AVAILABLE FSP-00000.A5424 00000 -
106 - NO LONGER AVAILABLE FSP-00000.A5425 00000 -
107 - NO LONGER AVAILABLE FSP-00000.A5426 00000 -
108 - ABSOLUTE FILTER FSP-485808.A16 485808 £39.50 £47.40
109 - CLAMPING SCREW FSP-412092.A54 412092 £30.19 £36.23
110 - T-PIECE FSP-4951.A32 4951 £42.57 £51.08
111 - NO LONGER AVAILABLE FSP-00000.A5446 00000 -
112 - HOSE FSP-10014024.A31 10014024 -
113 - TAPER FSP-439584.A11 439584 £46.09 £55.31
115 - SUCTION HOSE FSP-500677.A44 500677 -
116 - CONNECTING SLEEVE FSP-577162.A63 577162 £16.25 £19.50
118 - NO LONGER AVAILABLE FSP-00000.A5449 00000 -
119 - SEALING RING FSP-412039.A16 412039 £60.31 £72.37
120 - NO LONGER AVAILABLE FSP-00000.A5447 00000 -
121 - NO LONGER AVAILABLE FSP-00000.A5448 00000 -
122 - TWO-PLY FILTER BAG FSP-487070.A11 487070 £38.21 £45.85
123 - NO LONGER AVAILABLE FSP-00000.A5450 00000 -
124 - WASHER 4.3 MM FSP-200576.A56 200576 £2.00 £2.40
125 - FLAP FSP-438702.A51 438702 £36.57 £43.88
126 - NO LONGER AVAILABLE FSP-00000.A5451 00000 -
127 - PLASTIC PLUG FSP-445211.A23 445211 -
128 - PLASTIC PLUG FSP-445210.A13 445210 £7.72 £9.26
129 - WHEEL FSP-445209.A23 445209 £20.94 £25.13
130 - GUIDE ROLL FSP-445212.A13 445212 £30.31 £36.37
131 - NO LONGER AVAILABLE FSP-00000.A5452 00000 -
132 - NO LONGER AVAILABLE FSP-00000.A5453 00000 -
