Festool SR 201 LE-AS / 583183 Spare Parts

Home Details Reviews Delivery

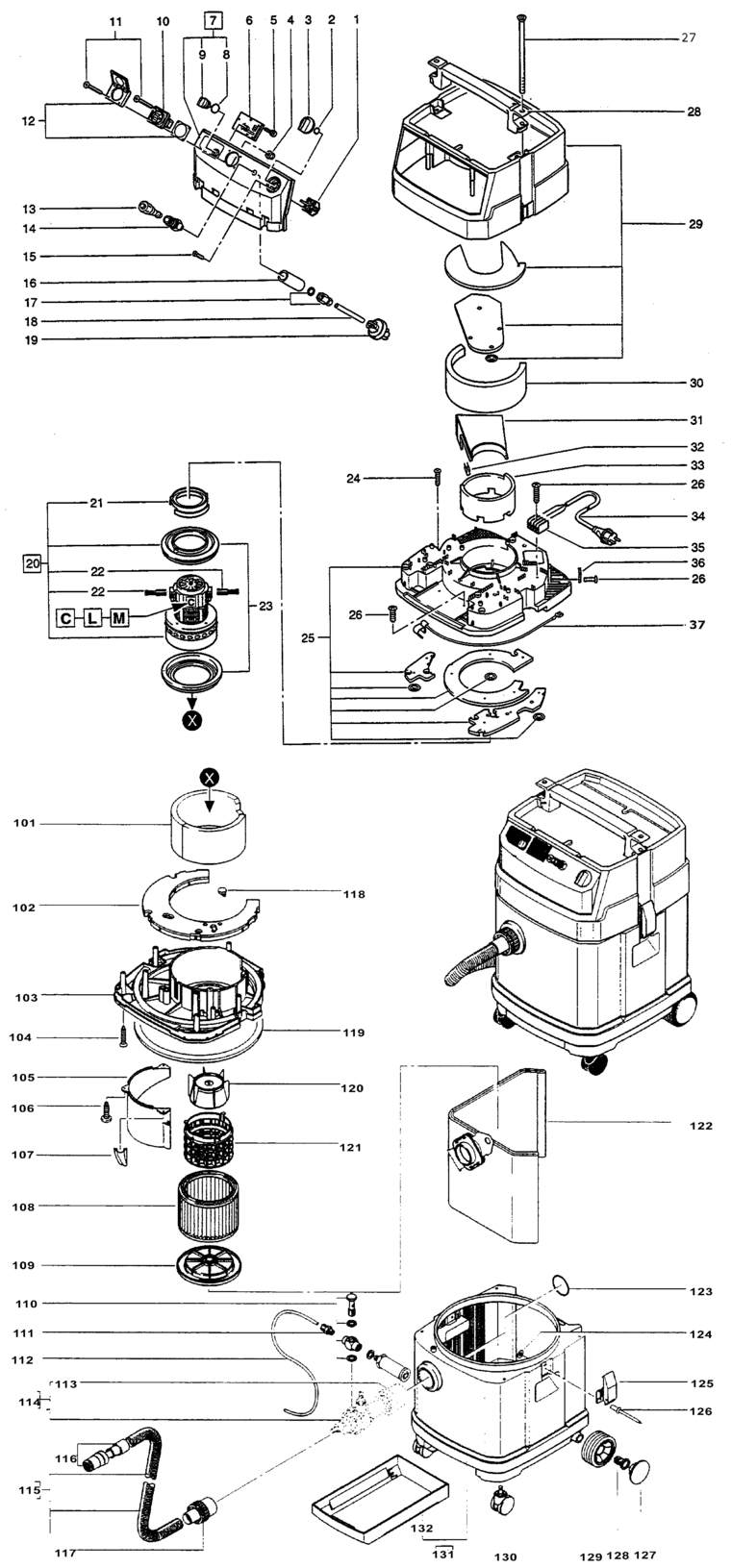

An exploded diagram and spare parts listing for the Festool SR 201 LE-AS / 583183

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE FSP-00000.A5325 00000	-
2 - O-RING FSP-625308.A24 625308	£8.48	£10.18
3 - NO LONGER AVAILABLE FSP-00000.A5358 00000	-
5 - NO LONGER AVAILABLE FSP-00000.A5359 00000	-
6 - AUTOMATIC SWITCH FSP-450781.A14 450781	£217.48	£260.97
7 - NO LONGER AVAILABLE FSP-00000.A5360 00000	-
8 - O-RING FSP-222037.A46 222037	-
9 - ROTARY KNOB FSP-445241.A16 445241	£9.76	£11.71
10 - SOCKET EU FSP-445235.A29 445235	£40.08	£48.10
11 - CHEESE HEAD SCREW M5 X 20 FSP-446264.A6 446264	£1.75	£2.10
11 - NO LONGER AVAILABLE FSP-00000.A5363 00000	-
12 - COVER FSP-200504.A33 200504	£12.85	£15.42
13 - NO LONGER AVAILABLE FSP-00000.A5364 00000	-
14 - NO LONGER AVAILABLE FSP-00000.A5365 00000	-
15 - FLAT HEAD SCREW M4 X 12 FSP-228555.A45 228555	£2.00	£2.40
16 - NO LONGER AVAILABLE FSP-00000.A5361 00000	-
17 - NO LONGER AVAILABLE FSP-00000.A5362 00000	-
18 - HOSE FSP-626534.A17 626534	£11.68	£14.01
19 - PRESSURE SWITCH FSP-436877.A8 436877	£46.34	£55.61
20 - MOTOR 230 V FSP-490755.A13 490755	£223.23	£267.88
21 - MOTOR BEARING RING FSP-490668.A46 490668	£29.53	£35.44
22 - SHUT-OFF BRUSH (PAIR) 230V FSP-452876.A80 452876	£38.82	£46.58
22 - CARBON BRUSH FSP-625316.A25 625316	£45.55	£54.66
22 - NO LONGER AVAILABLE FSP-00000.A5345 00000	-
23 - MOTOR BEARING RING FSP-490668.A45 490668	£29.53	£35.44
24 - FLAT HEAD SCREW FSP-412054.A84 412054	£1.63	£1.96
25 - PLATE FSP-487119.A3 487119	£158.57	£190.28
26 - RAISED-HEAD SCREW 3.5 X 18 MM FSP-412094.A16 412094	£1.63	£1.96
27 - CHEESE-HEAD COUNTERSUNK SCREW FSP-445248.A47 445248	£3.56	£4.27
28 - NO LONGER AVAILABLE FSP-00000.A5352 00000	-
29 - NO LONGER AVAILABLE FSP-00000.A5353 00000	-
30 - NO LONGER AVAILABLE FSP-00000.A5354 00000	-
31 - NO LONGER AVAILABLE FSP-00000.A5355 00000	-
32 - NO LONGER AVAILABLE FSP-00000.A5356 00000	-
33 - NO LONGER AVAILABLE FSP-00000.A5357 00000	-
34 - CABLE 7.5 M EU FSP-452078.A44 452078	£64.02	£76.83
35 - NO LONGER AVAILABLE FSP-00000.A5346 00000	-
36 - NO LONGER AVAILABLE FSP-00000.A5347 00000	-
37 - NO LONGER AVAILABLE FSP-00000.A5348 00000	-
101 - NO LONGER AVAILABLE FSP-00000.A5349 00000	-
102 - NO LONGER AVAILABLE FSP-00000.A5350 00000	-
103 - NO LONGER AVAILABLE FSP-00000.A5351 00000	-
104 - FLAT HEAD SCREW FSP-412054.A83 412054	£1.63	£1.96
105 - NO LONGER AVAILABLE FSP-00000.A5378 00000	-
106 - NO LONGER AVAILABLE FSP-00000.A5379 00000	-
107 - NO LONGER AVAILABLE FSP-00000.A5380 00000	-
108 - ABSOLUTE FILTER FSP-485808.A14 485808	£39.50	£47.40
109 - CLAMPING SCREW FSP-412092.A53 412092	£30.19	£36.23
110 - T-PIECE FSP-4951.A34 4951	£42.57	£51.08
111 - NO LONGER AVAILABLE FSP-00000.A5374 00000	-
112 - HOSE FSP-10014024.A30 10014024	-
113 - TAPER FSP-439584.A9 439584	£46.09	£55.31
115 - SUCTION HOSE FSP-500677.A42 500677	-
116 - CONNECTING SLEEVE FSP-577162.A64 577162	£16.25	£19.50
118 - NO LONGER AVAILABLE FSP-00000.A5377 00000	-
119 - SEALING RING FSP-412039.A15 412039	£60.31	£72.37
120 - NO LONGER AVAILABLE FSP-00000.A5375 00000	-
121 - NO LONGER AVAILABLE FSP-00000.A5376 00000	-
122 - TWO-PLY FILTER BAG FSP-487070.A13 487070	£38.21	£45.85
123 - NO LONGER AVAILABLE FSP-00000.A5369 00000	-
124 - WASHER 4.3 MM FSP-200576.A55 200576	£2.00	£2.40
125 - FLAP FSP-438702.A53 438702	£36.57	£43.88
126 - NO LONGER AVAILABLE FSP-00000.A5370 00000	-
127 - PLASTIC PLUG FSP-445211.A26 445211	-
128 - PLASTIC PLUG FSP-445210.A10 445210	£7.72	£9.26
129 - WHEEL FSP-445209.A25 445209	£20.94	£25.13
130 - GUIDE ROLL FSP-445212.A11 445212	£30.31	£36.37
131 - NO LONGER AVAILABLE FSP-00000.A5371 00000	-
132 - NO LONGER AVAILABLE FSP-00000.A5372 00000	-
