Festool BASIS 1 A/T / 486498 Spare Parts

Home Details Reviews Delivery

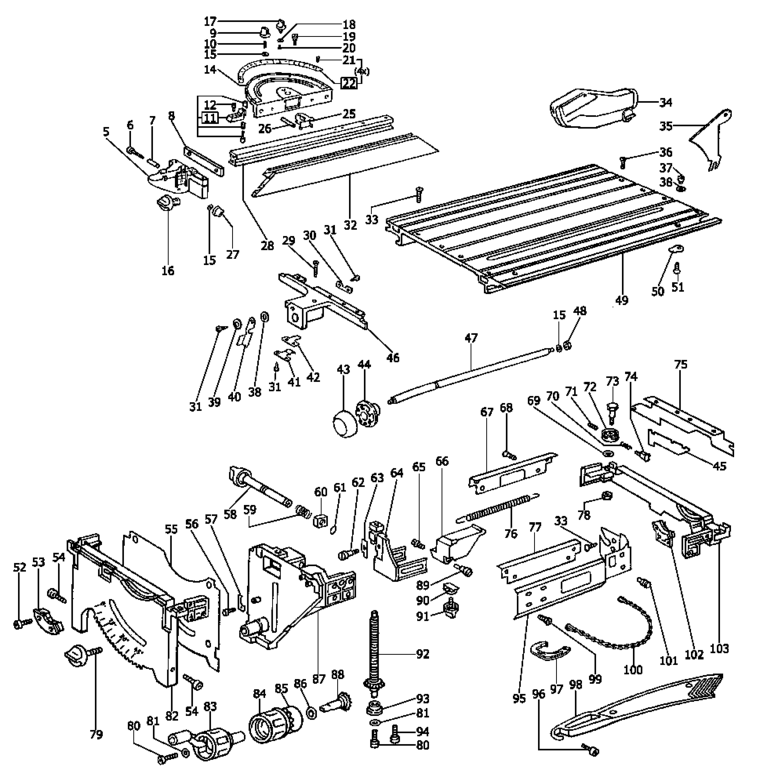

An exploded diagram and spare parts listing for the Festool BASIS 1 A/T / 486498

	Ex VAT	Inc VAT
5 - CLAMPING ELEMENT FSP-490276.A4 490276	£67.52	£81.03
6 - ROUND-HEAD SCREW M6 X 40 FSP-228534.A10 228534	£2.00	£2.40
7 - SPACER BUSH FSP-448066.A30 448066	£9.59	£11.51
8 - FEATHER KEY FSP-458559.A3 458559	£17.32	£20.78
9 - ROTARY KNOB FSP-440713.A60 440713	£2.64	£3.17
10 - STUD SCREW FSP-464525.A31 464525	£2.00	£2.40
11 - SUPPORT FSP-489181.A37 489181	£30.82	£36.99
12 - CHEESE HEAD SCREW M6 X 12 FSP-200684.A48 200684	£2.00	£2.40
14 - SWIVELING SEGMENT FSP-448014.A9 448014	£34.26	£41.11
15 - WASHER 6.4 MM FSP-228546.A94 228546	£2.00	£2.40
16 - ROTARY KNOB M6 FSP-486202.A20 486202	£2.88	£3.45
17 - ROTARY KNOB FSP-487755.A16 487755	£9.03	£10.84
18 - WASHER FSP-448471.A16 448471	£3.62	£4.34
19 - FLAT HEAD SCREW FSP-448065.A10 448065	£3.81	£4.57
20 - FLAT HEAD SCREW M4 X 8 FSP-219043.A19 219043	£2.00	£2.40
21 - RAISED-HEAD SCREW M4 X 6 FSP-400348.A11 400348	£2.00	£2.40
22 - SCALE FSP-488156.A17 488156	£25.04	£30.05
25 - CLAMPING PLATE FSP-10023711.A26 10023711	£4.44	£5.33
26 - SLEEVE 5 X 12 MM FSP-228692.A53 228692	£2.00	£2.40
27 - ROTARY KNOB M6 FSP-483350.A24 483350	£6.30	£7.56
28 - PROFILE CS 70 FSP-465708.A9 465708	£33.70	£40.44
29 - NO LONGER AVAILABLE FSP-00000.A4017 00000	-
30 - NO LONGER AVAILABLE FSP-00000.A4018 00000	-
31 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-219071.A89 219071	£2.00	£2.40
32 - STOP PROFILE CS 70 FSP-448141.A6 448141	£31.42	£37.71
33 - FLAT HEAD SCREW 4.0 X 10 MM FSP-219102.A0 219102	£2.00	£2.40
34 - SAFETY DEVICE FSP-485762.A5 485762	£42.10	£50.52
35 - NO LONGER AVAILABLE FSP-00000.A4016 00000	-
36 - FLAT HEAD SCREW M4 X 10 FSP-228727.A33 228727	£2.00	£2.40
37 - FLANGE NUT FSP-447731.A2 447731	£12.60	£15.12
38 - SPRING DISC FSP-223862.A10 223862	£2.00	£2.40
39 - WASHER FSP-403100.A17 403100	£2.00	£2.40
40 - NO LONGER AVAILABLE FSP-00000.A4013 00000	-
41 - NO LONGER AVAILABLE FSP-00000.A4014 00000	-
42 - NO LONGER AVAILABLE FSP-00000.A4015 00000	-
43 - UPPER SECTION OF PISTOL FSP-447534.A15 447534	£2.00	£2.40
44 - LOWER SECTION OF PISTOL FSP-488523.A18 488523	£2.00	£2.40
45 - NO LONGER AVAILABLE FSP-00000.A4010 00000	-
46 - NO LONGER AVAILABLE FSP-00000.A4011 00000	-
47 - NO LONGER AVAILABLE FSP-00000.A4012 00000	-
48 - HEXAGON NUT M6 FSP-200601.A13 200601	£2.00	£2.40
49 - PROFILE PLATE FSP-455124.A1 455124	£129.92	£155.90
50 - TURN LOCK FASTENER FSP-447657.A0 447657	£7.24	£8.69
51 - FLAT HEAD SCREW M4 X 6 FSP-400346.A0 400346	£2.00	£2.40
52 - RAISED-HEAD SCREW M5 X 14 FSP-228686.A6 228686	£2.00	£2.40
53 - NO LONGER AVAILABLE FSP-00000.A4021 00000	-
54 - CHEESE HEAD SCREW M5 X 16 FSP-228617.A9 228617	£2.00	£2.40
55 - NO LONGER AVAILABLE FSP-00000.A4022 00000	-
56 - RAISED-HEAD SCREW M4 X 10 FSP-228738.A23 228738	£2.00	£2.40
57 - INDICATOR FSP-439275.A16 439275	£2.00	£2.40
58 - THREADED SPINDLE FSP-486626.A1 486626	£29.92	£35.91
59 - PRESSURE SPRING FSP-444053.A1 444053	£2.00	£2.40
60 - SQUARE NUT M16 FSP-448735.A1 448735	£5.31	£6.37
61 - O-RING FSP-200926.A0 200926	£1.75	£2.10
62 - FLAT HEAD SCREW M5 X 11.5 FSP-400012.A1 400012	£3.75	£4.50
63 - NO LONGER AVAILABLE FSP-00000.A4020 00000	-
64 - NUT FSP-487662.A0 487662	£51.99	£62.39
65 - NO LONGER AVAILABLE FSP-00000.A4019 00000	-
66 - BRACKET FSP-441837.A1 441837	-
67 - NO LONGER AVAILABLE FSP-00000.A4038 00000	-
68 - FLAT HEAD SCREW M5 X 12 FSP-219056.A1 219056	£2.00	£2.40
69 - SHIM RING FSP-400135.A2 400135	£2.00	£2.40
70 - NO LONGER AVAILABLE FSP-00000.A4039 00000	-
71 - THREADED PIN M5 X 8 FSP-228655.A0 228655	£1.75	£2.10
72 - ROLLER FSP-442024.A2 442024	£7.11	£8.53
73 - NO LONGER AVAILABLE FSP-00000.A4035 00000	-
74 - NO LONGER AVAILABLE FSP-00000.A4036 00000	-
75 - NO LONGER AVAILABLE FSP-00000.A4037 00000	-
76 - DRAW SPRING FSP-440273.A1 440273	£4.59	£5.51
77 - NO LONGER AVAILABLE FSP-00000.A4032 00000	-
78 - HEXAGON NUT M6 FSP-228689.A0 228689	£2.00	£2.40
79 - ROTARY KNOB M6 X 22.5 FSP-10734068.A25 10734068	£2.00	£2.40
80 - RAISED-HEAD SCREW M5 X 12 FSP-400063.A1 400063	£2.00	£2.40
81 - WASHER FSP-216412.A1 216412	£2.00	£2.40
82 - NO LONGER AVAILABLE FSP-00000.A4033 00000	-
83 - NO LONGER AVAILABLE FSP-00000.A4034 00000	-
84 - HANDWHEEL FSP-439333.A1 439333	£4.48	£5.38
85 - NO LONGER AVAILABLE FSP-00000.A4025 00000	-
86 - NO LONGER AVAILABLE FSP-00000.A4026 00000	-
87 - NO LONGER AVAILABLE FSP-00000.A4027 00000	-
88 - SHAFT FSP-490450.A1 490450	-
89 - NO LONGER AVAILABLE FSP-00000.A4023 00000	-
90 - NO LONGER AVAILABLE FSP-00000.A4024 00000	-
91 - ROTARY KNOB M6 FSP-438320.A8 438320	£10.02	£12.03
92 - SPINDLE FSP-490431.A0 490431	£31.57	£37.88
93 - BEARING FSP-459137.A1 459137	£11.05	£13.26
94 - RAISED-HEAD SCREW M5 X 12 FSP-400683.A1 400683	£2.00	£2.40
95 - NO LONGER AVAILABLE FSP-00000.A4028 00000	-
96 - CHEESE HEAD SCREW M8 X 40 FSP-204485.A3 204485	£2.00	£2.40
97 - CLAMP FSP-200498.A3 200498	£10.02	£12.03
98 - WORKPIECE HOLDER FSP-450199.A18 450199	£6.29	£7.55
99 - NO LONGER AVAILABLE FSP-00000.A4040 00000	-
100 - CHAIN FSP-440158.A0 440158	£3.30	£3.96
101 - NO LONGER AVAILABLE FSP-00000.A4029 00000	-
102 - NO LONGER AVAILABLE FSP-00000.A4030 00000	-
103 - NO LONGER AVAILABLE FSP-00000.A4031 00000	-
