Fein WSG 8-115 (C) / 72223400230 Spare Parts

Fein WSG 8-115 ʌ) / 72223400230 Spare Parts

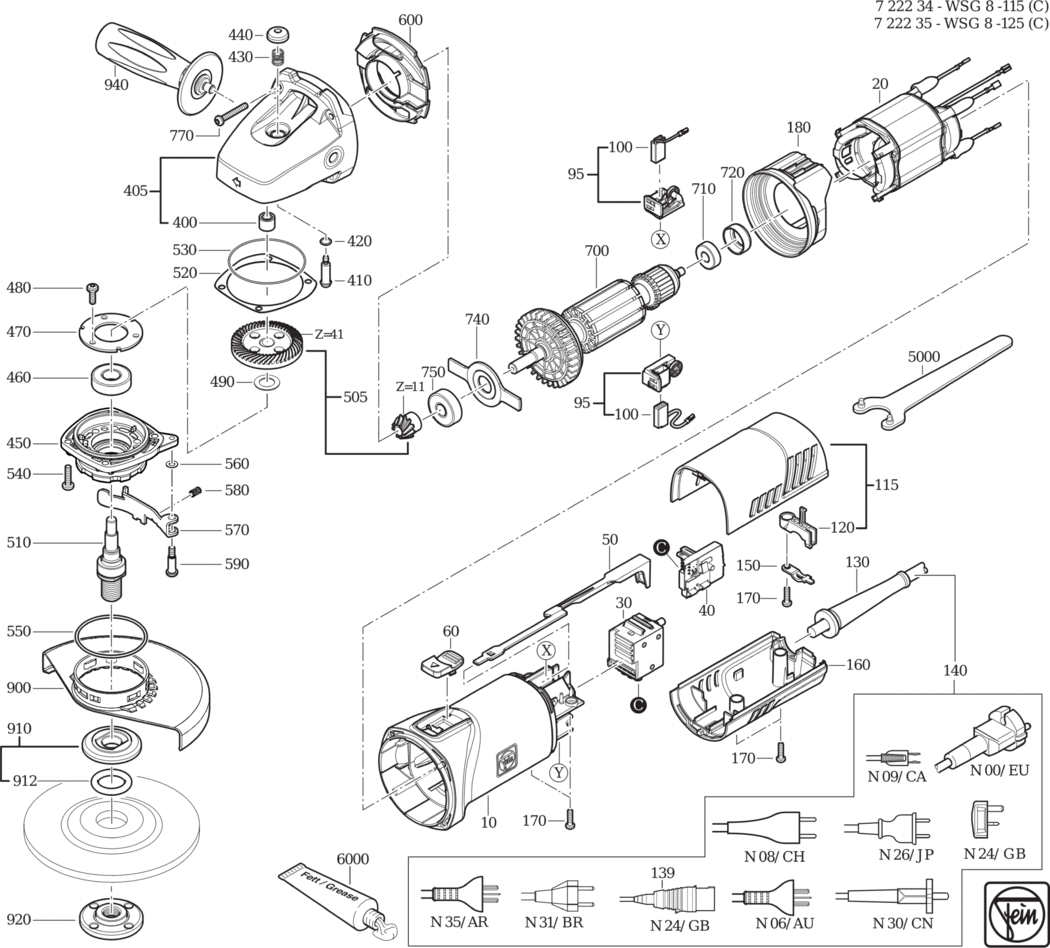

An exploded diagram and spare parts listing for the Fein WSG 8-115 (C) / 72223400230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901174000.A4 31901174000	£37.51	£45.01
20 - STATOR 50HZ230V FEI-51281004230.A5 51281004230	£50.00	£60.00
30 - SWITCH FEI-30701299000.A56 30701299000	£28.81	£34.57
40 - ELECTRONICS 220 230V/50 60HZ FEI-30762558990.A2 30762558990	£45.90	£55.08
50 - CONTROL ROD FEI-32816079000.A23 32816079000	£2.43	£2.92
60 - SLIDE SWITCH FEI-32805306000.A103 32805306000	£4.59	£5.51
95 - BRUSH HOLDER SET 50HZ230V FEI-30712096010.A43 30712096010	£11.45	£13.74
100 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711158000.A14 30711158000	£8.15	£9.78
115 - COVER OT FEI-32427150010.A42 32427150010	£15.07	£18.08
120 - CABLE CLAMPING PIECE FEI-32431047000.A58 32431047000	-
130 - CABLE GROMMET FEI-31413282000.A27 31413282000	£2.55	£3.06
140 - CABLE WITH PLUG FEI-30707544010.A40 30707544010	-
150 - CABLE CLAMPING PIECE FEI-32431043002.A88 32431043002	£1.60	£1.92
160 - COVER FEI-32427148000.A38 32427148000	£5.49	£6.59
170 - SCREW FEI-43072000000.A26 43072000000	£1.60	£1.92
180 - AIR GUIDE RING FEI-31428179000.A110 31428179000	£7.46	£8.95
400 - NEEDLE SLEEVE FEI-41705006006.A27 41705006006	£7.31	£8.77
405 - GEARBOX HOUSING FEI-31206165030.A8 31206165030	-
410 - BOLT FEI-30217335005.A39 30217335005	£7.39	£8.87
420 - SEALING RING FEI-40612137008.A108 40612137008	£1.60	£1.92
430 - SPIRAL SPRING FEI-30901357005.A68 30901357005	£2.38	£2.86
440 - PUSHBUTTON FEI-32805200008.A114 32805200008	£2.58	£3.09
450 - BEARING PLATE FEI-32419159000.A3 32419159000	-
460 - GROOVED BALL BEARING FEI-41701010054.A148 41701010054	£8.25	£9.90
470 - PLATE FEI-32416118000.A5 32416118000	-
480 - FILLISTER HEAD SCREW FEI-43064002043.A59 43064002043	£1.60	£1.92
490 - DISC FEI-32601280000.A9 32601280000	-
505 - BEVEL GEAR Z=11/41 FEI-33809238020.A35 33809238020	£40.91	£49.09
510 - SHAFT M14 FEI-33406347000.A14 33406347000	-
520 - WASHER 0.1 FEI-32624122020.A63 32624122020	£1.60	£1.92
520 - WASHER 0.15 FEI-32624122060.A4 32624122060	-
530 - SEALING RING FEI-40612000000.A5 40612000000	£1.60	£1.92
540 - FILLISTER HEAD SCREW FEI-43064024043.A126 43064024043	-
550 - SEALING RING FEI-40612000003.A70 40612000003	£1.60	£1.92
560 - DISC FEI-32408450000.A44 32408450000	£1.60	£1.92
570 - LEVER FEI-30240331000.A27 30240331000	£7.99	£9.59
580 - SPRING FEI-30901403000.A43 30901403000	£1.60	£1.92
590 - SCREW FEI-33024077000.A32 33024077000	£1.60	£1.92
600 - AIR GUIDE RING FEI-31428180000.A32 31428180000	£4.28	£5.14
700 - ARMATURE 50HZ230V FEI-53281002230.A0 53281002230	£81.66	£97.99
710 - GROOVED BALL BEARING FEI-41701001260.A33 41701001260	£7.11	£8.53
720 - BEARING BUSH FEI-30507236000.A85 30507236000	£3.19	£3.83
740 - PLATE FEI-32416117000.A109 32416117000	£1.60	£1.92
750 - GROOVED BALL BEARING FEI-41701207260.A139 41701207260	£7.41	£8.89
770 - SCREW FEI-43074012000.A90 43074012000	£1.60	£1.92
900 - WHEEL GUARD FEI-31810299000.A5 31810299000	£18.82	£22.58
910 - INNER FLANGE FEI-63801182010.A94 63801182010	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A121 40612000007	£1.60	£1.92
920 - THREADED FLANGE FEI-63802052000.A103 63802052000	£14.88	£17.86
940 - HANDLE FEI-32119107016.A78 32119107016	£10.15	£12.18
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A139 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A526 32160003014	-
