Fein WSG 14-70 E (50Hz 110V) / 72214324110 Spare Parts

Fein WSG 14-70 E ⡐Hz 110V) / 72214324110 Spare Parts

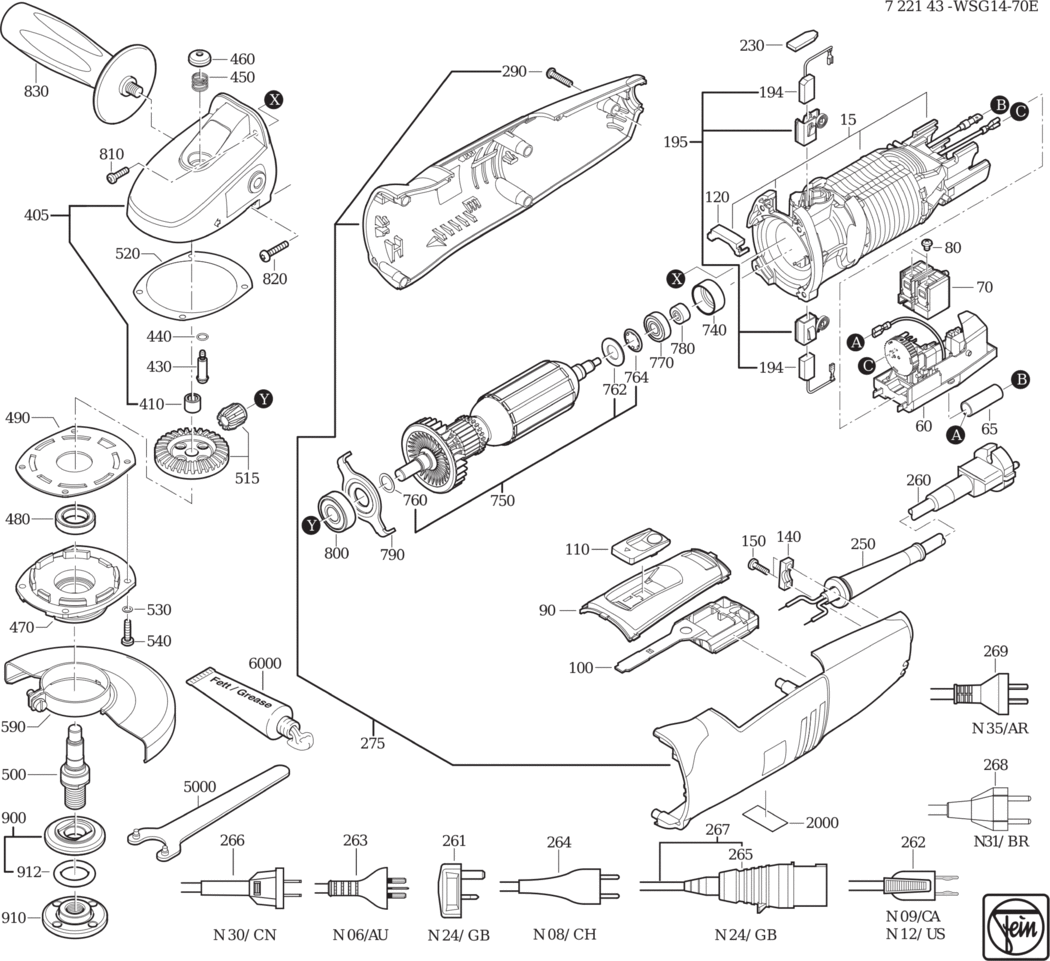

An exploded diagram and spare parts listing for the Fein WSG 14-70 E (50Hz 110V) / 72214324110

	Ex VAT	Inc VAT
15 - STATOR UNIT 110V-120V 50/60HZ FEI-52276032110.A7 52276032110	£89.98	£107.98
60 - SPEED SETTING SWITCH 110V-120V 50/60HZ FEI-30762393990.A4 30762393990	£122.30	£146.76
65 - INSULATING HOSE FEI-31413232000.A56 31413232000	£1.60	£1.92
70 - SWITCH FEI-30701285000.A52 30701285000	£17.50	£21.00
80 - FILLISTER HEAD SCREW FEI-43041039999.A115 43041039999	£1.60	£1.92
90 - HOUSING INSERT FEI-32427134000.A7 32427134000	£5.42	£6.50
100 - CONTROL ROD FEI-32816070000.A13 32816070000	£8.08	£9.69
110 - SLIDE SWITCH FEI-32805223000.A3 32805223000	£2.41	£2.89
120 - COVER FEI-32805224000.A41 32805224000	£4.18	£5.01
140 - CABLE CLAMPING PIECE FEI-32431026009.A131 32431026009	£1.60	£1.92
150 - SCREW FEI-43070006008.A152 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 100-120V 50/60HZ FEI-30711168000.A17 30711168000	-
195 - BRUSH HOLDER SET 100-120V 50/60HZ FEI-30712093080.A20 30712093080	£29.78	£35.73
230 - COVER FEI-31420124000.A48 31420124000	£1.60	£1.92
250 - PROTECTIVE HOSE FEI-31413237000.A1 31413237000	£2.74	£3.29
265 - PLUG CEE 16A/110V FEI-30728288004.A1 30728288004	£14.25	£17.10
267 - CABLE WITH PLUG N24 50HZ110V FEI-30707491010.A8 30707491010	£30.05	£36.06
275 - MOTOR HOUSING FEI-31912083010.A28 31912083010	£35.94	£43.13
290 - SCREW FEI-43074008000.A125 43074008000	£1.60	£1.92
405 - GEARBOX HOUSING FEI-31206142020.A3 31206142020	£87.63	£105.16
410 - NEEDLE SLEEVE FEI-41705019001.A67 41705019001	£9.49	£11.39
430 - BOLT FEI-30217335005.A87 30217335005	£7.39	£8.87
440 - SEALING RING FEI-40612137008.A59 40612137008	£1.60	£1.92
450 - SPIRAL SPRING FEI-30901365007.A50 30901365007	£1.60	£1.92
460 - PUSHBUTTON FEI-32805200008.A191 32805200008	£2.58	£3.09
470 - BEARING PLATE FEI-32419134000.A9 32419134000	£55.51	£66.61
480 - GROOVED BALL BEARING FEI-41701010054.A295 41701010054	£8.25	£9.90
490 - PLATE FEI-32416101009.A58 32416101009	£3.11	£3.73
500 - SHAFT FEI-33406284009.A31 33406284009	£33.58	£40.29
515 - BEVEL GEAR Z=9/44 FEI-33809229012.A24 33809229012	£57.88	£69.46
520 - DISC FEI-32624117009.A1 32624117009	£1.60	£1.92
530 - CIRCLIP M4 FEI-42443003043.A268 42443003043	£1.60	£1.92
540 - FILLISTER HEAD SCREW FEI-43064024043.A203 43064024043	-
590 - SAFETY HOOD FEI-31810258010.A32 31810258010	£33.45	£40.14
740 - BEARING BUSH FEI-30507236000.A34 30507236000	£3.19	£3.83
750 - ARMATURE 110V 50/60HZ FEI-53276003110.A7 53276003110	£108.05	£129.66
760 - CIRCLIP FEI-42615081002.A116 42615081002	£1.60	£1.92
762 - DISC FEI-32408434000.A42 32408434000	£1.60	£1.92
764 - CIRCLIP FEI-42632003000.A59 42632003000	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A169 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A51 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A27 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A71 41701007266	£10.67	£12.80
810 - SCREW FEI-43074007000.A4 43074007000	£1.60	£1.92
820 - SCREW FEI-43074009000.A7 43074009000	£1.60	£1.92
830 - ANTI-VIBRATION HANDLE FEI-32119124010.A26 32119124010	£17.68	£21.22
900 - INNER FLANGE FEI-63801182010.A187 63801182010	£14.88	£17.86
910 - THREADED FLANGE FEI-63802052000.A166 63802052000	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A43 40612000007	£1.60	£1.92
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A68 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A339 32160003014	-
9000 - OPERATING INSTRUCTIONS FEI-34101088060.A2 34101088060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A88 34130054061	-
