Fein WSG 14-70 E (50/60Hz 220/230V) / 72214324230 Spare Parts

Fein WSG 14-70 E ⡐/60Hz 220/230V) / 72214324230 Spare Parts

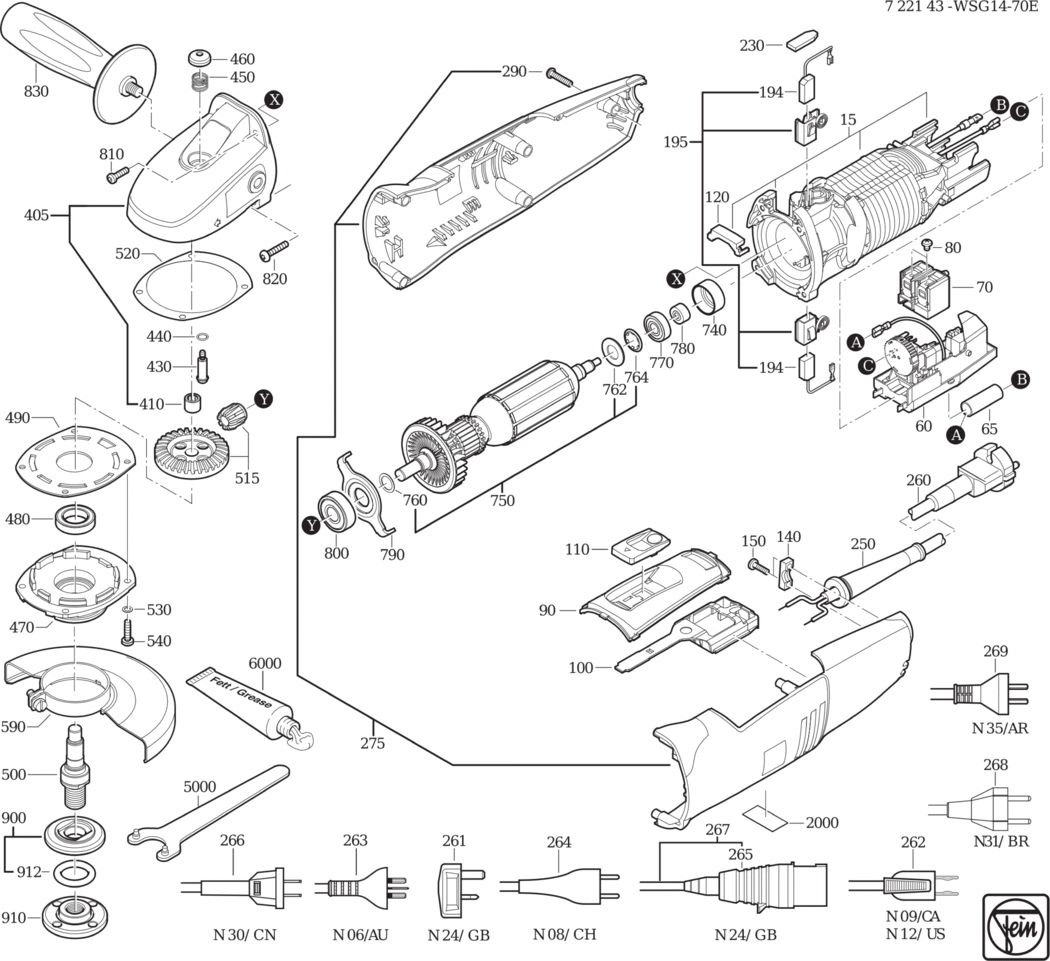

An exploded diagram and spare parts listing for the Fein WSG 14-70 E (50/60Hz 220/230V) / 72214324230

	Ex VAT	Inc VAT
15 - STATOR UNIT FEI-52276032230.A7 52276032230	£89.51	£107.41
60 - SPEED SETTING SWITCH FEI-30762376990.A11 30762376990	£120.06	£144.07
65 - INSULATING HOSE FEI-31413232000.A55 31413232000	£1.60	£1.92
70 - SWITCH FEI-30701285000.A53 30701285000	£17.50	£21.00
80 - FILLISTER HEAD SCREW FEI-43041039999.A114 43041039999	£1.60	£1.92
90 - HOUSING INSERT FEI-32427134000.A8 32427134000	£5.42	£6.50
100 - CONTROL ROD FEI-32816070000.A12 32816070000	£8.08	£9.69
110 - SLIDE SWITCH FEI-32805223000.A2 32805223000	£2.41	£2.89
120 - COVER FEI-32805224000.A42 32805224000	£4.18	£5.01
140 - CABLE CLAMPING PIECE FEI-32431026009.A128 32431026009	£1.60	£1.92
150 - SCREW FEI-43070006008.A150 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711154000.A26 30711154000	£9.53	£11.44
195 - BRUSH HOLDER SET 220V-230V 50/60HZ FEI-30712093110.A16 30712093110	£30.80	£36.96
230 - COVER FEI-31420124000.A45 31420124000	£1.60	£1.92
250 - CABLE GROMMET FEI-31413282000.A87 31413282000	£2.55	£3.06
260 - CABLE WITH PLUG FEI-30707544010.A15 30707544010	-
261 - CABLE WITH PLUG N24 50HZ230V FEI-30707495010.A8 30707495010	-
275 - MOTOR HOUSING FEI-31912083010.A26 31912083010	£35.94	£43.13
290 - SCREW FEI-43074008000.A122 43074008000	£1.60	£1.92
405 - GEARBOX HOUSING FEI-31206142020.A1 31206142020	£87.63	£105.16
410 - NEEDLE SLEEVE FEI-41705019001.A62 41705019001	£9.49	£11.39
430 - BOLT FEI-30217335005.A86 30217335005	£7.39	£8.87
440 - SEALING RING FEI-40612137008.A47 40612137008	£1.60	£1.92
450 - SPIRAL SPRING FEI-30901365007.A44 30901365007	£1.60	£1.92
460 - PUSHBUTTON FEI-32805200008.A185 32805200008	£2.58	£3.09
470 - BEARING PLATE FEI-32419134000.A7 32419134000	£55.51	£66.61
480 - GROOVED BALL BEARING FEI-41701010054.A290 41701010054	£8.25	£9.90
490 - PLATE FEI-32416101009.A53 32416101009	£3.11	£3.73
500 - SHAFT FEI-33406284009.A32 33406284009	£33.58	£40.29
515 - BEVEL GEAR Z=9/44 FEI-33809229012.A32 33809229012	£57.88	£69.46
520 - DISC FEI-32624117009.A8 32624117009	£1.60	£1.92
530 - CIRCLIP M4 FEI-42443003043.A270 42443003043	£1.60	£1.92
540 - FILLISTER HEAD SCREW FEI-43064024043.A189 43064024043	-
590 - SAFETY HOOD FEI-31810258010.A30 31810258010	£33.45	£40.14
740 - BEARING BUSH FEI-30507236000.A39 30507236000	£3.19	£3.83
750 - ARMATURE FEI-53276003230.A8 53276003230	£110.32	£132.38
760 - CIRCLIP FEI-42615081002.A114 42615081002	£1.60	£1.92
762 - DISC FEI-32408434000.A39 32408434000	£1.60	£1.92
764 - CIRCLIP FEI-42632003000.A54 42632003000	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A159 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A49 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A31 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A75 41701007266	£10.67	£12.80
810 - SCREW FEI-43074007000.A8 43074007000	£1.60	£1.92
820 - SCREW FEI-43074009000.A13 43074009000	£1.60	£1.92
830 - ANTI-VIBRATION HANDLE FEI-32119124010.A25 32119124010	£17.68	£21.22
900 - INNER FLANGE FEI-63801182010.A183 63801182010	£14.88	£17.86
910 - THREADED FLANGE FEI-63802052000.A161 63802052000	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A54 40612000007	£1.60	£1.92
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A77 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A341 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A94 34130054061	-

Attribute Name	Value
Brand	Fein
