Fein WSG 14-125 T (50Hz 110V) / 72215624110 Spare Parts

Fein WSG 14-125 T ⡐Hz 110V) / 72215624110 Spare Parts

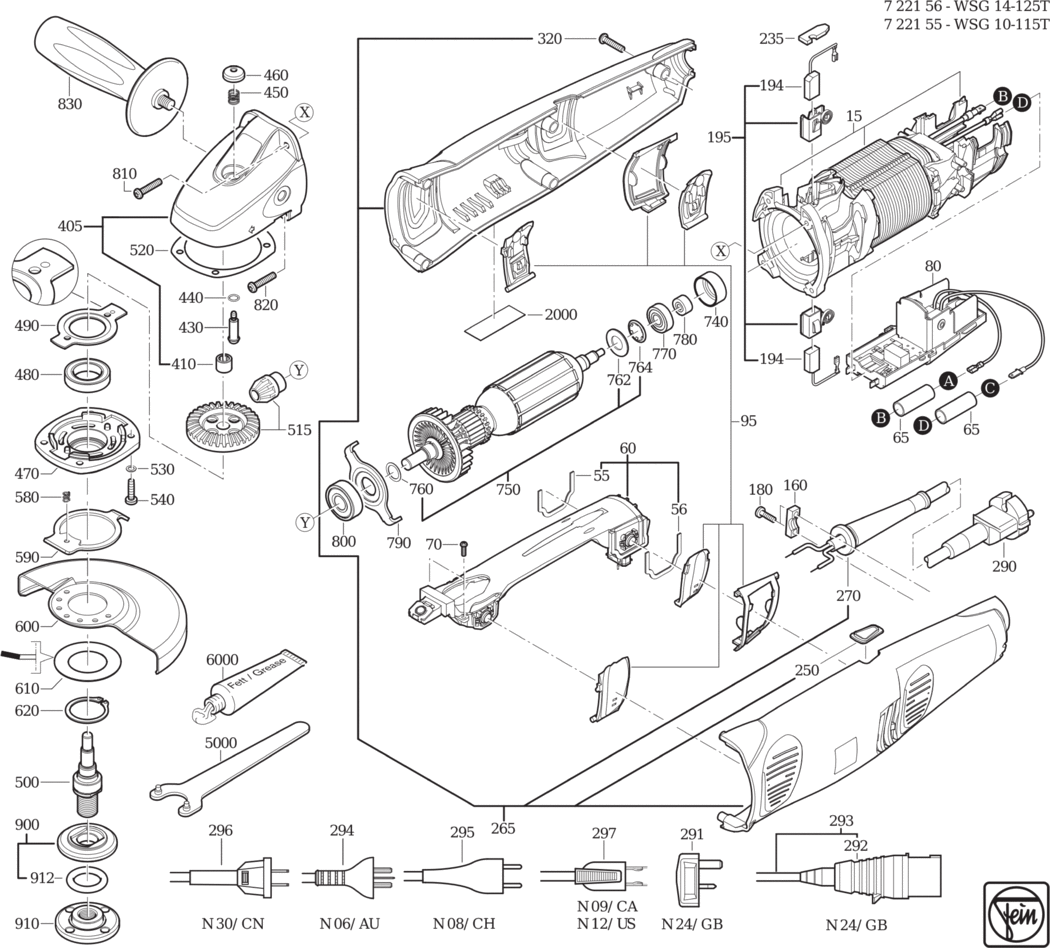

An exploded diagram and spare parts listing for the Fein WSG 14-125 T (50Hz 110V) / 72215624110

	Ex VAT	Inc VAT
15 - STATOR UNIT 110V-120V 50/60HZ FEI-52276046110.A4 52276046110	£101.12	£121.35
55 - SEAL FEI-31415096000.A13 31415096000	£1.60	£1.92
56 - SEAL FEI-31415097000.A25 31415097000	£1.60	£1.92
60 - SWITCH MODULE LS4 FEI-30701257990.A8 30701257990	-
65 - INSULATING HOSE FEI-31413234000.A0 31413234000	£4.05	£4.86
70 - SCREW FEI-43070044007.A9 43070044007	£1.60	£1.92
80 - ELECTRONICS 100-120V 50/60HZ FEI-30762389990.A2 30762389990	£123.14	£147.77
95 - SWITCH PUSHBUTTON SET FEI-32816061020.A28 32816061020	£10.64	£12.77
160 - CABLE CLAMPING PIECE FEI-32431026009.A15 32431026009	£1.60	£1.92
180 - SCREW FEI-43070006008.A25 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 100-120V 50/60HZ FEI-30711168000.A2 30711168000	-
195 - BRUSH HOLDER SET 100-120V 50/60HZ FEI-30712093080.A3 30712093080	£29.78	£35.73
235 - COVER FEI-31420125000.A13 31420125000	£1.60	£1.92
250 - COVER FEI-32427128000.A10 32427128000	£1.60	£1.92
265 - MOTOR HOUSING SET FEI-31912065040.A2 31912065040	-
270 - PROTECTIVE HOSE FEI-31413237000.A107 31413237000	£2.74	£3.29
292 - PLUG CEE 16A/110V FEI-30728288004.A88 30728288004	£14.25	£17.10
293 - CABLE WITH PLUG N24 50HZ110V FEI-30707491010.A2 30707491010	£30.05	£36.06
320 - SCREW FEI-43074008000.A5 43074008000	£1.60	£1.92
405 - GEARBOX HOUSING FEI-31206131030.A5 31206131030	-
410 - NEEDLE SLEEVE FEI-41705006006.A98 41705006006	£7.31	£8.77
430 - BOLT FEI-30217335005.A139 30217335005	£7.39	£8.87
440 - SEALING RING FEI-40612137008.A235 40612137008	£1.60	£1.92
450 - SPIRAL SPRING FEI-30901357005.A32 30901357005	£2.38	£2.86
460 - PUSHBUTTON FEI-32805200008.A18 32805200008	£2.58	£3.09
470 - BEARING PLATE FEI-32419127002.A8 32419127002	£28.80	£34.56
480 - GROOVED BALL BEARING FEI-41701010054.A114 41701010054	£8.25	£9.90
490 - PLATE FEI-32416110010.A10 32416110010	£10.02	£12.02
500 - SHAFT FEI-33406299001.A62 33406299001	£26.04	£31.25
515 - BEVEL GEAR Z=11/41 FEI-33809238017.A0 33809238017	£36.98	£44.37
520 - DISC FEI-32624120028.A4 32624120028	-
530 - CIRCLIP M4 FEI-42443003043.A126 42443003043	£1.60	£1.92
540 - FILLISTER HEAD SCREW FEI-43064024043.A46 43064024043	-
580 - SPIRAL SPRING FEI-30901340001.A78 30901340001	£1.60	£1.92
590 - LEVER FEI-32805231000.A10 32805231000	£4.45	£5.34
600 - SAFETY HOOD FEI-31810257000.A22 31810257000	£21.07	£25.28
610 - CUP SPRING FEI-30905070000.A9 30905070000	£1.60	£1.92
620 - CIRCLIP FEI-42616073005.A44 42616073005	£1.60	£1.92
740 - BEARING BUSH FEI-30507236000.A187 30507236000	£3.19	£3.83
750 - ARMATURE 110V 50/60HZ FEI-53276003110.A1 53276003110	£108.05	£129.66
760 - CIRCLIP FEI-42615081002.A10 42615081002	£1.60	£1.92
762 - DISC FEI-32408434000.A15 32408434000	£1.60	£1.92
764 - CIRCLIP FEI-42632003000.A8 42632003000	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A308 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A85 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A64 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A144 41701007266	£10.67	£12.80
810 - SCREW FEI-43074007000.A57 43074007000	£1.60	£1.92
820 - SCREW FEI-43074009000.A69 43074009000	£1.60	£1.92
900 - INNER FLANGE FEI-63801182010.A46 63801182010	£14.88	£17.86
910 - THREADED FLANGE FEI-63802052000.A42 63802052000	£14.88	£17.86
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A226 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A185 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A718 34130054061	-

Attribute Name	Value
Brand	Fein
