Fein WSG 14-125 (50/60Hz 220/230V) / 72214124230 Spare Parts

Fein WSG 14-125 ⡐/60Hz 220/230V) / 72214124230 Spare Parts

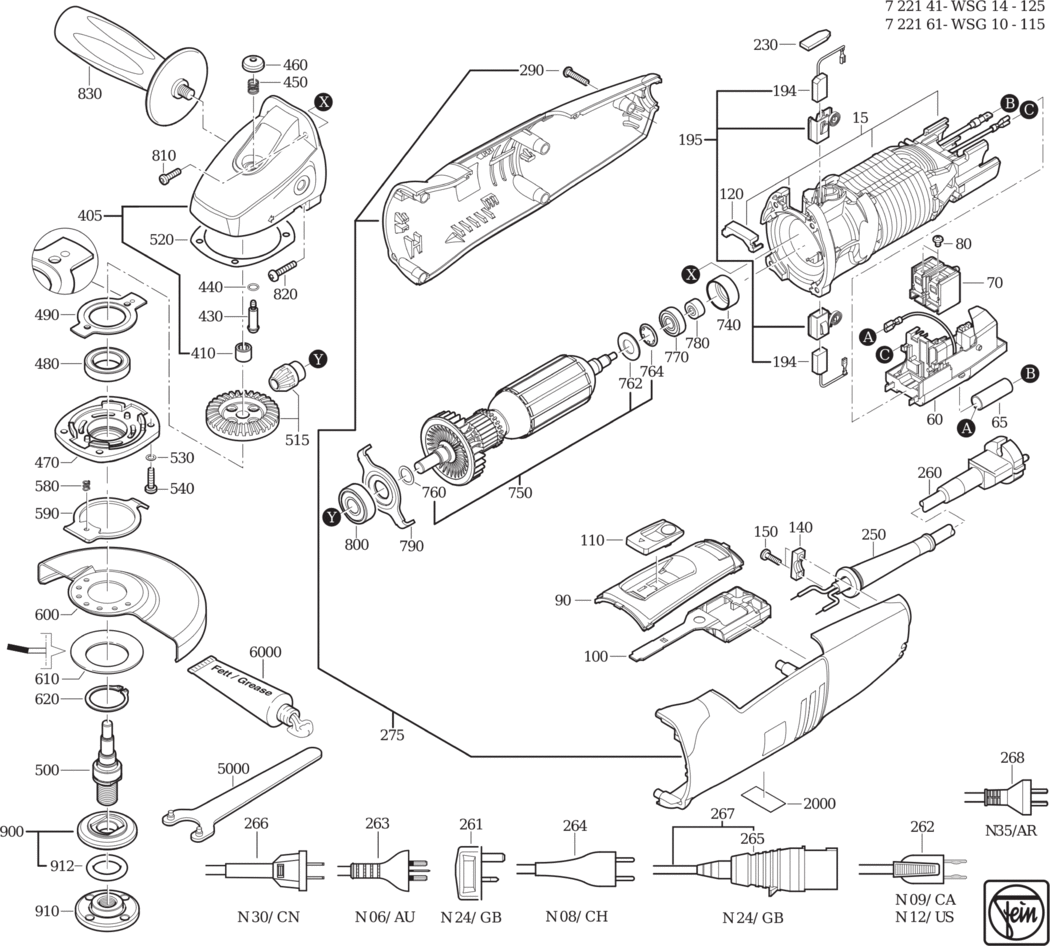

An exploded diagram and spare parts listing for the Fein WSG 14-125 (50/60Hz 220/230V) / 72214124230

	Ex VAT	Inc VAT
15 - STATOR UNIT FEI-52276032230.A14 52276032230	£89.51	£107.41
60 - ELECTRONICS FEI-30762375990.A4 30762375990	£88.95	£106.74
65 - INSULATING HOSE FEI-31413232000.A36 31413232000	£1.60	£1.92
70 - SWITCH FEI-30701285000.A19 30701285000	£17.50	£21.00
80 - FILLISTER HEAD SCREW FEI-43041039999.A89 43041039999	£1.60	£1.92
90 - HOUSING INSERT FEI-32427135000.A5 32427135000	£4.88	£5.86
100 - CONTROL ROD FEI-32816070000.A4 32816070000	£8.08	£9.69
110 - SLIDE SWITCH FEI-32805223000.A17 32805223000	£2.41	£2.89
120 - COVER FEI-32805224000.A27 32805224000	£4.18	£5.01
140 - CABLE CLAMPING PIECE FEI-32431026009.A83 32431026009	£1.60	£1.92
150 - SCREW FEI-43070006008.A107 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711154000.A53 30711154000	£9.53	£11.44
195 - BRUSH HOLDER SET 220V-230V 50/60HZ FEI-30712093110.A7 30712093110	£30.80	£36.96
230 - COVER FEI-31420124000.A35 31420124000	£1.60	£1.92
250 - CABLE GROMMET FEI-31413282000.A37 31413282000	£2.55	£3.06
261 - CABLE WITH PLUG N24 50HZ230V FEI-30707495010.A3 30707495010	-
275 - MOTOR HOUSING FEI-31912083010.A20 31912083010	£35.94	£43.13
290 - SCREW FEI-43074008000.A81 43074008000	£1.60	£1.92
405 - GEARBOX HOUSING FEI-31206141020.A5 31206141020	£85.88	£103.05
410 - NEEDLE SLEEVE FEI-41705006006.A20 41705006006	£7.31	£8.77
430 - BOLT FEI-30217335005.A20 30217335005	£7.39	£8.87
440 - SEALING RING FEI-40612137008.A113 40612137008	£1.60	£1.92
450 - SPIRAL SPRING FEI-30901357005.A98 30901357005	£2.38	£2.86
460 - PUSHBUTTON FEI-32805200008.A94 32805200008	£2.58	£3.09
470 - BEARING PLATE FEI-32419127002.A5 32419127002	£28.80	£34.56
480 - GROOVED BALL BEARING FEI-41701010054.A172 41701010054	£8.25	£9.90
490 - PLATE FEI-32416110010.A0 32416110010	£10.02	£12.02
500 - SHAFT FEI-33406299001.A17 33406299001	£26.04	£31.25
515 - BEVEL GEAR Z=11/41 FEI-33809238017.A8 33809238017	£36.98	£44.37
520 - DISC FEI-32624120028.A22 32624120028	-
530 - CIRCLIP M4 FEI-42443003043.A185 42443003043	£1.60	£1.92
540 - FILLISTER HEAD SCREW FEI-43064024043.A163 43064024043	-
580 - SPIRAL SPRING FEI-30901340001.A44 30901340001	£1.60	£1.92
590 - LEVER FEI-32805231000.A5 32805231000	£4.45	£5.34
600 - SAFETY HOOD FEI-31810257000.A16 31810257000	£21.07	£25.28
610 - CUP SPRING FEI-30905070000.A35 30905070000	£1.60	£1.92
620 - CIRCLIP FEI-42616073005.A17 42616073005	£1.60	£1.92
740 - BEARING BUSH FEI-30507236000.A119 30507236000	£3.19	£3.83
750 - ARMATURE FEI-53276003230.A3 53276003230	£110.32	£132.38
760 - CIRCLIP FEI-42615081002.A79 42615081002	£1.60	£1.92
762 - DISC FEI-32408434000.A62 32408434000	£1.60	£1.92
764 - CIRCLIP FEI-42632003000.A33 42632003000	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A50 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A26 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A10 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A30 41701007266	£10.67	£12.80
810 - SCREW FEI-43074007000.A31 43074007000	£1.60	£1.92
820 - SCREW FEI-43074009000.A41 43074009000	£1.60	£1.92
830 - ANTI-VIBRATION HANDLE FEI-32119124010.A72 32119124010	£17.68	£21.22
900 - INNER FLANGE FEI-63801182010.A113 63801182010	£14.88	£17.86
910 - THREADED FLANGE FEI-63802052000.A109 63802052000	£14.88	£17.86
912 - SEALING RING FEI-40612000007.A97 40612000007	£1.60	£1.92
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A169 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A482 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A276 34130054061	-
