Fein WSG 13-125 (50/60Hz 230V) / 72211524230 Spare Parts

Fein WSG 13-125 ⡐/60Hz 230V) / 72211524230 Spare Parts

Home Details Reviews Delivery

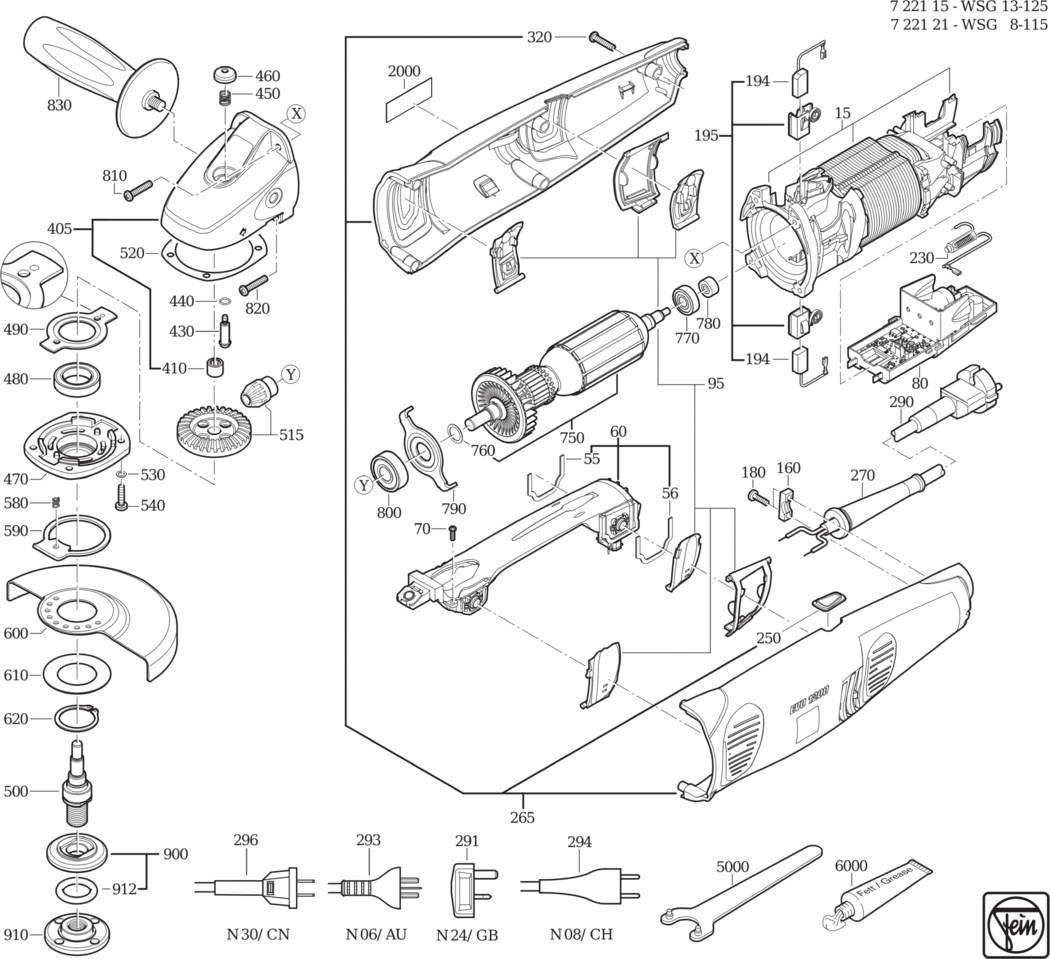

An exploded diagram and spare parts listing for the Fein WSG 13-125 (50/60Hz 230V) / 72211524230

	Ex VAT	Inc VAT
15 - STATOR UNIT FEI-52276008234.A3 52276008234	-
55 - SEAL FEI-31415096000.A21 31415096000	£1.60	£1.92
56 - SEAL FEI-31415097000.A17 31415097000	£1.60	£1.92
60 - SWITCH MODULE LS4 FEI-30701257990.A0 30701257990	-
70 - SCREW FEI-43070044007.A31 43070044007	£1.60	£1.92
80 - ELECTRONICS FEI-30762264994.A1 30762264994	-
95 - SWITCH PUSHBUTTON SET FEI-32816061020.A2 32816061020	£10.64	£12.77
160 - CABLE CLAMPING PIECE FEI-32431026009.A123 32431026009	£1.60	£1.92
180 - SCREW FEI-43070006008.A21 43070006008	£1.60	£1.92
194 - CARBON BRUSH (SOLD SINGLY) 220-230V 50/60HZ FEI-30711154000.A18 30711154000	£9.53	£11.44
195 - BRUSH HOLDER SET 220V-230V 50/60HZ FEI-30712093110.A44 30712093110	£30.80	£36.96
230 - CHOKE FEI-30764134009.A7 30764134009	£10.95	£13.14
250 - COVER FEI-32427123008.A2 32427123008	£1.75	£2.10
265 - MOTOR HOUSING FEI-31912065010.A0 31912065010	-
270 - CABLE GROMMET FEI-31413282000.A148 31413282000	£2.55	£3.06
291 - CABLE WITH PLUG N24 50HZ230V FEI-30707495010.A21 30707495010	-
320 - SCREW FEI-43070045001.A21 43070045001	-
405 - GEARBOX HOUSING FEI-31206131030.A3 31206131030	-
410 - NEEDLE SLEEVE FEI-41705006006.A96 41705006006	£7.31	£8.77
430 - BOLT FEI-30217335005.A131 30217335005	£7.39	£8.87
440 - SEALING RING FEI-40612137008.A237 40612137008	£1.60	£1.92
450 - SPIRAL SPRING FEI-30901357005.A38 30901357005	£2.38	£2.86
460 - PUSHBUTTON FEI-32805200008.A13 32805200008	£2.58	£3.09
470 - BEARING PLATE FEI-32419127002.A10 32419127002	£28.80	£34.56
480 - GROOVED BALL BEARING FEI-41701010054.A107 41701010054	£8.25	£9.90
490 - PLATE FEI-32416110010.A8 32416110010	£10.02	£12.02
500 - SHAFT FEI-33406299001.A60 33406299001	£26.04	£31.25
515 - BEVEL GEAR Z=11/41 FEI-33809238017.A2 33809238017	£36.98	£44.37
520 - DISC FEI-32624120028.A5 32624120028	-
530 - CIRCLIP M4 FEI-42443003043.A114 42443003043	£1.60	£1.92
540 - FILLISTER HEAD SCREW FEI-43064024043.A32 43064024043	-
580 - SPIRAL SPRING FEI-30901340001.A75 30901340001	£1.60	£1.92
590 - LEVER FEI-32805197008.A4 32805197008	£6.48	£7.77
600 - SAFETY HOOD FEI-31810257000.A20 31810257000	£21.07	£25.28
610 - CUP SPRING FEI-30905070000.A8 30905070000	£1.60	£1.92
620 - CIRCLIP FEI-42616073005.A42 42616073005	£1.60	£1.92
750 - ARMATURE FEI-53276001236.A7 53276001236	-
760 - CIRCLIP FEI-42615081002.A21 42615081002	£1.60	£1.92
770 - GROOVED BALL BEARING FEI-41701001260.A302 41701001260	£7.11	£8.53
780 - RING MAGNET FEI-32172011004.A78 32172011004	£10.15	£12.18
790 - PLATE FEI-32416108003.A69 32416108003	£2.82	£3.38
800 - GROOVED BALL BEARING FEI-41701007266.A146 41701007266	£10.67	£12.80
810 - SCREW FEI-43070043009.A19 43070043009	£1.60	£1.92
820 - SCREW FEI-43070031003.A140 43070031003	£1.60	£1.92
830 - HANDLE FEI-32119107016.A33 32119107016	£10.15	£12.18
900 - INNER FLANGE FEI-63801182010.A51 63801182010	£14.88	£17.86
910 - THREADED FLANGE FEI-63802052000.A49 63802052000	£14.88	£17.86
5000 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A221 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A202 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A728 34130054061	-
