Fein WSG 12-125 (60Hz 220V) / 72209600625 Spare Parts

Fein WSG 12-125 ⡠Hz 220V) / 72209600625 Spare Parts
Home Details Reviews Delivery

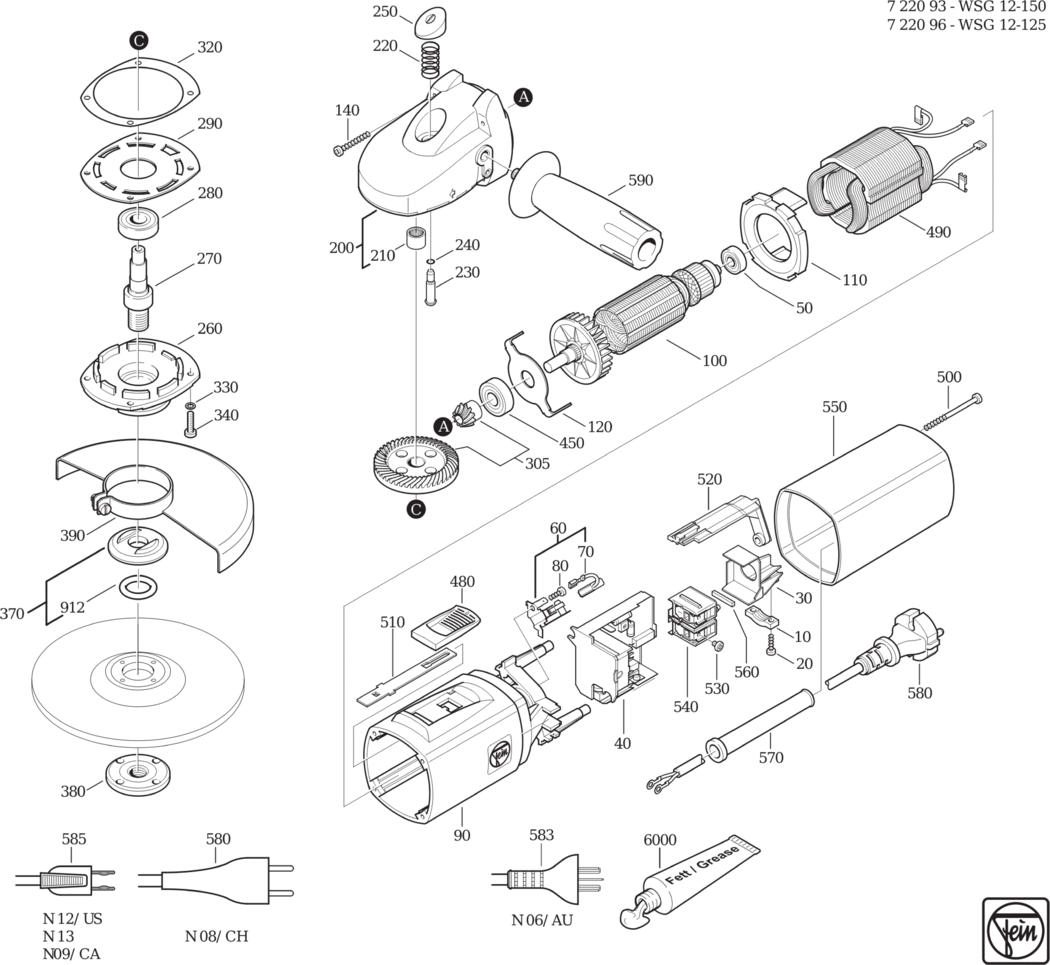

An exploded diagram and spare parts listing for the Fein WSG 12-125 (60Hz 220V) / 72209600625
Ex VAT Inc VAT
10 - CABLE CLAMPING PIECE FEI-32431021007.A114 32431021007 £1.60 £1.92
20 - SCREW FEI-43070001006.A92 43070001006 £1.60 £1.92
30 - CABLE CLAMPING PIECE FEI-32431040006.A47 32431040006 £2.78 £3.33
40 - ELECTRONICS FEI-30762224998.A4 30762224998 £106.36 £127.63
50 - GROOVED BALL BEARING FEI-41701001172.A24 41701001172 £9.63 £11.56
60 - BRUSH HOLDER FEI-30712088013.A5 30712088013 £17.61 £21.13
70 - CARBON BRUSH (SOLD SINGLY) FEI-30711132003.A18 30711132003 £10.52 £12.63
80 - SCREW FEI-43070018009.A44 43070018009 £1.60 £1.92
90 - MOTOR HOUSING FEI-31901114014.A26 31901114014 £46.03 £55.24
100 - ARMATURE FEI-53273001233.A0 53273001233 £133.28 £159.93
110 - AIR GUIDE RING FEI-31428118007.A8 31428118007 £3.52 £4.22
120 - PLATE FEI-32416098005.A102 32416098005 £1.60 £1.92
140 - SCREW FEI-43070007002.A45 43070007002 £1.60 £1.92
200 - GEARBOX HOUSING FEI-31206110015.A11 31206110015 £78.98 £94.78
210 - NEEDLE SLEEVE FEI-41705019001.A16 41705019001 £9.49 £11.39
220 - SPIRAL SPRING FEI-30901032003.A14 30901032003 £3.23 £3.88
230 - BOLT FEI-30217327003.A13 30217327003 £17.44 £20.93
240 - SEALING RING FEI-40612137008.A115 40612137008 £1.60 £1.92
250 - PUSHBUTTON FEI-32805185002.A25 32805185002 £2.69 £3.23
260 - BEARING PLATE FEI-32419115006.A22 32419115006 £44.60 £53.52
270 - SHAFT FEI-33406284009.A17 33406284009 £33.58 £40.29
280 - GROOVED BALL BEARING FEI-41701010054.A168 41701010054 £8.25 £9.90
290 - PLATE FEI-32416101009.A62 32416101009 £3.11 £3.73
305 - BEVEL GEAR Z=9/44 FEI-33809229012.A8 33809229012 £57.88 £69.46
320 - DISC FEI-32624117009.A22 32624117009 £1.60 £1.92
330 - CIRCLIP M4 FEI-42443003043.A187 42443003043 £1.60 £1.92
340 - FILLISTER HEAD SCREW FEI-43041023046.A43 43041023046 £1.60 £1.92
370 - INNER FLANGE FEI-63801182010.A112 63801182010 £14.88 £17.86
380 - THREADED FLANGE FEI-63802052000.A110 63802052000 £14.88 £17.86
390 - SAFETY HOOD FEI-31810258010.A15 31810258010 £33.45 £40.14
450 - GROOVED BALL BEARING FEI-41701007266.A31 41701007266 £10.67 £12.80
480 - SLIDE SWITCH FEI-32805156008.A5 32805156008 £2.76 £3.31
490 - STATOR FEI-51273001231.A1 51273001231 £103.33 £124.00
500 - SCREW FEI-43070017001.A27 43070017001 £1.60 £1.92
510 - CONTROL ROD FEI-32816055000.A3 32816055000 £3.29 £3.95
520 - CONTROL ROD FEI-32816052004.A4 32816052004 £2.73 £3.28
530 - FILLISTER HEAD SCREW FEI-43041039999.A88 43041039999 £1.60 £1.92
540 - SWITCH FEI-30701285000.A20 30701285000 £17.50 £21.00
550 - COVER FEI-31201100009.A23 31201100009 £9.43 £11.32
560 - PRESSURE PIECE FEI-31415082004.A26 31415082004 £1.60 £1.92
570 - CABLE GROMMET FEI-31413007007.A42 31413007007 £1.60 £1.92
580 - CABLE WITH PLUG FEI-30707336013.A3 30707336013 £19.38 £23.25
590 - HANDLE FEI-32119107016.A69 32119107016 £10.15 £12.18
912 - SEALING RING FEI-40612000007.A98 40612000007 £1.60 £1.92
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A484 32160003014 -
9020 - SAFETY INSTRUCTION FEI-34130054061.A275 34130054061 -
